VBD-024-060C2DM5i1(Class2) 5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 24V 60W

  • $113.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561426040
We only have 178 left! Get it now before it's completely gone.

FREE Shipping over $49 USD (Canada and US Only)


Product Description

Model VBD-024-060C2DM5i1
Input Voltage 100-277V AC
Input Current 0.9A
Frequency 50-60 Hz
Power Factor >0.95

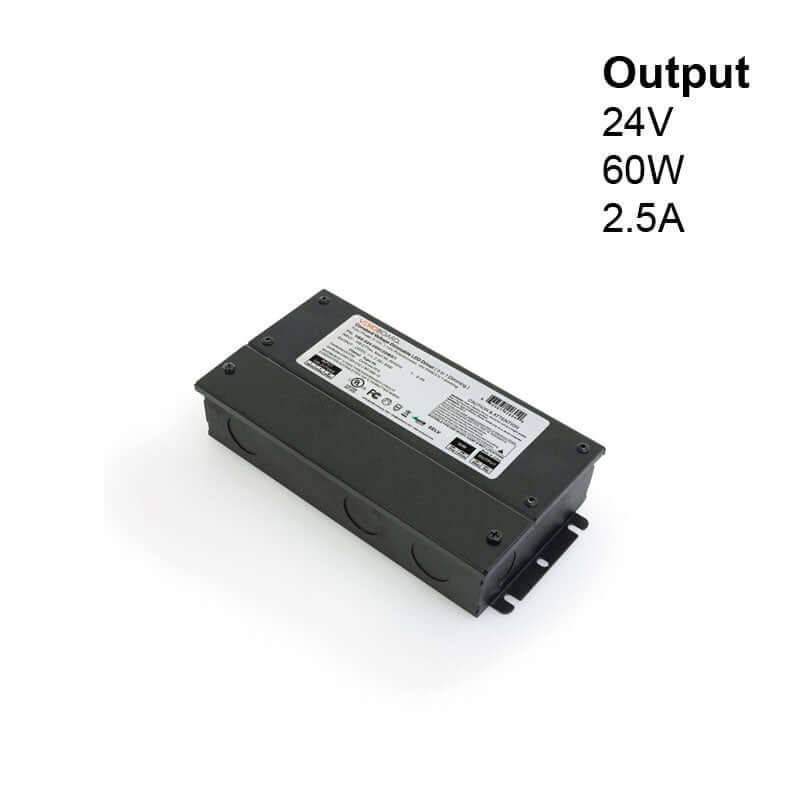

Output Voltage 24V DC
Output regulated Current 2.5A
Output Power 60W max
Dimmable Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM)
IP Rating IP67 (Dry, Damp and Wet Locations)

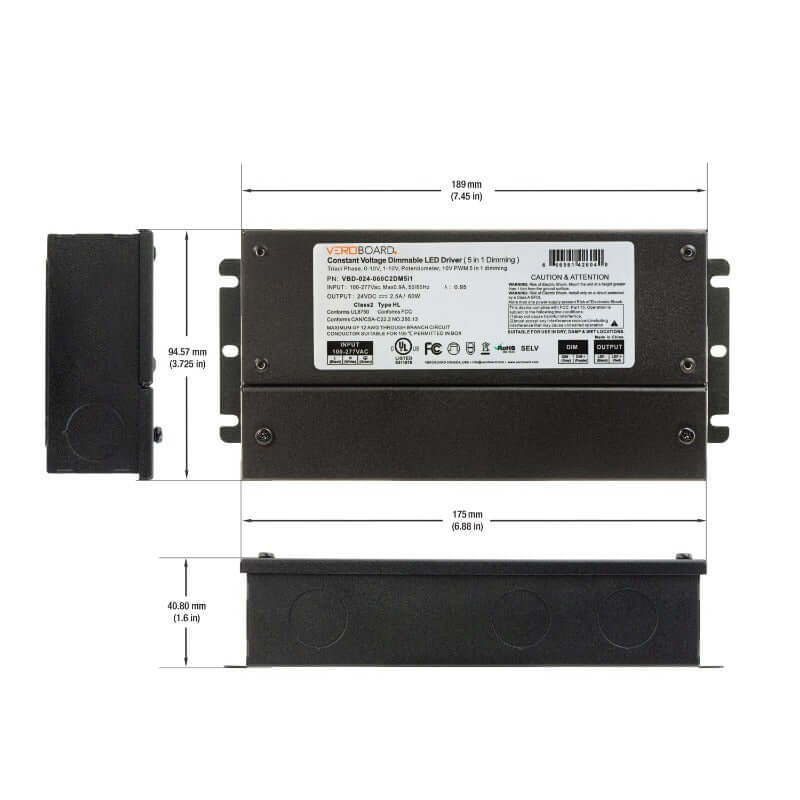

Dimensions  189mm x 94.57mm x 40.80mm (7.45in x 3.75in x 1.6 in)
Class Certification Class 2
Certifications:
Applicable for dry, damp, and wet locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers


The VBD-024-060C2DM5i1 LED driver is a 5-in-1 dimming driver with support for Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM dimming. It has an input voltage range of 100-277V AC with an input current of 0.9A and a frequency of 50-60Hz. The driver has an output voltage of 24V DC with a regulated output current of 2.5A and a maximum output power of 60W. It has a power factor of greater than 0.95 and is Class 2 certified. The driver is dimmable and has an IP rating of IP67, making it suitable for use in dry, damp, and wet locations. It has dimensions of 189mm x 94.57mm x 40.80mm (7.45in x 3.75in x 1.6 in) and is certified by UL and FCC.

Features:

  • 5-in-1 dimming driver with support for Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM dimming
  • Input voltage range of 100-277V AC, input current of 0.9A, and frequency of 50-60Hz
  • Output voltage of 24V DC, regulated output current of 2.5A, and maximum output power of 60W
  • Power factor of greater than 0.95 and Class 2 certified
  • Dimmable and has an IP rating of IP67, suitable for dry, damp, and wet locations
  • Dimensions of 189mm x 94.57mm x 40.80mm (7.45in x 3.75in x 1.6 in)
  • Certified by UL and FCC for safety and electromagnetic interference standards
