Product Description
| Model | VBD-024-080C2DM5i1 |
| Input Voltage | 100-277V AC |
| Input Current | 1.15A |
| Frequency | 50-60 Hz |
| Power Factor | >0.95 |

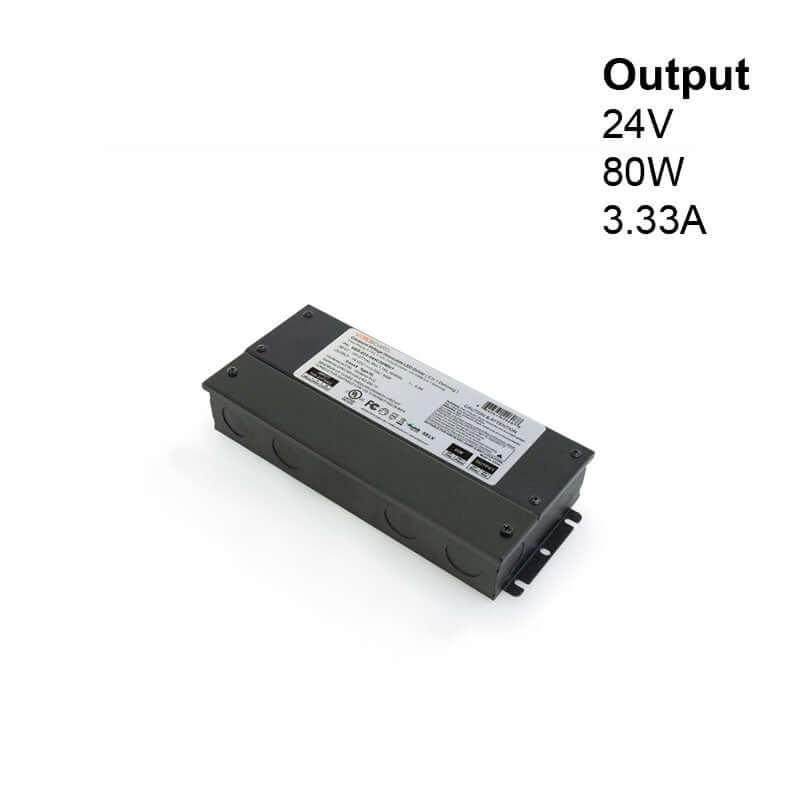

| Output Voltage | 24V DC |
| Output regulated Current | 3.33A |
| Output Power | 80W max |
| Dimmable | Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM) |
| IP Rating | IP67 (Dry, Damp and Wet Locations) |

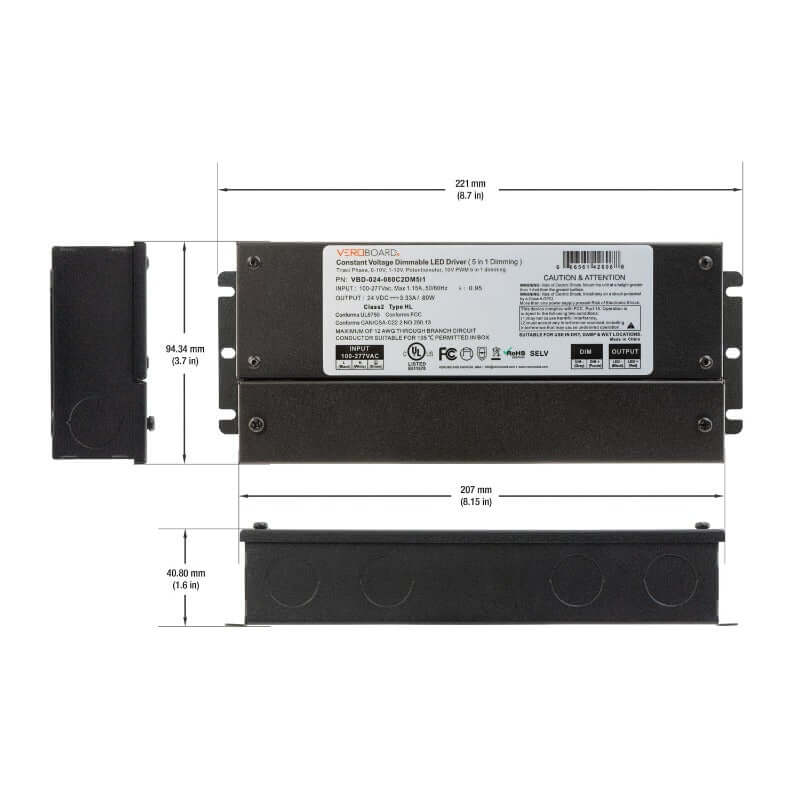

| Dimensions | 221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in) |
| Class Certification | Class 2 |
| Certifications: |    |
| Applicable for dry, damp, and wet locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
The VBD-024-080C2DM5i1 LED driver is a versatile dimming driver designed for use with LED lighting systems. It has an input voltage range of 100-277V AC, an input current of 1.15A, and a frequency of 50-60 Hz. The driver has a high power factor of greater than 0.95, indicating high power efficiency. It has an output voltage of 24V DC and can regulate output current up to 3.33A, with a maximum output power of 80W. The driver is dimmable, allowing for Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM dimming control.
The driver is rated IP67, making it suitable for use in dry, damp, and wet locations. It has dimensions of 221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in), making it a relatively compact driver. The driver is Class 2 certified, indicating it meets relevant safety standards. It is UL and FCC certified, indicating it meets relevant safety and electromagnetic interference standards. Overall, the VBD-024-080C2DM5i1 LED driver is a versatile and reliable option for powering and dimming LED lighting systems.
Features:
- Versatile dimming driver for LED lighting systems
- Input voltage range of 100-277V AC with an input current of 1.15A and frequency of 50-60 Hz
- High power factor of >0.95 for high power efficiency
- Output voltage of 24V DC with regulated output current up to 3.33A
- Maximum output power of 80W
- Dimmable with Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM dimming control
- Rated IP67 for use in dry, damp, and wet locations
- Dimensions of 221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in)
- Class 2 certified for safety in low voltage applications
- UL and FCC certified for electrical safety and electromagnetic interference standards
