VBD-024-288C2DM5i1(Class2 3x96W) 5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver 24V 288W

  • $319.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561426071
Title:
We only have 219 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Model VBD-024-288C2DM5i1
Input Voltage 100-277V AC
Input Current 3.4A
Frequency 50-60 Hz
Power Factor >0.95
Output Voltage 24V DC
Output regulated Current 3 X 4A
Output Power 288W max (3 x 96W)
Dimmable Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM)
IP Rating IP67 (Dry, Damp and Wet Locations)

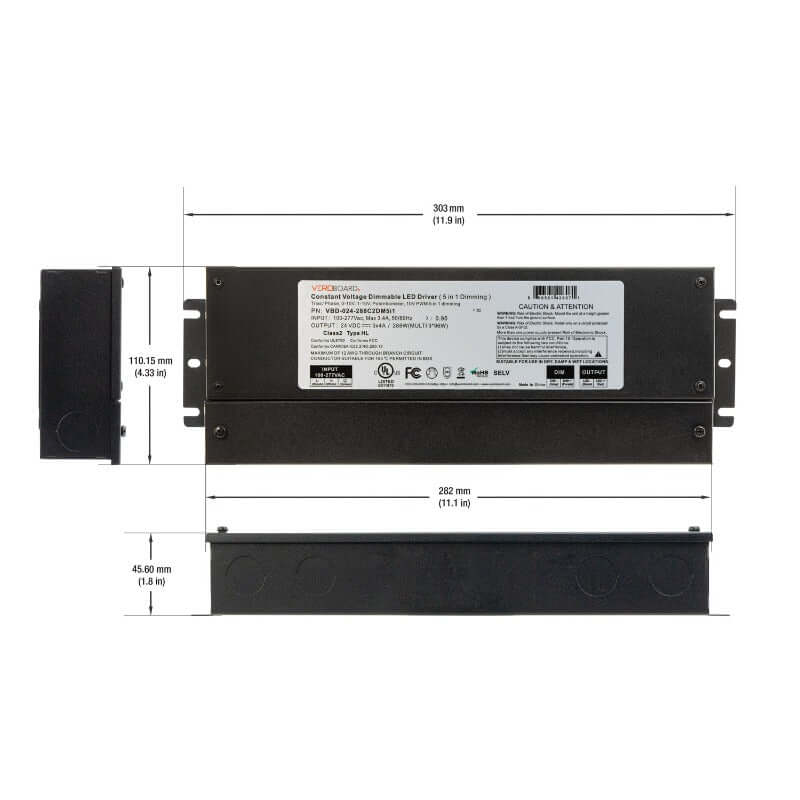

Dimensions  303mm x 110.15mm x 45.60mm (11.9in x 4.3in x 1.8in)
Class Certification Class 2
Certifications:
Applicable for dry, damp, and wet locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers



The VBD-024-288C2DM5i1 LED Driver is a 5 in 1 dimming driver designed to power and control LED lighting systems. It is capable of accepting input voltages between 100-277V AC and has a power factor of >0.95. The output voltage is regulated at 24V DC and can supply a maximum output power of 288W.

This LED driver is dimmable using multiple methods, including Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM, making it compatible with most dimming systems. It also has an IP67 rating, making it suitable for use in dry, damp, and wet locations.

The dimensions of the driver are 303mm x 110.15mm x 45.60mm (11.9in x 4.3in x 1.8in), and it is Class 2 certified, which means it meets certain safety standards for low voltage applications.

Features:

  • Model: VBD-024-288C2DM5i1 LED Driver
  • Input voltage: 100-277V AC
  • Power factor: >0.95
  • Output voltage: 24V DC
  • Maximum output power: 288W
  • Maximum power per output: 96W
  • Dimmable: Yes, with multiple methods including Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM
  • IP rating: IP67, suitable for dry, damp, and wet locations
  • Dimensions: 303mm x 110.15mm x 45.60mm (11.9in x 4.3in x 1.8in)
  • Certification: Class 2, meets safety standards for low voltage applications.
