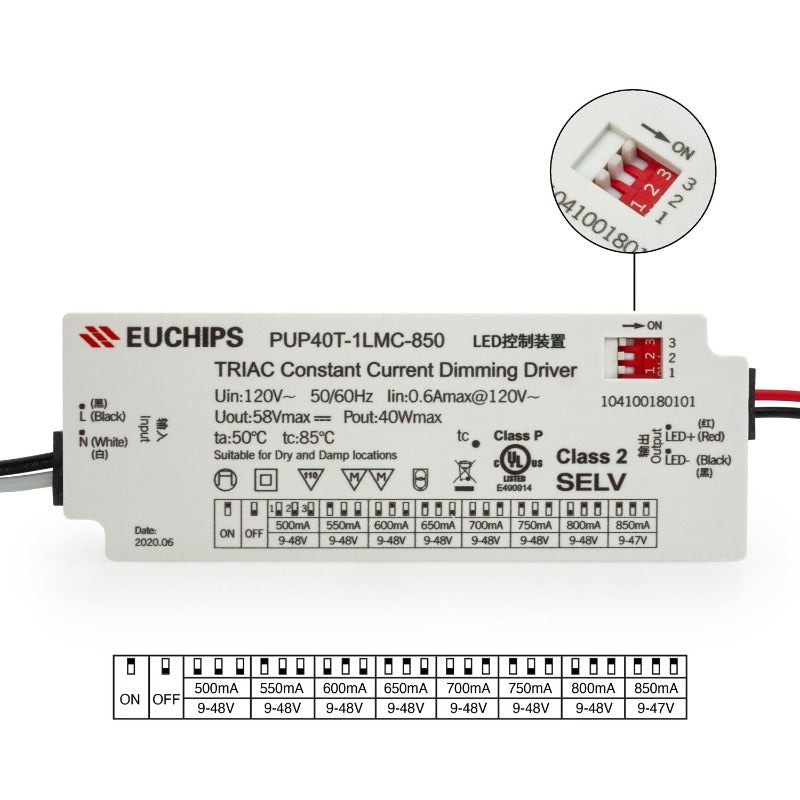

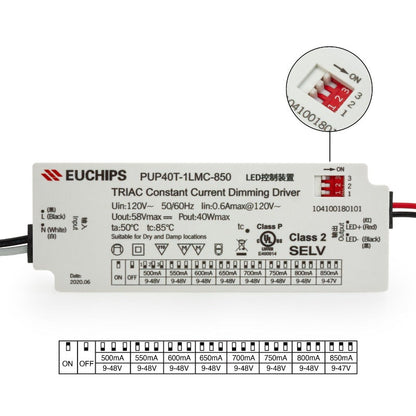

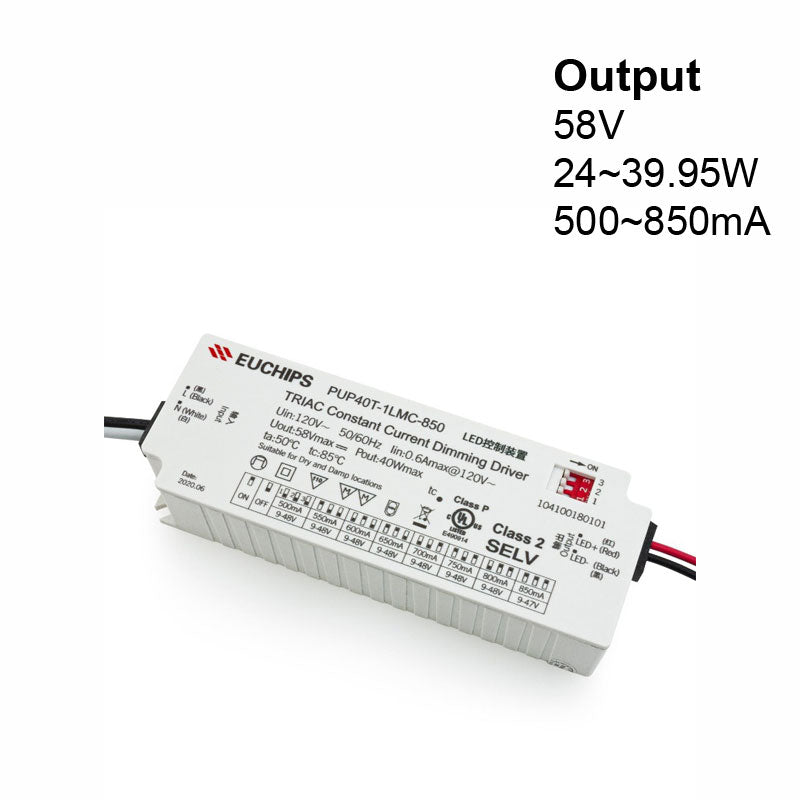

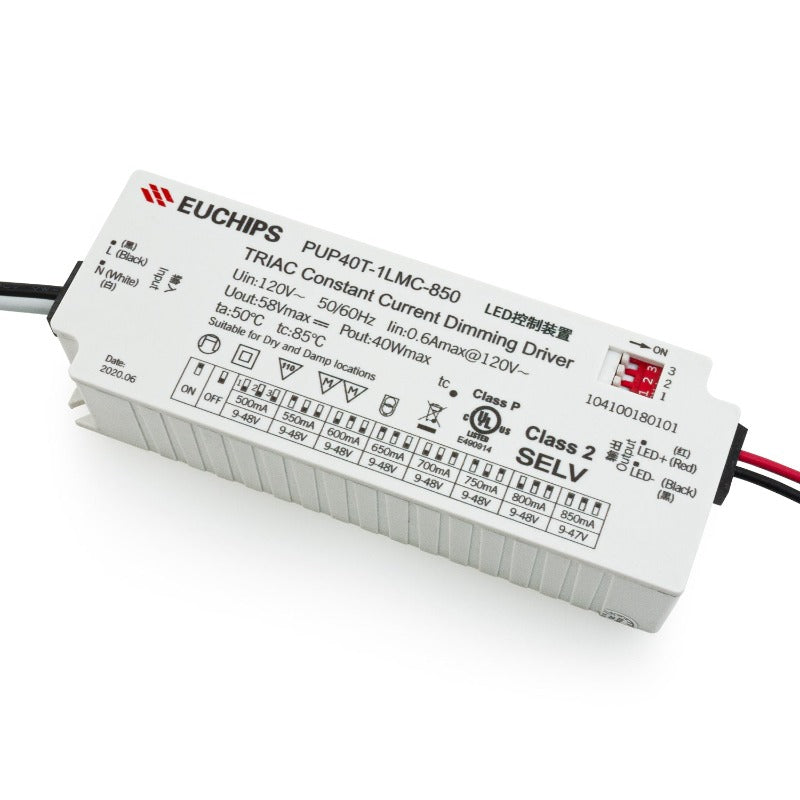

Selectable Constant Current 40W LED Driver Triac Dim PUP40T-1LMC-850 , 120V 500 to 850MA
Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | PUP40T-1LMC-850 |
| Input Voltage | 120V AC(108-132VAC) |
| Input Current (AC) | 0.6Amax@120VAC |
| Output Current/Voltage/Power |
500mA/9-48VDC/24W 550mA/9-48VDC/26.4W 600mA/9-48VDC/28.8W 650mA/9-48VDC/31.2W 700mA/9-48VDC/33.6W |
| No-load Output Voltage | 58V Max |
| Input Frequency | 50/60Hz |
| Dimming Type | Triac |
| Dimming Range | 5%-100% Dimming to off |
| IP Rating | IP20 (Dry and Damp Locations) |
| Efficiency | >84%@120VAC,850mA ,Full load >83%@120VAC,1200mA ,Full load |
| Working Temperature | -20℃~50℃ |
| Lifetime | 50,000h @ Tc:85℃ |

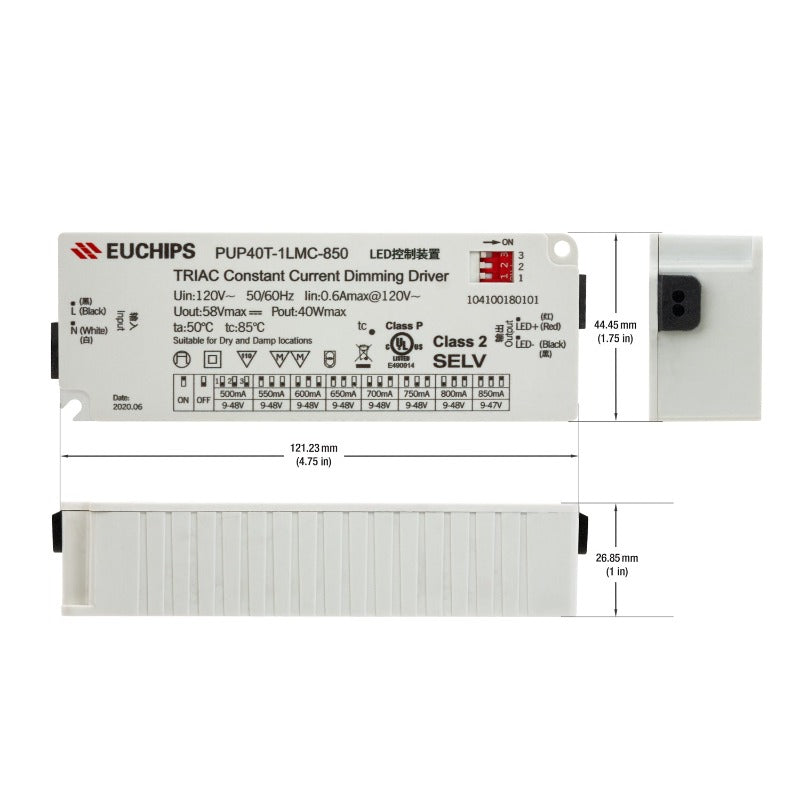

| Dimensions | 121 x 44 x 26.5mm (4.7 x 1.7 x 1in) |
| Certifications |   |
The PUP40T-1LMC-850 is a selectable constant current LED driver that operates on an input voltage of 120VAC, with an input current of 0.6A maximum. It is designed to provide a constant current output ranging from 500 to 850mA, with a corresponding output voltage range of 9-48VDC and a maximum power output of 40W.
This LED driver is designed with Triac dimming technology, which allows for smooth dimming from 5% to 100% and off. The driver is rated for use in both dry and damp locations with an IP20 rating. The efficiency of the driver is greater than 84% at 120VAC and 850mA, and greater than 83% at 1200mA.
The PUP40T-1LMC-850 LED driver has a maximum no-load output voltage of 58V and operates on a frequency of 50/60Hz. It has a working temperature range of -20℃ to 50℃, and a lifetime of up to 50,000 hours when operated at a maximum case temperature of 85℃. The dimensions of the driver are 121 x 44 x 26.5mm (4.7 x 1.7 x 1in).
Features:
- The PUP40T-1LMC-850 is a selectable constant current LED driver
- Operates on an input voltage of 120VAC
- Input current of 0.6A maximum
- Provides a constant current output ranging from 500 to 850mA
- Output voltage range of 9-48VDC
- Maximum power output of 40W
- Designed with Triac dimming technology
- Smooth dimming from 5% to 100% and off
- Rated for use in dry and damp locations with an IP20 rating
- Efficiency greater than 84% at 120VAC and 850mA
- Efficiency greater than 83% at 1200mA
- Maximum no-load output voltage of 58V
- Operates on a frequency of 50/60Hz
- Working temperature range of -20℃ to 50℃
- Lifetime of up to 50,000 hours when operated at a maximum case temperature of 85℃
- Dimensions: 121 x 44 x 26.5mm (4.7 x 1.7 x 1in)
