5W LED Square Ultrathin Cabinet Lights Surface Mounted 3000K(Warm White)

  • $26.99 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561410858
Title:
We only have 238 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).



Product Description

Product Cabinet Lighting/ Cabinet Puck Lights
Model 20877-SG-WW
Input Voltage 12V
Wattage  5W
Color temperature 3000K (Warm White)
Rendering Index CRI>80
IP Rating IP20
Wire Length 3ft (92cm) 22AWG

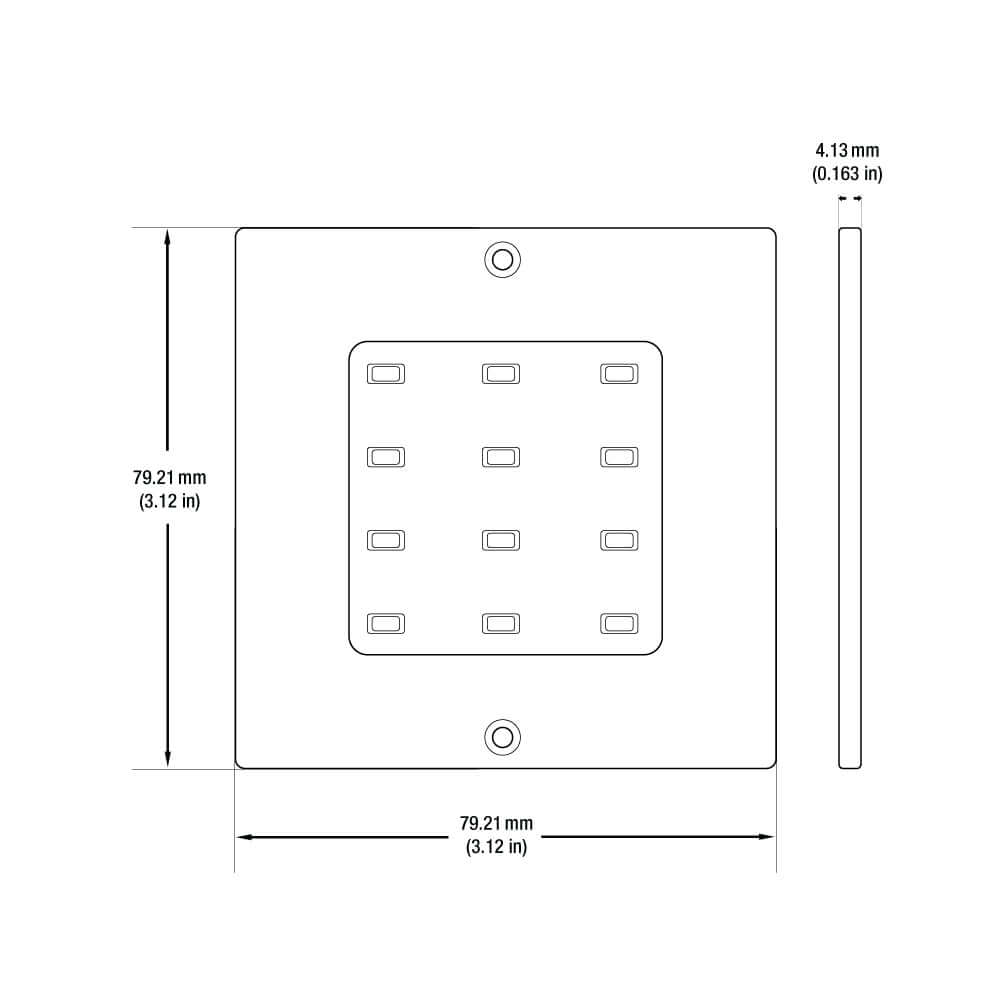

Dimensions Length - 79mm (3.11 inches)
Width - 79mm (3.11 inches)
Depth - 4mm (0.16 inch)
Certification


The 5W LED Square Ultrathin Cabinet Lights are designed for surface mounted installation and are commonly used in wardrobes, cabinets, and shelves of modern kitchens. The model number for these lights is 20877-SG-WW, and they operate at 12V with a wattage of 5W. The color temperature for these lights is 3000K (Warm White), which creates a comfortable and inviting atmosphere.

The housing for these lights is made of aluminum, which helps with heat dissipation, provides a long life-span, and low light decay. These lights are also environmentally friendly and RoHS compliant. They have a CRI rating of >80 and meet Canadian and United States standards with UL STD. C22.2.

The dimensions of these lights are 79mm (3.11 inches) in length and width, and 4mm (0.16 inch) in depth, making them ultra-thin and easy to install in tight spaces. These lights are rated IP20 for dry and damp locations, and they come with 3 feet of wire AWG 22.

The 5W LED Square Ultrathin Cabinet Lights can be directly screwed onto the surface, and with a depth of only 0.16 inches, they look more like a flush mount. These lights are also dimmable, but the dimmer control must have the same input rating as the dimmable power supply driver it connects to. Other low voltage dimmers are also compatible.

These lights are a good replacement for halogen light fixtures, and they can hide holes with a cut size smaller than the distance between two screw points, which is 2.64 inches. Depending on the wattage of the transformer, any number of lights can go on one switch. Additionally, a step-down transformer to line voltage is available in both hardwire and plugin options.

Features:

  • Designed for surface mounted installation
  • Operates at 12V with a wattage of 5W
  • Color temperature of 3000K (Warm White)
  • Made of aluminum with good heat dissipation and low light decay
  • Environmentally friendly and RoHS compliant
  • CRI rating of >80 and meet Canadian and United States standards with UL STD. C22.2
  • Dimensions of 79mm (3.11 inches) in length and width, and 4mm (0.16 inch) in depth
  • Rated IP20 for dry and damp locations
  • Comes with 3 feet of wire AWG 22 for easy installation
  • Can be directly screwed onto the surface and look more like a flush mount with a depth of only 0.16 inches
  • Dimmable, but the dimmer control must have the same input rating as the dimmable power supply driver it connects to
  • Good replacement for halogen light fixtures and can hide holes with a cut size smaller than the distance between two screw points (2.64 inches)
  • Depending on the wattage of the transformer, any number of lights can go on one switch
  • Step-down transformer to line voltage available in both hardwire and plugin options
