6.3 inch Round Disc LED Module TR16020-T, 120V 20W 3CCT(3K, 4K, 5K)
6.3 inch Round Disc LED Module TR16020-T, 120V 20W 3CCT(3K, 4K, 5K)
SKU: SKU:666561433598
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Product | LED Module |
| Model No | TR16020-T |
| No of LEDs | 56 |
| Wattage | 20W |
| Voltage | 120V AC |
| Luminous Flux | 1700 lumens @5000K |
| Color Temperature | Selectable 3CCT 3000K (Warm White) 4000K (Natural White) 5000K (Daylight) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum (Metallic Base) |
| Package Components | LED Module Thermal Silicon Pad 10 inch Black and White power feed |
|

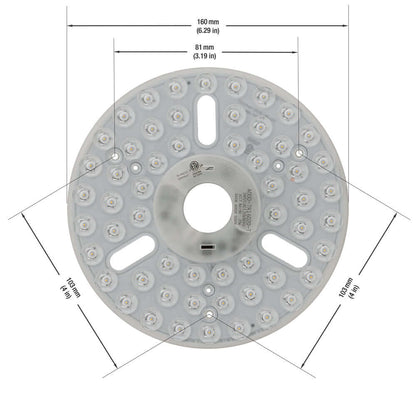

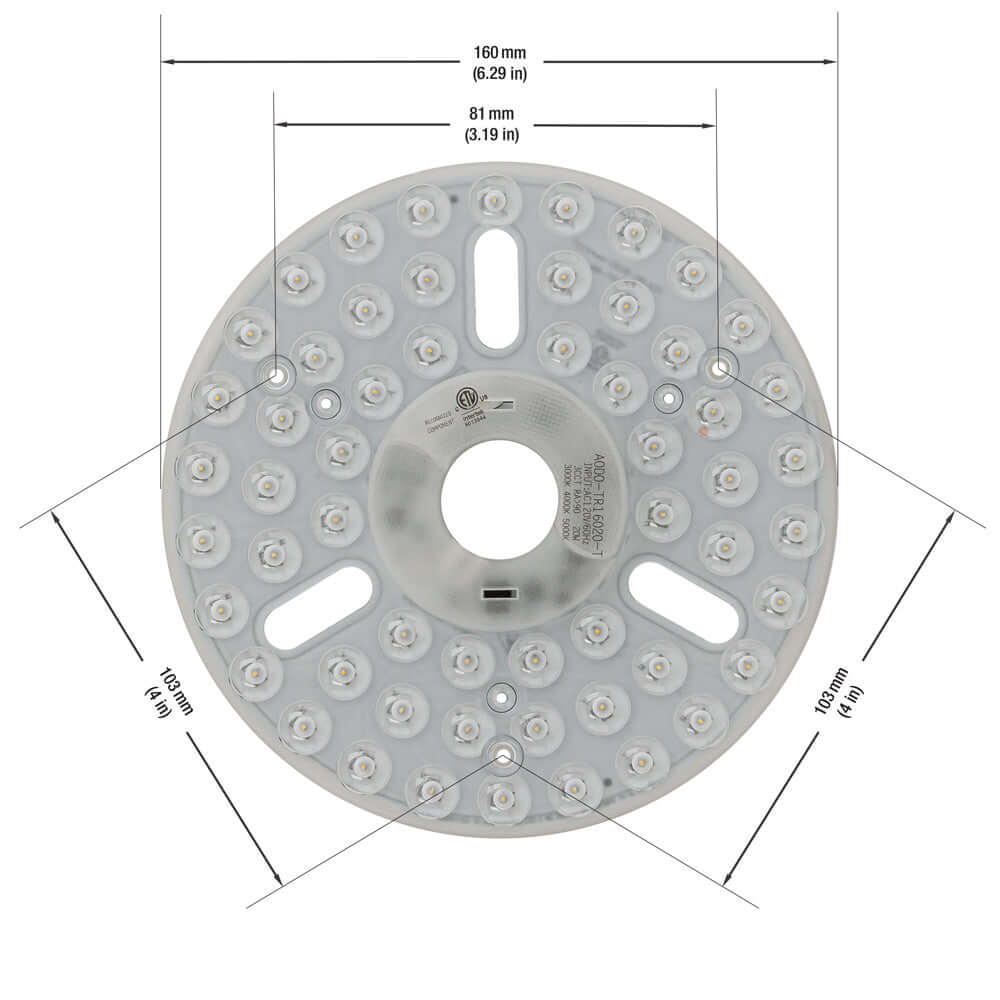

Outer Diameter |
∅160mm (6.3 in) |
| Distance between Screw holes | ∅103 mm (4 in) |
| Height | 16.5mm (0.65 in) |
| Certification |   |
Note: To select the desired color temperatures, quickly turn the light off and on. To retain the selected color temperatures, ensure you turn the light on again at least 5 to 10 seconds later.

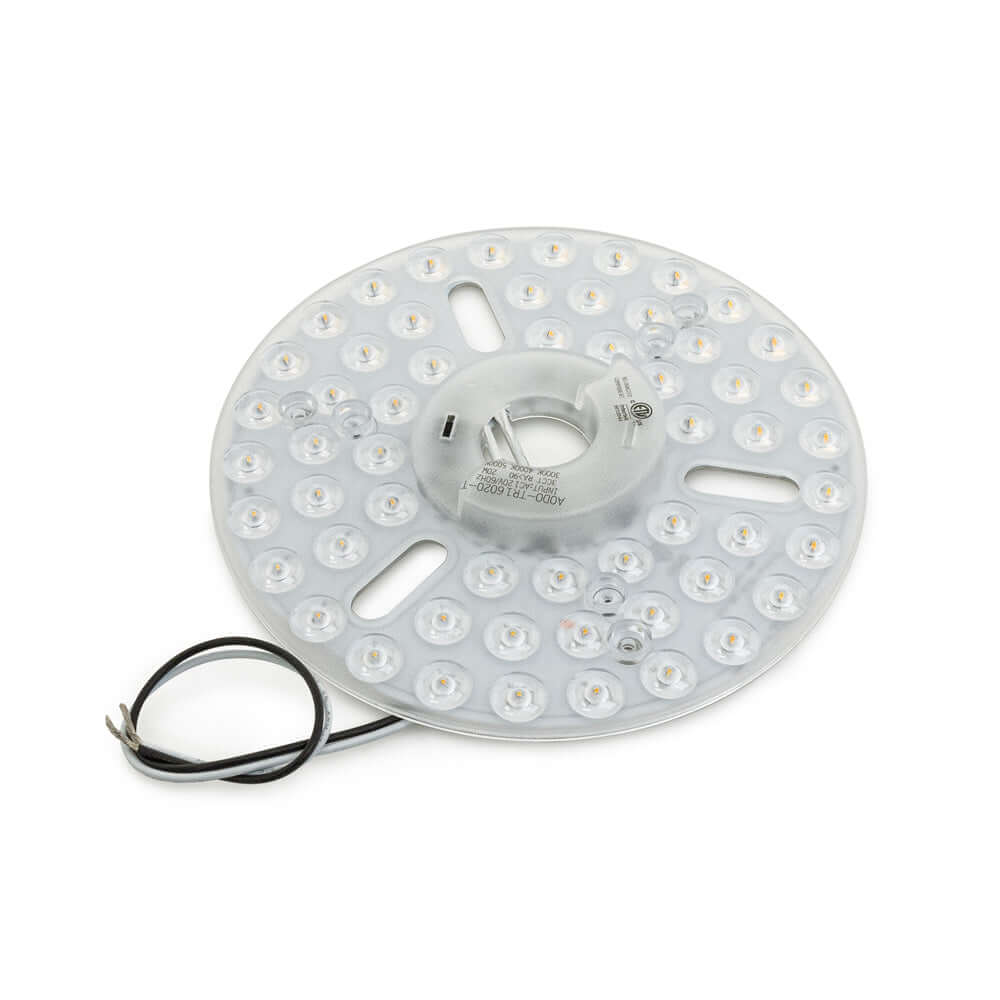

The TR16020-T LED Module is an excellent lighting solution that offers superior quality and energy efficiency. This module features 56 high-quality LEDs, producing a powerful 1700 lumens with a selectable color temperature of 3000K, 4000K, 5000K, making it perfect for a wide range of general lighting applications.
With a power consumption of 20W and a high energy efficiency, this LED module saves on energy costs while providing excellent illumination. It operates on a voltage of 120V AC and is dimmable, providing greater flexibility in lighting control.
Constructed with an aluminum (metallic base) material, this LED module features an outer diameter of ∅160mm (6.3 in), making it compact and easy to install. It also includes a thermal silicon pad and a 10-inch black and white power feed for added convenience.
Features:
- 56 high-quality LEDs that produce 1700 lumens with a selectable color temperature (3CCT)
- Power consumption of 20W and high energy efficiency that saves on energy costs
- Operates on a voltage of 120V AC and is dimmable for greater flexibility in lighting control

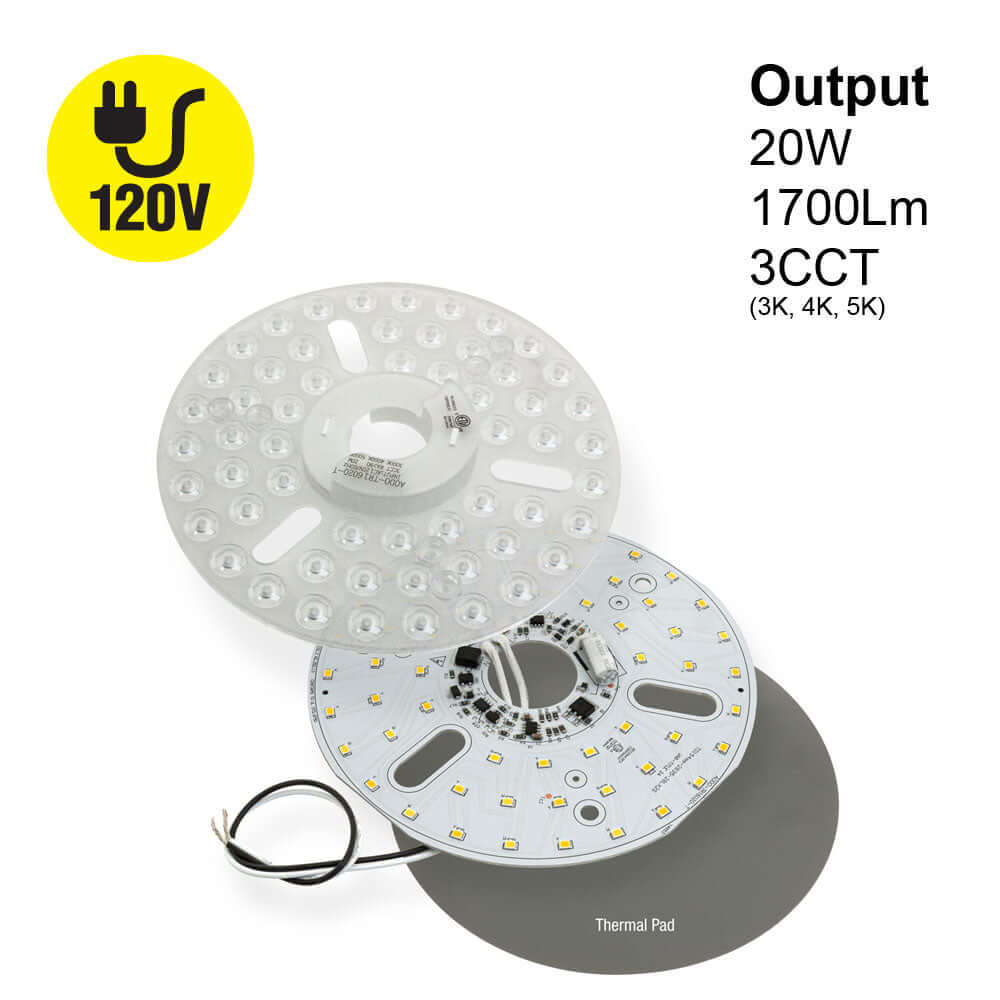

- Includes a thermal silicon pad and a 10-inch black and white power feed for added convenience
- etl certified, ensuring that it meets high safety and quality standards
- High rendering index of CRI>90, making colors appear more vibrant and true-to-life
- Ideal for a wide range of general lighting applications due to its superior quality, energy efficiency, and flexibility
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.

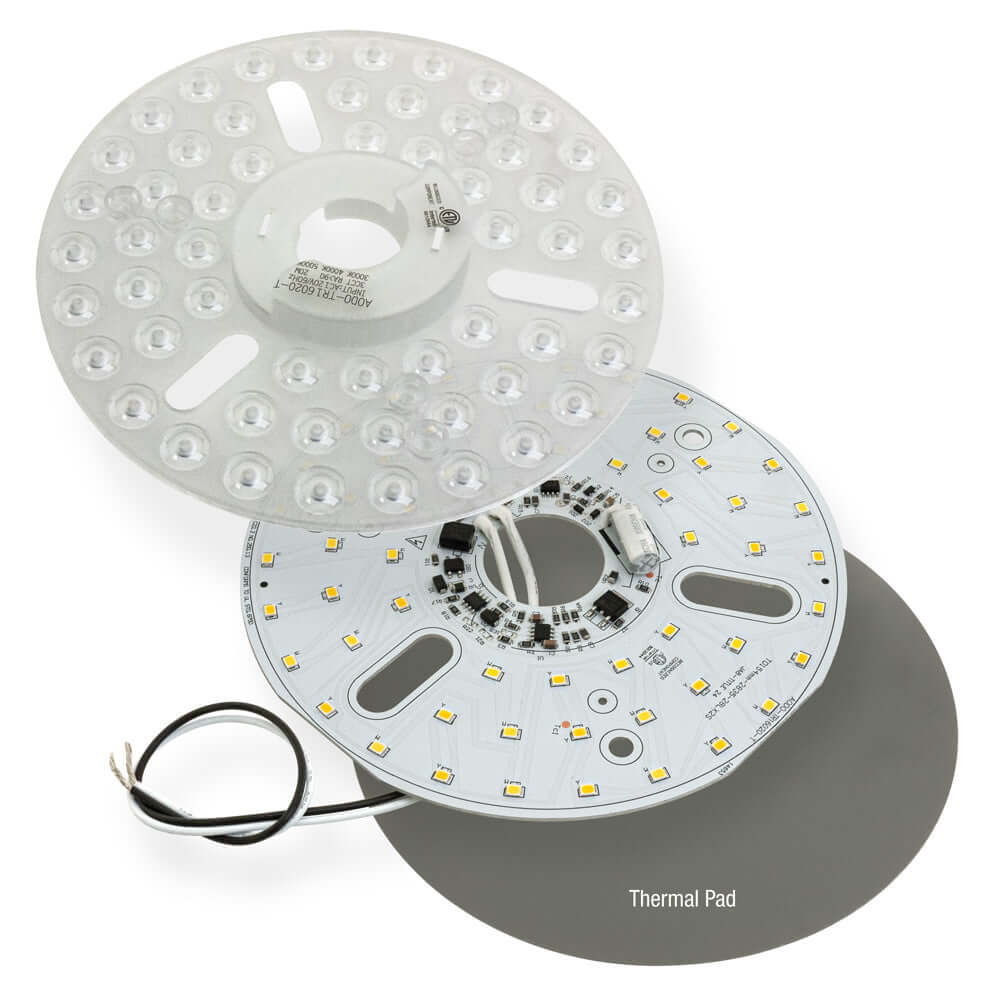

- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
