6.6 inch Round Disc LED Module TR17032-2S-T, 120V 32W 3000K(Warm White)
Product Description
| Product | LED Module |
| Model No | TR17032-2S-T |
| No of LEDs | 84 |
| Wattage | 32W |
| Voltage | 120V AC |
| Luminous Flux | 3000 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum (Metallic Base) |

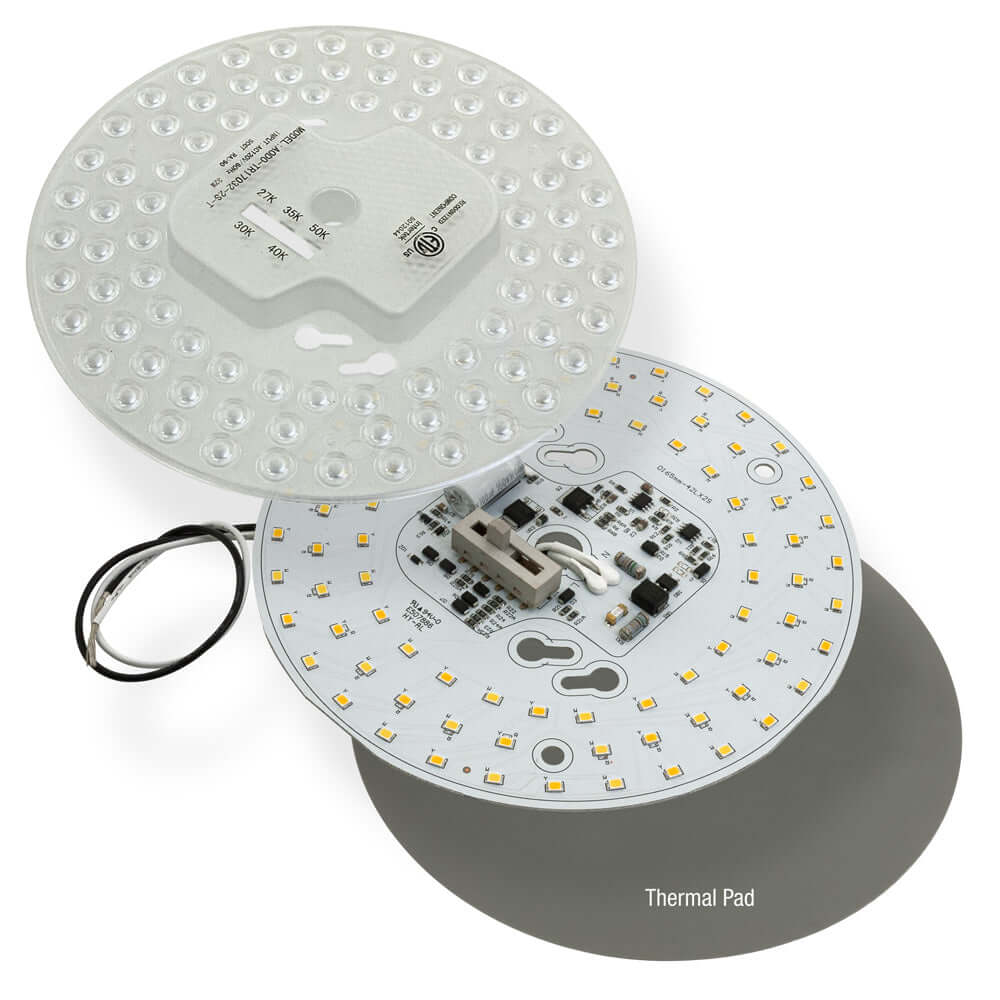

| Package Components | LED Module Thermal Silicon Pad 10 inch Black and White power feed |
|

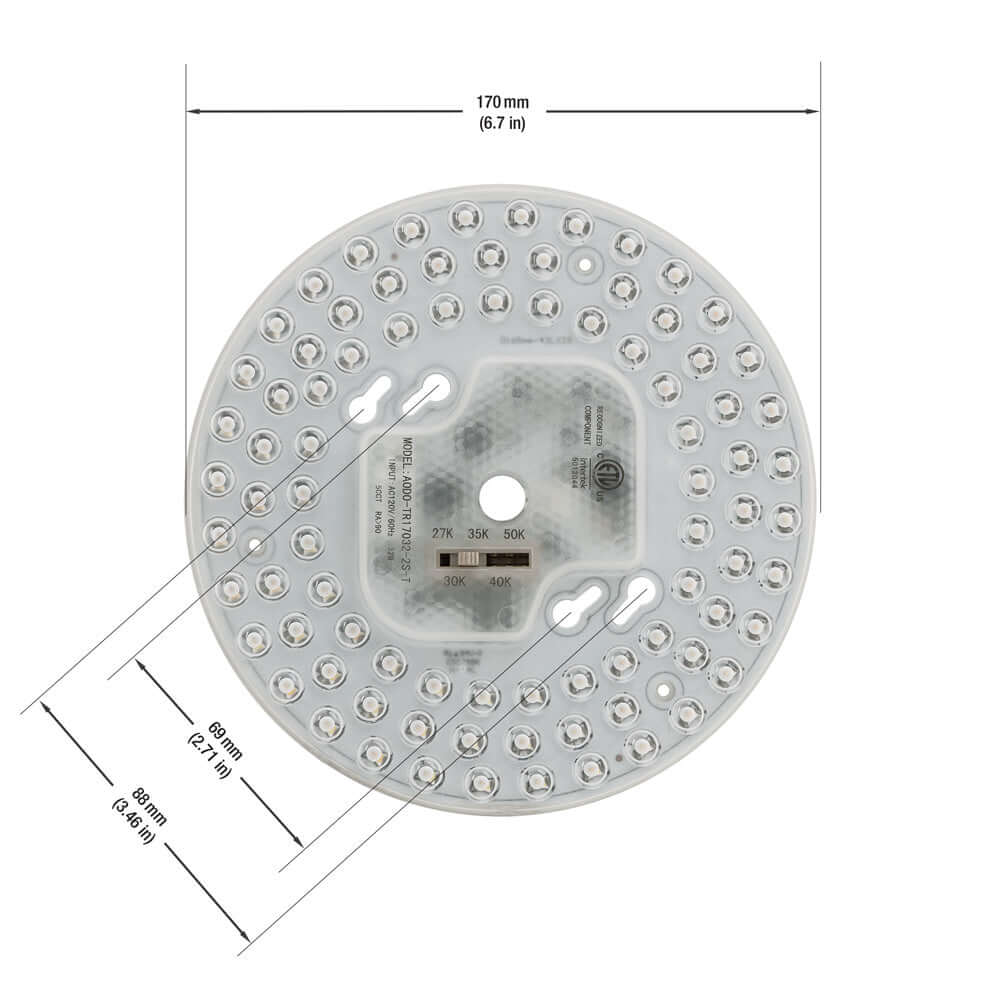

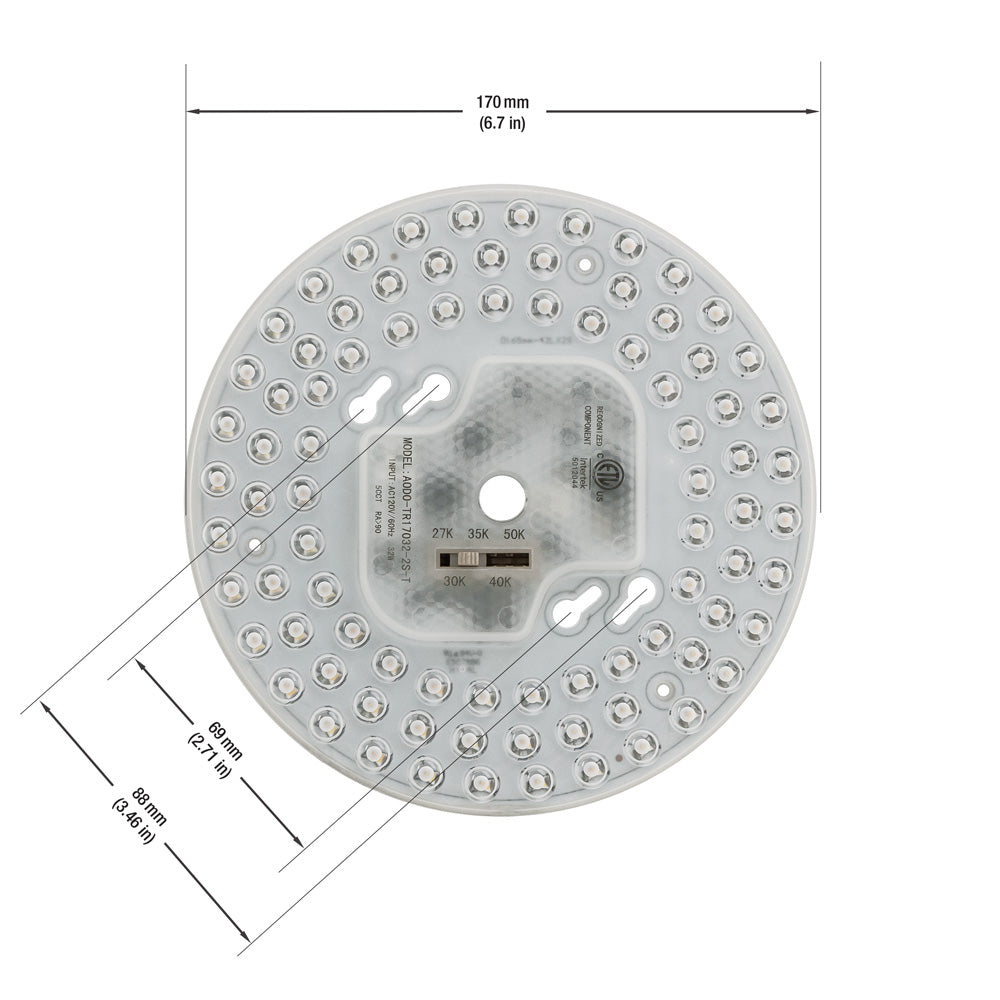

Outer Diameter |
∅170mm (6.7 in) |
| Distance between Screw holes | ∅88 mm (3.4 in) ∅69 mm (2.7 in) |
| Height | 16.5mm (0.65 in) |
| Certification |  |
The TR17032-2S-T LED Module is an excellent lighting solution that offers superior quality and energy efficiency. This module features 84 high-quality LEDs, producing a powerful 3000 lumens of warm white light with a color temperature of 3000K making it perfect for a wide range of general lighting applications.
With a power consumption of 32W and a high energy efficiency, this LED module saves on energy costs while providing excellent illumination. It operates on a voltage of 120V AC and is dimmable, providing greater flexibility in lighting control.
Constructed with an aluminum (metallic base) material, this LED module features an outer diameter of ∅170mm (6.7 in), making it compact and easy to install. It also includes a thermal silicon pad and a 10-inch black and white power feed for added convenience.
Features:
- 84 high-quality LEDs that produce 3000 lumens of warm white light with a color temperature of 3000K
- Power consumption of 32W and high energy efficiency that saves on energy costs
- Operates on a voltage of 120V AC and is dimmable for greater flexibility in lighting control
- Includes a thermal silicon pad and a 10-inch black and white power feed for added convenience
- etl certified, ensuring that it meets high safety and quality standards
- High rendering index of CRI>90, making colors appear more vibrant and true-to-life
- Ideal for a wide range of general lighting applications due to its superior quality, energy efficiency, and flexibility
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
