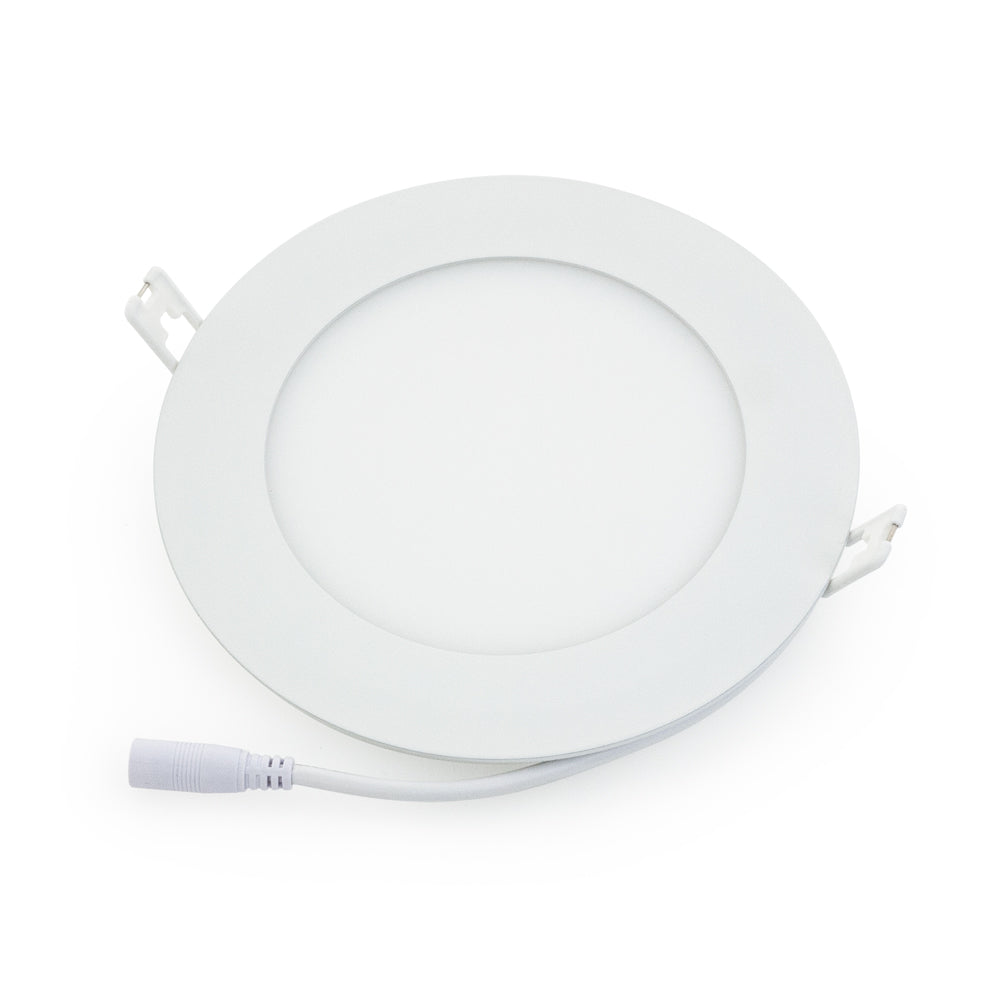

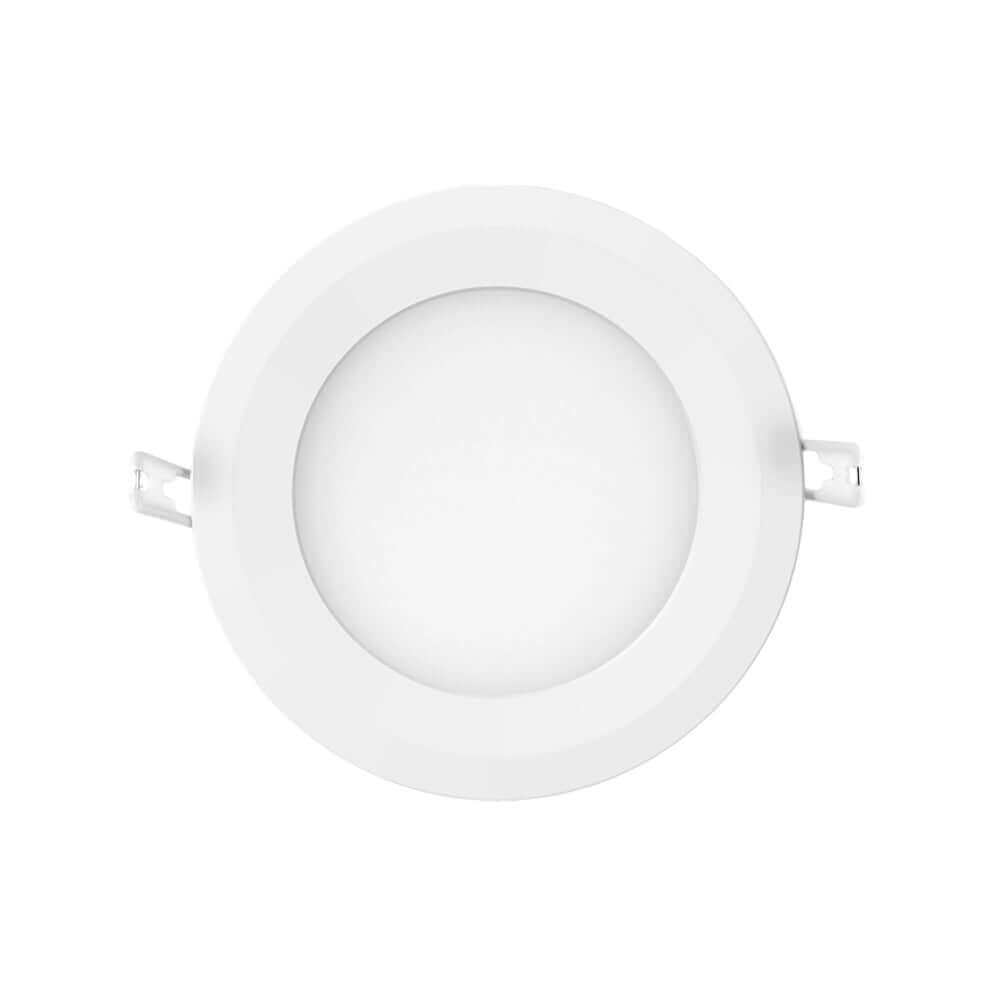

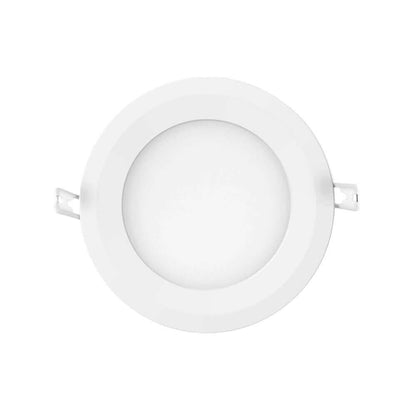

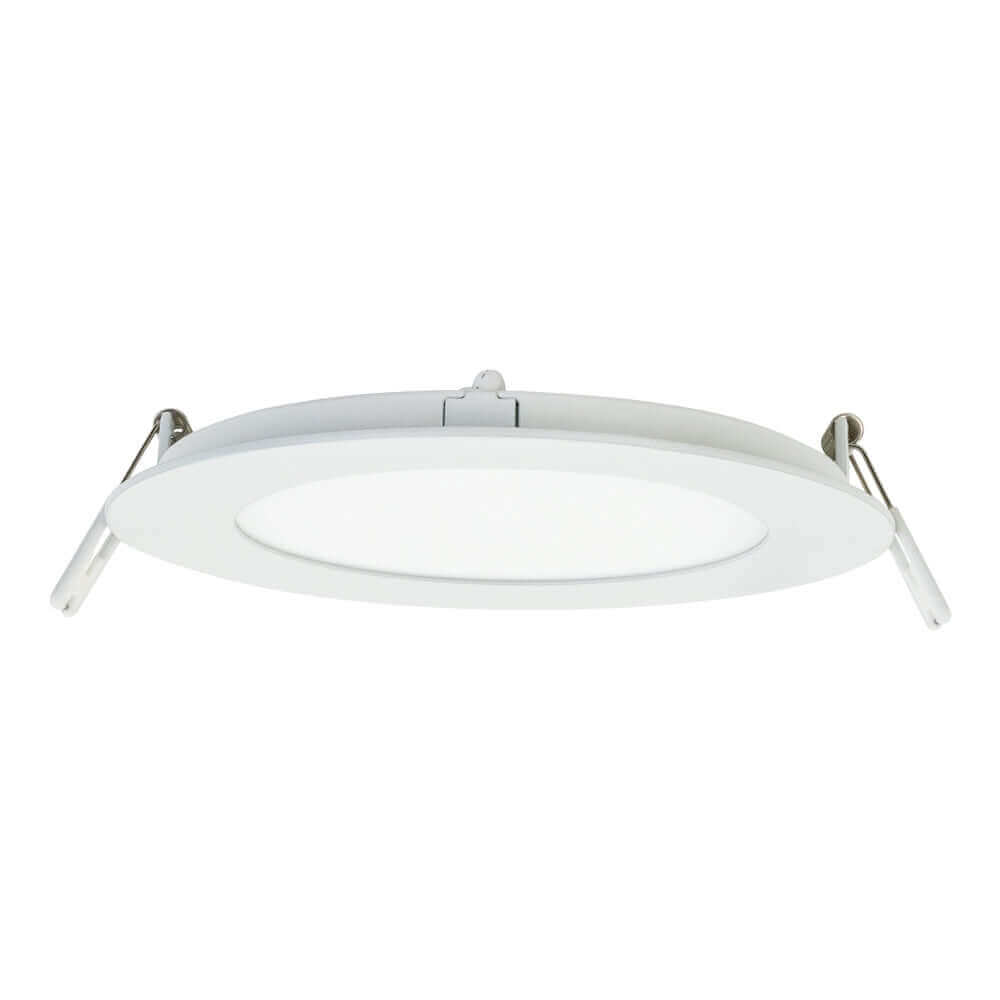

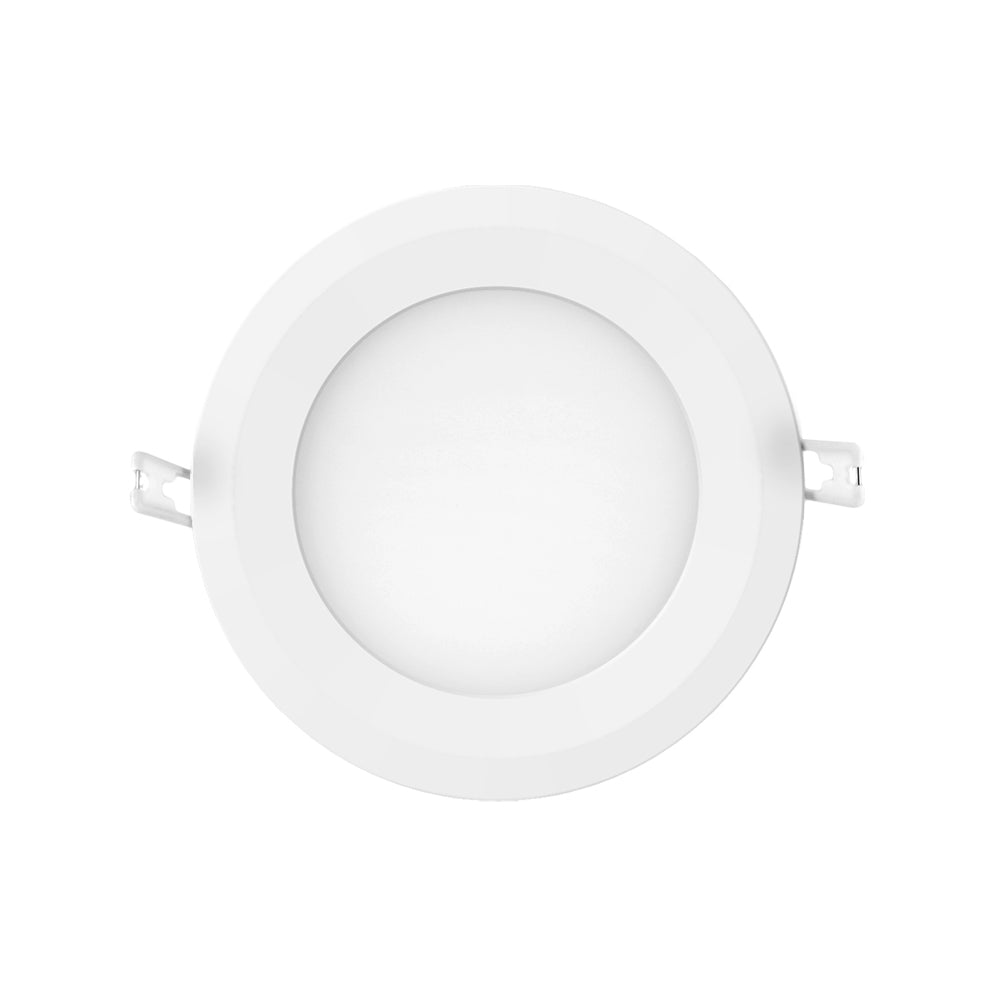

6 inch Dimmable Recessed Low Voltage Downlights/ Ceiling Lights 12V 14W CCT(3K, 6K)
Product Description
| Product | Downlights/ Ceiling Lights |
| Model No | PA3C06 |
| Operating Voltage | 12V DC |
| Wattage | 14W |
| LED Quality | 72 |
|
Input current |
960 mA |

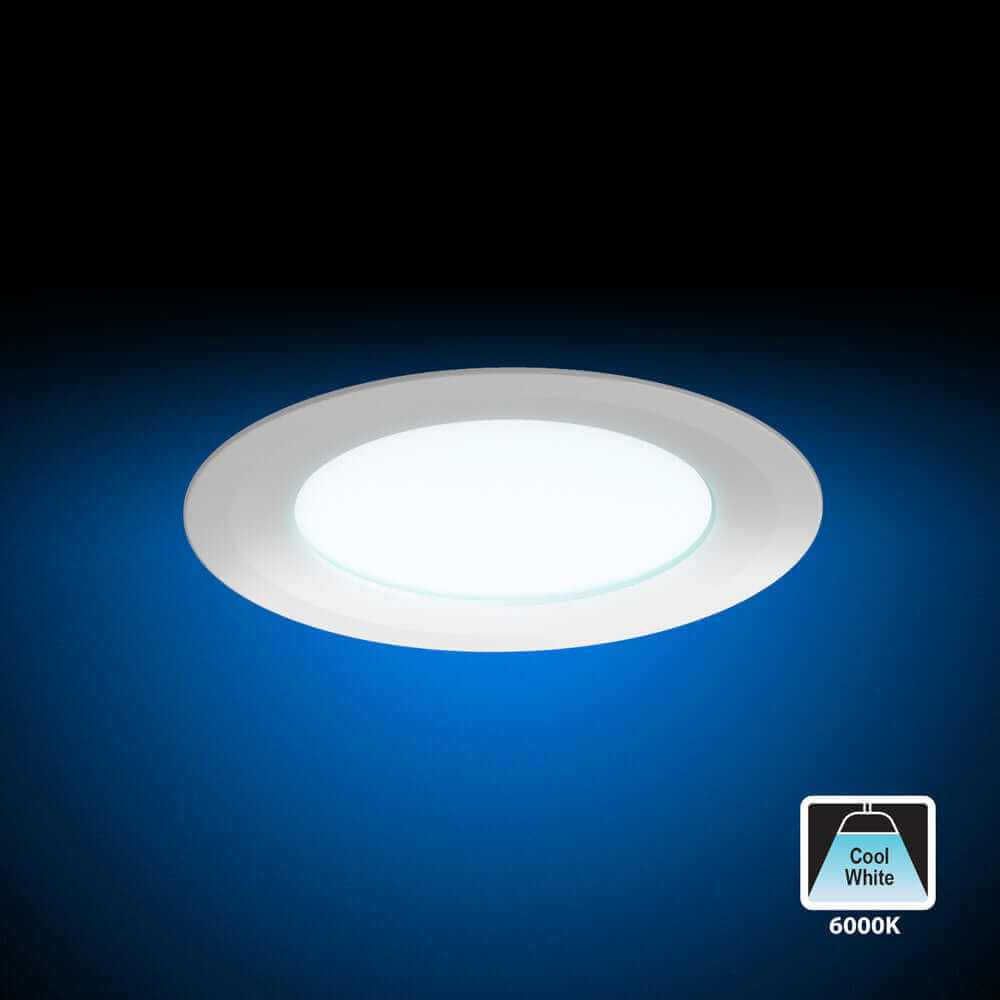

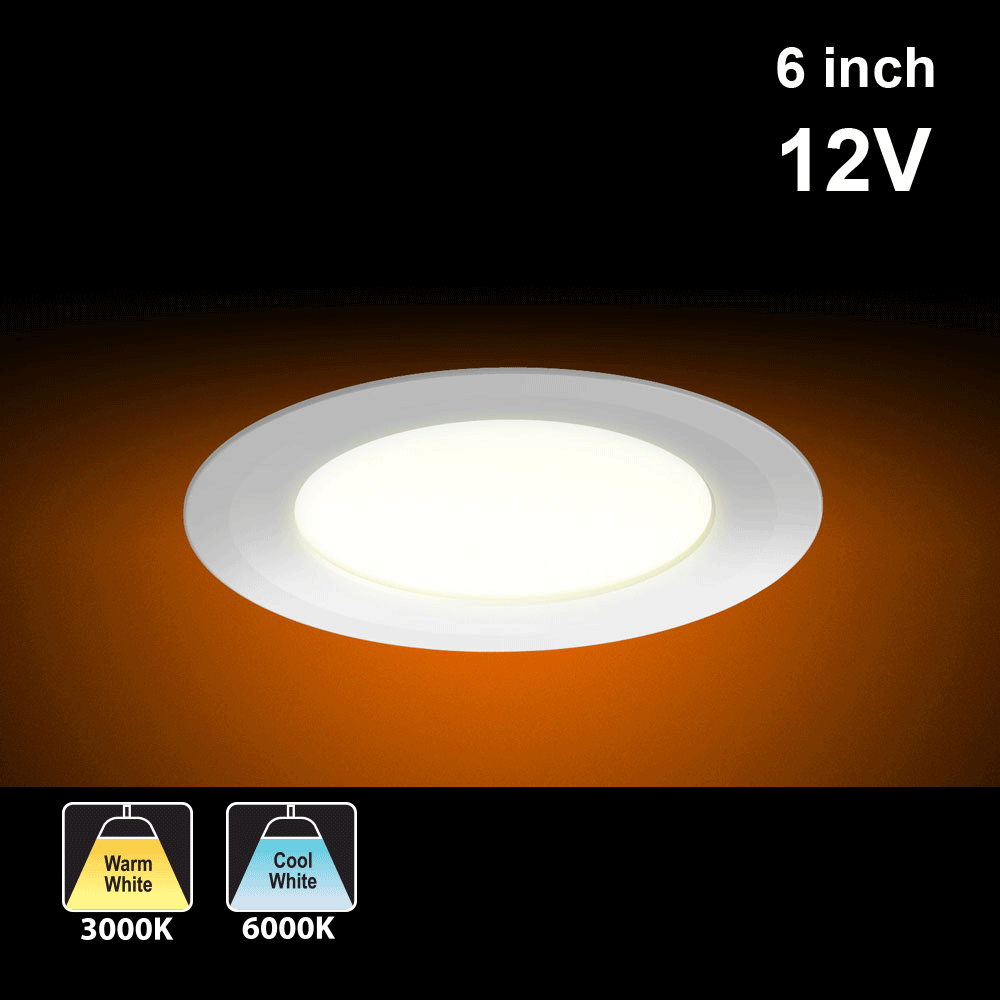

| Available Color Temperature | 3000K (Warm White), 6000K (Cool White) |
| Body Color | White |
| Beam Angle | 110° |
| Luminous Flux | 630-640 lumens |
| IP Rating | IP20 (Indoor rated) |
| Dimmable | Yes |
| Wire Length | 50cm (19.6in) 20AWG |
| Dimensions |
Ø173 mm (6.81 inches) Depth: 26 mm (1 inch) |
| Cut Size | Ø160 mm (6.3 inches) |
| Certification |
|
The 6 inch Recessed Low Voltage Downlights/Ceiling Lights model PA3C06 is a 14W LED light with an operating voltage of 12V DC. It has 72 LED bulbs and an input current of 960 mA. This downlight comes in two available color temperatures: 3000K (Warm White) and 6000K (Cool White). The body of the downlight is white and has a beam angle of 110°, with a luminous flux of 630-640 lumens. It is dimmable and has a wire length of 50cm (19.6in) 20AWG.

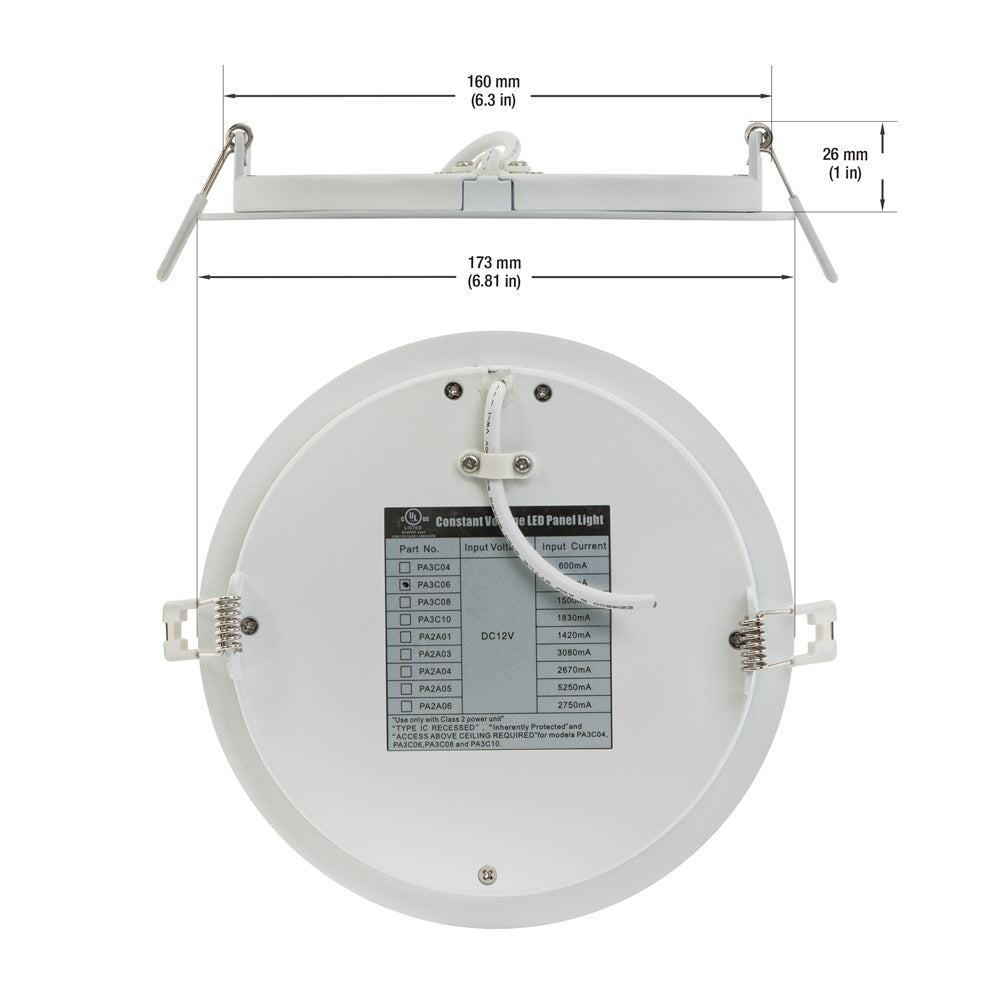

The downlight has dimensions of Ø173 mm (6.81 inches) and a depth of 26 mm (1 inch), with a cut size of Ø160 mm (6.3 inches). It has an IP rating of IP20, which means it is suitable for indoor use in both dry and damp environments. The downlight is certified by ul and is suitable for use in both residential and commercial indoor spaces.
Additionally, this downlight can be used directly on 12V power for automobile roof lighting, such as boat ceilings, auto car ceiling roof lights, and RVs. Its low clearance makes it well-suited for low to medium ceiling heights in various indoor applications, including living areas, dining areas, kitchens, bedrooms, hallways, and bathrooms. The Warm White and Cool White color temperatures provide options for different lighting needs.
Features:
- The 6 inch Recessed Low Voltage Downlights/Ceiling Lights model PA3C06 is a 14W LED light with an operating voltage of 12V DC.
- It has 72 LED bulbs and an input current of 960 mA.
- Available in two color temperatures: 3000K (Warm White) and 6000K (Cool White), with a beam angle of 110° and a luminous flux of 630-640 lumens.
- The downlight is dimmable and has a wire length of 50cm (19.6in) 20AWG.
- It has a white body with dimensions of Ø173 mm (6.81 inches) and a depth of 26 mm (1 inch), and a cut size of Ø160 mm (6.3 inches).
- It has an IP20 rating, making it suitable for indoor use in both dry and damp environments.
- Certified by UL, the downlight is suitable for use in both residential and commercial indoor spaces.
- Suitable for low to medium ceiling heights in various indoor applications, including living areas, dining areas, kitchens, bedrooms, hallways, and bathrooms.
- The Warm White and Cool White color temperatures provide options for different lighting needs.
- Additionally, this downlight can be used directly on 12V power for automobile roof lighting, such as boat ceilings, auto car ceiling roof lights, and RVs.
