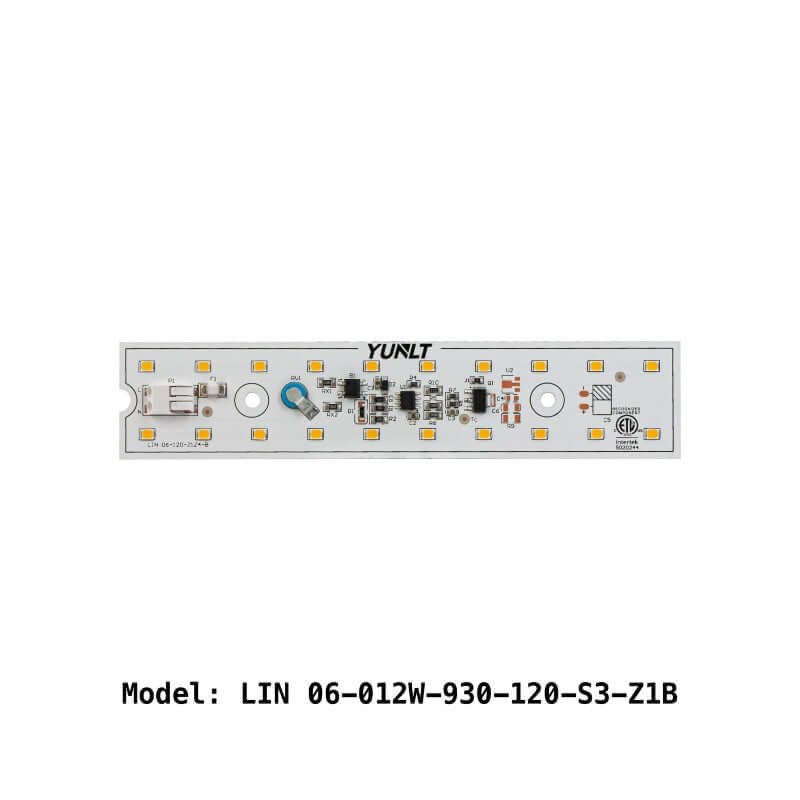

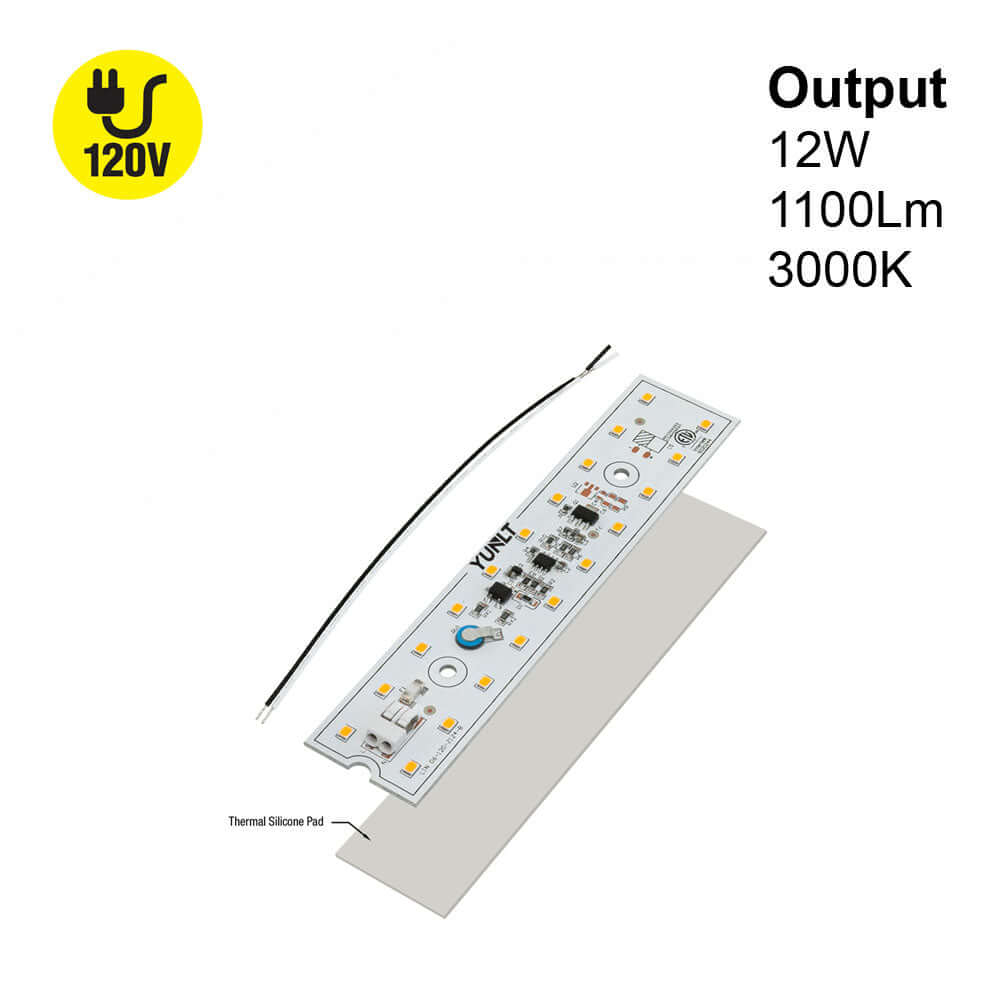

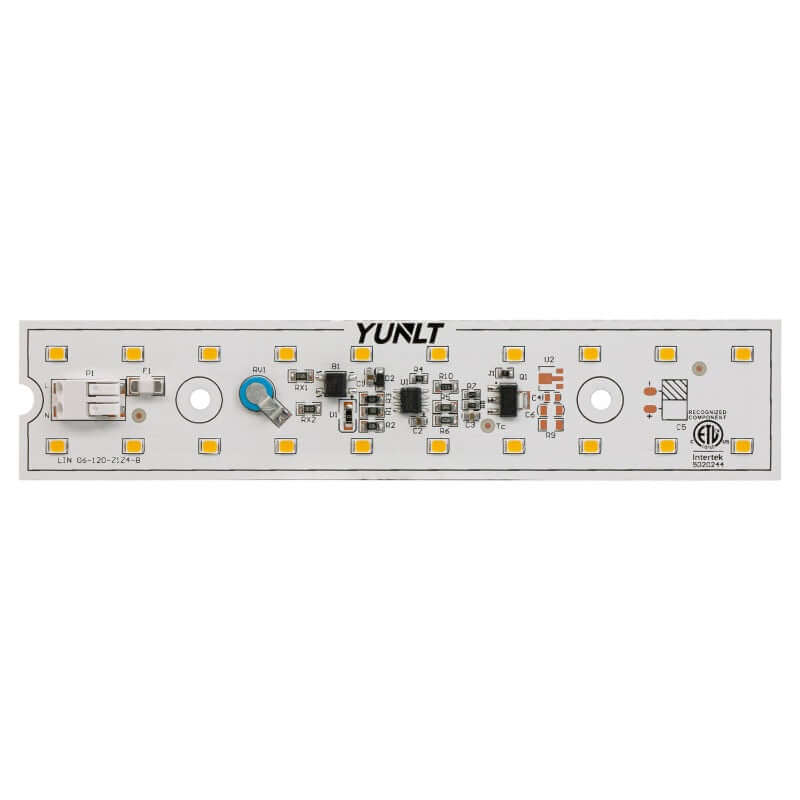

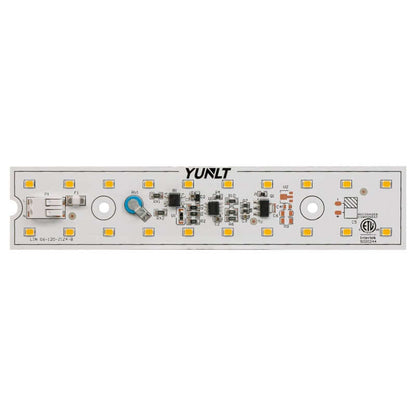

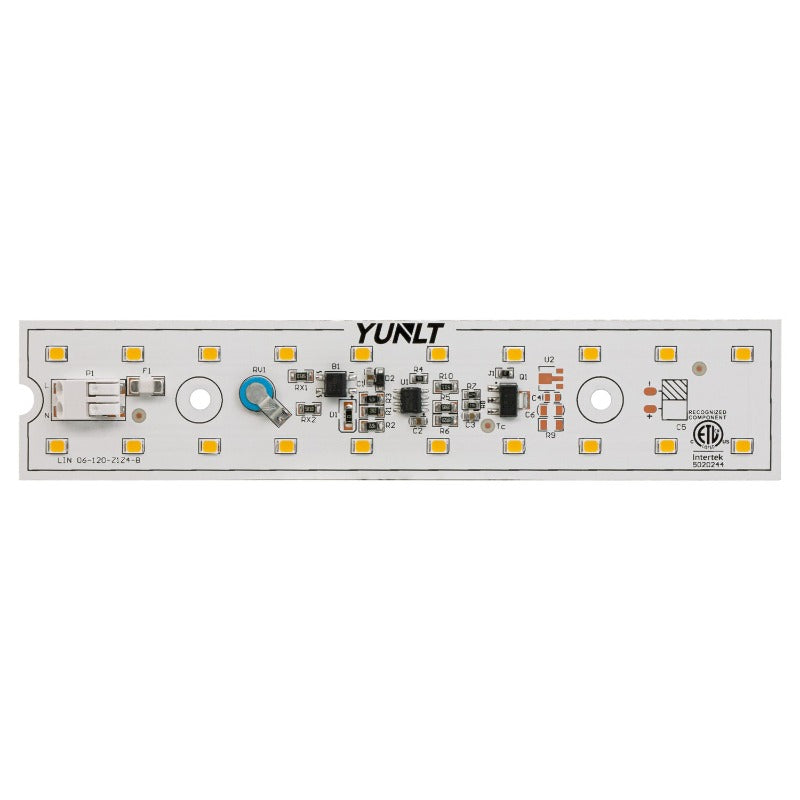

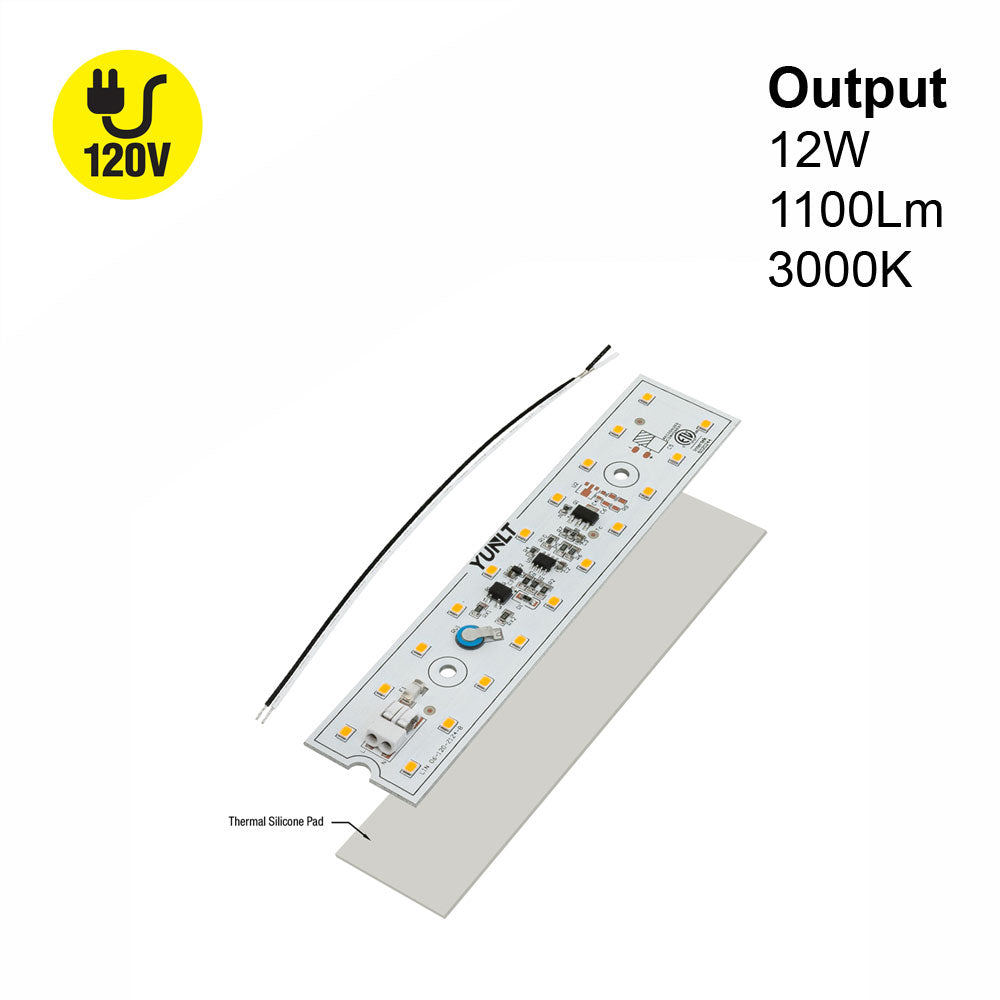

6 inch Linear ZEGA LED Module LIN 06-012W-930-120-S3-Z1B, 120V 12W 3000K(Warm White)
|Model No||LIN 06-012W-930-120-S3-Z1B|
|No of LEDs||20|
|Luminous Flux||1100 lumens|
|Color Temperature||3000K (Warm White)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed

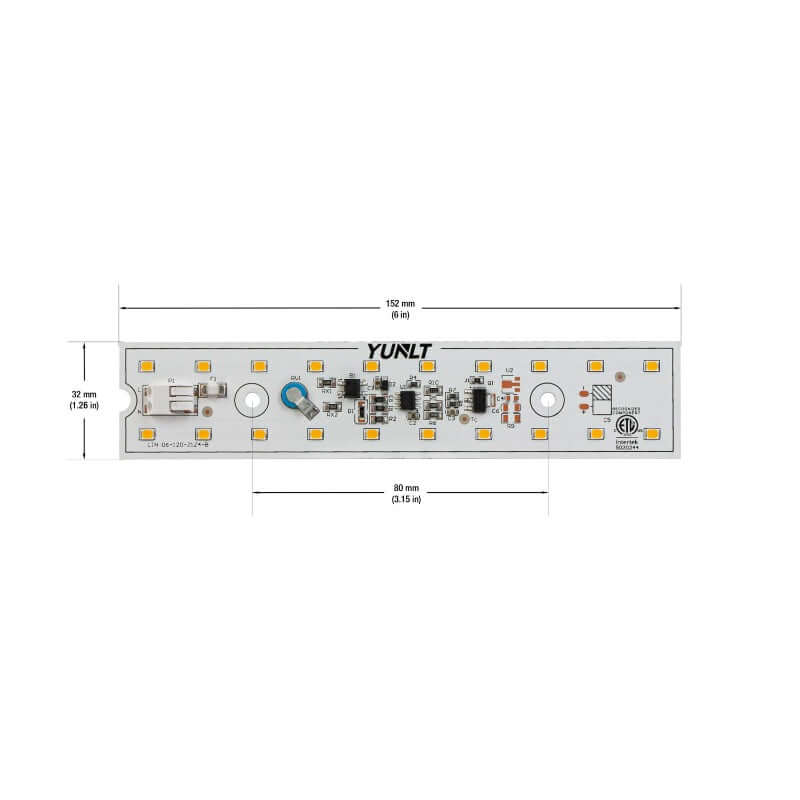

|Dimensions||152.0mm (6 inch) x 32 mm (1.25 inch)|
|Diameter of the screw hole||3.5mm (0.13 in)|
|Distance between holes||80mm (3.14 in)|
The 6inch Linear LED Module Driverless Engine LIN 06-012W-930-120-S3-Z1B is an energy-efficient and high-quality lighting solution that produces warm white light with a color temperature of 3000K and a high rendering index of CRI>90, resulting in excellent color quality. With a wattage of 12W and operating on a voltage of 120V AC, this LED module produces a luminous flux of 1100 lumens, providing bright and efficient lighting.
This LED module is also dimmable, allowing for greater control over the lighting environment. Constructed with an aluminum base material, the LIN 06-012W-930-120-S3-Z1B has a slim and compact size of 152.0mm (6 inch) x 32 mm (1.25 inch), making it easy to install in a variety of settings. It also includes a thermal silicon pad and a 6-inch black and white power feed for added convenience.
The LIN 06-012W-930-120-S3-Z1B LED Module is designed to meet high safety and quality standards and is ETL certified, ensuring its safety and quality. The LED module has a diameter of 3.5mm (0.13 in) and a distance between holes of 80mm (3.14 in), making it easy to install using screws.
Overall, the LIN 06-012W-930-120-S3-Z1B LED Module by YUNLT is an excellent lighting solution that provides exceptional quality, energy efficiency, and convenience. Its low power consumption and high luminous flux make it suitable for a wide range of lighting applications, while its slim and compact size and easy installation make it an ideal DIY product for replacing ceiling lights or bulb sources.
- Energy-efficient and high-quality LED lighting solution
- Produces warm white light with a color temperature of 3000K and high rendering index of CRI>90
- Wattage of 12W and voltage of 120V AC, producing a luminous flux of 1100 lumens
- Dimmable, providing greater control over lighting environment
- Constructed with an aluminum base material, with a slim and compact size of 152.0mm (6 inch) x 32 mm (1.25 inch)
- Includes thermal silicon pad and 6-inch black and white power feed for added convenience
- ETL certified, ensuring safety and quality standards are met
- Easy to install using screws with a diameter of 3.5mm (0.13 in) and distance between holes of 80mm (3.14 in)
- Suitable for a wide range of lighting applications
- Ideal DIY product for replacing ceiling lights or bulb sources
- A premier quality light engine. It produces up to 1100 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.

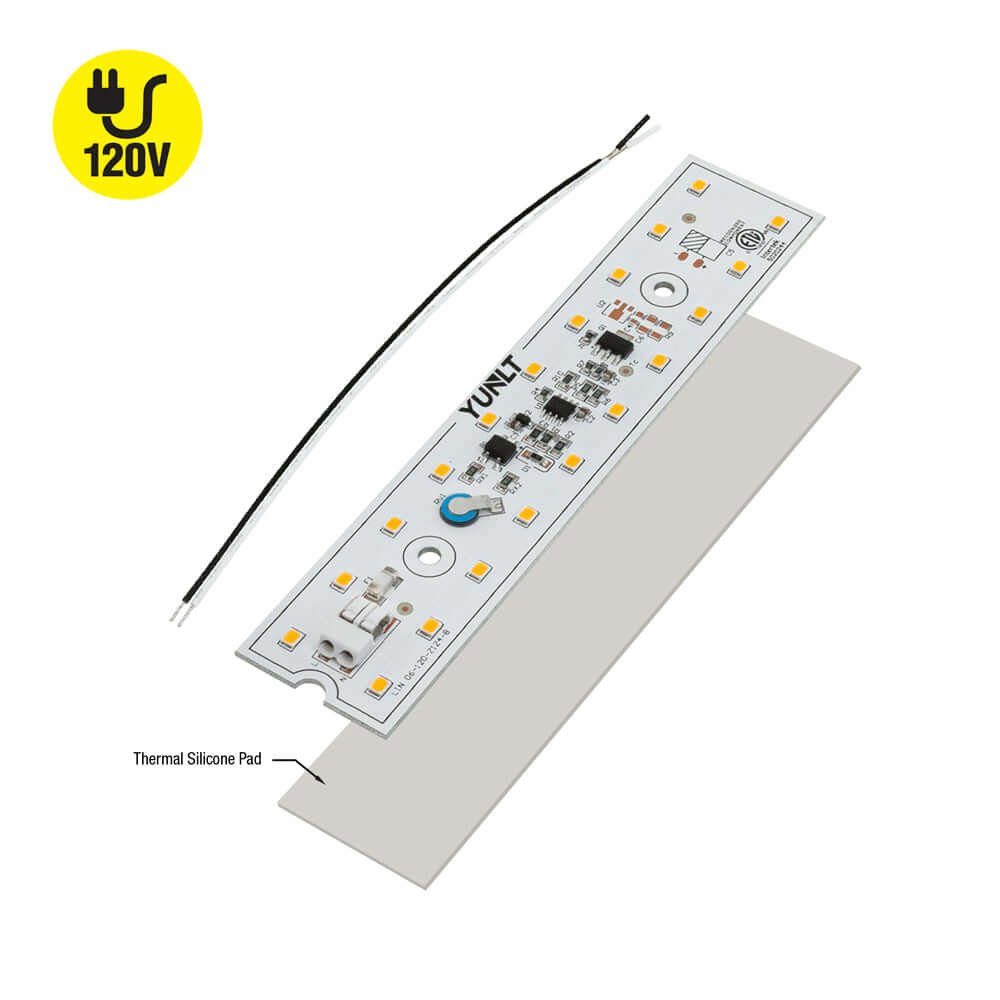

- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
