Product Description
| Product | LED Module |

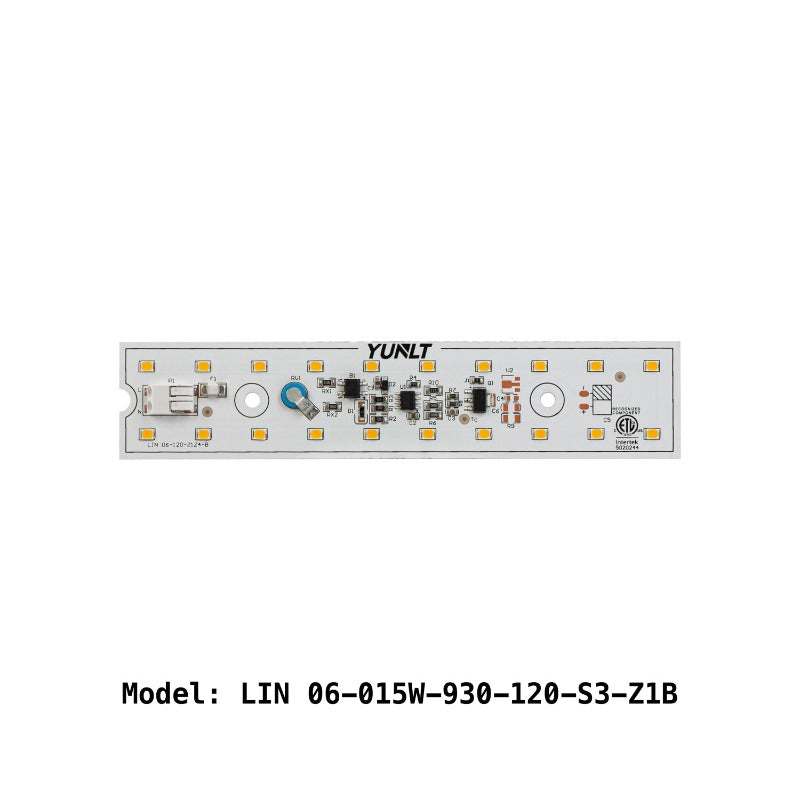

| Model No | LIN 06-015W-930-120-S3-Z1B |
| No of LEDs | 20 |
| Wattage | 15W |
| Voltage | 120V AC |
| Luminous Flux | 1300 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum |
| Weight | 0.025 kg |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

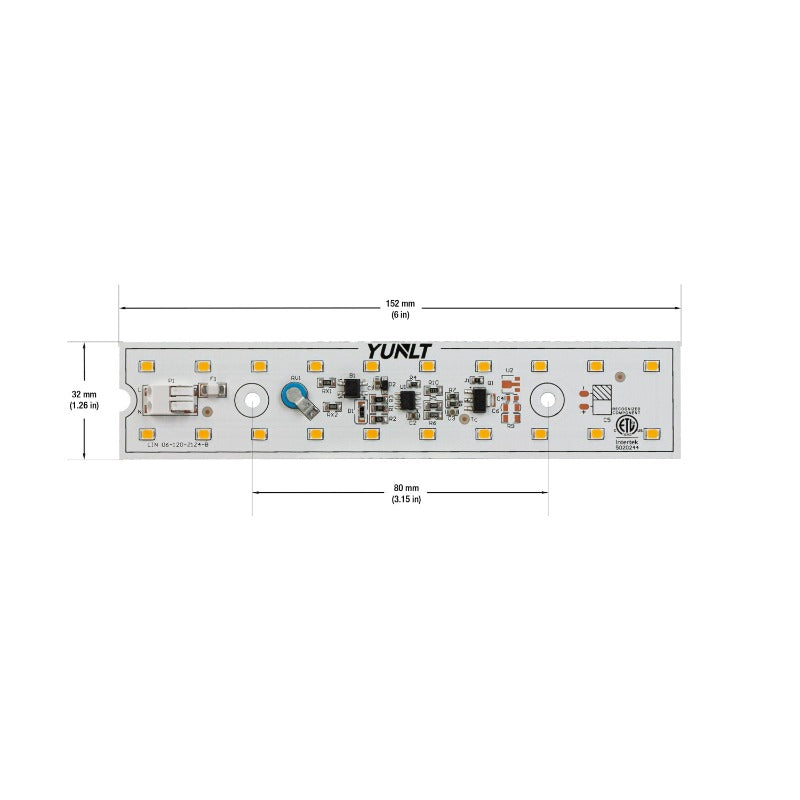

| Dimensions | 152.0mm (6 inch) x 32 mm (1.25 inch) |
| Diameter of the screw hole | 3.5mm (0.13 in) |
| Distance between holes | 80mm (3.14 in) |
| Height | 6mm (0.23in) |
| Certification |
|
Features:
- Energy-efficient and high-quality lighting solution with warm white light (3000K) and high rendering index (CRI>90)

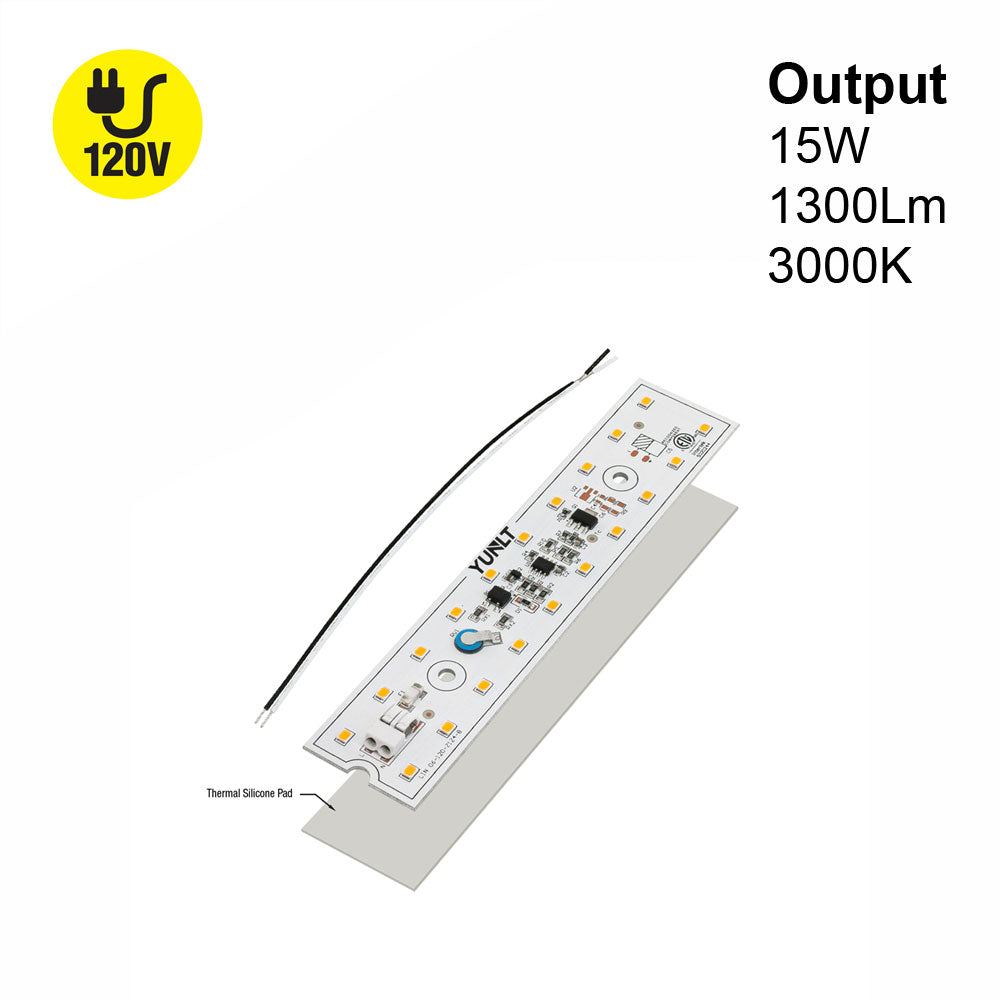

- Produces a luminous flux of 1300 lumens with a wattage of 15W and operates on a voltage of 120V AC
- Dimmable for greater control over the lighting environment
- Constructed with an aluminum base material and has a slim and compact size of 152.0mm (6 inch) x 32 mm (1.25 inch) for easy installation in a variety of settings

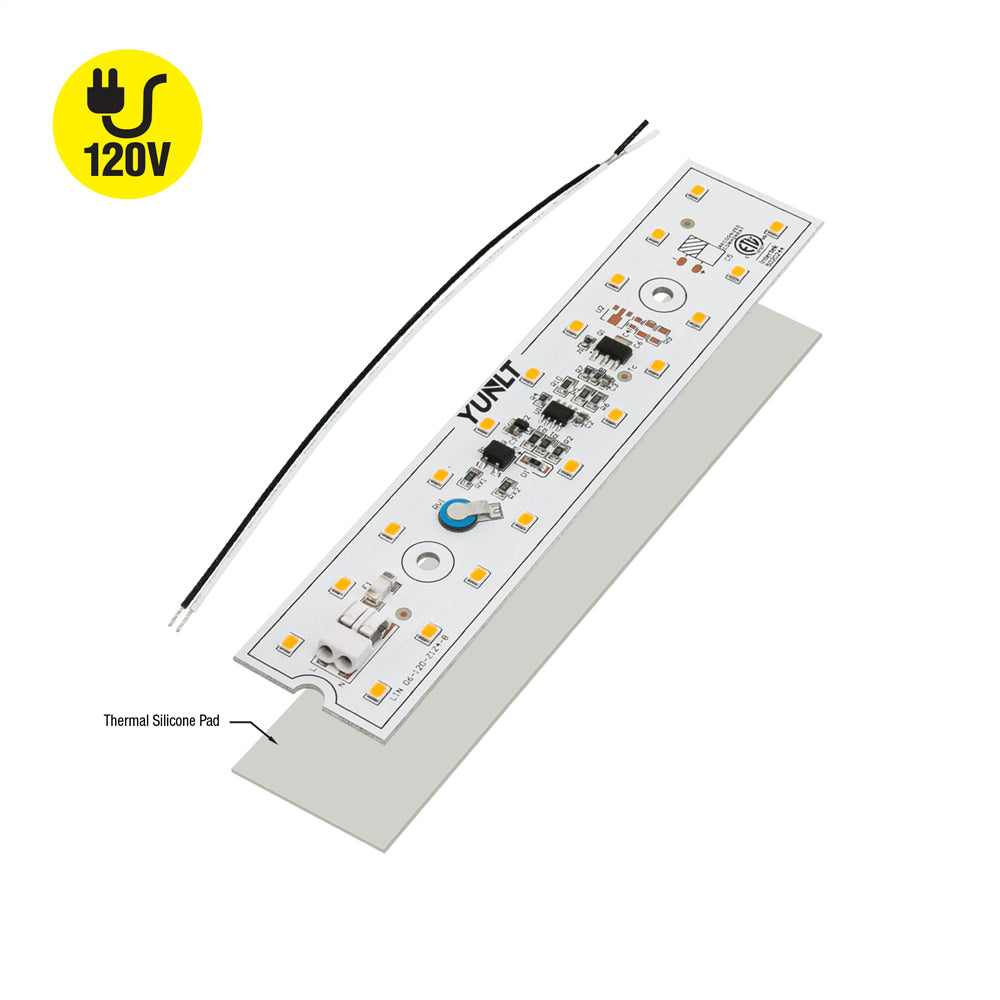

- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- 6 inch Linear ZEGA LED Module 120V 15W 3000K
- Diameter of the screw hole is 3.5mm (0.13 in) and distance between holes is 80mm (3.14 in) for easy installation using screws
- A premier quality light engine. It produces up to 1300 lumens of exceptional light.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
