7.3 inch Round Disc LED Module TR18635-T, 120V 35W 3000K(Warm White)

  • $55.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561433536
Title:
We only have 48 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product LED Module
Model No TR18635-T
No of LEDs 56
Wattage 35W
Voltage 120V AC
Luminous Flux 3100 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum (Metallic Base)
Package Components  LED Module

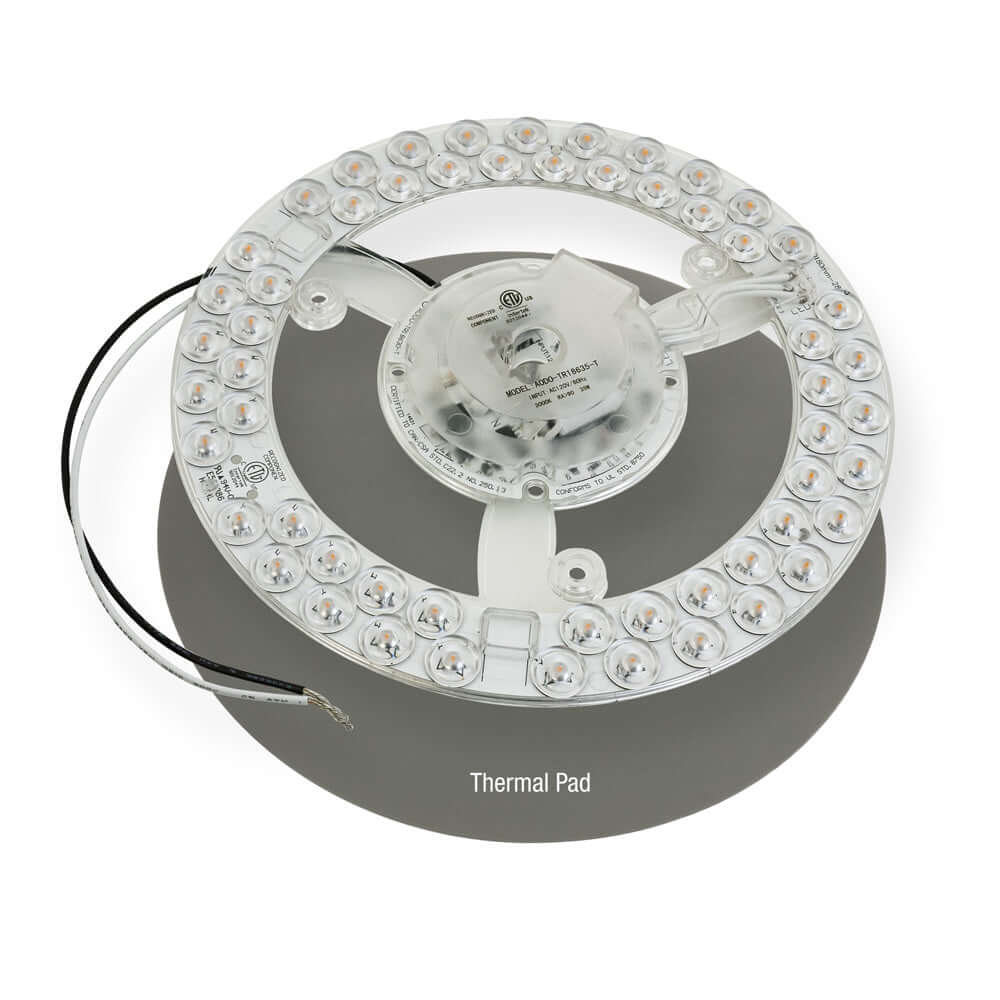

Thermal Silicon Pad
10 inch Black and White power feed

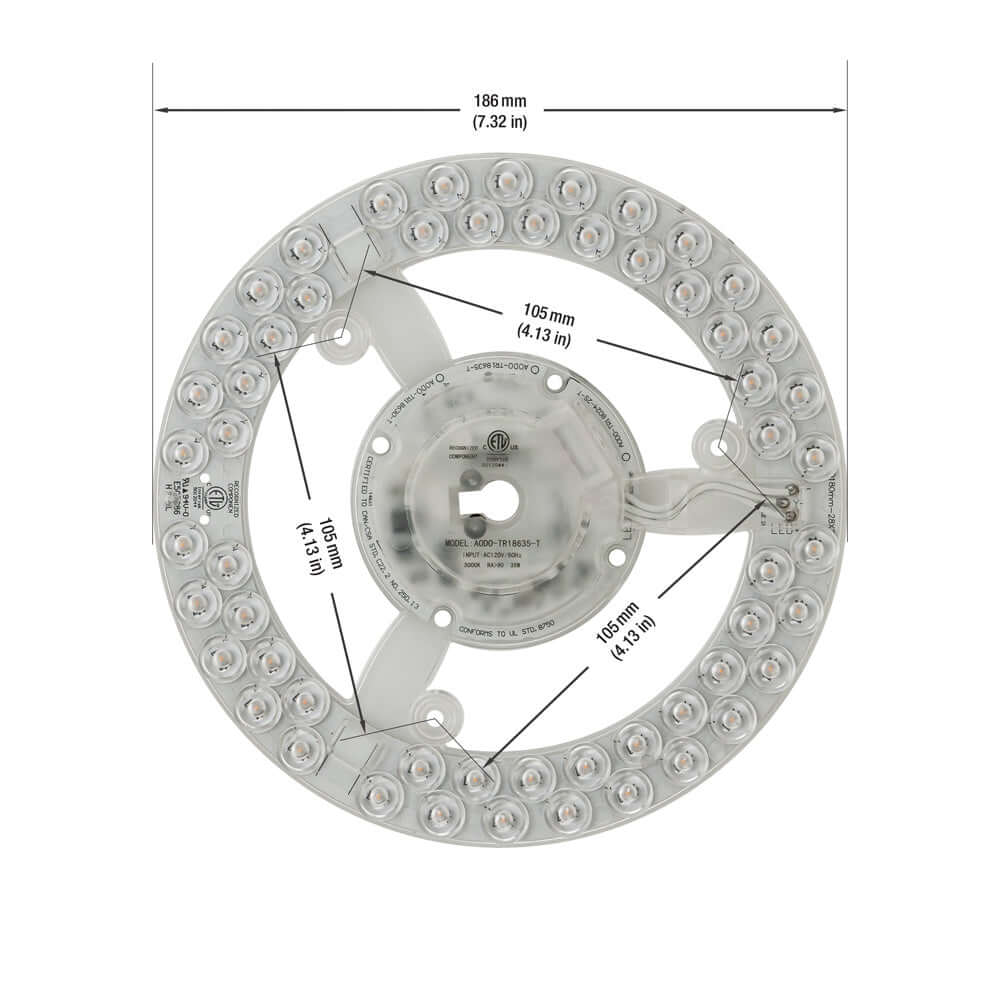

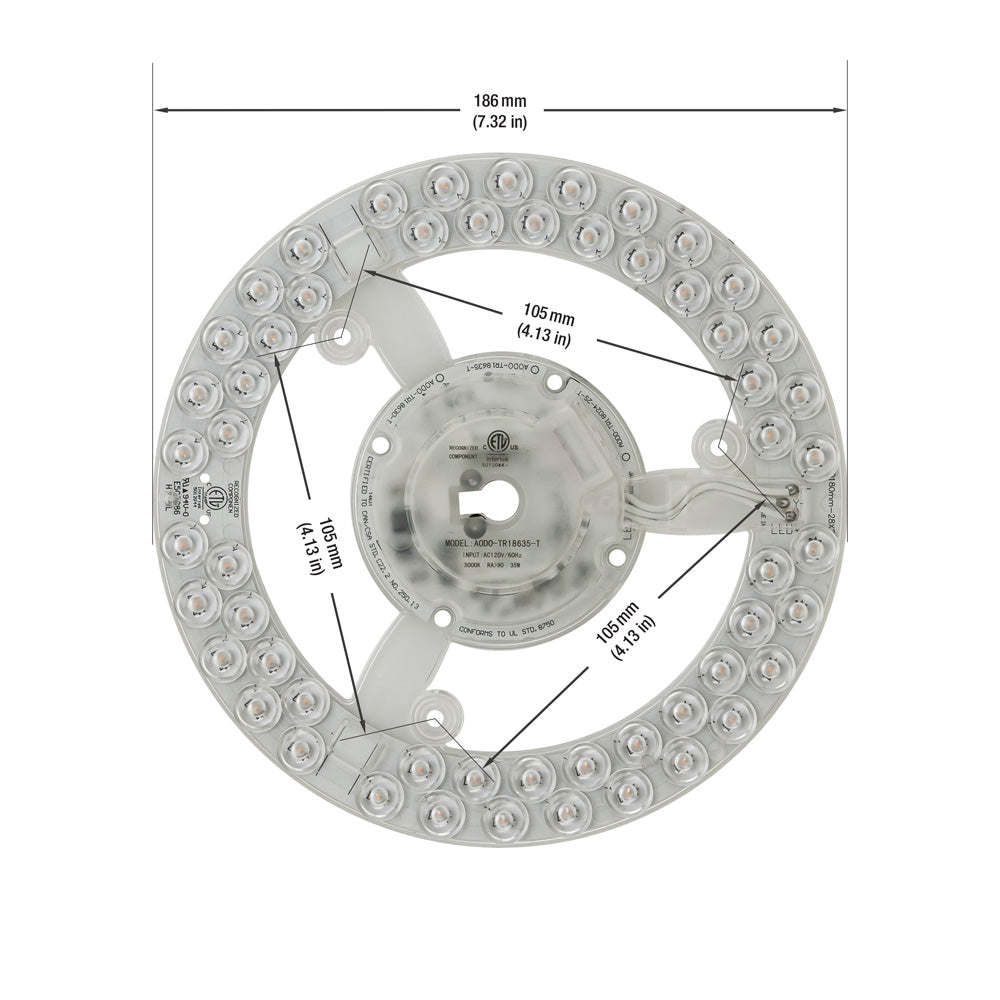

Outer Diameter
∅186mm (7.3 in)
Distance between Screw holes ∅105 mm (4.1 in)
Height 16mm (0.62 in)
Certification

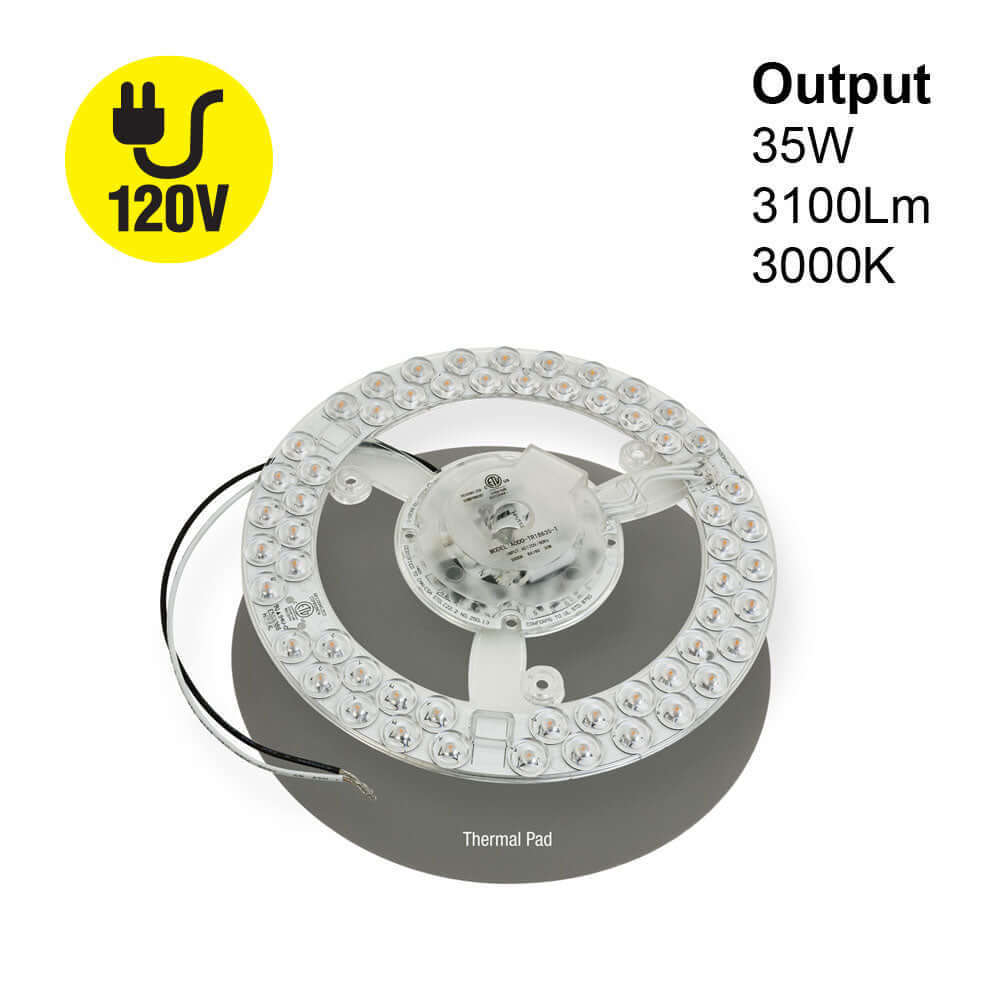

The TR18635-T LED Module is an excellent lighting solution that offers superior quality and energy efficiency. This module features 56 high-quality LEDs, producing a powerful 3100 lumens of warm white light with a color temperature of 3000K making it perfect for a wide range of general lighting applications.

With a power consumption of 35W and a high energy efficiency, this LED module saves on energy costs while providing excellent illumination. It operates on a voltage of 120V AC and is dimmable, providing greater flexibility in lighting control.

Constructed with an aluminum (metallic base) material, this LED module features an outer diameter of ∅186mm (7.3 in), making it compact and easy to install. It also includes a thermal silicon pad and a 10-inch black and white power feed for added convenience.

Features:

  • 56 high-quality LEDs that produce 3100 lumens of warm white light with a color temperature of 3000K
  • Power consumption of 35W and high energy efficiency that saves on energy costs
  • Operates on a voltage of 120V AC and is dimmable for greater flexibility in lighting control
  • Includes a thermal silicon pad and a 10-inch black and white power feed for added convenience
  • etl certified, ensuring that it meets high safety and quality standards
  • High rendering index of CRI>90, making colors appear more vibrant and true-to-life
  • Ideal for a wide range of general lighting applications due to its superior quality, energy efficiency, and flexibility
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
