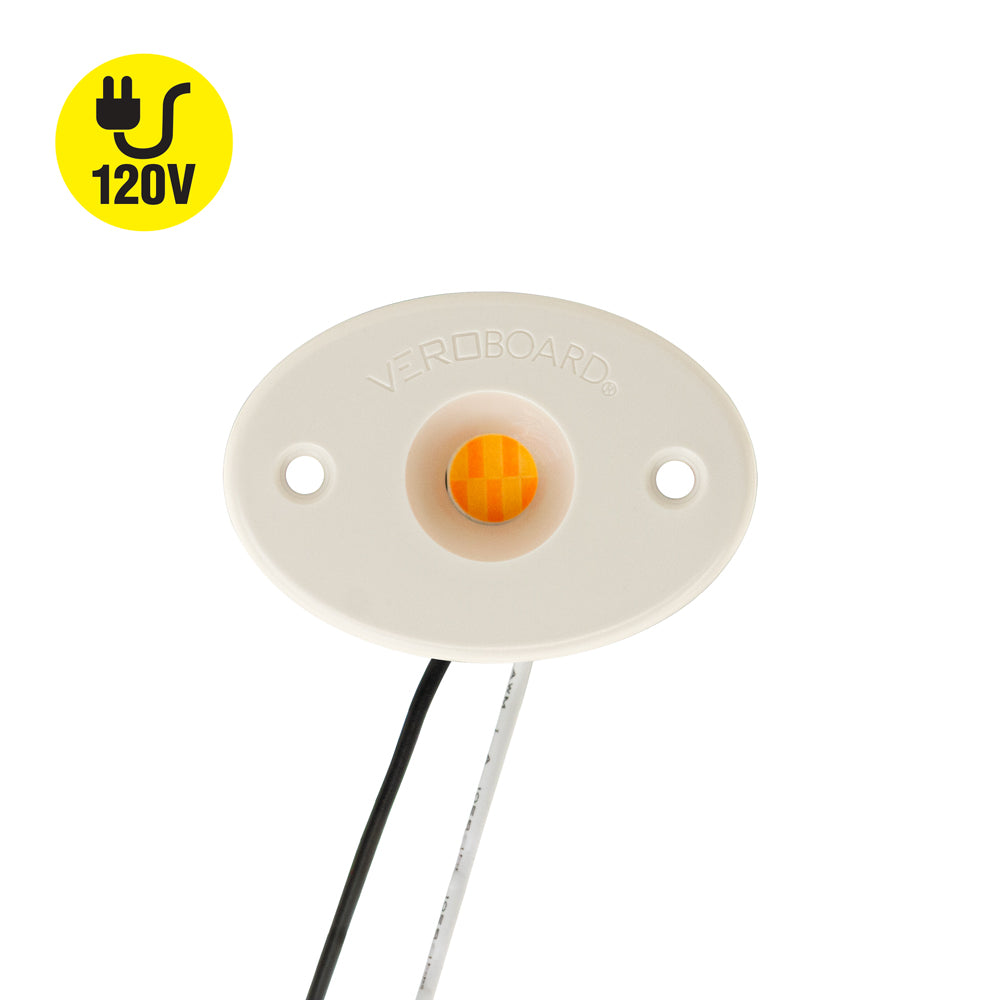

CBAC-084-30135-120-3000-G12 COB Paragon LED Module with GPH48135AC LED Holder, 120V 16W 3000K (Warm White)

  • $67.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561430429
Title:
We only have 113 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product Paragon LED Module
Model No CBAC-084-30135-120-3000-G12
COB Holder Model No GPH48135AC
LED Type
COB LED
Wattage 16W
Voltage 120V AC
Brightness 1280 Lumens

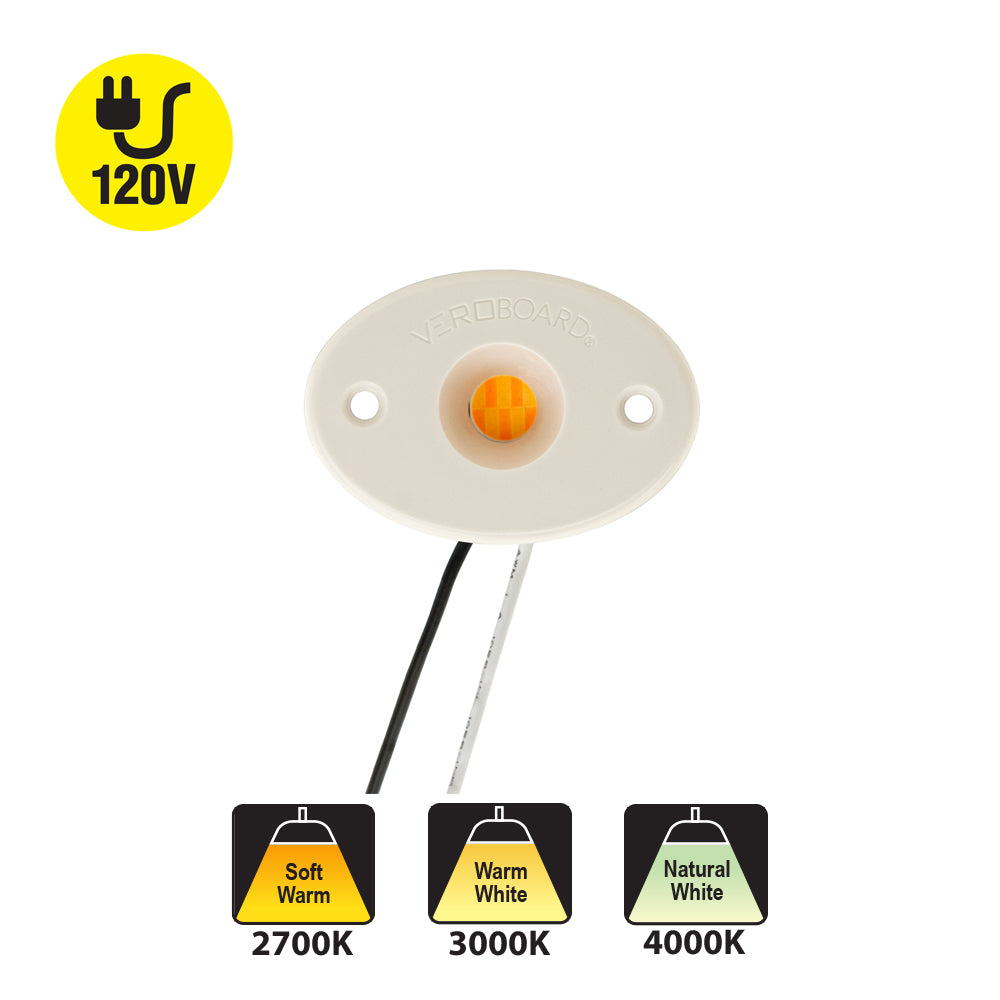

Color Temperature 3000K (Warm White)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)

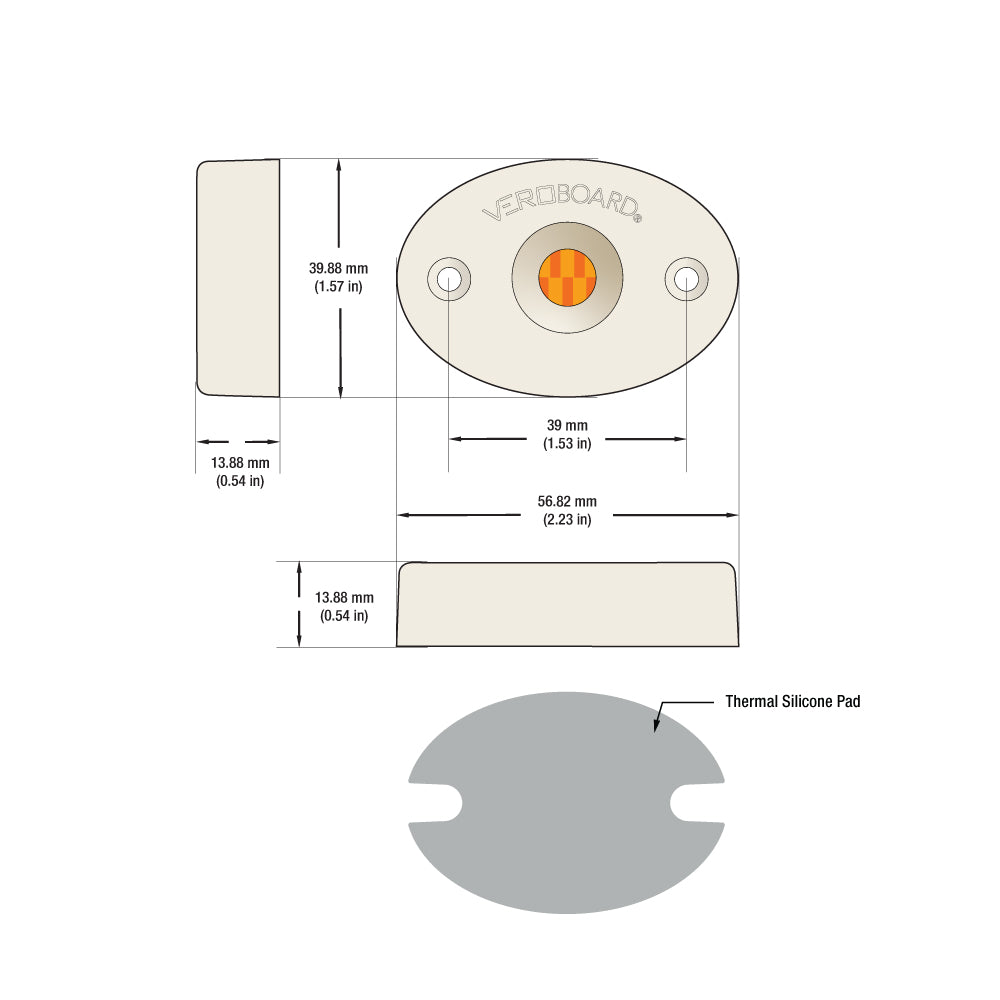

COB Holder Dimensions ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in)
COB Module Outer Diameter ∅27mm (1.06 in)
Operating Temperature -60 ~ +105℃
Storage Temperature -60 ~ +105℃
Assembly process Temperature <300℃
Solder joint point <105℃
Dielectric Breakdown Voltage of Thermal Pad >4KV

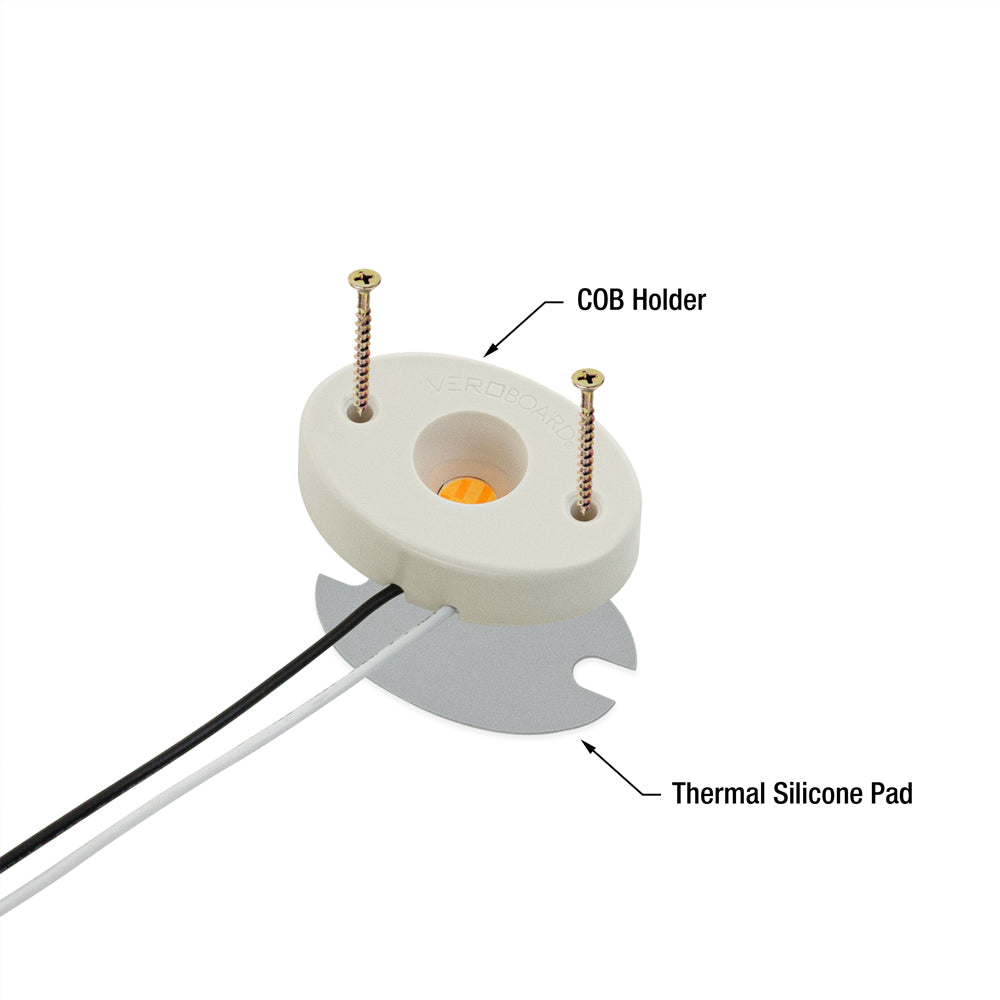

Included Content COB Module, COB Holder with Thermal Pad
Certifications


The CBAC-084-30135-120-3000-G12 Paragon LED Module is a COB LED module that comes with a GPH48135AC LED holder. It has a wattage of 16W and a voltage rating of 120V AC. The module produces a warm white light with a color temperature of 3000K and has a brightness of 1280 lumens.

This LED module is dimmable and has a rendering index of CRI>80. It has an IP20 rating which makes it suitable for indoor use in damp locations. The COB holder dimensions are ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in) and the COB module outer diameter is ∅27mm (1.06 in).

The operating temperature range is -60 ~ +105℃, the storage temperature range is -60 ~ +105℃, and the assembly process temperature should be kept below 300℃. The solder joint point should be below 105℃ and the dielectric breakdown voltage of the thermal pad should be greater than 4KV.

The package includes a COB module, a COB holder, and a thermal pad. The LED module has UL certification. To prevent overheating, an aluminum heat sink is required which helps in better heat dissipation, thereby increasing the life span of the module. COB LEDs are brighter, consume less power, and have a higher quality beam output compared to older LED technologies. This module is generally used in almost every kind of luminaire.

Features:

  • COB LED module with GPH48135AC LED holder
  • Wattage: 16W, Voltage: 120V AC
  • Warm white light with 3000K color temperature and 1280 lumens brightness
  • Dimmable with CRI>80 rendering index
  • IP20 rated for indoor use in damp locations
  • COB holder dimensions: ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in), COB module outer diameter: ∅27mm (1.06 in)
  • Operating temperature range: -60 ~ +105℃, Storage temperature range: -60 ~ +105℃
  • Dielectric breakdown voltage of thermal pad: >4KV
  • Package includes COB module, COB holder with thermal pad
  • UL certified LED module
  • Requires aluminum heat sink to prevent overheating and increase lifespan
  • COB LEDs are brighter and consume less power with a higher quality beam output compared to older LED technologies
  • Suitable for use in almost every kind of luminaire.
