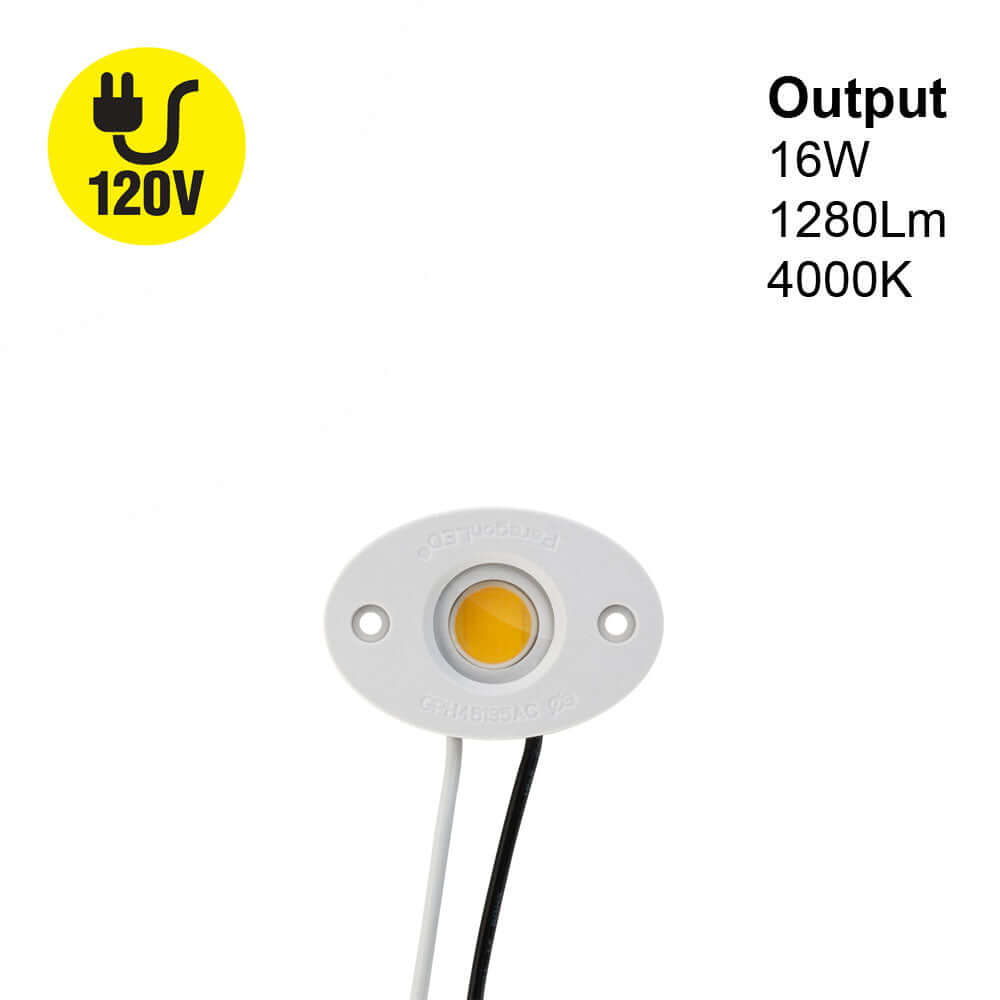

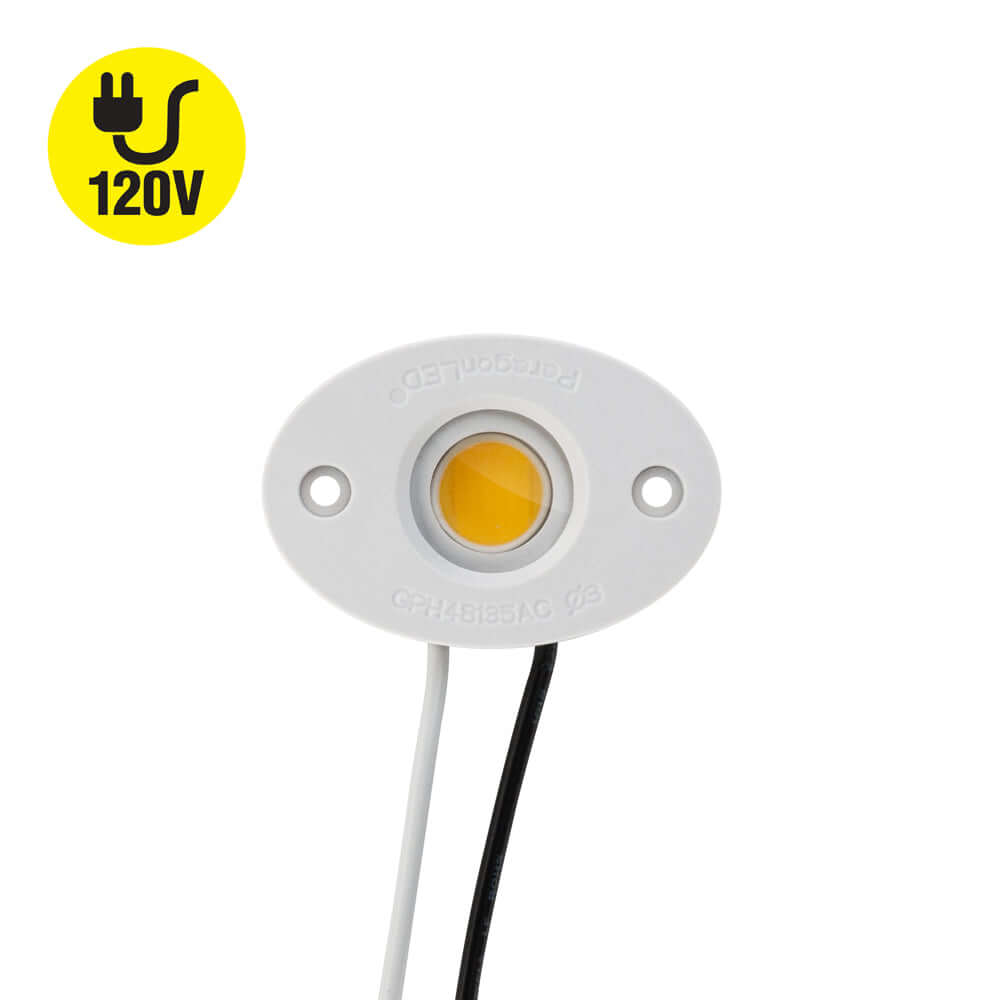

CBAC-084-48135-120-4000-G12 COB Paragon LED Module with GPH48135AC LED Holder, 120V 16W 4000K(Natural White)

  • $97.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561430535
We only have 73 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).


Product Description

Product Paragon LED Module
Model No CBAC-084-48135-120-4000-G12
COB Holder Model No GPH48135AC
LED Type
COB LED
Wattage 16W
Voltage 120V AC
Brightness 1280 Lumens
Color Temperature 4000K (Natural White)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)

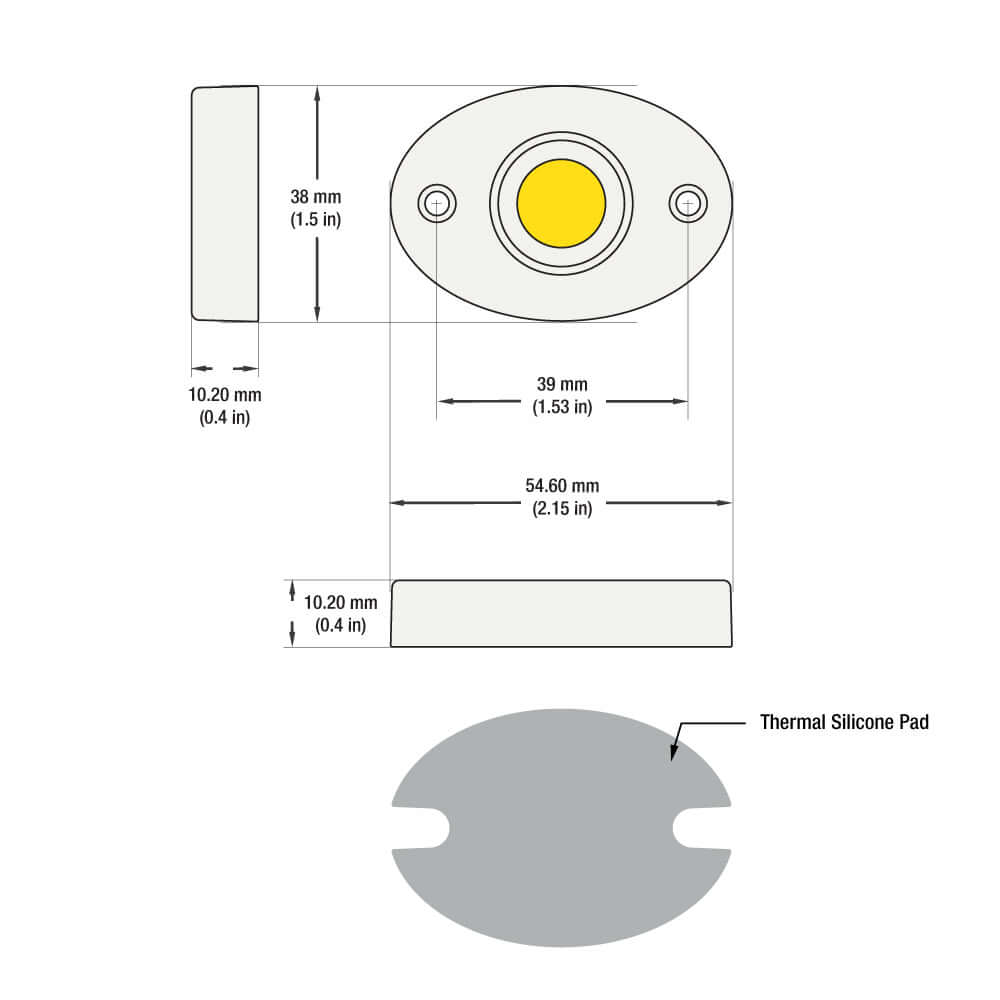

COB Holder Dimensions ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in)
COB Module Outer Diameter ∅27mm (1.06 in)
Operating Temperature -60 ~ +105℃
Storage Temperature -60 ~ +105℃
Assembly process Temperature <300℃
Solder joint point <105℃
Dielectric Breakdown Voltage of Thermal Pad >4KV
Included Content COB Module, COB Holder with Thermal Pad
Certifications


The 8CBAC-084-48135-120-4000-G12 COB Paragon LED Module is a high-quality lighting solution that offers low power consumption and high energy efficiency. The module features a COB LED that provides a brightness of 1280 lumens at a wattage of 16W, with a voltage of 120V AC. The color temperature of the light is 4000K, which is soft white and creates a warm and cozy atmosphere.

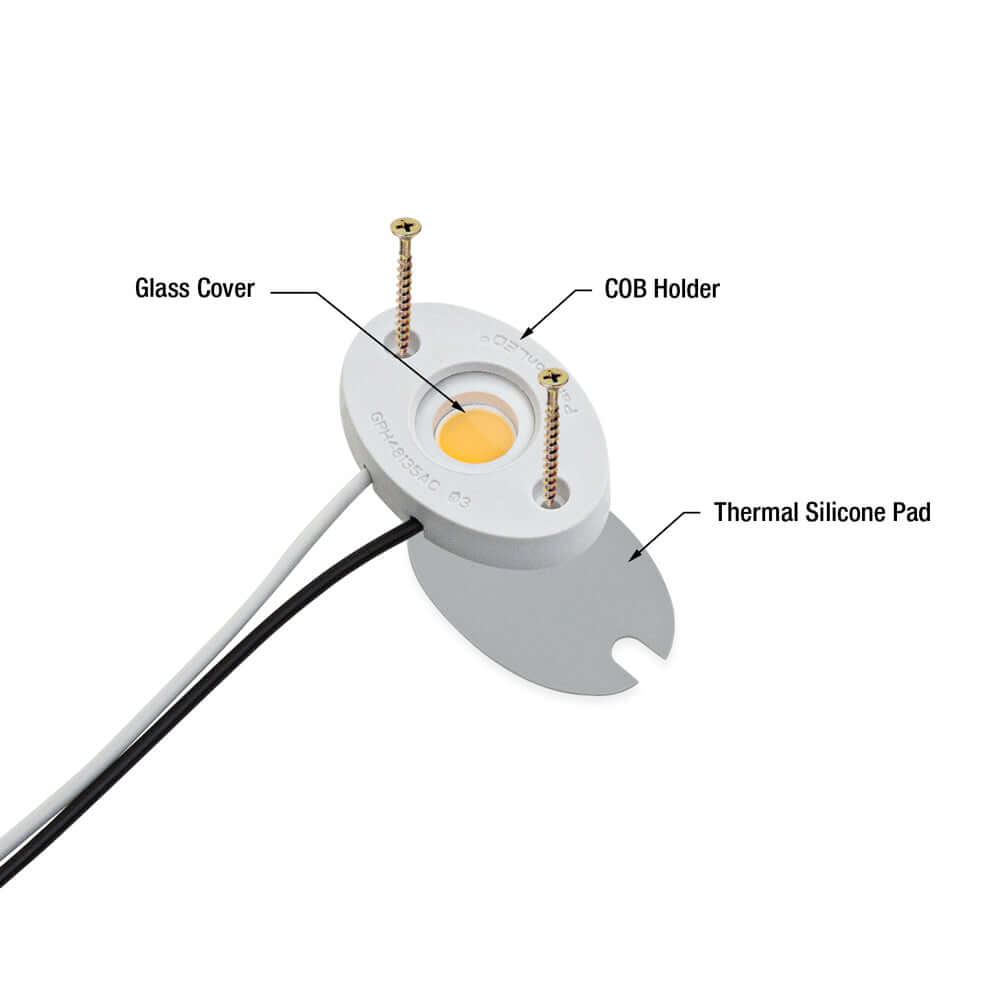

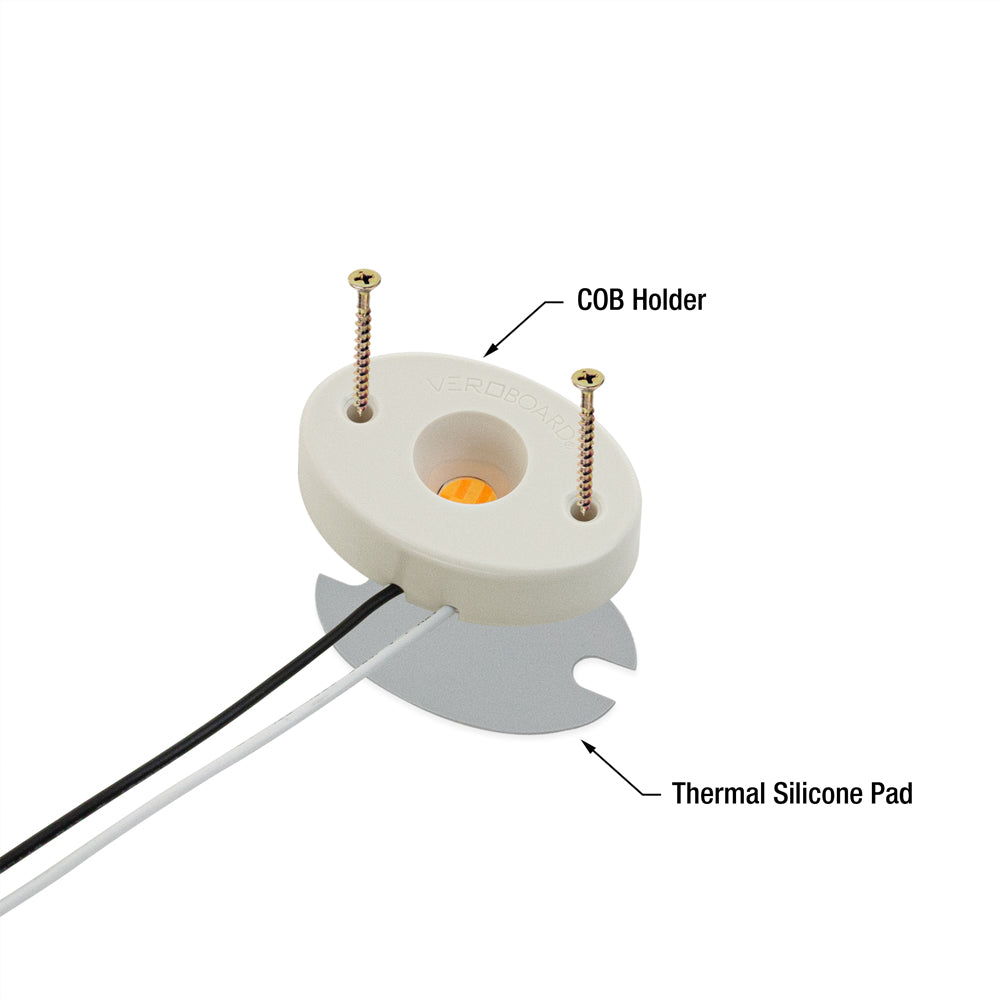

The module comes with a GPH48135AC LED holder, which allows the module to be mechanically secured, electrically connected, and pressed to a heat sink. The holder dimensions are ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in), and the COB module's outer diameter is ∅27mm (1.06 in). The module also comes with a silicone grease thermal pad that provides a heat sink and helps in better heat dissipation, thereby increasing the module's lifespan.

The module is dimmable and has a rendering index of CRI>80. It has an IP20 rating, which makes it suitable for indoor use in damp locations. The operating temperature range is -60 ~ +105℃, and the module can be stored in temperatures between -60 ~ +105℃. The assembly process temperature should be kept below 300℃, and the solder joint point temperature should be kept below 105℃.

The module has a dielectric breakdown voltage of thermal pad of >4KV and comes with certifications from UL. The module needs an aluminum heat sink to prevent overheating, which can cause serious luminous decay. COB LEDs are brighter, consume less power, and have a higher quality beam output compared to older LED technologies. It is important to ground light fixtures while designing lamps. COB LEDs are generally used in almost every kind of luminaire.

Features:

  • 16W wattage and 120V AC voltage rating
  • COB LED technology provides 1280 lumens of brightness
  • Color temperature of 4000K produces warm and cozy light
  • Comes with GPH48135AC LED holder
  • Holder dimensions are ∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in) and COB module outer diameter is ∅27mm (1.06 in)
  • Includes silicone grease thermal pad for heat dissipation and increased lifespan
  • Dimmable with CRI>80 rendering index and IP20 rating suitable for indoor use in damp locations
  • Operating temperature range is -60 ~ +105℃ and assembly process temperature should be below 300℃
  • Dielectric breakdown voltage of thermal pad of >4KV and certified by UL
  • Aluminum heat sink required to prevent overheating and serious luminous decay
  • COB LEDs are brighter, consume less power, and have a higher quality beam output compared to older LED technologies
  • Used in almost every kind of luminaire and it is important to ground light fixtures during design
