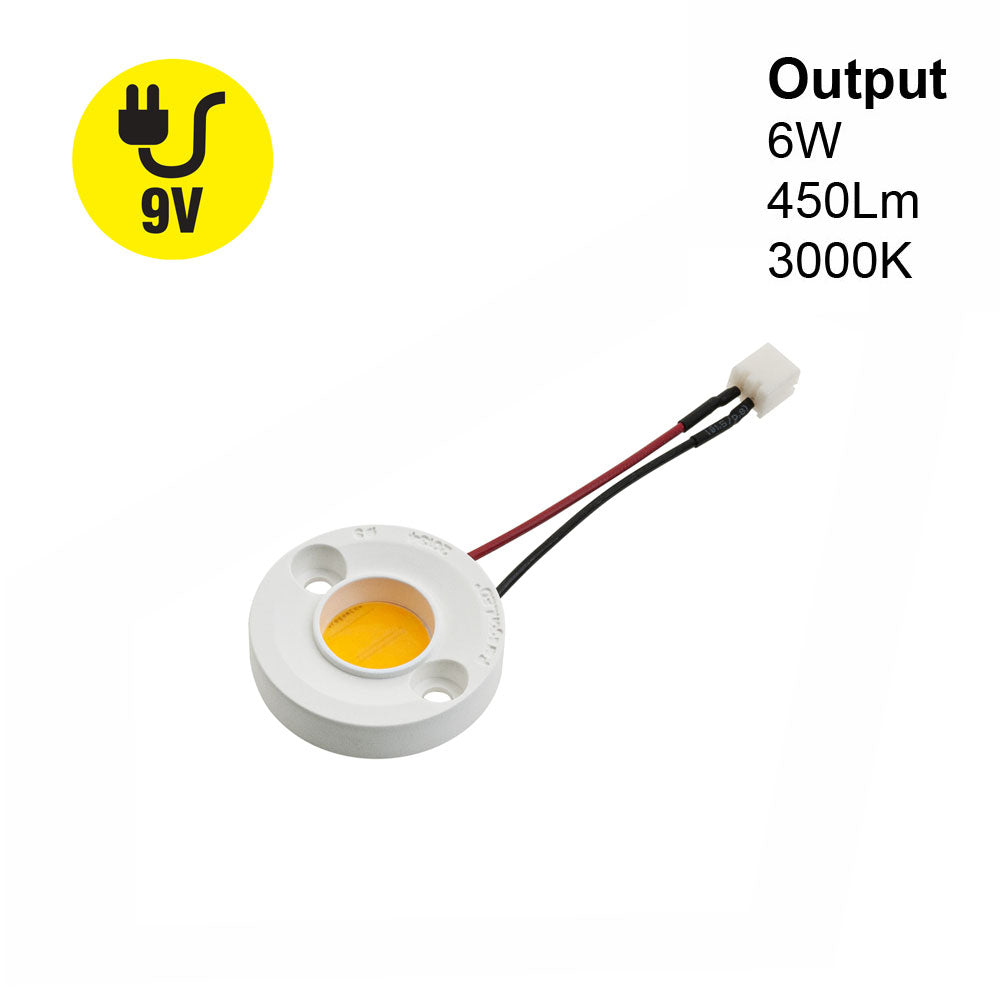

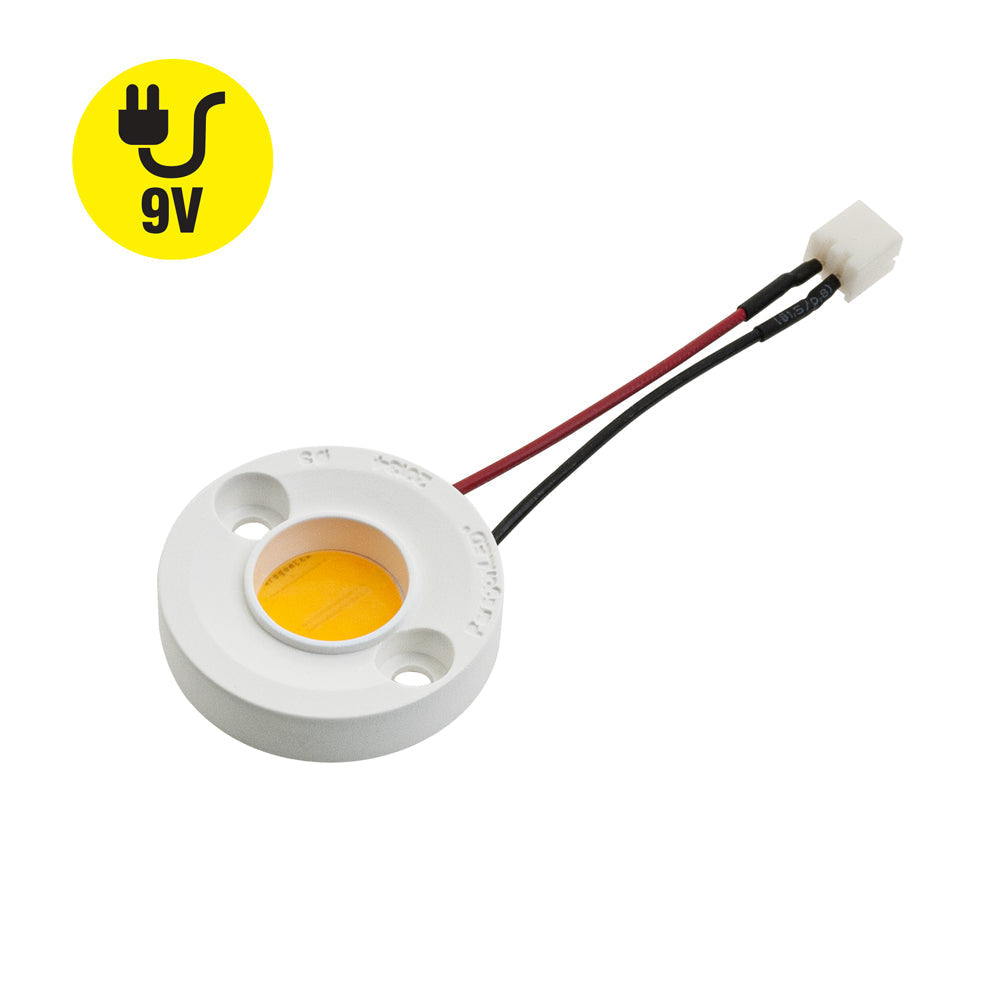

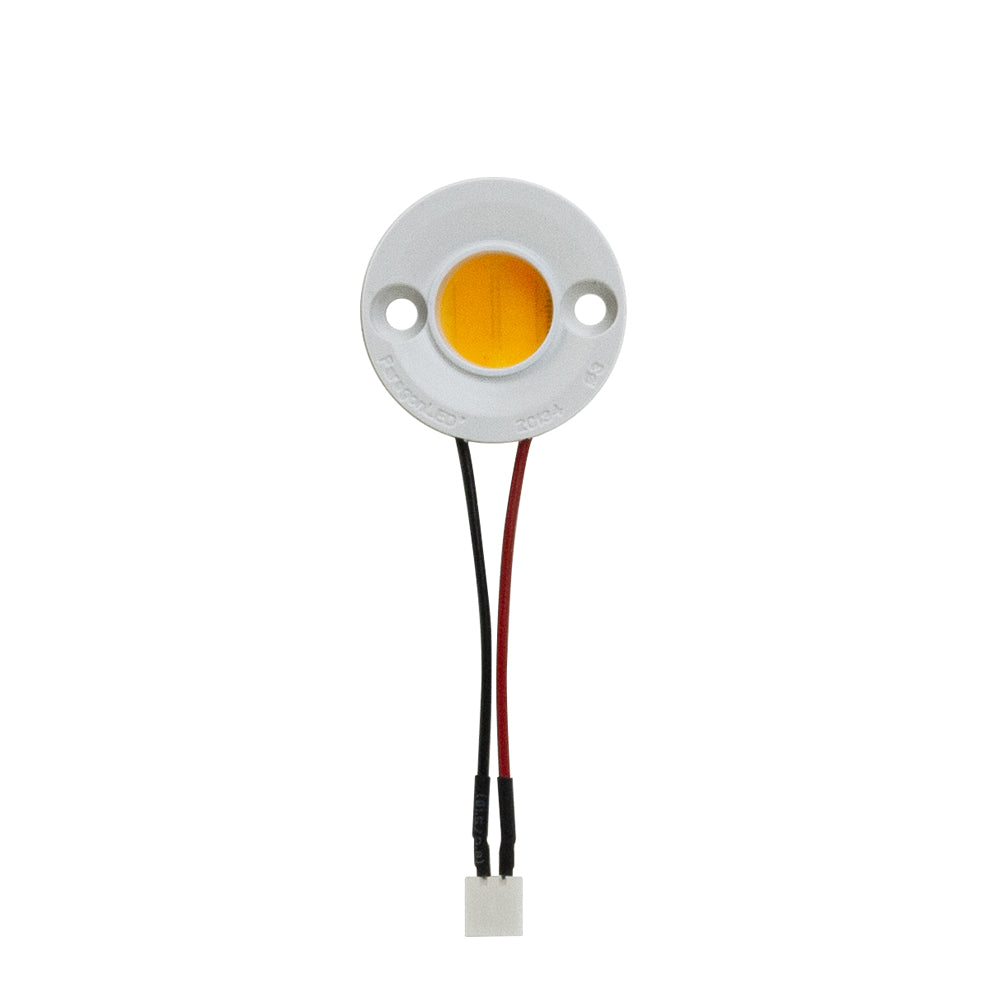

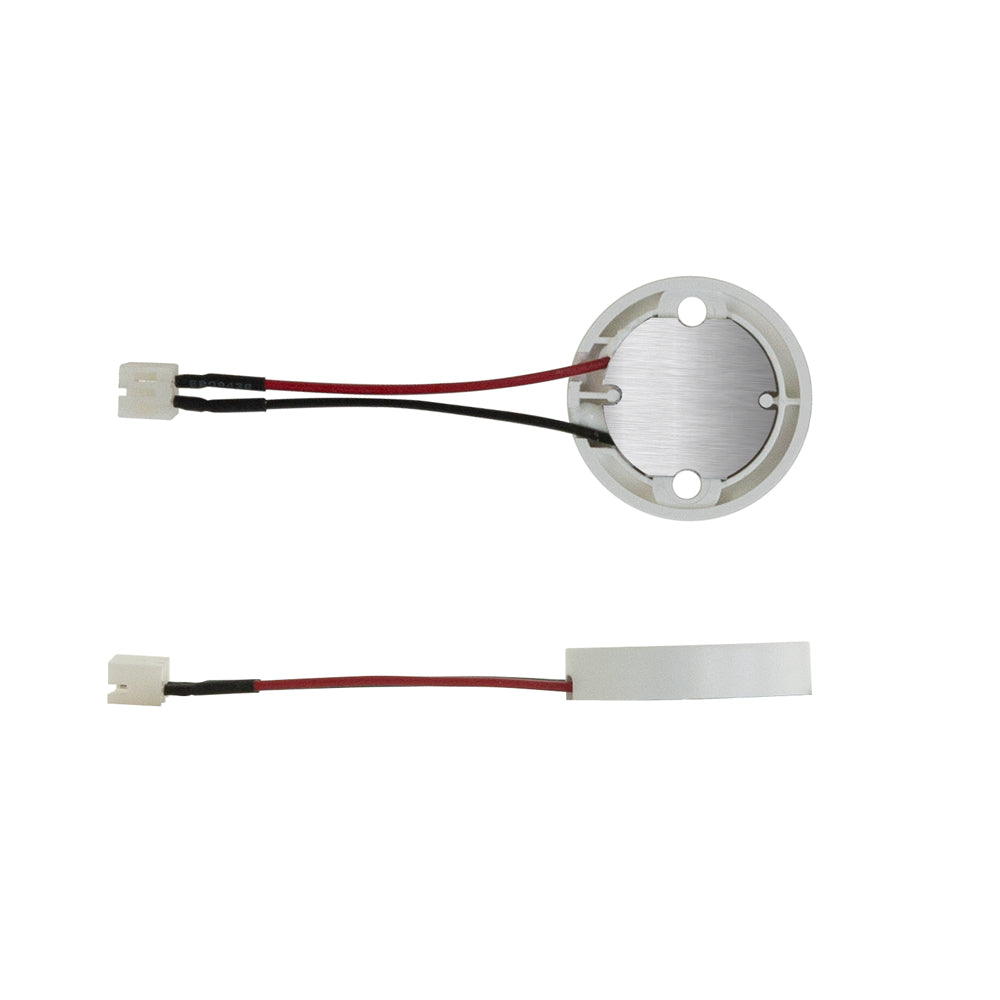

8CBCC-024-20134-009V-3000-U06 COB Paragon LED Module with G21100110 LED Holder, 9V 6W 3000K (Warm White)
8CBCC-024-20134-009V-3000-U06 COB Paragon LED Module with G21100110 LED Holder, 9V 6W 3000K (Warm White)
SKU: SKU:666561433932
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Product | Paragon LED Module |
| Model No | 8CBCC-024-20134-009V-3000-U06 |
| COB Holder Model No | G21100110 |
|
LED Type |
COB LED |
| Wattage | 6W |
| Voltage | 9V DC |
| Luminous Intensity | 450 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |

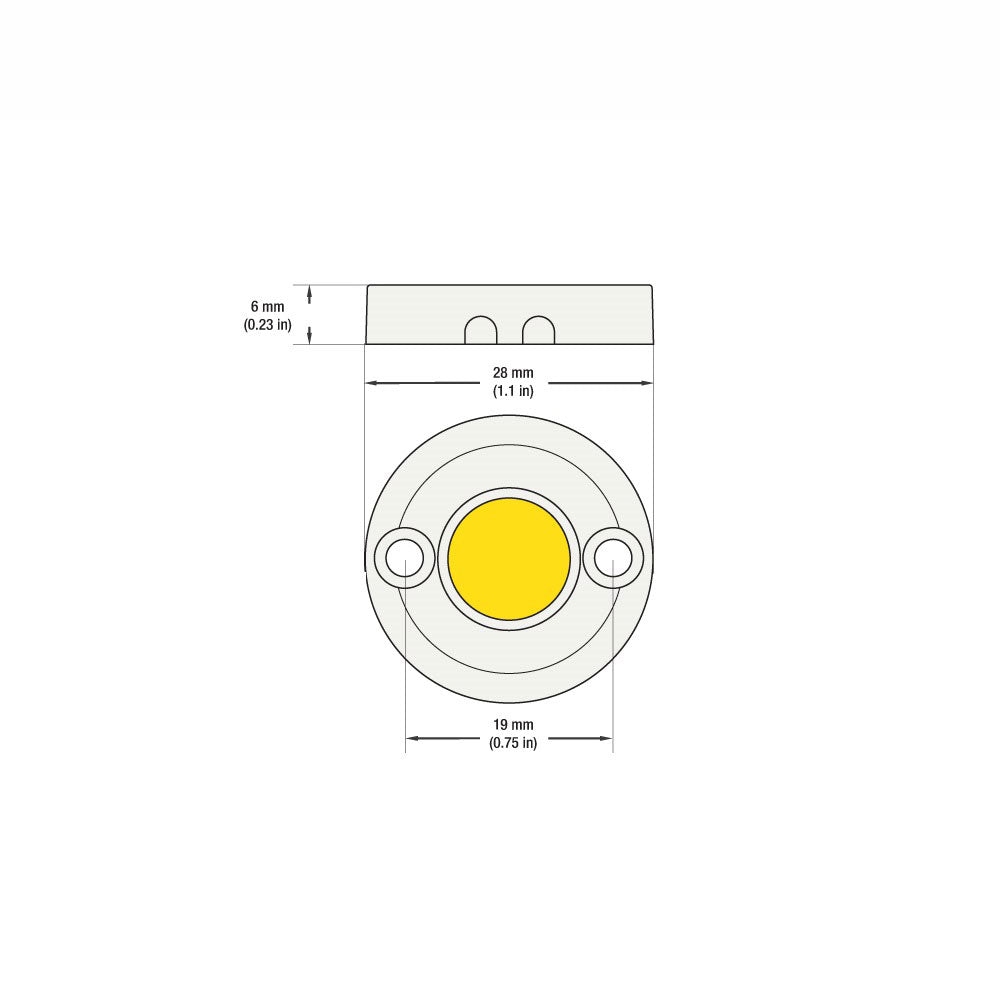

| COB Holder Dimensions | ∅28 x H6 mm (1.1 x 0.2 in) |
| COB Module Outer Diameter | ∅12.3mm (0.4 in) |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Thermal Grease | We will include thermal grease to cover the quantity of LED modules ordered. |
| Certifications |  |
The 8CBCC-024-20134-009V-3000-U06 Paragon LED Module is a high-quality COB LED module. The module is designed to be used with the G21100110 LED Holder and operates on 9V DC with a power consumption of 6W. The module produces a warm white light with a color temperature of 3000K and a high rendering index of CRI>90, making it suitable for use in a wide range of indoor lighting applications.
The 8CBCC-024-20134-009V-3000-U06 module is dimmable, making it ideal for use in applications where the light output needs to be adjusted. It has an IP20 rating, indicating that it is suitable for use in damp locations. However, it is essential to use an aluminum heat sink to prevent overheating, which may cause luminous decay.

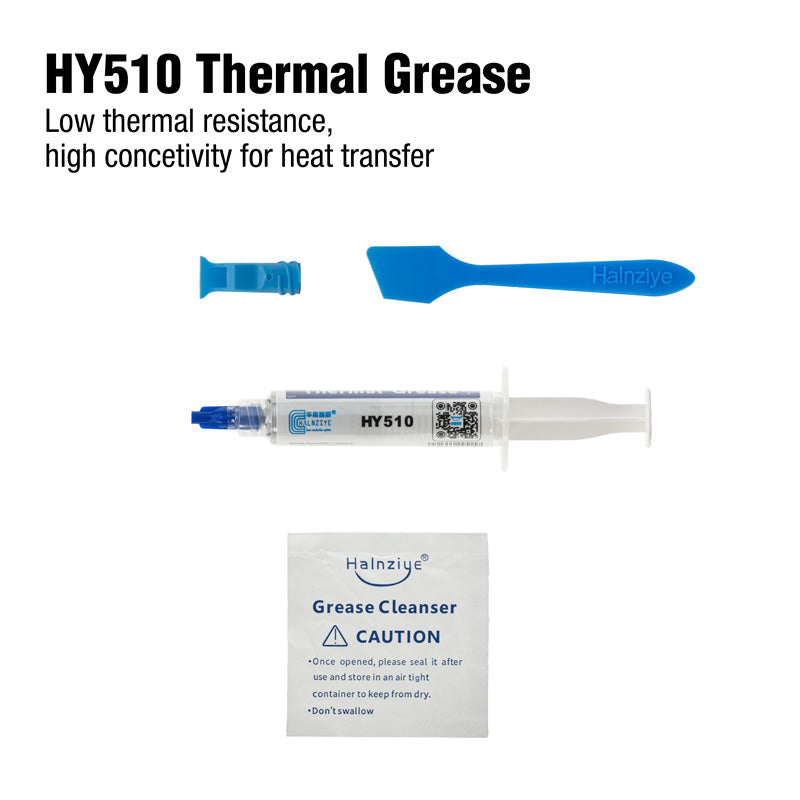

The COB LED technology used in the 8CBCC-024-20134-009V-3000-U06 module is more energy-efficient and produces brighter and higher quality beam output than older LED technologies. It is suitable for use in almost every kind of luminaire. The module comes with a COB Holder, Thermal Grease HY510 (5gr), and is UL certified.
Features:
- Designed to be used with G21100110 LED Holder
- Operates on 9V DC with a power consumption of 6W
- Produces warm white light with color temperature of 3000K and CRI>90
- Dimmable and suitable for use in damp locations (IP20 rating)
- Requires aluminum heat sink to prevent overheating and luminous decay
- More energy-efficient and produces brighter and higher quality beam output than older LED technologies
- Suitable for use in almost every kind of luminaire
- Comes with COB Holder, Thermal Grease HY510 (5gr), and is UL certified
- Grounding light fixtures is essential for safe and efficient operation
- Operates at temperatures ranging from -60 ~ +105℃, and solder joint point should be kept below 105℃
