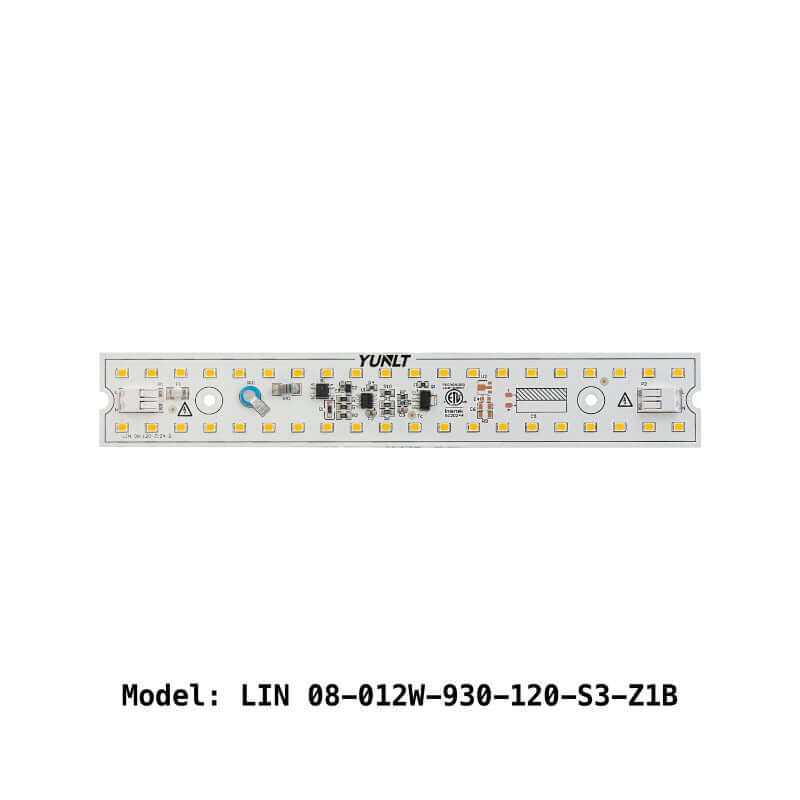

8 inch Linear ZEGA LED Module LIN 08-012W-930-120-S3-Z1B, 120V 12W 3000K(Warm White)
|Model No||LIN 08-012W-930-120-S3-Z1B|
|No of LEDs||40|
|Luminous Flux||1100 lumens|
|Color Temperature||3000K (Warm White)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed
|Dimensions||203.0mm (8 inch) x 32.0 mm (1.25 inch)|
|Diameter of the screw hole||3.5mm (0.13 in)|
The 8inch Linear LED Module Driverless Engine LIN 08-012W-930-120-S3-Z1B is a high-quality and energy-efficient lighting solution that provides bright and warm white light. This LED module contains a total of 40 LED bulbs, which provide a luminous flux of 1100 lumens while consuming only 12W of power. The model number for this module is LIN 08-012W-930-120-S3-Z1B, and it operates on a 120V AC power source.
The color temperature of this LED module is 3000K, which produces a warm and comfortable environment. The high color rendering index (CRI) of over 90 ensures that colors are rendered accurately and vividly.
This module is designed to be dimmable, allowing you to adjust the brightness of the light according to your preference. It features a durable base material made of aluminum, which ensures efficient heat dissipation and longevity.

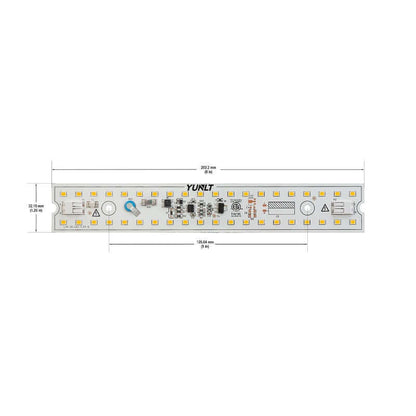

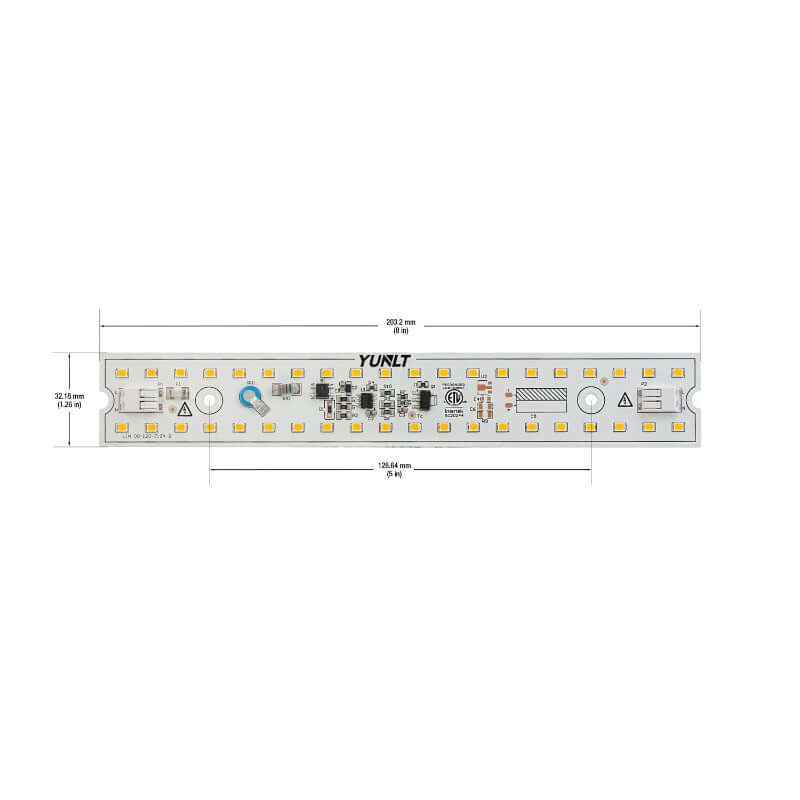

The dimensions of this module are 203.0mm (8 inches) in length and 32.0mm (1.25 inches) in height. It has screw holes with a diameter of 3.5mm (0.13 inches), which are spaced apart at a distance of 128mm (5 inches). The package includes a thermal silicon pad and a 6-inch black and white power feed, making installation easier and more convenient.
This LED module has been certified by ETL, ensuring that it meets safety standards and has been tested for electrical safety. Whether you want to illuminate your home, office, or commercial space, the LIN 08-012W-930-120-S3-Z1B LED module is an excellent choice that offers high performance, energy efficiency, and durability.
- Provides bright and warm white light with a luminous flux of 1100 lumens and a color temperature of 3000K
- Contains 40 LED bulbs and consumes only 12W of power, making it energy-efficient
- Dimmable, allowing you to adjust the brightness according to your preference
- Features a durable base material made of aluminum, ensuring efficient heat dissipation and longevity

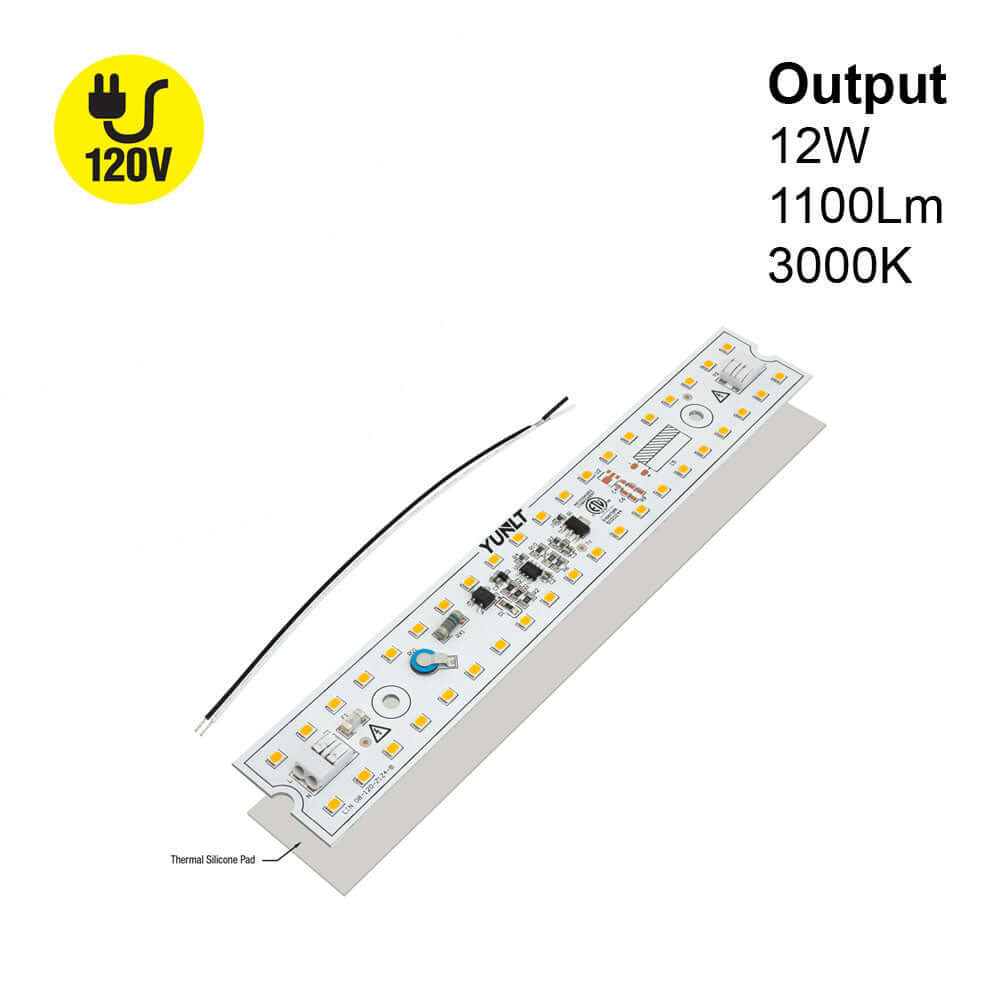

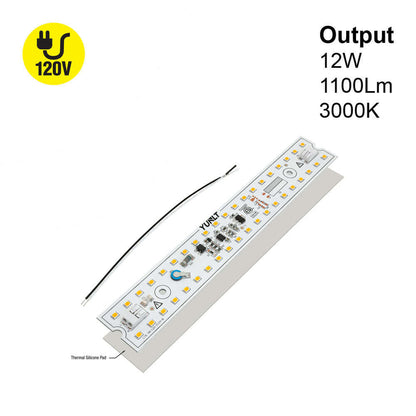

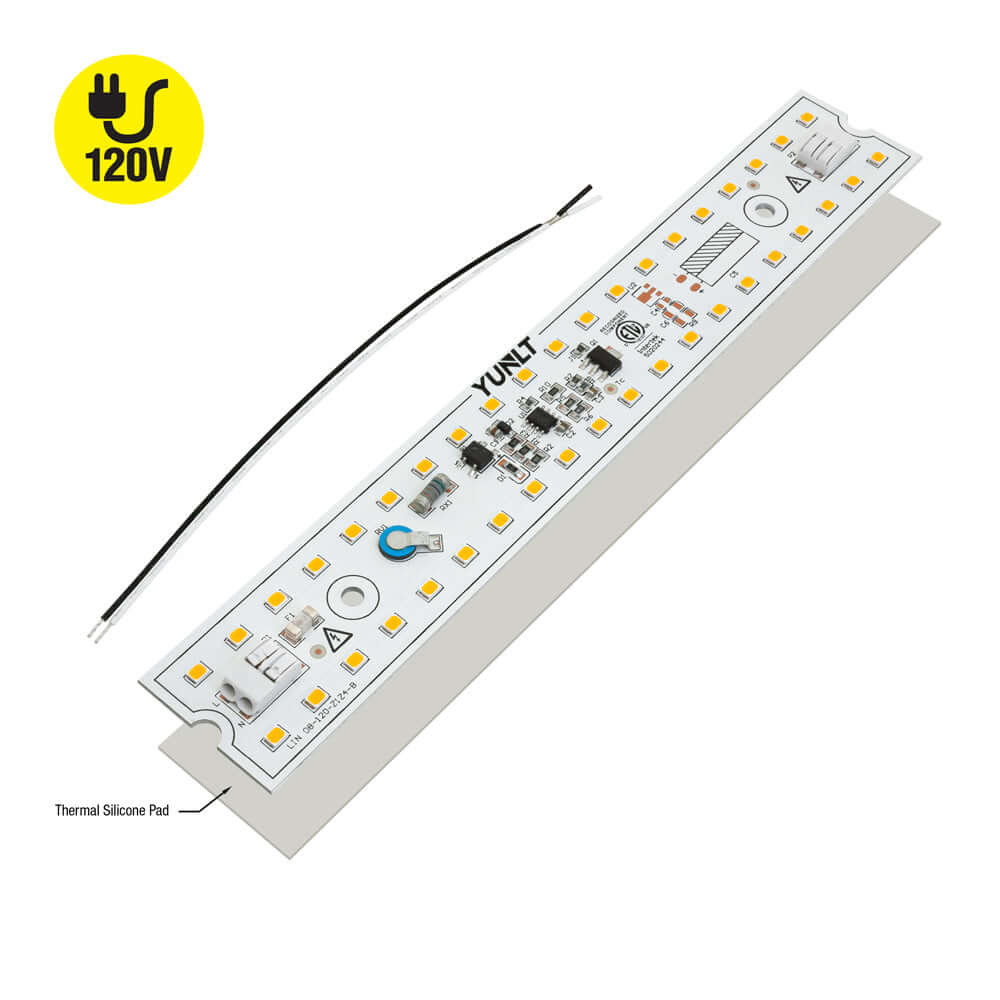

- Easy to install with a thermal silicon pad and a 6-inch black and white power feed included in the package
- Certified by ETL, ensuring safety and electrical standards compliance
- Ideal for use in homes, offices, and commercial spaces, providing high performance, energy efficiency, and durability.
- A premier quality light engine. It produces up to 1100 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
