8 inch Linear ZEGA LED Module LIN 08-015W-930-120-S3-Z1B, 120V 15W 3000K(Warm White)

  • $27.80 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427740
Title:
We only have 39 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product LED Module
Model No LIN 08-015W-930-120-S3-Z1B
No of LEDs 40
Wattage 15W
Voltage 120V AC
Luminous Flux 1300 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum
Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed
Dimensions 203.0mm (8 inch) x 32.0 mm (1.25 inch)
Diameter of the screw hole 3.5mm (0.13 in)
Height 6mm (0.23in)
Certification

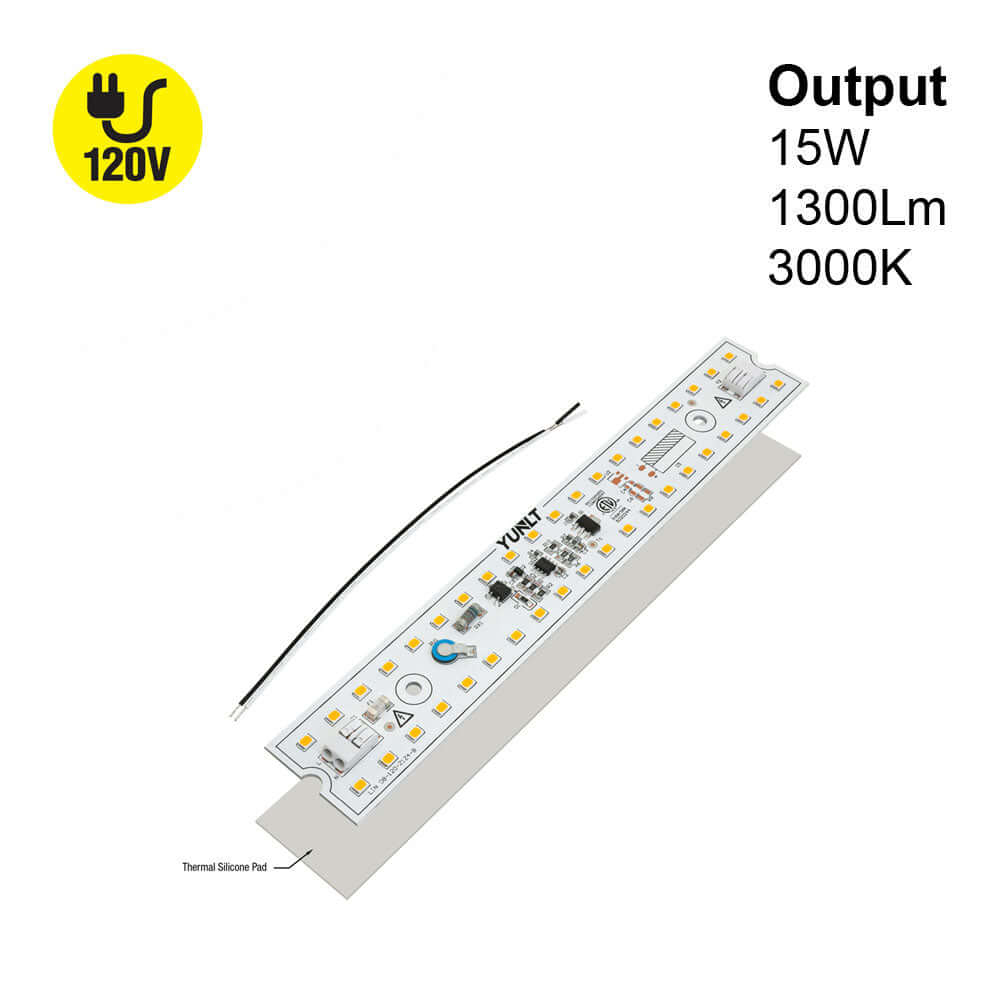

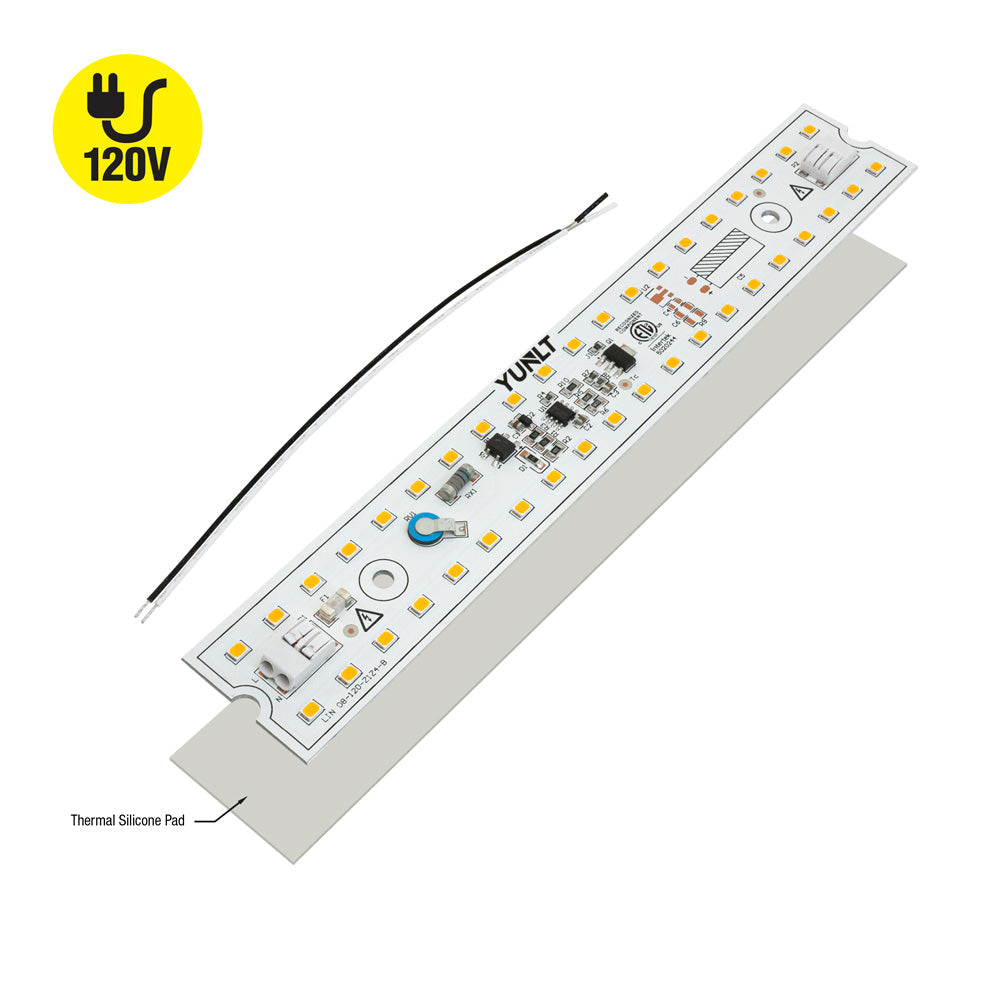

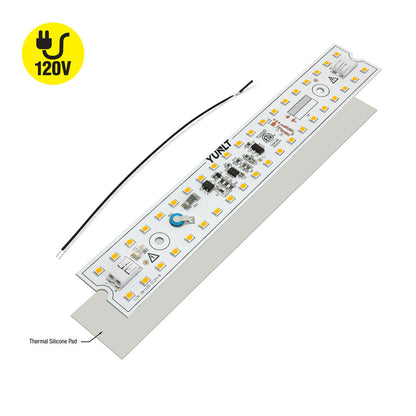

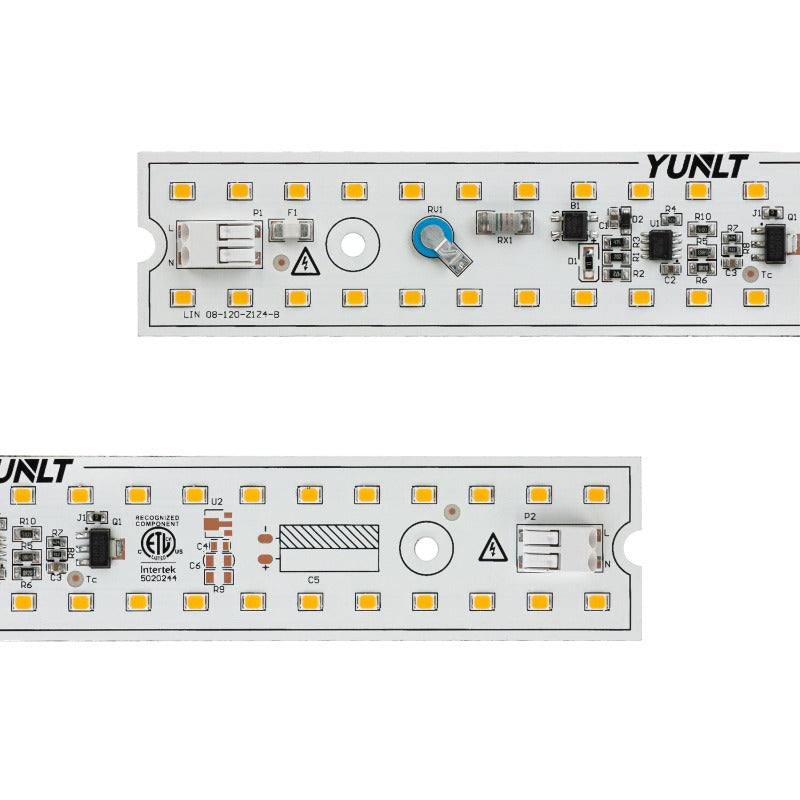

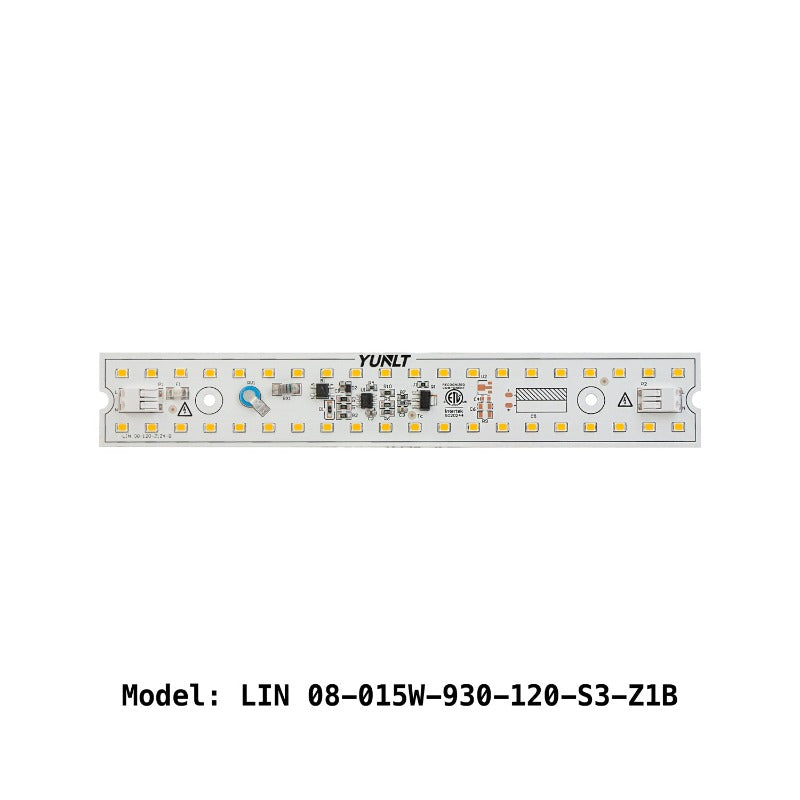

The 8inch Linear LED Module Driverless Engine LIN 08-015W-930-120-S3-Z1B is a top-quality and energy-efficient lighting solution that provides warm and bright white light. This LED module contains a total of 40 LED bulbs, which offer a luminous flux of 1300 lumens while consuming only 15W of power. The model number for this module is LIN 08-015W-930-120-S3-Z1B, and it operates on a 120V AC power source.

The color temperature of this LED module is 3000K, which creates a warm and comfortable atmosphere. The high color rendering index (CRI) of over 90 ensures that colors are rendered accurately and vividly.

This module is designed to be dimmable, allowing you to adjust the brightness of the light according to your preference. It features a durable base material made of aluminum, which ensures efficient heat dissipation and longevity.

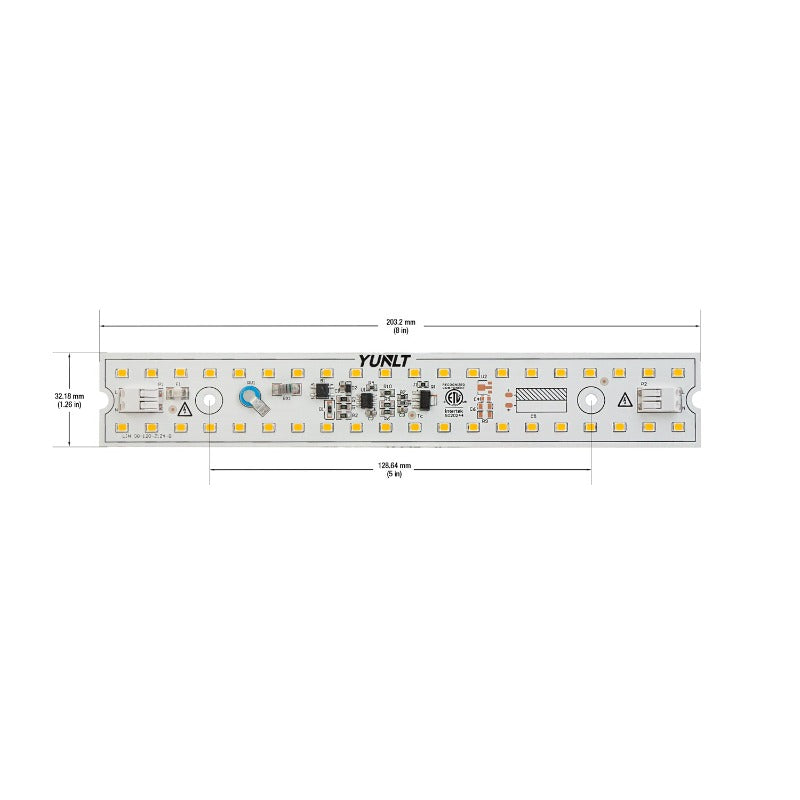

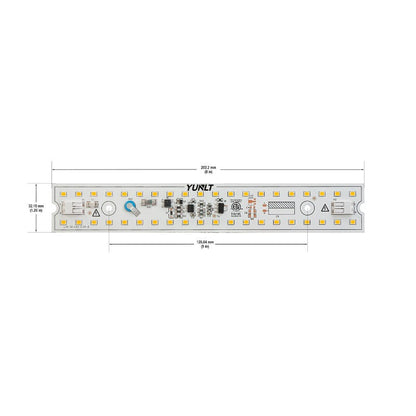

The dimensions of this module are 203.0mm (8 inches) in length and 32.0mm (1.25 inches) in height. It has screw holes with a diameter of 3.5mm (0.13 inches), which are spaced apart at a distance of 128mm (5 inches). The package includes a thermal silicon pad and a 6-inch black and white power feed, making installation easier and more convenient.

This LED module has been certified by ETL, ensuring that it meets safety standards and has been tested for electrical safety. Whether you need lighting for your home, office, or commercial space, the LIN 08-015W-930-120-S3-Z1B LED module is an excellent choice that offers high performance, energy efficiency, and durability.

Features:

  • Provides warm and bright white light
  • Contains 40 LED bulbs with a luminous flux of 1300 lumens
  • Consumes only 15W of power
  • Operates on a 120V AC power source
  • Has a color temperature of 3000K for a warm and comfortable atmosphere
  • High color rendering index (CRI) of over 90 ensures accurate and vivid color rendering
  • Designed to be dimmable for adjustable brightness
  • Features a durable base material made of aluminum for efficient heat dissipation and longevity
  • Dimensions of 203.0mm (8 inches) in length and 32.0mm (1.25 inches) in height
  • Screw holes have a diameter of 3.5mm (0.13 inches) and are spaced apart at a distance of 128mm (5 inches)
  • Package includes a thermal silicon pad and a 6-inch black and white power feed for easy installation
  • Certified by ETL for electrical safety and compliance with safety standards
  • A premier quality light engine. It produces up to 1300 lumens of exceptional light.
  • Low power consumption, high energy efficiency.
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
