9 inch Linear ZEGA LED Module LIN 09-010W-930-120-S3-Z1A, 120V 10W 3000K(Warm White)

  • $24.75 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561427757
We only have 48 left! Get it now before it's completely gone.

Free shipping on orders over $49 USD (Check availability during checkout).


Product Description

Product LED Module

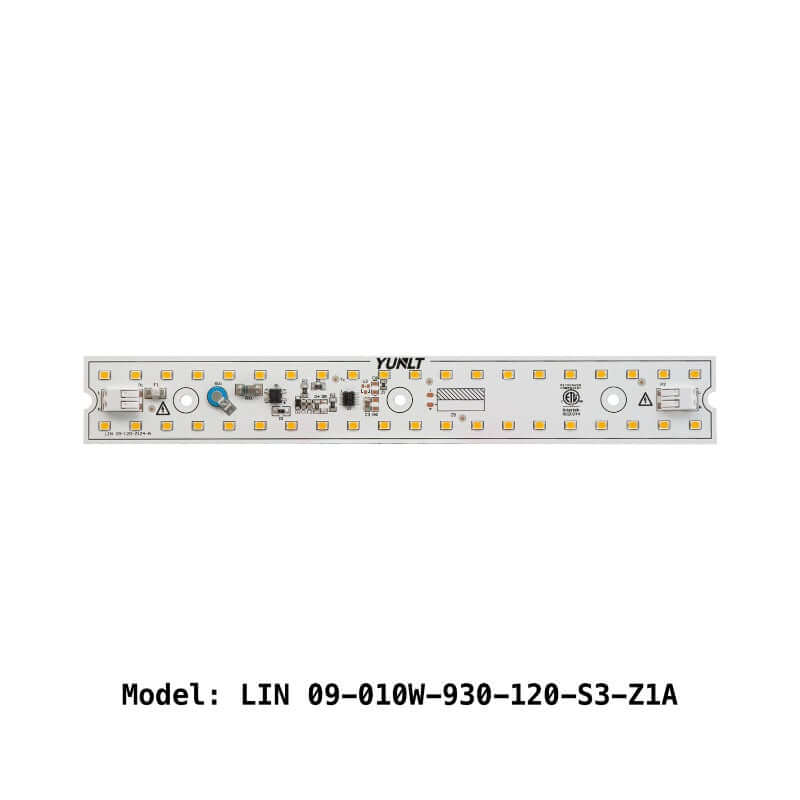

Model No LIN 09-010W-930-120-S3-Z1A
No of LEDs 40
Wattage 10W
Voltage 120V AC
Luminous Flux 900 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum

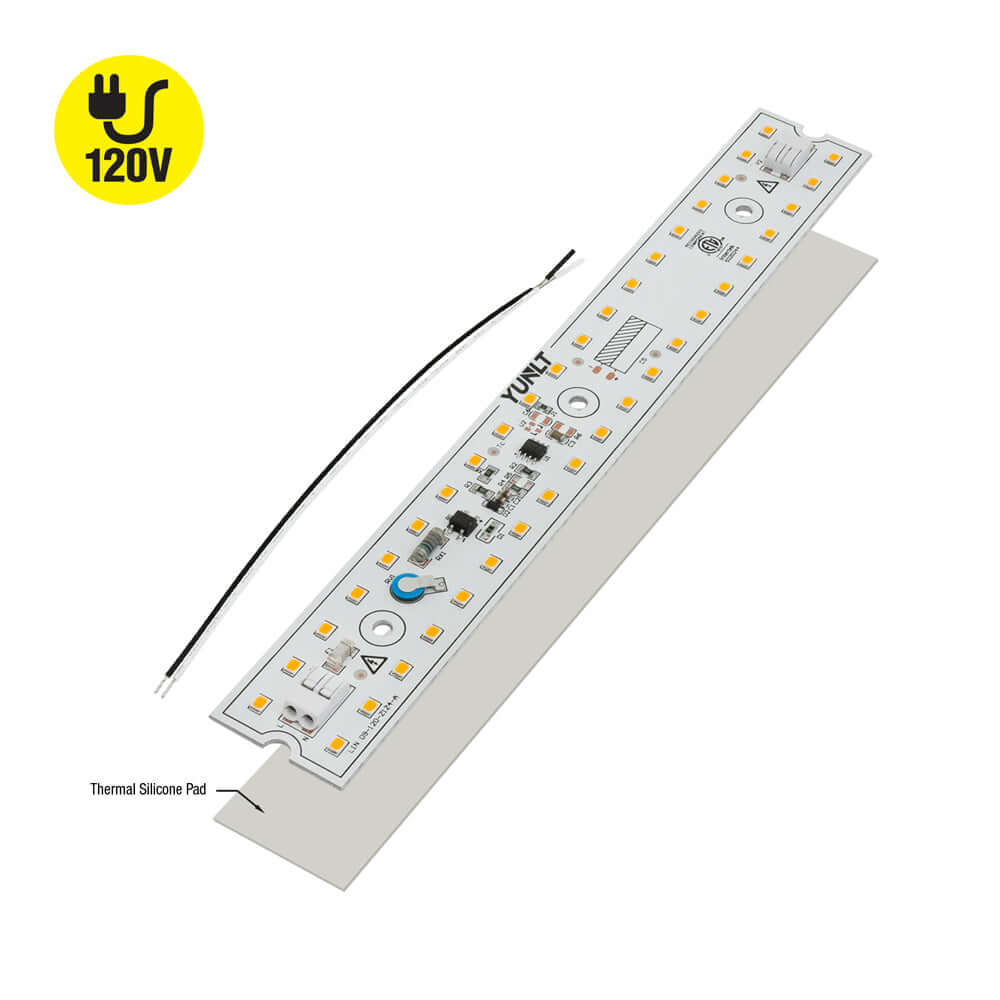

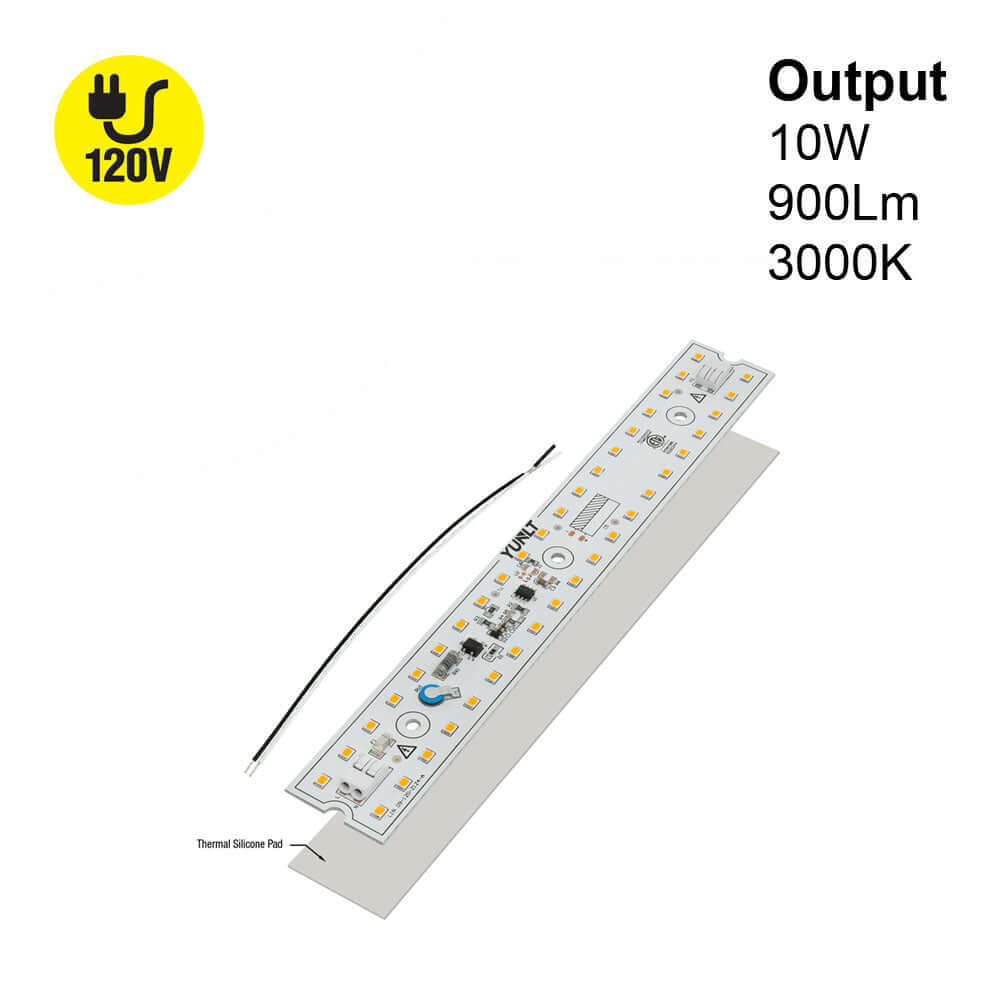

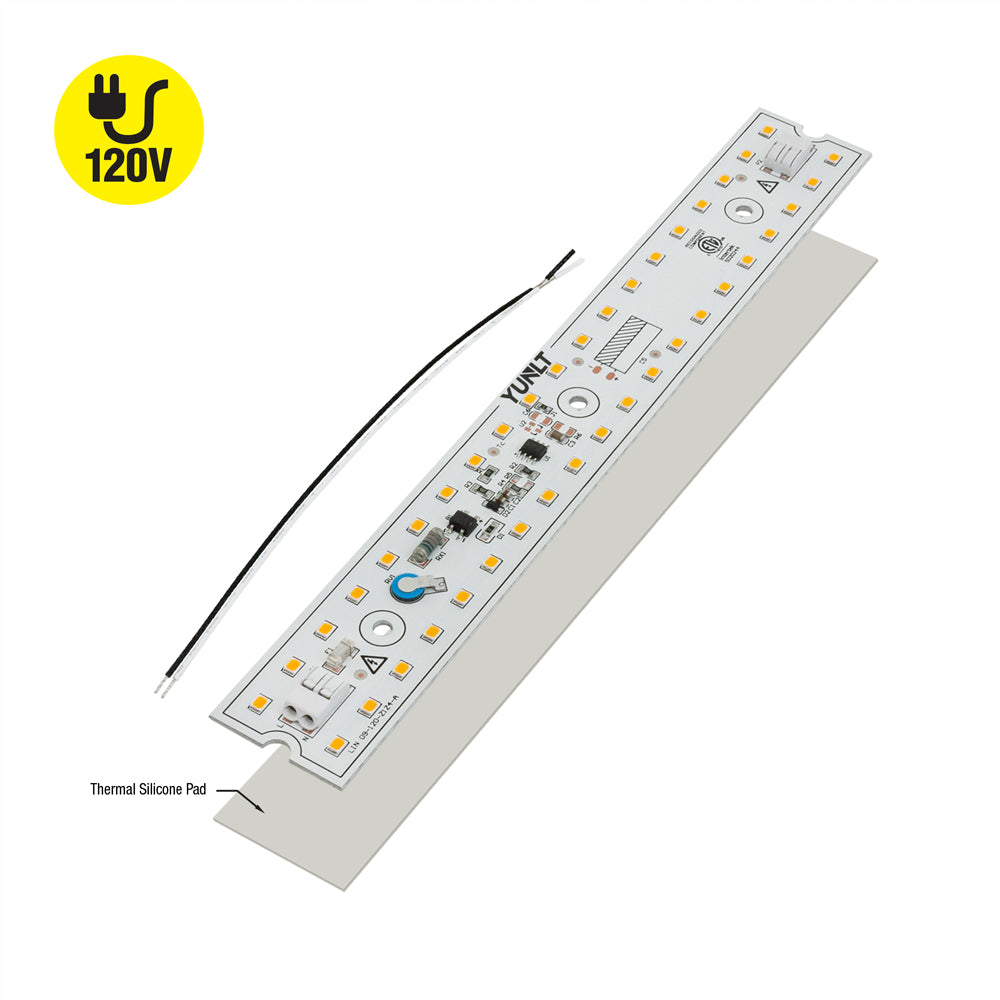

Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed

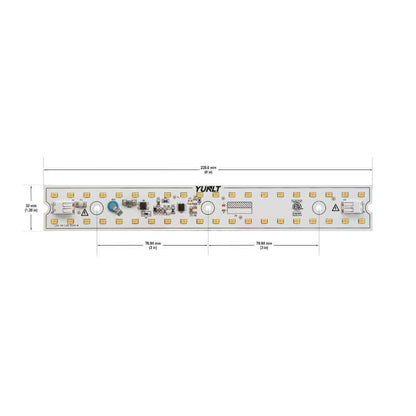

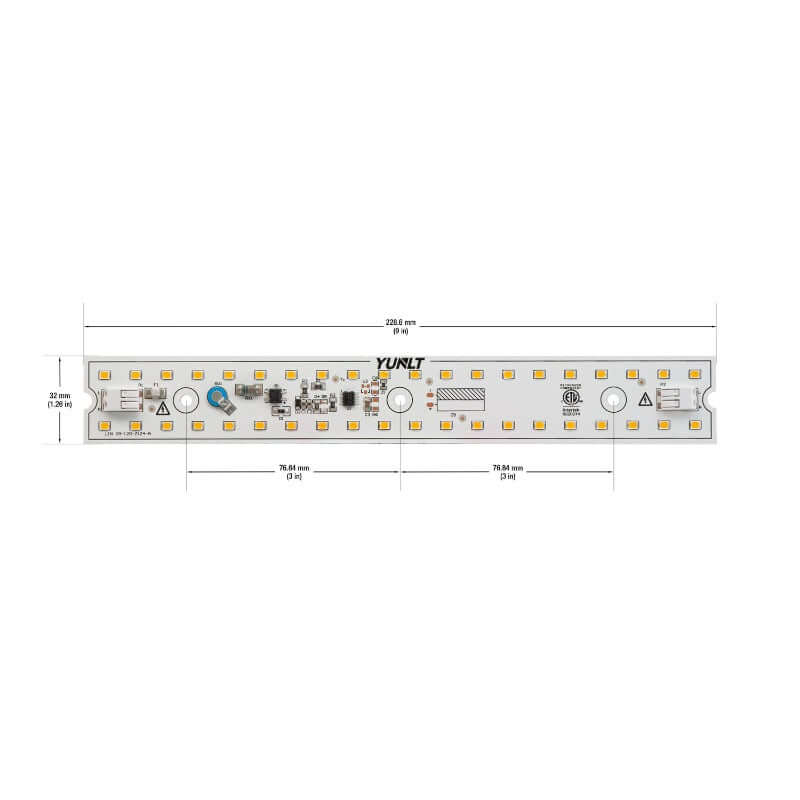

Dimensions 228.5mm (9 inch) x 32.0 mm (1.25 inch)
Diameter of the screw hole 3.5mm (0.13 in)
Height 6mm (0.23in)
Certification


The 9-inch Linear LED Module Driverless Engine LIN 09-010W-930-120-S3-Z1A is a high-quality LED lighting product that provides reliable and efficient lighting for various applications. The module is made up of 40 individual LED lights that collectively provide a total wattage of 10W and a luminous flux of 900 lumens. The voltage input is 120V AC.

The product emits a warm white color temperature of 3000K, which creates a comfortable and inviting environment, and has a high color rendering index (CRI) of over 90, ensuring that colors appear accurate and vibrant. The LED Module is dimmable, allowing you to adjust the brightness to suit your needs, and it is powered by AC.

The base material of the module is made of aluminum, which provides efficient heat dissipation, ensuring that the product stays cool even after prolonged use. The package components include the LED module, a thermal silicon pad, and a 6-inch black and white power feed. The dimensions of the LED module are 228.5mm (9 inches) in length and 32.0mm (1.25 inches) in width, and the diameter of the screw hole is 3.5mm (0.13 inches).

The product is ETL certified, meaning that it meets North American safety standards for electrical products. Overall, the 9-inch Linear LED Module Driverless Engine LIN 09-010W-930-120-S3-Z1A is an energy-efficient, high-quality, and reliable LED lighting solution that is suitable for a wide range of applications.

Features:

  • High-quality LED lighting product for various applications
  • Made up of 40 individual LED lights with a total wattage of 10W and a luminous flux of 900 lumens
  • Voltage input of 120V AC
  • Emits warm white color temperature of 3000K, creating a comfortable and inviting environment
  • High color rendering index (CRI) of over 90, ensuring accurate and vibrant colors
  • Dimmable LED Module allows you to adjust the brightness to suit your needs
  • Powered by AC for convenient and easy installation
  • Base material made of aluminum, providing efficient heat dissipation and ensuring the product stays cool even after prolonged use
  • Package components include LED module, thermal silicon pad, and 6-inch black and white power feed
  • Dimensions of 228.5mm (9 inches) in length and 32.0mm (1.25 inches) in width, with a screw hole diameter of 3.5mm (0.13 inches)
  • ETL certified, meeting North American safety standards for electrical products
  • Energy-efficient and reliable LED lighting solution
  • A premier quality light engine. It produces up to 900 lumens of exceptional light.
  • Low power consumption, high energy efficiency.
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
