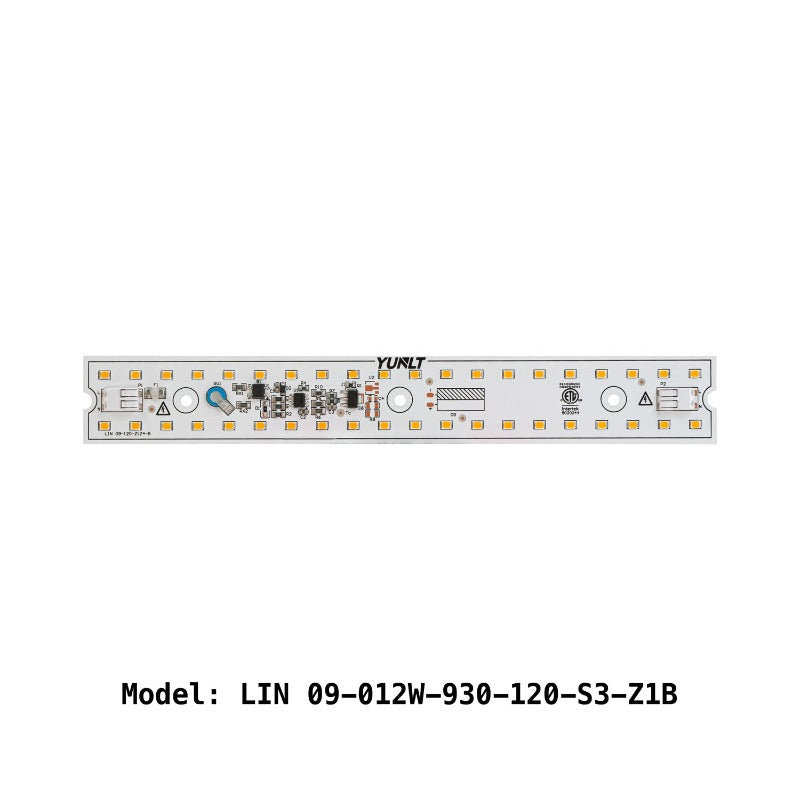

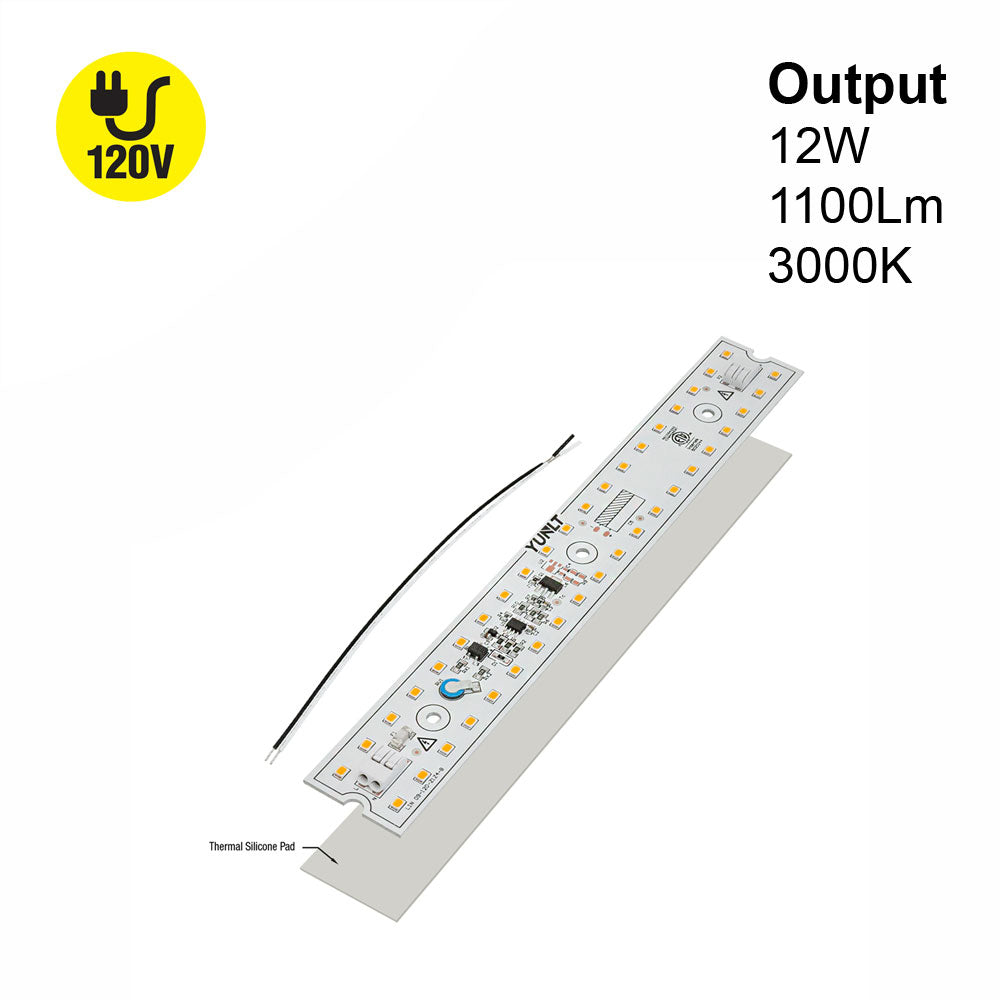

9 inch Linear ZEGA LED Module LIN 09-012W-930-120-S3-Z1B, 120V 12W 3000K(Warm White)
|Model No||LIN 09-012W-930-120-S3-Z1B|
|No of LEDs||40|
|Luminous Flux||1100 lumens|
|Color Temperature||3000K (Warm White)|

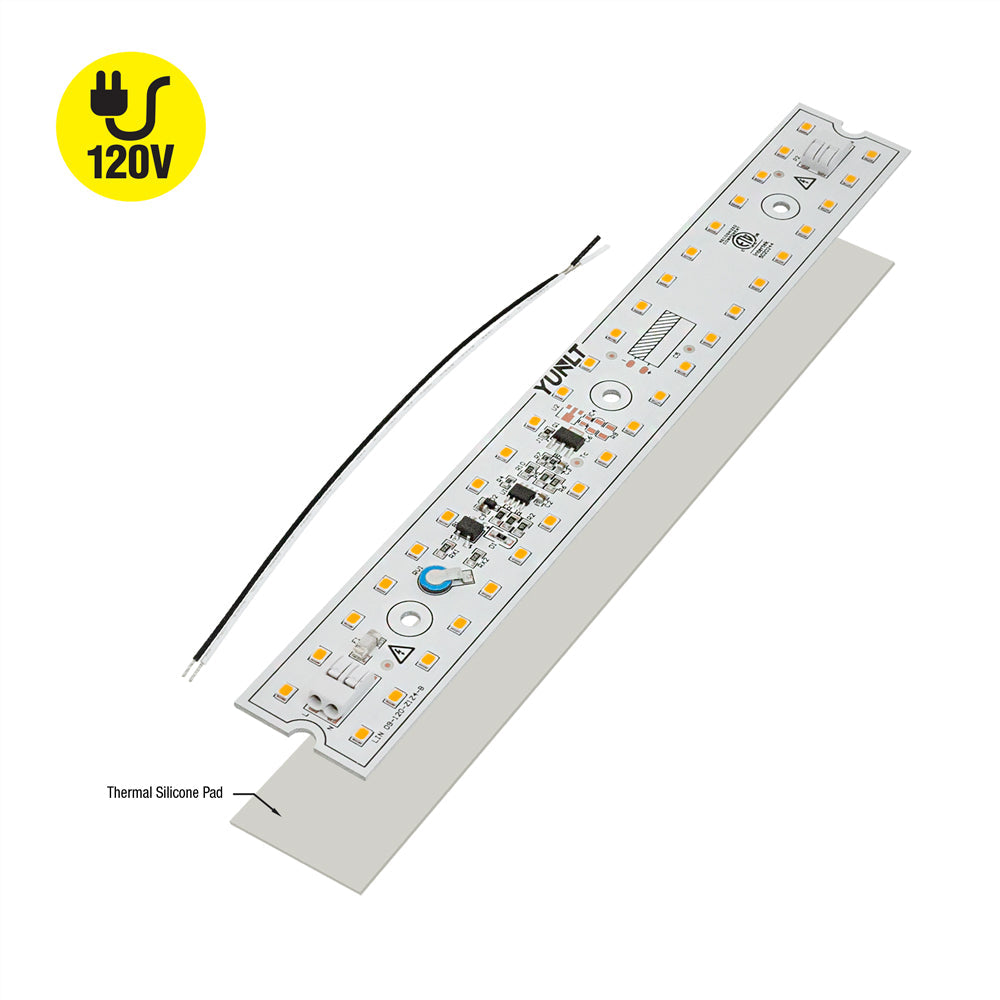

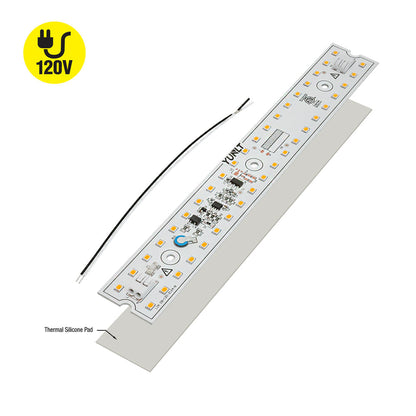

|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed

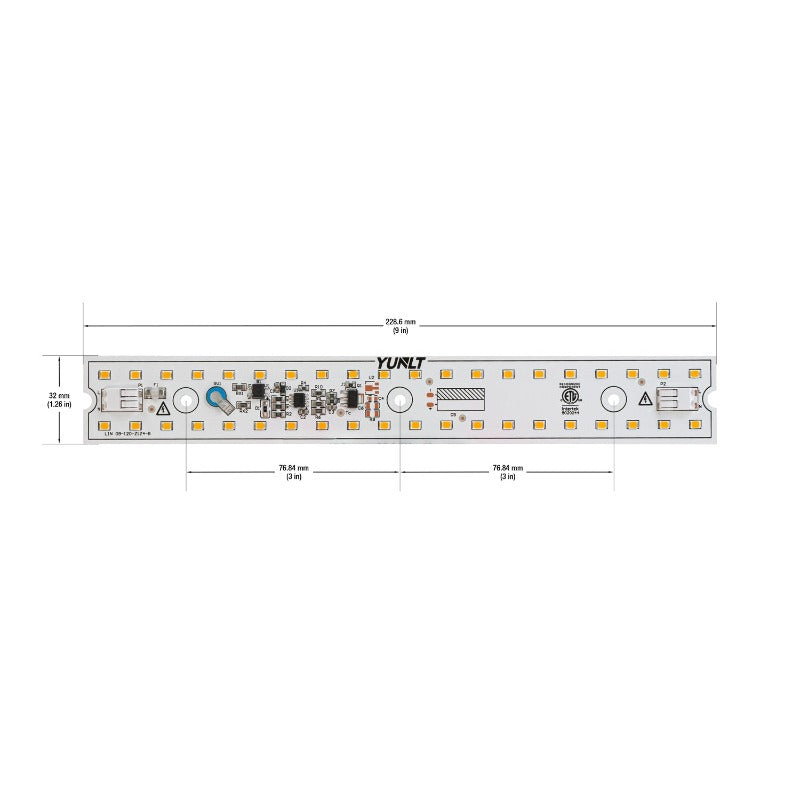

|Dimensions||228.5mm (9 inch) x 32.0 mm (1.25 inch)|
|Diameter of the screw hole||3.5mm (0.13 in)|

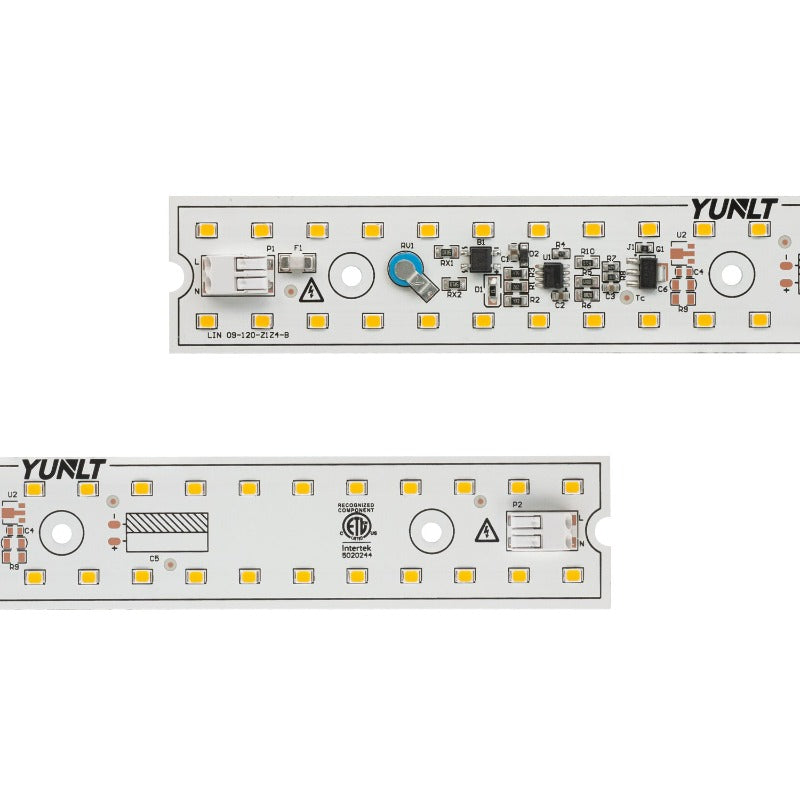

The 9-inch Linear LED Module Driverless Engine LIN 09-012W-930-120-S3-Z1B is a high-quality LED lighting product that provides reliable and efficient lighting for various applications. The module is made up of 40 individual LED lights that collectively provide a total wattage of 12W and a luminous flux of 1100 lumens. The voltage input is 120V AC.
The product emits a warm white color temperature of 3000K, which creates a comfortable and inviting environment, and has a high color rendering index (CRI) of over 90, ensuring that colors appear accurate and vibrant. The LED Module is dimmable, allowing you to adjust the brightness to suit your needs, and it is powered by AC.
The base material of the module is made of aluminum, which provides efficient heat dissipation, ensuring that the product stays cool even after prolonged use. The package components include the LED module, a thermal silicon pad, and a 6-inch black and white power feed. The dimensions of the LED module are 228.5mm (9 inches) in length and 32.0mm (1.25 inches) in width, and the diameter of the screw hole is 3.5mm (0.13 inches).
The product is ETL certified, meaning that it meets North American safety standards for electrical products. Overall, the 9-inch Linear LED Module Driverless Engine LIN 09-012W-930-120-S3-Z1B is an energy-efficient, high-quality, and reliable LED lighting solution that is suitable for a wide range of applications.
- High-quality LED lighting product
- Total wattage of 12W and a luminous flux of 1100 lumens
- Voltage input of 120V AC
- Warm white color temperature of 3000K with a high CRI of over 90
- Dimmable LED Module
- Powered by AC
- Made of aluminum for efficient heat dissipation
- Package components include LED module, thermal silicon pad, and 6-inch black and white power feed
- Dimensions of 228.5mm (9 inches) in length and 32.0mm (1.25 inches) in width
- Diameter of the screw hole is 3.5mm (0.13 inches)
- ETL certified for North American safety standards
- A premier quality light engine. It produces up to 1100 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
