Product Description
| product | LED Module |

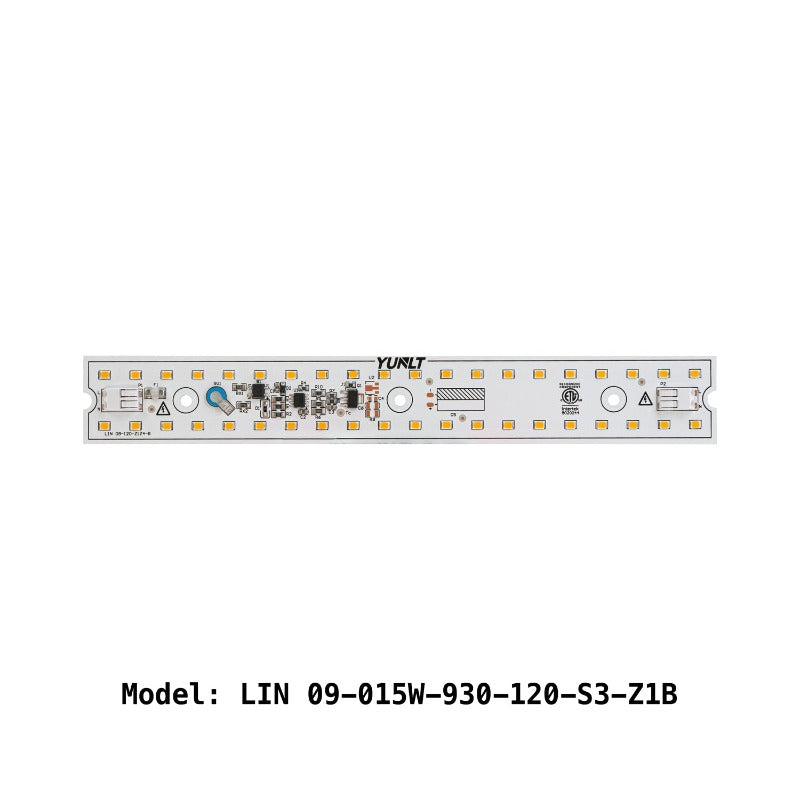

| Model No | LIN 09-015W-930-120-S3-Z1B |
| No of LEDs | 40 |
| Wattage | 15W |
| Voltage | 120V AC |
| Luminous Flux | 1300 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum |
| Weight | 0.045 kg |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

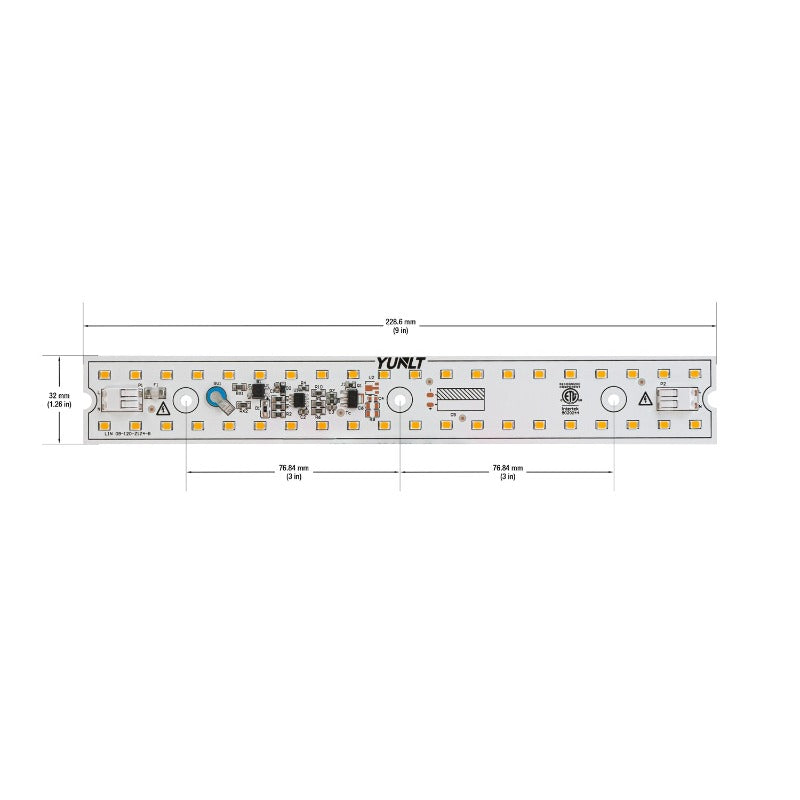

| Dimensions | 228.5mm (9 inch) x 32.0 mm (1.25 inch) |
| Diameter of the screw hole | 3.5mm (0.13 in) |
| Height | 6mm (0.23in) |
| Certification |
|
Features:
- Efficient and reliable LED lighting product suitable for a wide range of applications.
- Made up of 40 individual LED lights that provide a total wattage of 15W and a luminous flux of 1300 lumens.
- Voltage input is 120V AC.
- Emits a warm white color temperature of 3000K, creating a comfortable and inviting environment.
- High color rendering index (CRI) of over 90, ensuring accurate and vibrant colors.
- LED module is dimmable, allowing you to adjust the brightness to suit your needs.
- Powered by AC.
- Base material of the module is made of aluminum, providing efficient heat dissipation and ensuring the product stays cool even after prolonged use.

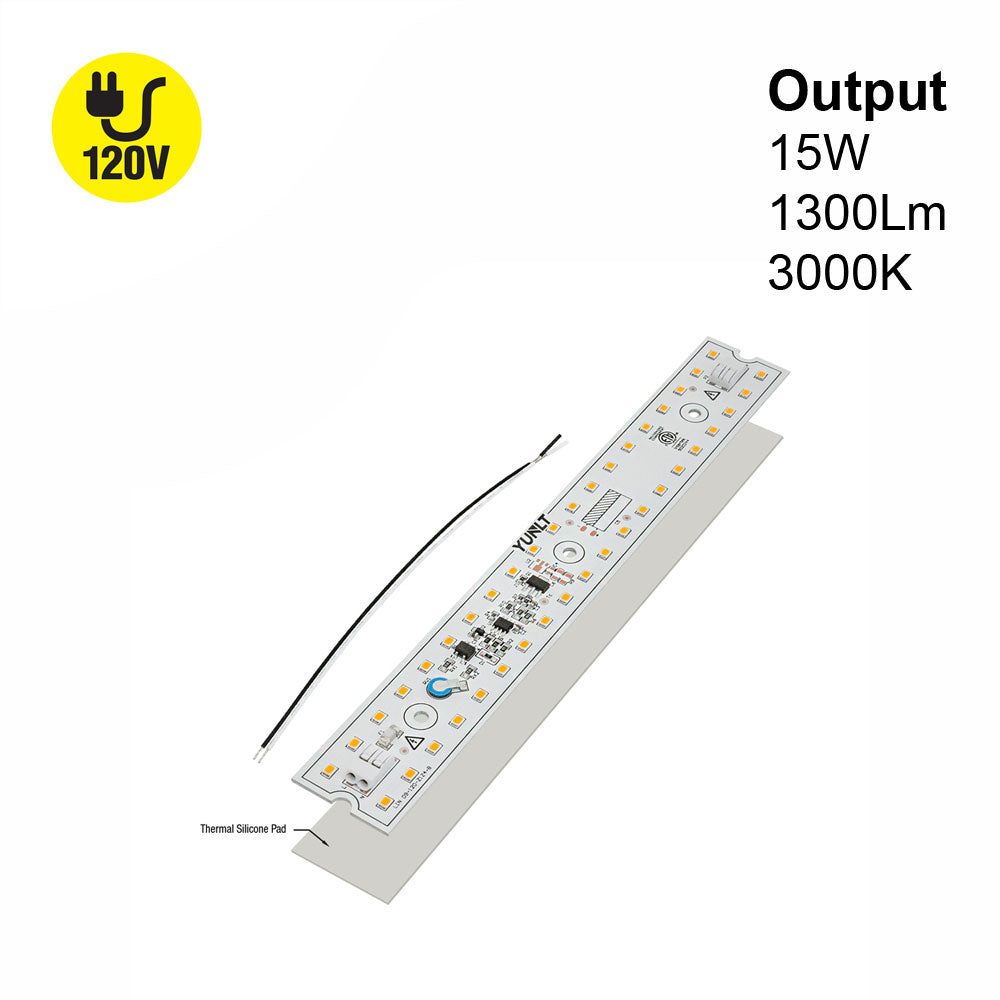

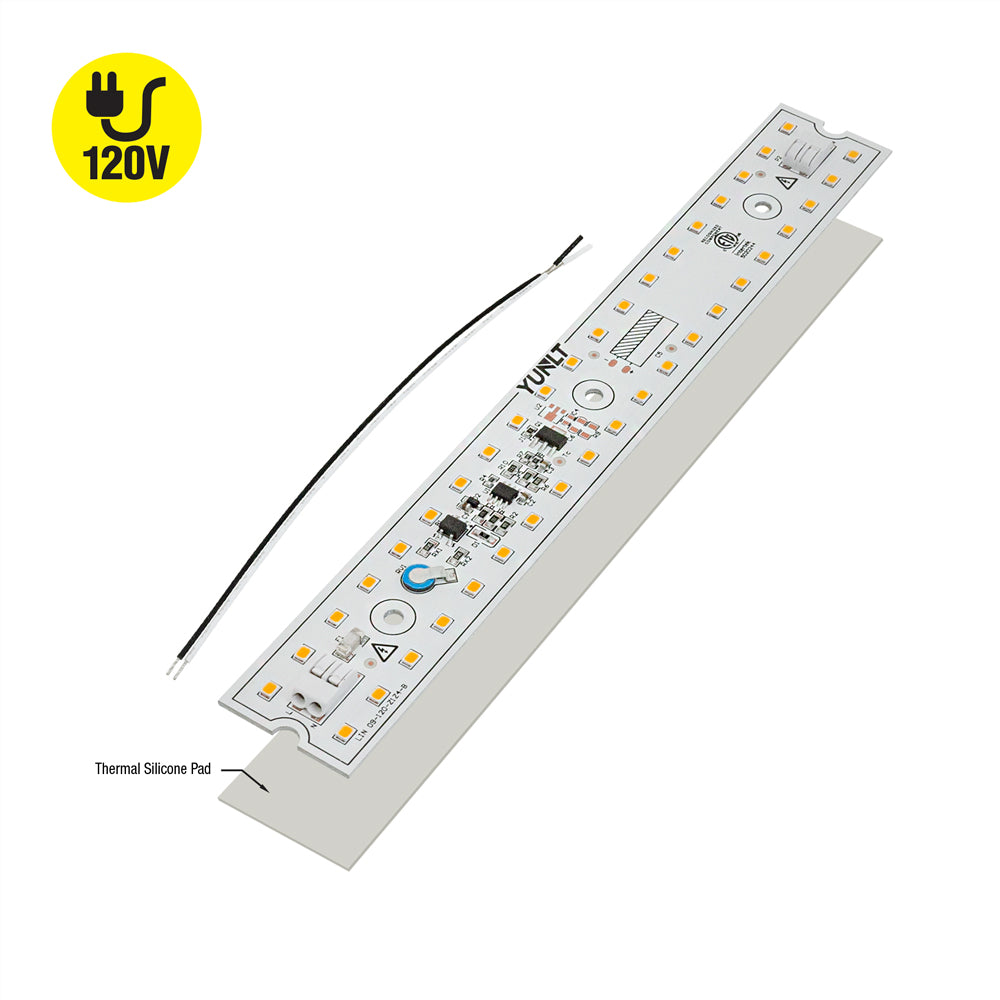

- Package components include the LED module, a thermal silicon pad, and a 6-inch black and white power feed.
- Dimensions of the LED module are 228.5mm (9 inches) in length and 32.0mm (1.25 inches) in width, with a diameter of the screw hole of 3.5mm (0.13 inches).
- 9 inch Linear ZEGA LED Module 120V 15W 3000K
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
