9 inch Slim ZEGA LED Module SLM 09-010W-930-120-S3-Z1A, 120V 10W 3000K(Warm White)

  • $22.10 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561428013
We only have 37 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product LED Module

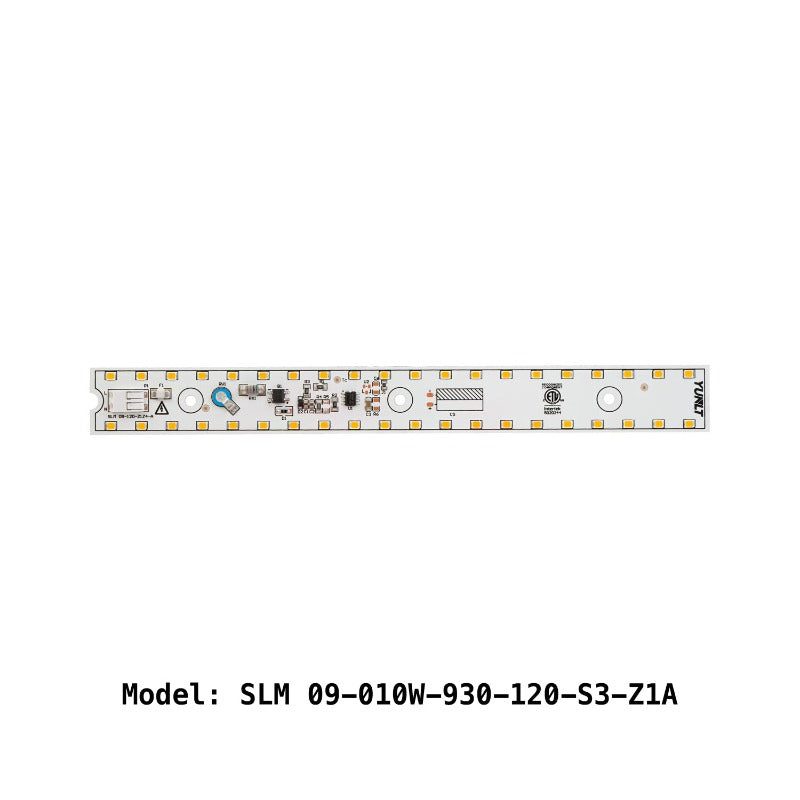

Model No SLM 09-010W-930-120-S3-Z1A
No of LEDs 40
Wattage 10W
Voltage 120V AC
Luminous Flux 900 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum
Package Components  LED Module
Thermal Silicon Pad
6inch Black and White power feed

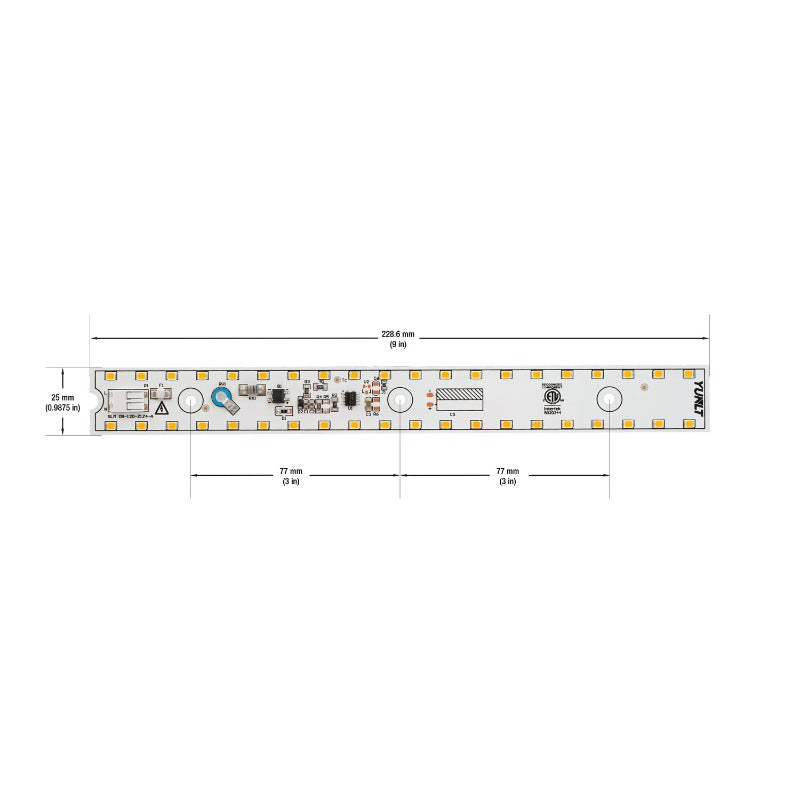

Dimensions 228.5mm (9 inch) x 25.0 mm (1.0 inch)
Diameter of the screw hole 3.5mm (0.13 in)
Height 6mm (0.23in)
Certification

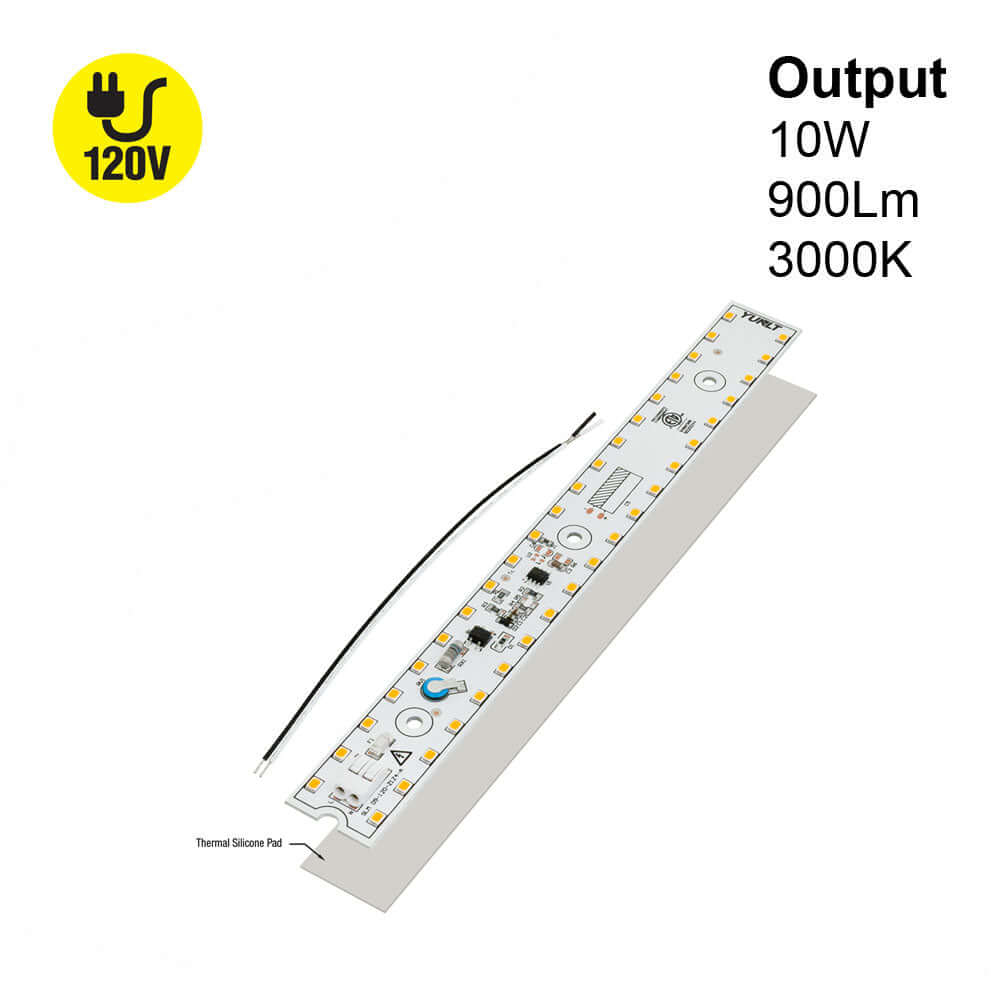

The 9-inch Slim LED Module Driverless Engine SLM 09-010W-930-120-S3-Z1A is a high-quality LED lighting product with a model number of SLM 09-010W-930-120-S3-Z1A. It consists of 40 individual LED lights and provides a total wattage of 10W, with a voltage input of 120V AC. The product emits a warm white color temperature of 3000K and has a high color rendering index (CRI) of over 90, ensuring that colors appear accurate and vibrant.

The LED Module is dimmable, allowing you to adjust the brightness to suit your needs, and it is powered by AC. The base material of the module is made of aluminum, which provides efficient heat dissipation, ensuring that the product stays cool even after prolonged use. The package components include the LED module, a thermal silicon pad, and a 6-inch black and white power feed.

The dimensions of the LED module are 228.5mm (9 inches) in length and 25.0mm (1.0 inch) in width, and the diameter of the screw hole is 3.5mm (0.13 inches). The product is ETL certified, meaning that it meets North American safety standards for electrical products. Overall, the 9-inch Slim LED Module Driverless Engine SLM 09-010W-930-120-S3-Z1A is an energy-efficient, high-quality, and reliable LED lighting solution that is suitable for a wide range of applications.

Features:

  • 40 individual LED lights provide a total wattage of 10W
  • Warm white color temperature of 3000K and CRI of over 90 for accurate and vibrant colors
  • Dimmable LED Module allows you to adjust brightness to suit your needs
  • Aluminum base material provides efficient heat dissipation to keep the product cool

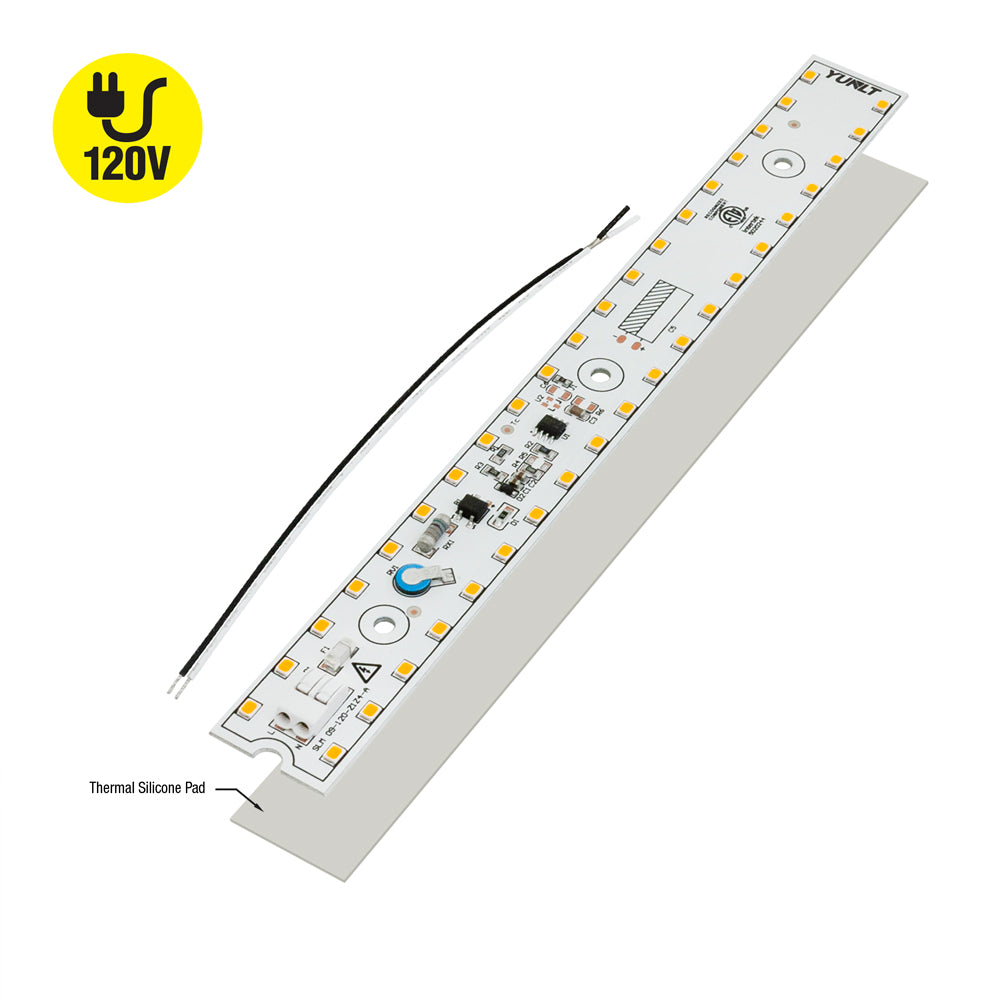

  • Package components include LED module, thermal silicon pad, and 6-inch power feed
  • Dimensions of 228.5mm (9 inches) in length and 25.0mm (1.0 inch) in width
  • Screw hole diameter of 3.5mm (0.13 inches)
  • ETL certified to meet North American safety standards for electrical products
  • Energy-efficient, high-quality, and reliable LED lighting solution suitable for a wide range of applications.
  • A premier quality light engine. It produces up to 900 lumens of exceptional light.
  • Low power consumption, high energy efficiency.
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
