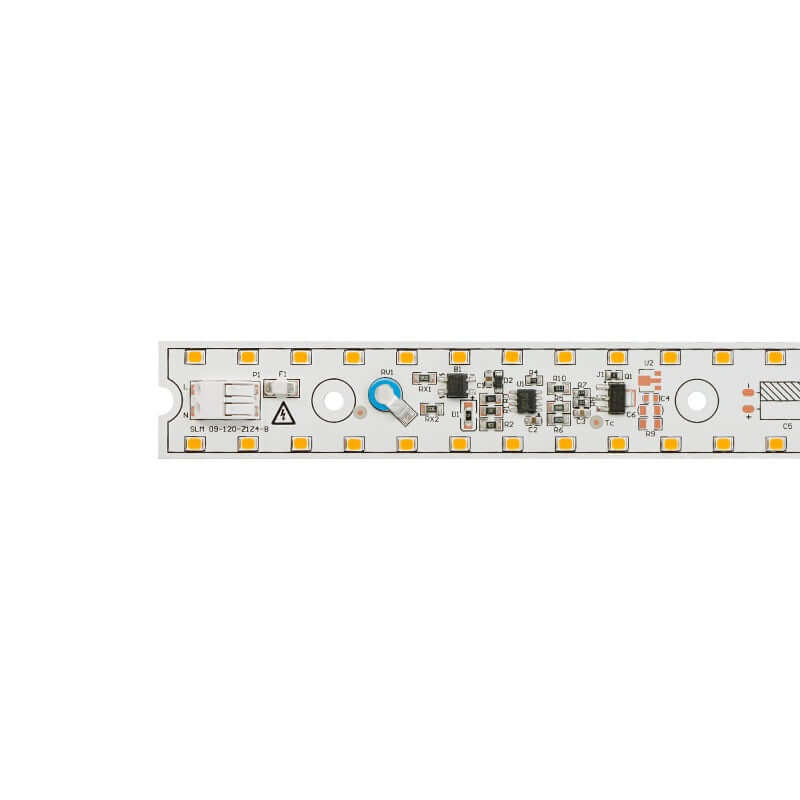

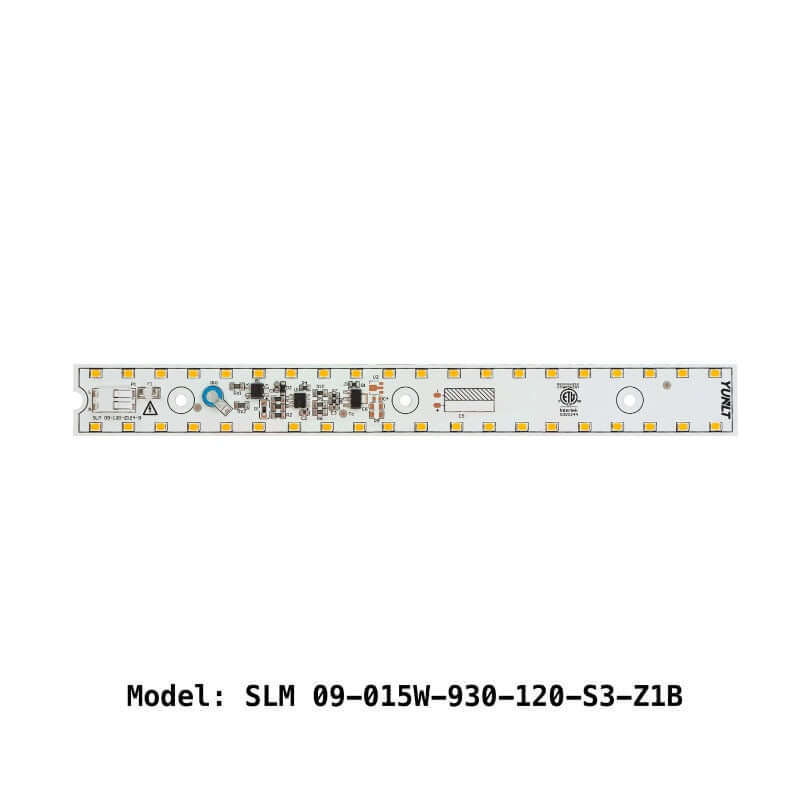

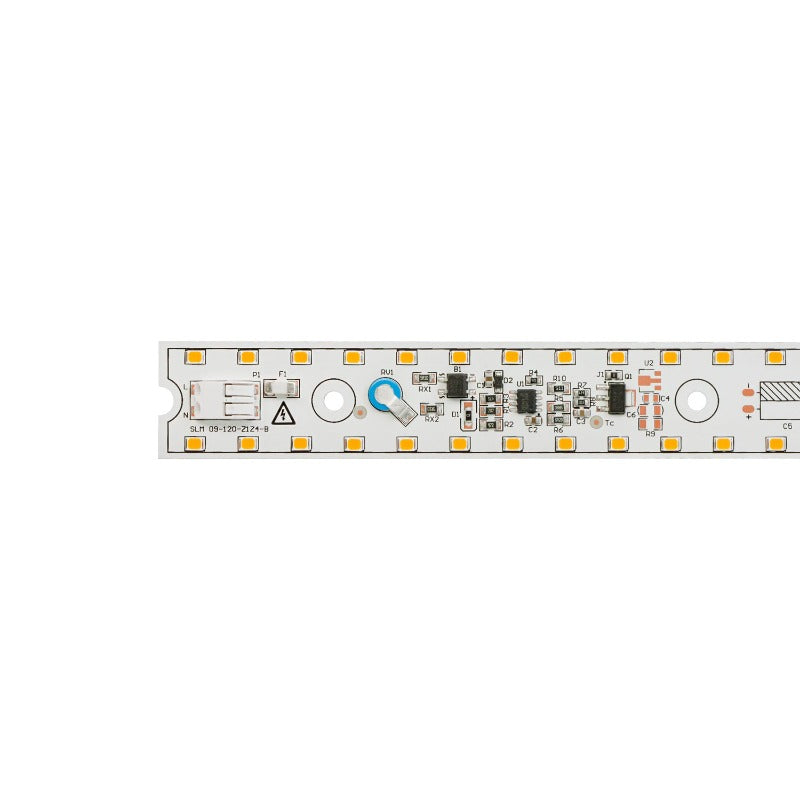

9 inch Slim ZEGA LED Module SLM 09-015W-930-120-S3-Z1B, 120V 15W 3000K(Warm White)
|Model No||SLM 09-015W-930-120-S3-Z1B|
|No of LEDs||40|
|Luminous Flux||1300 lumens|
|Color Temperature||3000K (Warm White)|
|Package Components||LED Module
Thermal Silicon Pad
6inch Black and White power feed
|Dimensions||228.5mm (9 inch) x 25.0 mm (1.0 inch)|
|Diameter of the screw hole||3.5mm (0.13 in)|
The 9-inch Slim LED Module Driverless Engine SLM 09-015W-930-120-S3-Z1B is a high-quality LED lighting product with a model number of SLM 09-015W-930-120-S3-Z1B. It consists of 40 individual LED lights and provides a total wattage of 15W, with a voltage input of 120V AC. The product emits a warm white color temperature of 3000K and has a high color rendering index (CRI) of over 90, ensuring that colors appear accurate and vibrant.

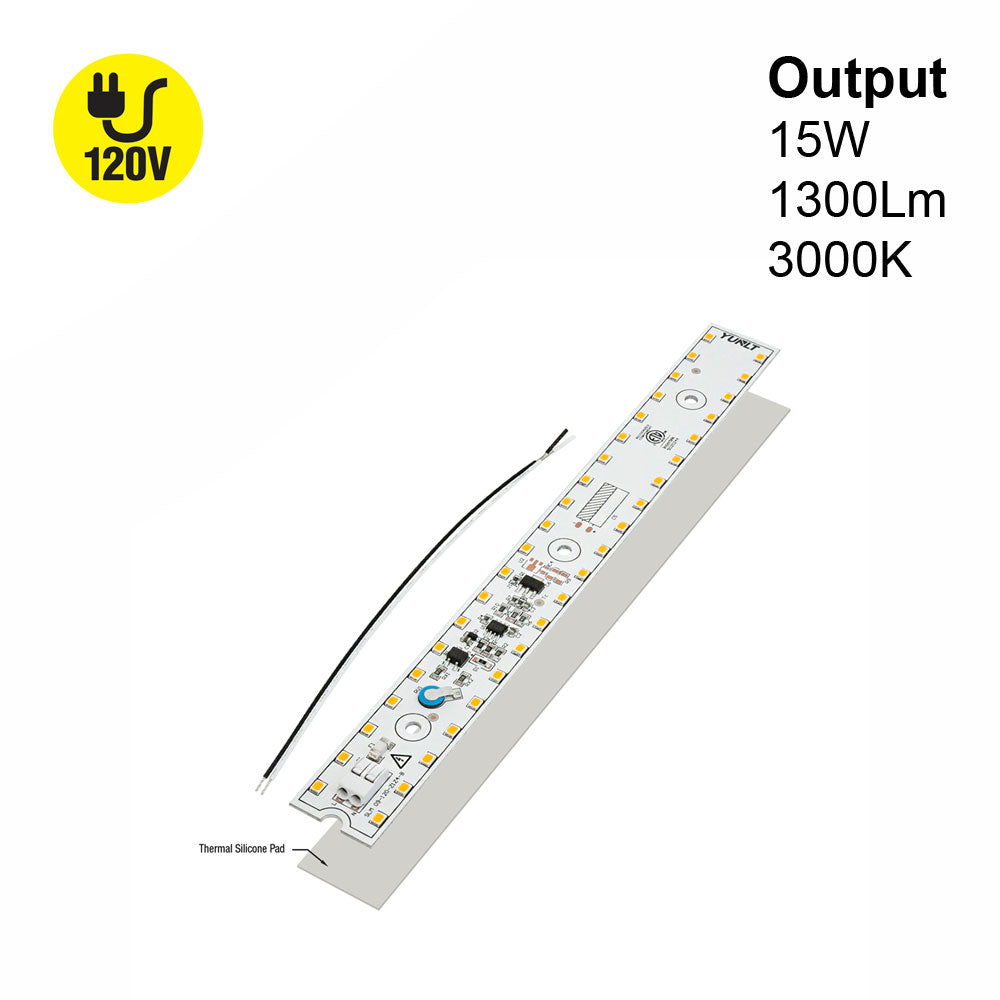

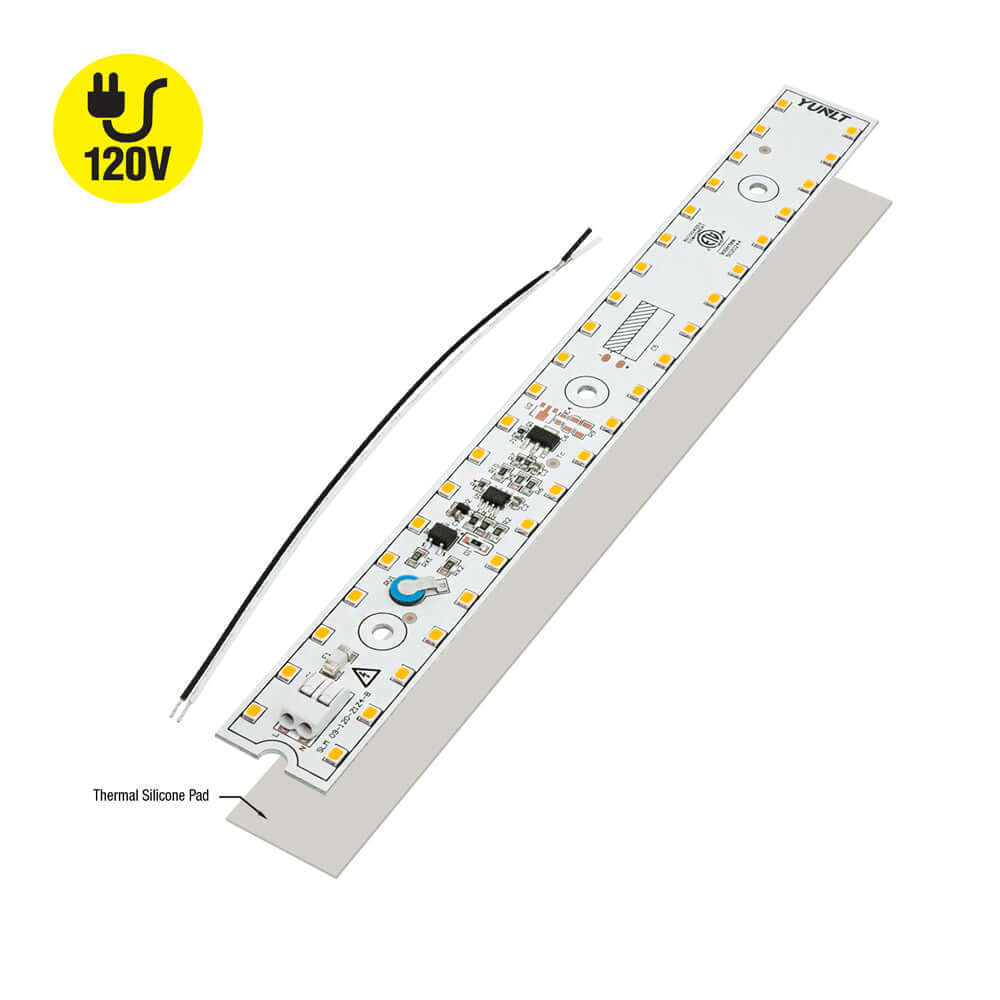

The LED Module is dimmable, allowing you to adjust the brightness to suit your needs, and it is powered by AC. The base material of the module is made of aluminum, which provides efficient heat dissipation, ensuring that the product stays cool even after prolonged use. The package components include the LED module, a thermal silicon pad, and a 6-inch black and white power feed.

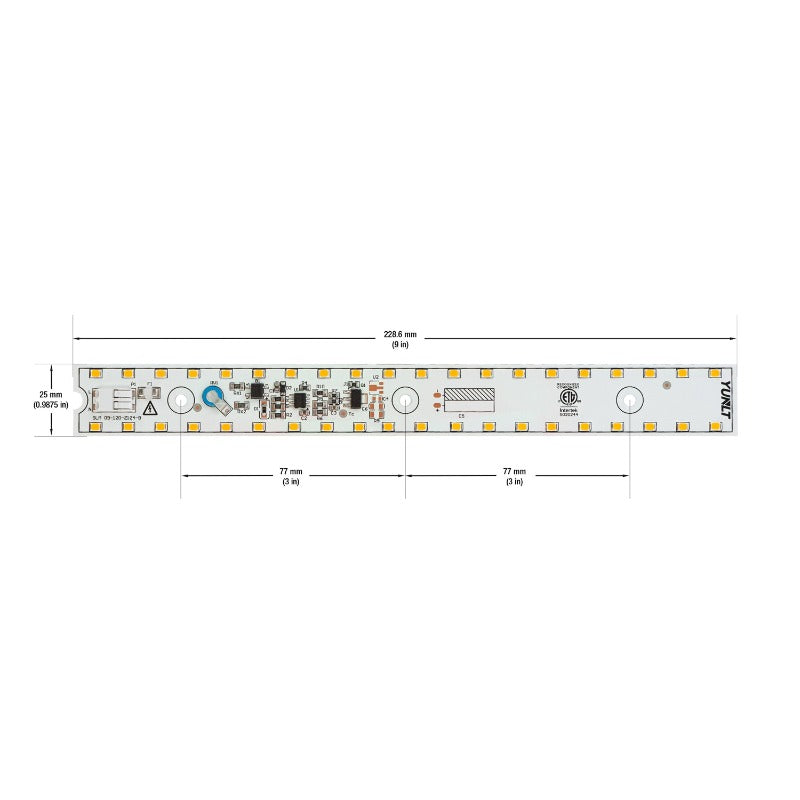

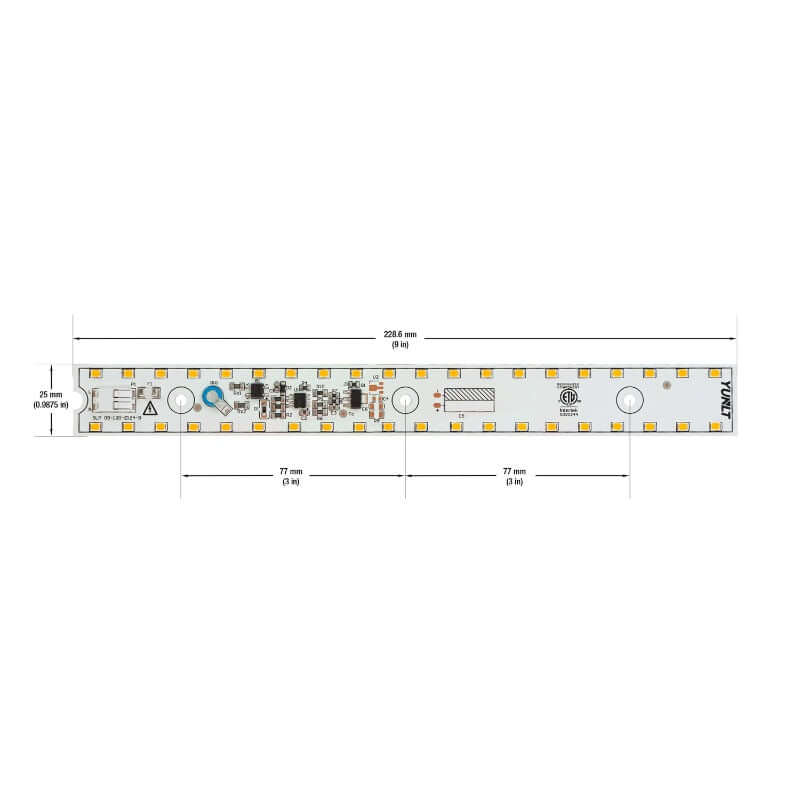

The dimensions of the LED module are 228.5mm (9 inches) in length and 25.0mm (1.0 inch) in width, and the diameter of the screw hole is 3.5mm (0.13 inches). The product is ETL certified, meaning that it meets North American safety standards for electrical products. Overall, the 9-inch Slim LED Module Driverless Engine SLM 09-015W-930-120-S3-Z1B is an energy-efficient, high-quality, and reliable LED lighting solution that is suitable for a wide range of applications.
- Number of LEDs: 40
- Color temperature: 3000K (warm white)
- Color rendering index (CRI): >90 (high accuracy and vibrancy of colors)
- Dimmable: allows for brightness adjustment
- Power source: AC
- Base material: aluminum for efficient heat dissipation
- Package components: LED module, thermal silicon pad, 6-inch black and white power feed
- Dimensions: 228.5mm (9 inches) length, 25.0mm (1.0 inch) width, 3.5mm (0.13 inches) diameter of screw hole
- Safety certification: ETL certified for North American electrical standards
- Energy-efficient and reliable lighting solution suitable for various applications
- A premier quality light engine. It produces up to 1300 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
