Product Description
| Model | 3V24S100D |
| Case Code | AM103 |
| Input Voltage | 347 VAC |
| Input Current | 0.34A |
| Frequency | 50/60Hz |
| Output Voltage | 24V DC |
| Output regulated Current | 4.1A |
| Output Power | 100W |
| Dimmable | Yes (3 in 1 Dimming- PWM, 0-10V, resistance) |
| Waterproof | No (Damp locations only) |
| IP Rating | IP65 |

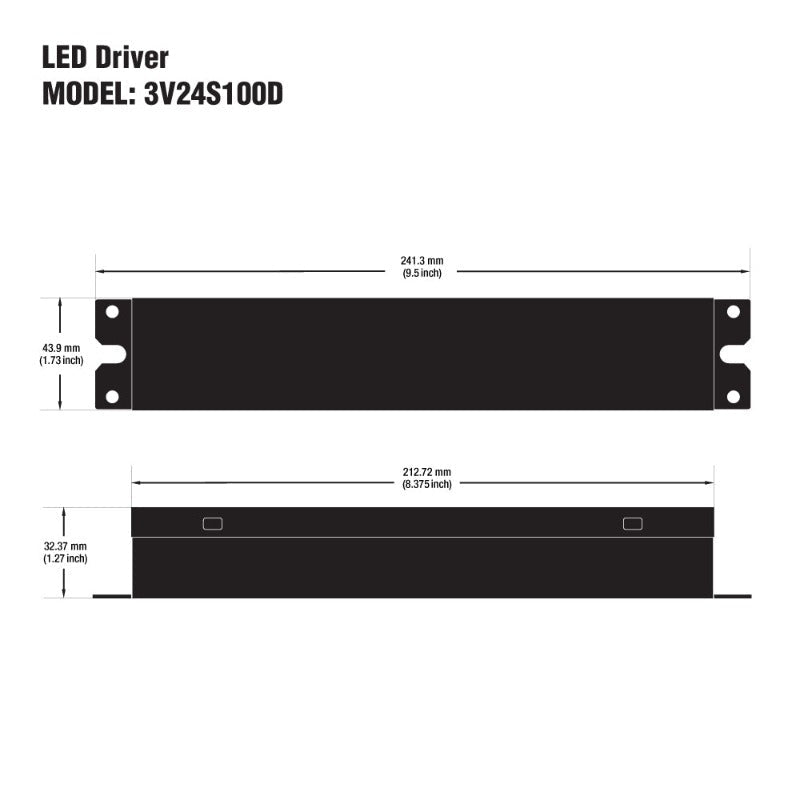

| Dimensions | 241.3 × 43.9× 32.37mm (9.5 x 1.73 x 1.27 in) |
| Class Certification | Class 2 / Type TL |
| Starting Temperature | -40°C |
| Certification |    |
| Open/Short/Over-Voltage/Over Temperature protection |
| Suitable for Damp locations |

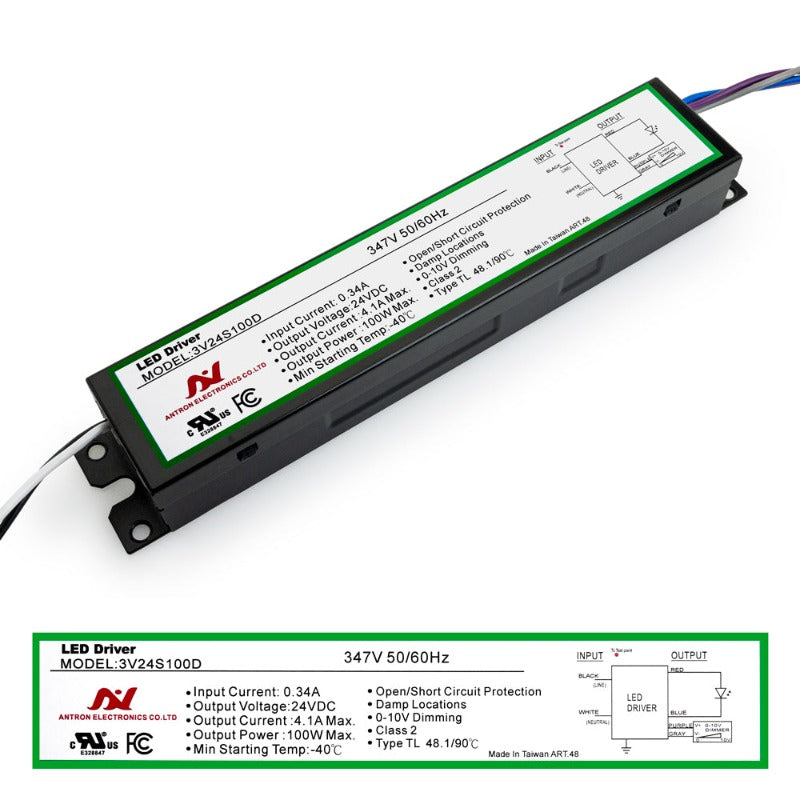

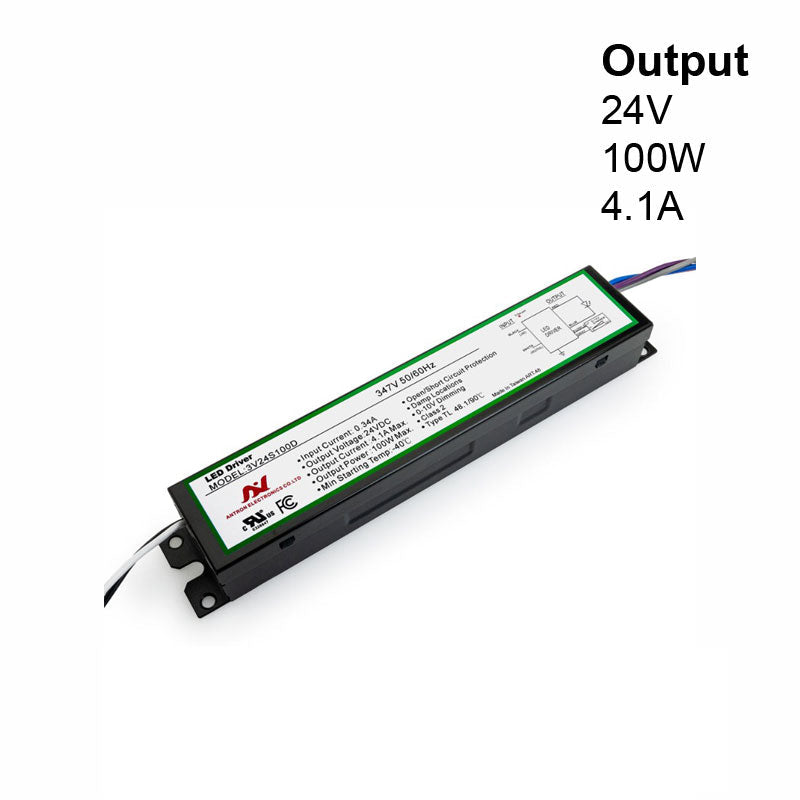

The ANTRON 3V24S100D Constant Voltage LED Driver is a high-quality LED driver designed to provide a constant voltage output of 24V DC for LED lighting systems. The model number for this driver is 3V24S100D, and it comes in a case code of AM103.
The input voltage range for this driver is 347V AC, with an input current of 0.34A and a frequency range of 50/60Hz. The output voltage is 24V DC with a regulated current output of 4.1A, and a maximum output power of 100W. This driver is designed for use in damp locations only and is not waterproof.
The 3V24S100D LED driver is dimmable and supports 3 in 1 dimming techniques including PWM, 0-10V, and resistance dimming. This allows for easy control of the brightness of the LED lighting system.
The driver is rated IP65, which means it is protected against dust and low-pressure water jets from any direction, making it suitable for use in outdoor applications. The driver is also Class 2 / Type TL certified, which means it has been designed with double insulation and is safe for use in a Class 2 circuit.
The starting temperature of the driver is -40°C, which means it can be used in extreme cold environments. The dimensions of the driver are 241.3 × 43.9× 32.37mm (9.5 x 1.73 x 1.27 in), making it a compact and versatile option for LED lighting systems.
Features:
- The ANTRON 3V24S100D LED driver provides a constant voltage output of 24V DC for LED lighting systems, with a model number of 3V24S100D and a case code of AM103.
- The input voltage range is 347V AC, with an input current of 0.34A and a frequency range of 50/60Hz. The output voltage is 24V DC with a regulated current output of 4.1A and a maximum output power of 100W.
- The driver is designed for use in damp locations only and is not waterproof.
- It is dimmable and supports 3 in 1 dimming techniques including PWM, 0-10V, and resistance dimming.
- The driver is rated IP65, which means it is protected against dust and low-pressure water jets from any direction, making it suitable for use in outdoor applications.
- It is also Class 2 / Type TL certified, which means it has been designed with double insulation and is safe for use in a Class 2 circuit.
- The starting temperature of the driver is -40°C, making it suitable for use in extreme cold environments.
- The dimensions of the driver are 241.3 × 43.9× 32.37mm (9.5 x 1.73 x 1.27 in), making it a compact and versatile option for LED lighting systems.
