ANTRON 3V12S100D Constant Voltage LED Drive, 0-10V Dimmable with 347V Universal Input Voltage 8A 100W 12V

  • $115.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561420321
Title:
We only have 50 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).




Product Description

Model 3V12S100D
Input Voltage 347V AC
Case Code AM105
Input Current 0.32A
Input Frequency 50/60 Hz
Output Voltage 12V DC
Output regulated Current 8 A
Output max Power 100W
Dimmable:  Yes (0-10V Dimming)
Waterproof No (Damp locations)
IP Rating IP65
Starting Temperature -40°C
Class Certification Class 2 / Type TL

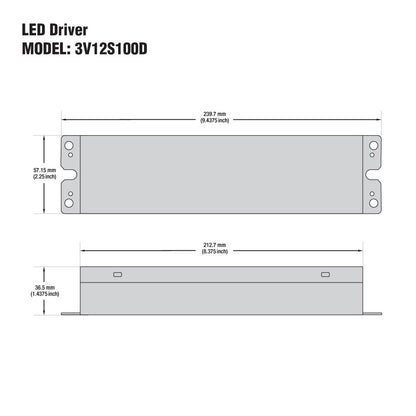

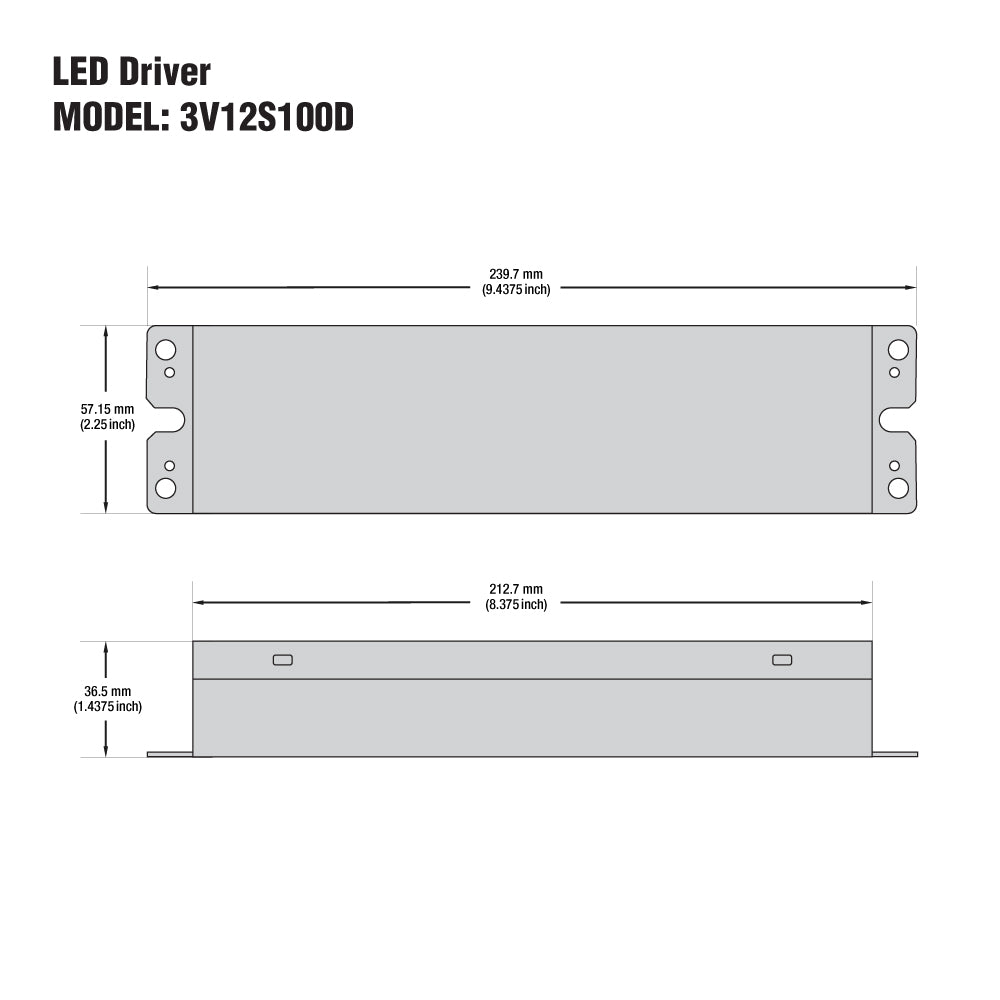

Dimensions 2439.7× 57.15 × 36.5mm (9.43 x 2.25 x 1.43 in)
Certification
 Open/Short/Over-Voltage/Over Temperature Protection
Suitable for Damp locations

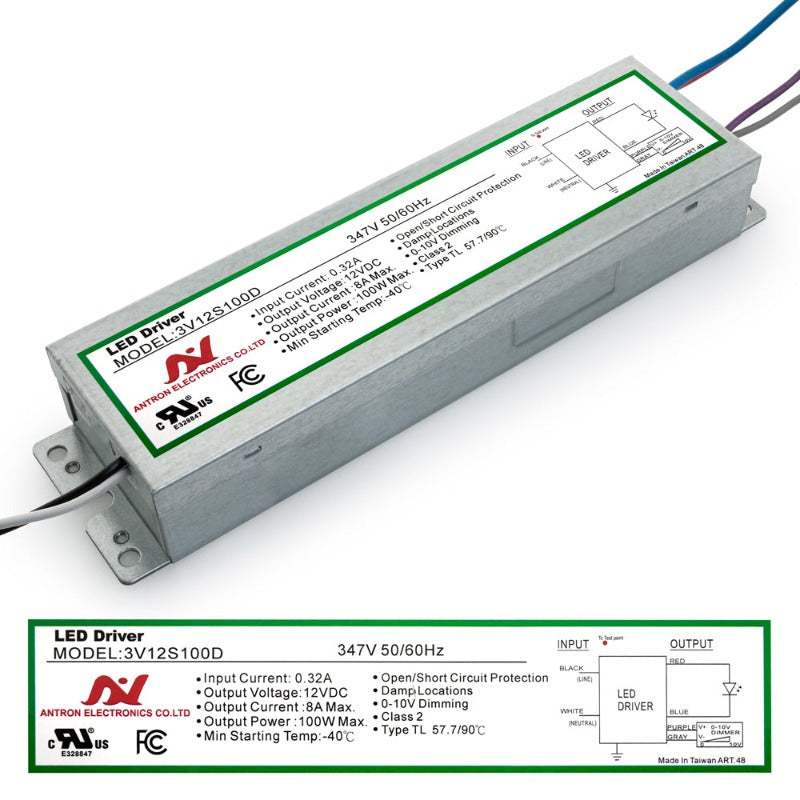

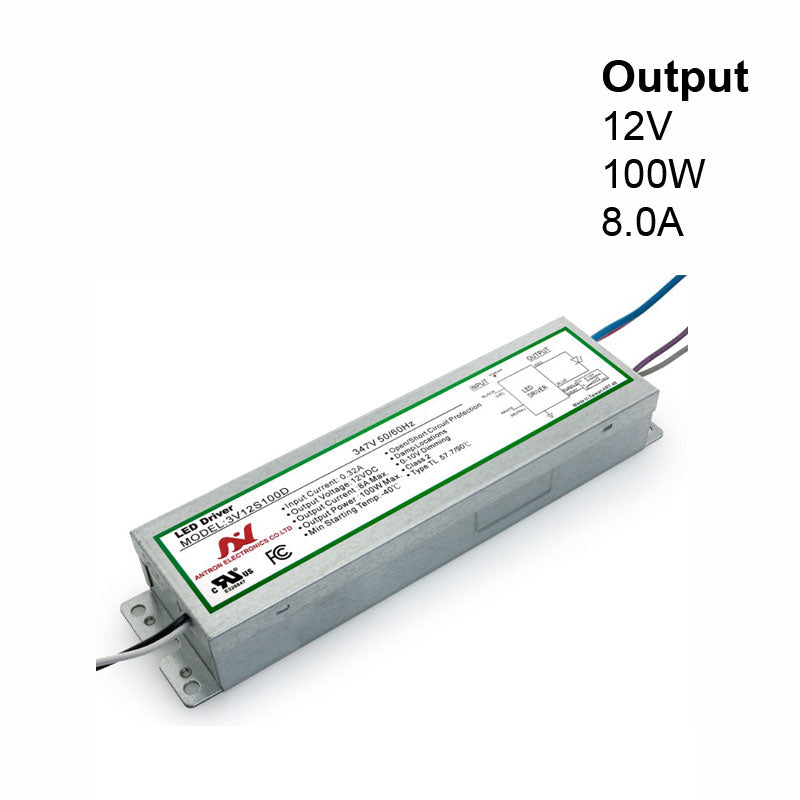

The ANTRON 3V12S100D Constant Voltage LED Driver is a high-quality LED driver designed to provide a constant voltage output of 12V DC for LED lighting systems. The model number is 3V12S100D and it has a case code of AM105. It operates on an input voltage of 347V AC with an input current of 0.32A and input frequency of 50/60Hz. The output voltage is 12V DC and it can regulate up to 8A of current, with a maximum output power of 100W. It is dimmable with 0-10V dimming and has an IP65 rating, making it suitable for damp locations. It has a starting temperature of -40°C and is classified as Class 2 / Type TL. Its dimensions are 2439.7× 57.15 × 36.5mm (9.43 x 2.25 x 1.43 in) and it is FCC certified.

Features:

  • The ANTRON 3V12S100D LED driver provides a constant voltage output of 12V DC for LED lighting systems.
  • Its model number is 3V12S100D and has a case code of AM105.
  • The input voltage range for this driver is 347V AC, with an input current of 0.32A and a frequency range of 50/60Hz.
  • The output voltage is 12V DC with a regulated current output of up to 8A and a maximum output power of 100W.
  • It is dimmable with 0-10V dimming techniques and has an IP65 rating, making it suitable for use in damp locations.
  • The driver has a starting temperature of -40°C and is classified as Class 2 / Type TL.
  • Its dimensions are 2439.7× 57.15 × 36.5mm (9.43 x 2.25 x 1.43 in).
  • The ANTRON 3V12S100D LED driver is FCC certified, indicating it has been tested and meets the safety standards set by the Federal Communications Commission.
