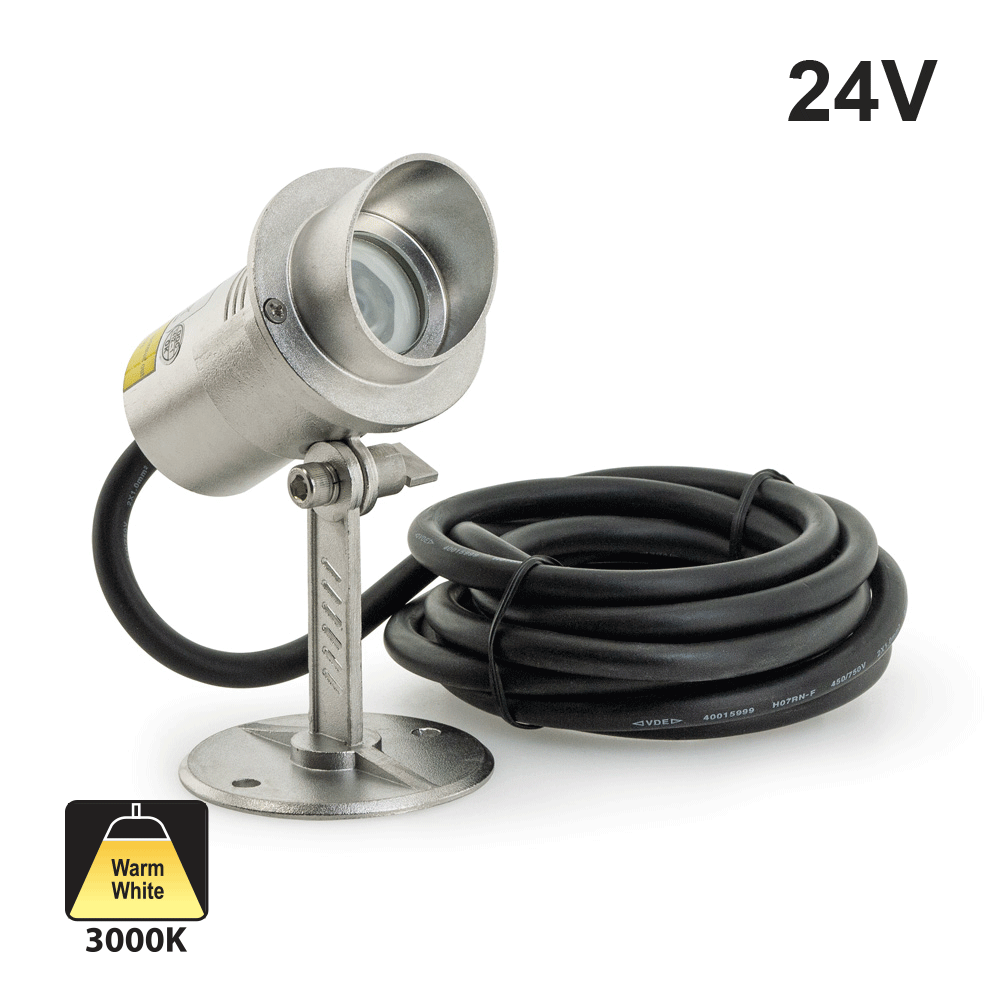

B5AF0158 Small type – Underwater Spotlight, 24V 3W 3000K(Warm White)
Product Description
| Product | Underwater Spotlight |
| Model | B5AF0158 |
| Voltage | 24V |
| Wattage | 3W |
| LED Light Source | 1 x 3W LED |
| Color Temperature | 3000K (Warm White) |
| IK Rating | IK06 |
| IP Rating | IP68 |
| Housing | Molding shaped sus 316# stainless steel |
| Housing Glass | Tempered Glass T=5mm |
| Operating Temperature | Temperature of water between -20℃- 40℃, less than 1 meter depth |
| Cable Size | Length: 3m (118.11in) Ø8mm (0.31in) |

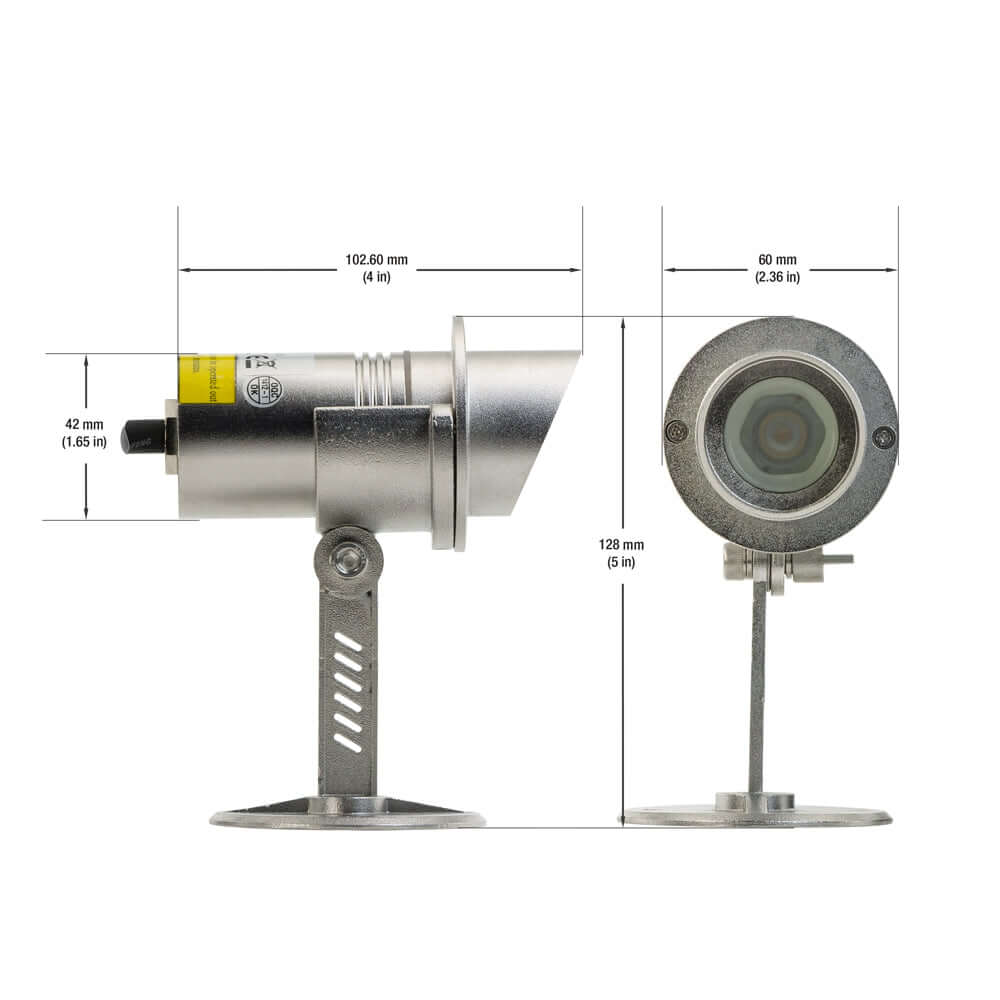

| Dimensions | Diameter - 60mm (2.3 in) Length - 102.6mm (4 in) Height - 128mm (5 in) |
| Certification |  |
The B5AF0158 is a small-sized underwater LED spot light designed for use in water features, fountains, and other similar applications. It features a 3W LED light source with a warm white color temperature of 3000K.
The spot light operates at a voltage of 24V and consumes 3 watts of power. It is constructed with a molding shaped sus 316# stainless steel housing and a tempered glass lens with a thickness of 5mm. The spot light has an IK06 rating, which means that it can withstand mechanical impacts of up to 1 joule.
The B5AF0158 is IP68 rated, which means that it is protected against dust and water ingress and can be fully submerged in water. It is suitable for use at a depth of up to 1 meter and can withstand temperatures of water between -20℃ to 40℃.

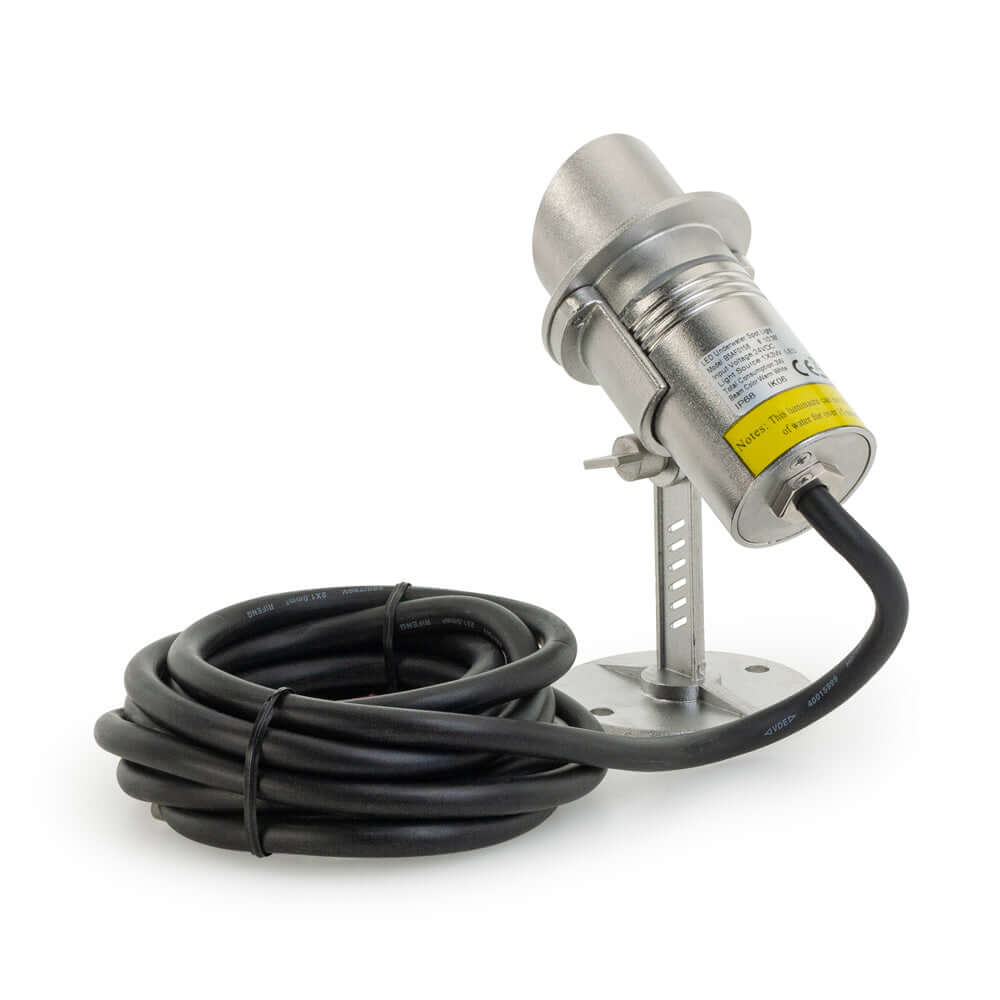

The cable size of the spot light is 3 meters (118.11 inches) with a diameter of 8mm (0.31 inches), making it easy to install and position in the desired location. The dimensions of the spot light are 60mm (2.3 inches) in diameter, 102.6mm (4 inches) in length, and 128mm (5 inches) in height.
Overall, the B5AF0158 is a reliable and durable underwater LED spot light that provides warm white lighting for water features, fountains, and other similar applications.
Features:
- The B5AF0158 is a small-sized underwater LED spot light designed for use in water features, fountains, and similar applications.
- It features a 3W LED light source with a warm white color temperature of 3000K and operates at a voltage of 24V, consuming only 3 watts of power.
- Constructed with a molding shaped sus 316# stainless steel housing and a tempered glass lens with a thickness of 5mm, the spot light has an IK06 rating, meaning it can withstand mechanical impacts of up to 1 joule.
- With an IP68 rating, the B5AF0158 is protected against dust and water ingress, making it suitable for full submersion in water up to a depth of 1 meter and can withstand temperatures of water between -20℃ to 40℃.
- The spot light comes with a cable size of 3 meters (118.11 inches) with a diameter of 8mm (0.31 inches), making it easy to install and position in the desired location.
- The dimensions of the spot light are 60mm (2.3 inches) in diameter, 102.6mm (4 inches) in length, and 128mm (5 inches) in height, making it small enough to fit in tight spaces while providing warm white lighting for water features and fountains.
