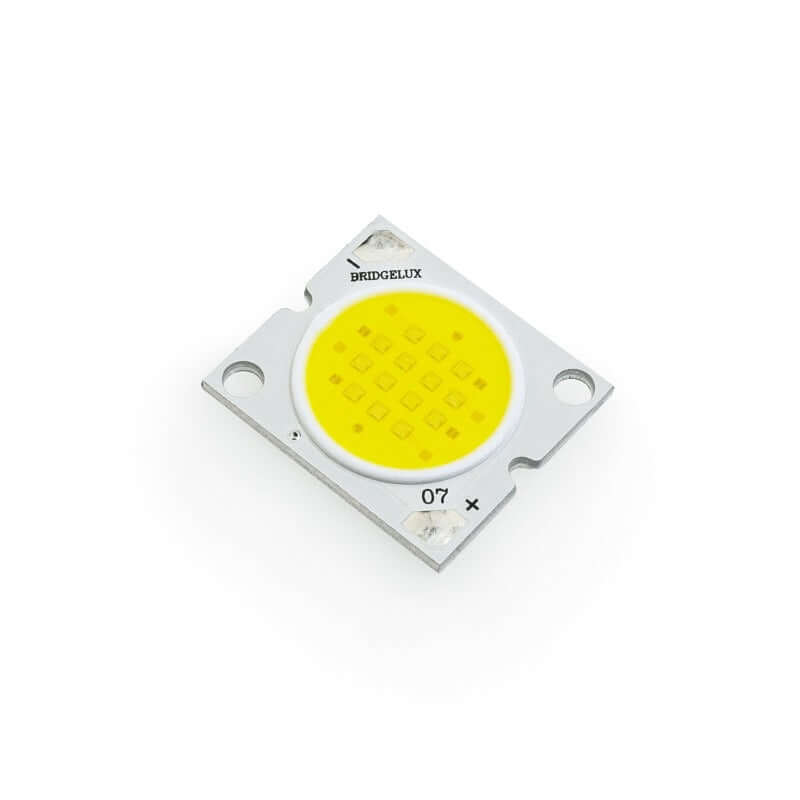

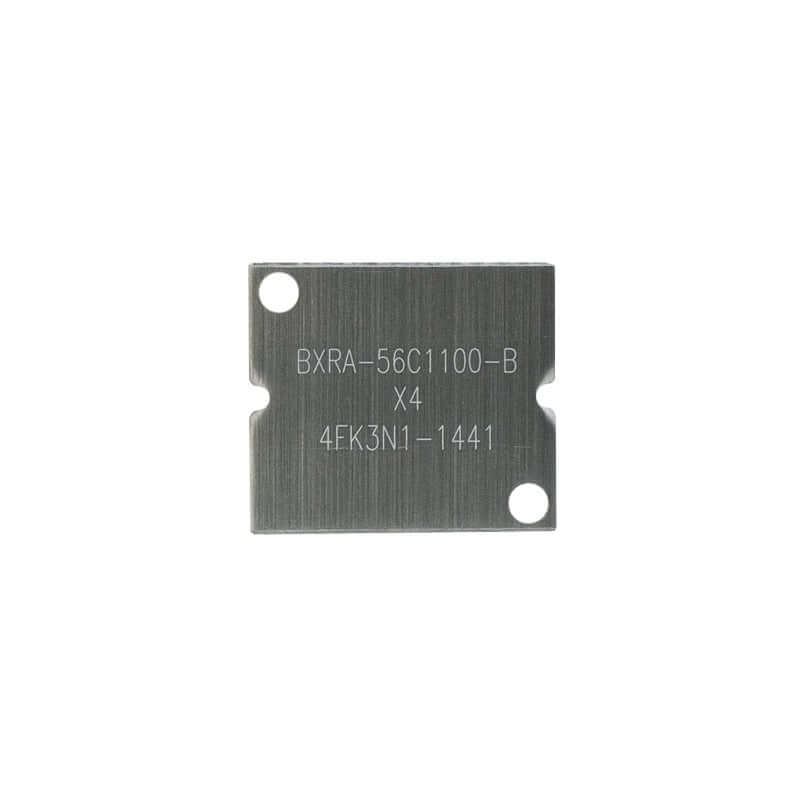

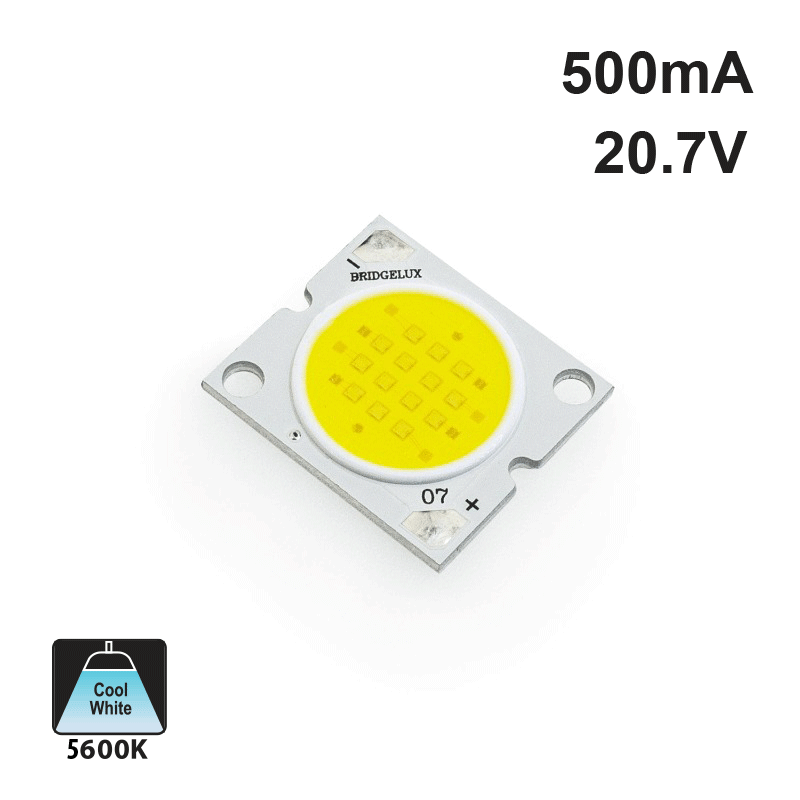

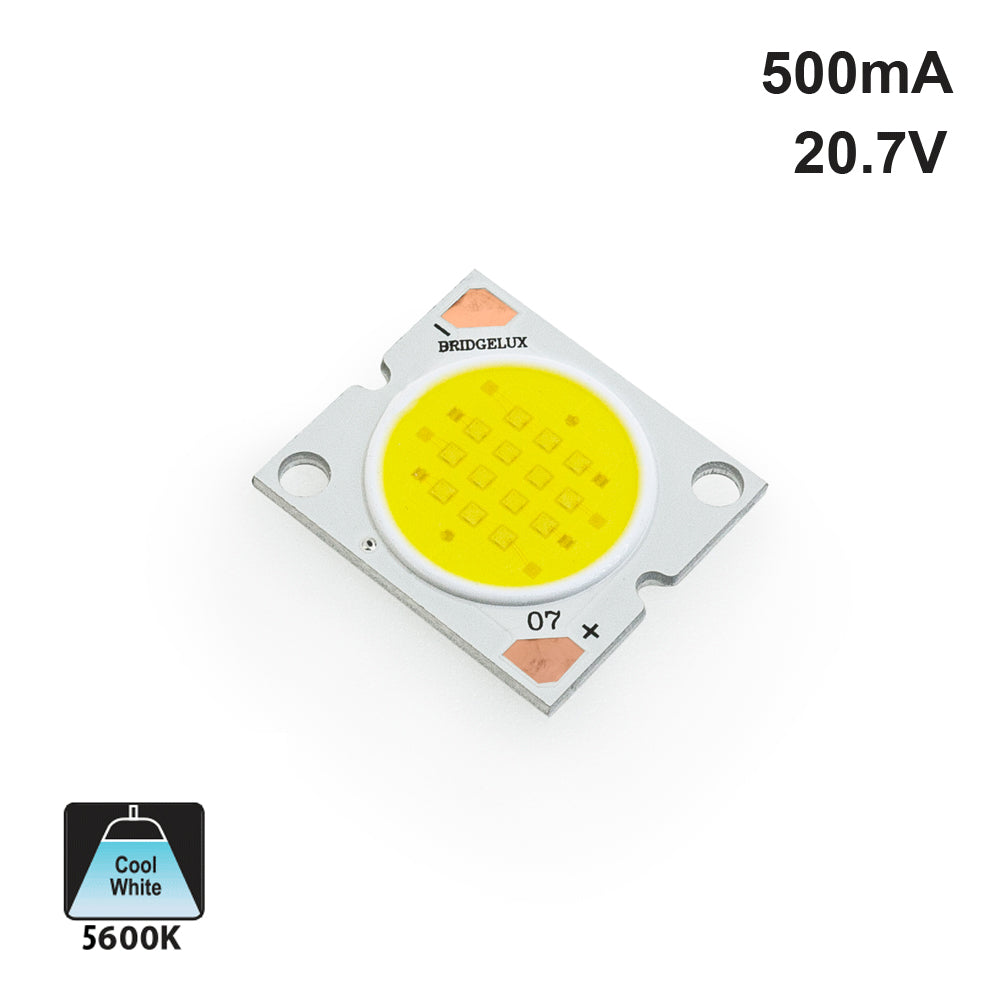

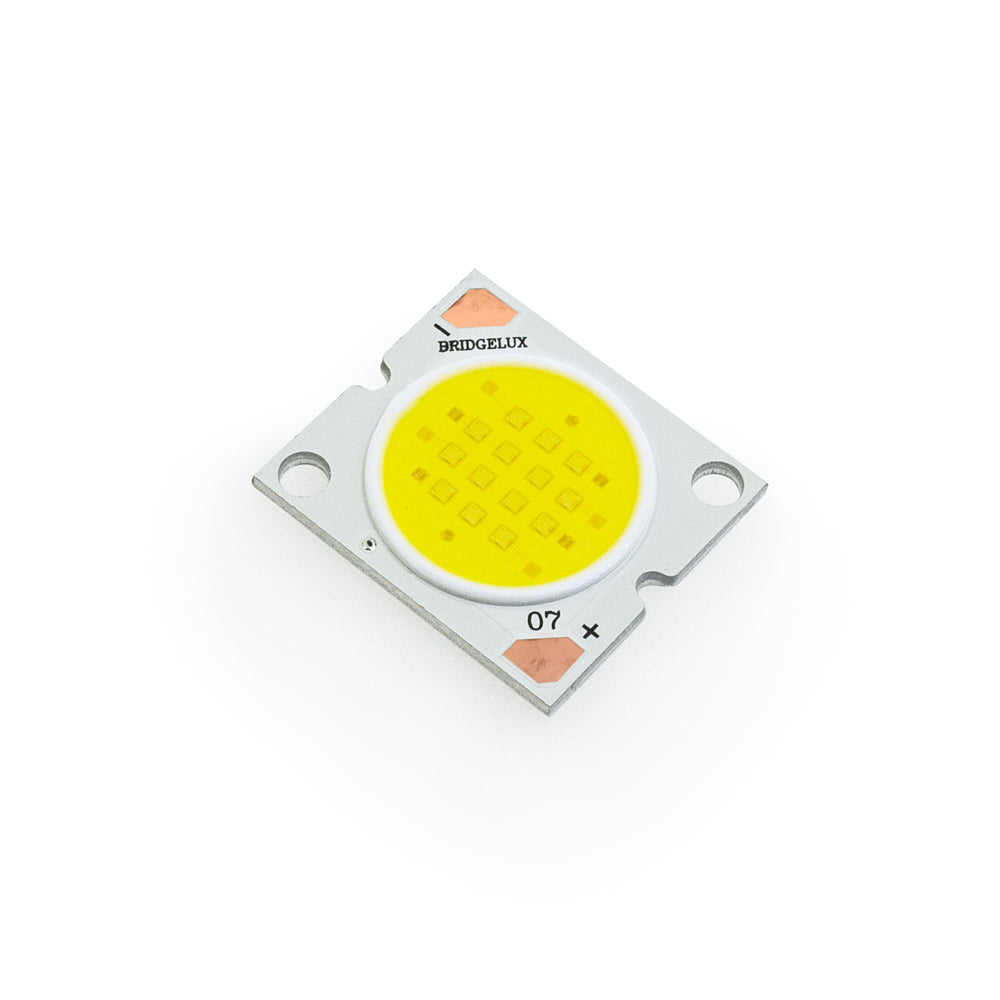

BXRA-56C1100-B Constant Current COB LED Module, 500mA 10W 5600K(Cool White)
BXRA-56C1100-B Constant Current COB LED Module, 500mA 10W 5600K(Cool White)
SKU: SKU:666561417055
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Product | Constant Current LED Module |
| Model | BXRA-56C1100-B |
| Brand | Bridgelux |
|
Current |
500mA |
| Voltage Range | 18.6- 22.8V |
| Typical Voltage | 20.7V |
| Power | 10.4W |
| LED Type | COB |
| Luminous Flux | 810-1320 lumens |
| Efficacy | 128 Lm/W |
| Color Temperature | 5600K (Cool White) |
| Rendering Index | CRI>90 |
| Dimmable | Yes |
| Junction temperature (Tj) | 25ºC |
| Operating Case Temperature Max Range (Tc) | 105°C |
| Material: | Metallic base |
| Soldering Temperature | 350ºC |
| Thermal Grease | We will include thermal grease to cover the quantity of LED modules ordered. |

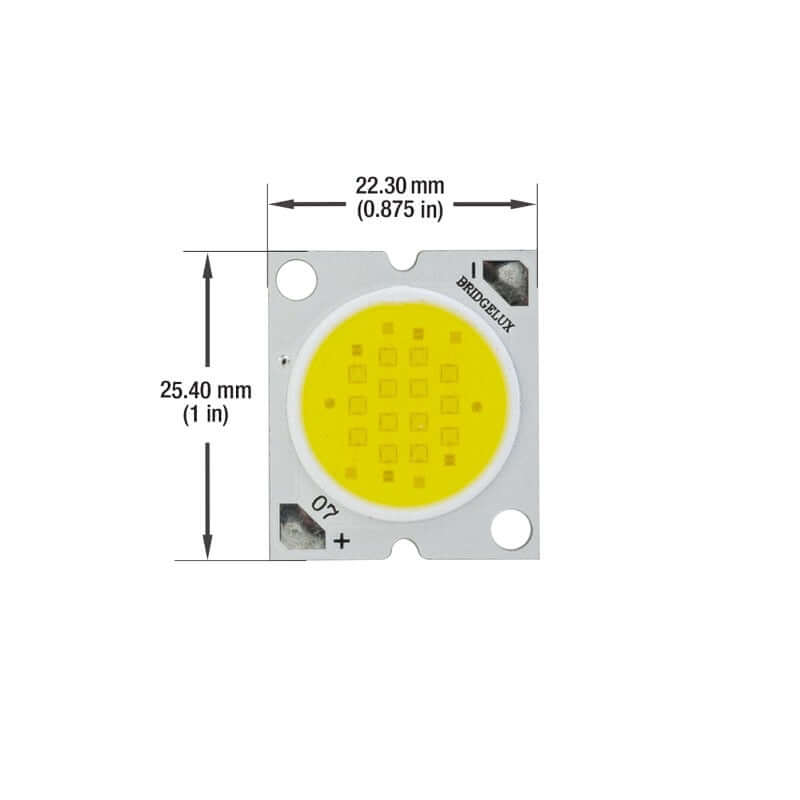

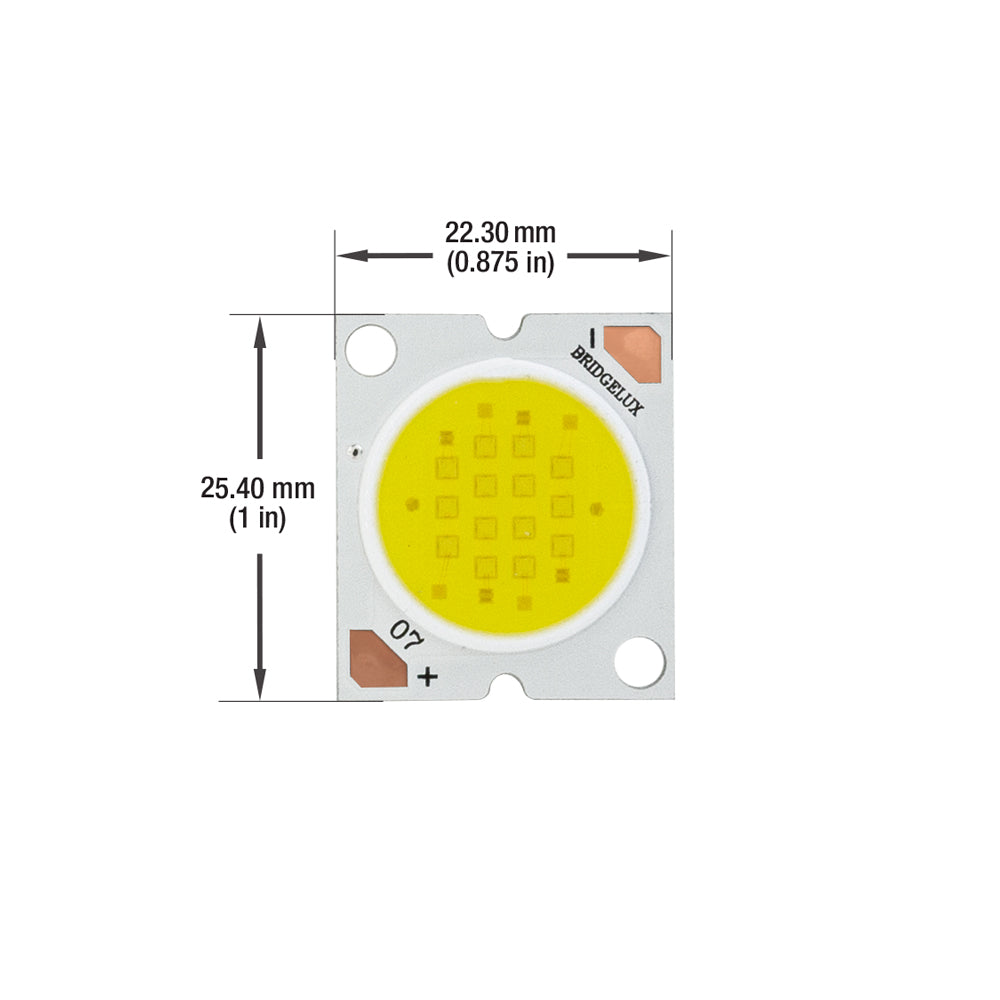

| Dimensions | 22.30 x 25.40 x 1.5mm (0.875 x 1 x 0.05in) |
The BXRA-56C1100-B Constant Current COB LED Module is a high-quality lighting component produced by the renowned brand Bridgelux. This LED module operates at a current of 500mA, with a voltage range of 18.6-22.8V and a typical voltage of 20.7V. It has a power output of 10.4W, making it a powerful and energy-efficient lighting source.
This LED module uses Chip-on-Board (COB) technology, which provides high-quality, uniform, and consistent light with pixelation technology. It has a luminous flux output of 810-1320 lumens and an efficacy of 128 Lm/W, making it an energy-efficient lighting option.
The color temperature of this LED module is 5600K (Cool White), which produces a bright and crisp light that is ideal for various lighting applications. It has a rendering index of CRI>90, which ensures that the colors appear natural and vibrant.

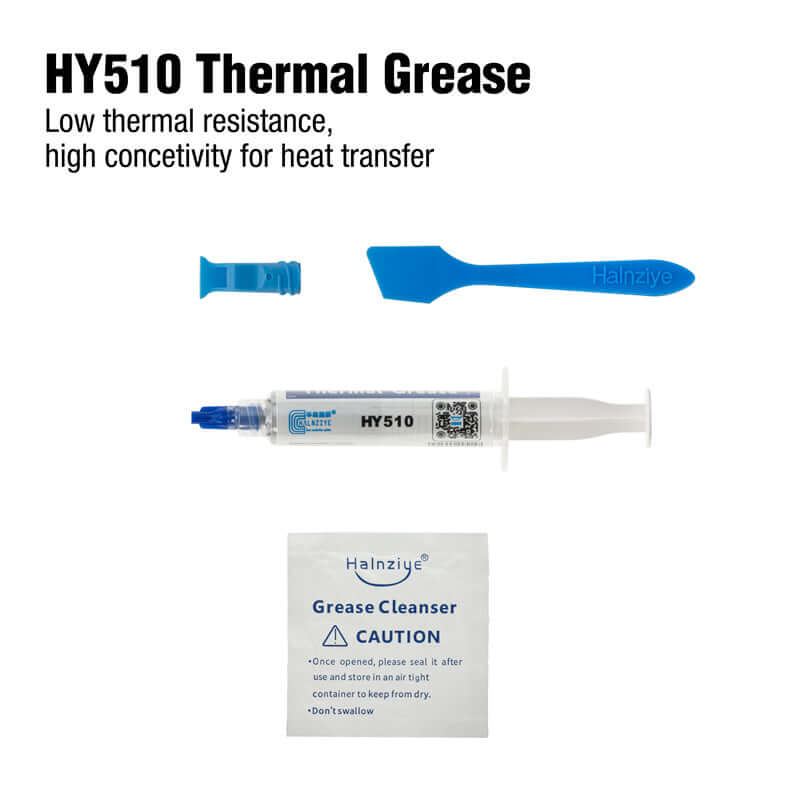

It is recommended to use Thermal Grease or Thermal Pad for installation. The package content includes the LED module and Thermal Grease HY510 (5gr).
Features:
- High-quality lighting component produced by Bridgelux
- Operates at a current of 500mA, with a voltage range of 18.6-22.8V and a typical voltage of 20.7V
- Power output of 10.4W, making it a powerful and energy-efficient lighting source
- Chip-on-Board (COB) technology provides high-quality, uniform, and consistent light with pixelation technology
- Luminous flux output of 810-1320 lumens and an efficacy of 128 Lm/W, making it an energy-efficient lighting option
- Color temperature of 5600K (Cool White) produces a bright and crisp light ideal for various lighting applications
- Rendering index of CRI>90 ensures that colors appear natural and vibrant
- Dimmable for greater control over lighting output
- Junction temperature of 25ºC and an operating case temperature max range of 105°C ensure optimal performance and longevity
- Metallic construction and dimensions of 22.30 x 25.40 mm (0.875 x 1 in)
- Package content includes LED module and Thermal Grease HY510 (5gr)
- Excellent lighting solution that provides high-quality illumination while being energy-efficient, reliable, and versatile
- Use Thermal Grease or Thermal Pad for installation.
