Product Description
| Product | Constant Current LED Module |
| Model | BXRA-27G2000-B-03 |
| Brand | Bridgelux |
|
Current |
700mA |
| Voltage | 32.6- 39.8V |
| Typical Voltage | 37V |
| Power | 25.9W |
| LED Type | COB |
| Luminous Flux | 1750-1975 lumens |
| Efficacy | 76 lm/W |
| Color Temperature | 2700K (Soft White) |
| Rendering Index | CRI>90 |
| Dimmable | Yes |
| Junction temperature (Tj) (Max rating) | 150ºC |
| Operating case temperature (Tc) (Max rating) | 105ºC |
| Material | Metallic base |
| Soldering Temperature: (Max rating) | 350ºC |
| Thermal Grease | We will include thermal grease to cover the quantity of LED modules ordered. |

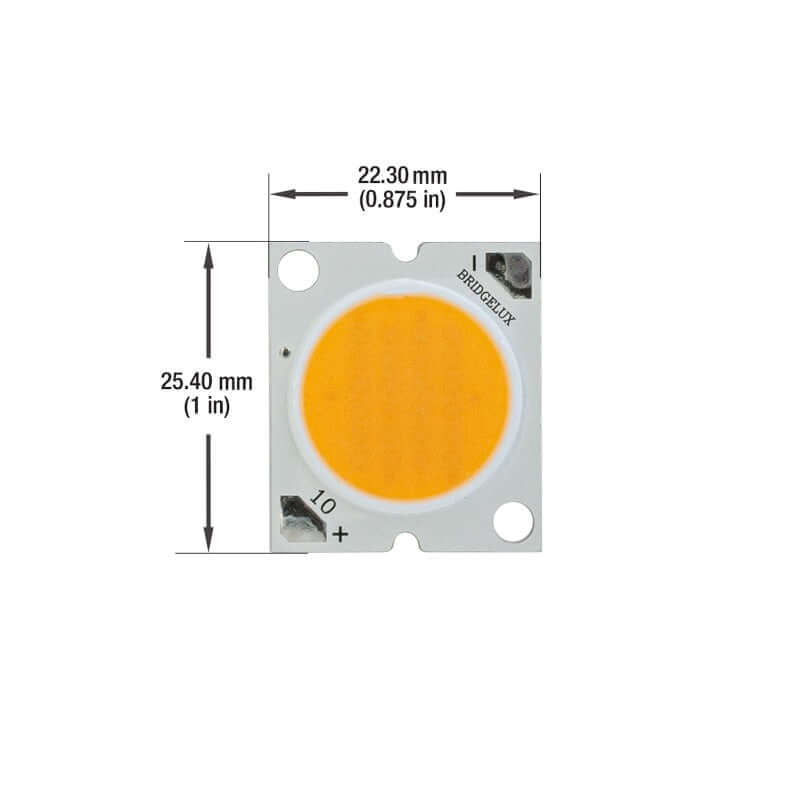

| Dimensions | 22.8 x 25.8 x 1.5mm (0.89 x 1.1 x 0.05in) |
Features:
- High-quality lighting component produced by the renowned brand Bridgelux.
- Operates at a current of 700mA, with a voltage range of 32.6-39.8V and a typical voltage of 37V.
- Power output of 25.9W, making it a powerful and energy-efficient lighting source.
- Uses Chip-on-Board (COB) technology, providing high-quality, uniform, and consistent light with pixelation technology.
- Luminous flux output of 1750-1975 lumens and an efficacy of 76 lm/W, making it an energy-efficient lighting option.
- Color temperature of 2700K (Soft White), producing a warm and cozy light that is ideal for various indoor lighting applications.
- Rendering index of CRI>90, ensuring that the colors appear natural and vibrant.
- Dimmable, allowing for greater control over the lighting output.
- Junction temperature (Tj) of 150ºC and an operating case temperature (Tc) max rating of 105ºC, ensuring optimal performance and longevity.
- Material used in the construction of this LED module is metallic, and it has dimensions of 22.8 x 25.8 mm (0.89 x 1.1 in).

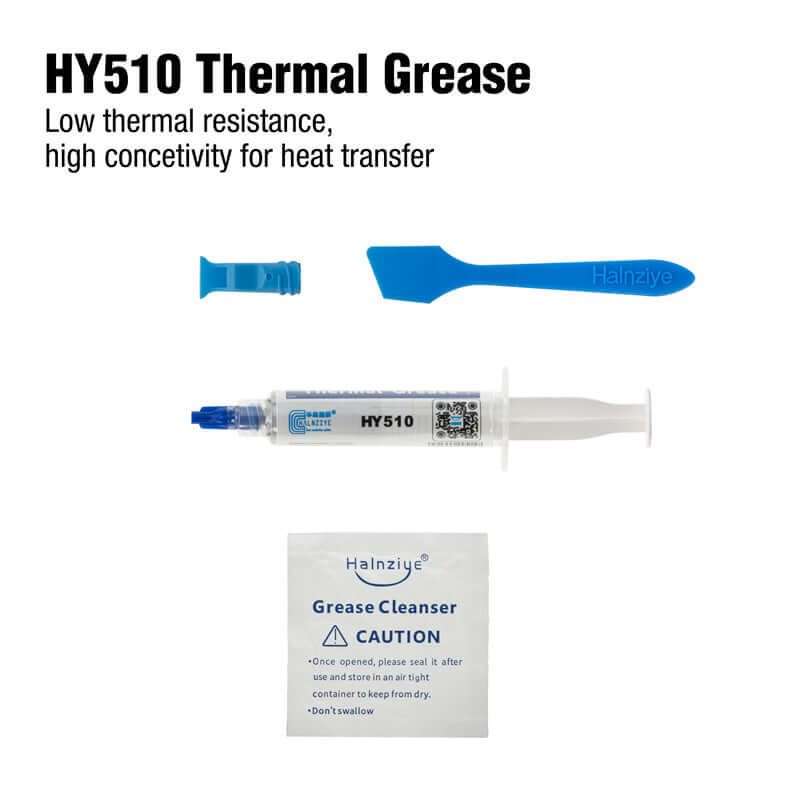

- Package content includes the LED module and Thermal Grease HY510 (5gr).
- Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage.
- Energy-efficient, reliable, and versatile lighting solution.
- Use Thermal Grease or Thermal Pad for installation.
