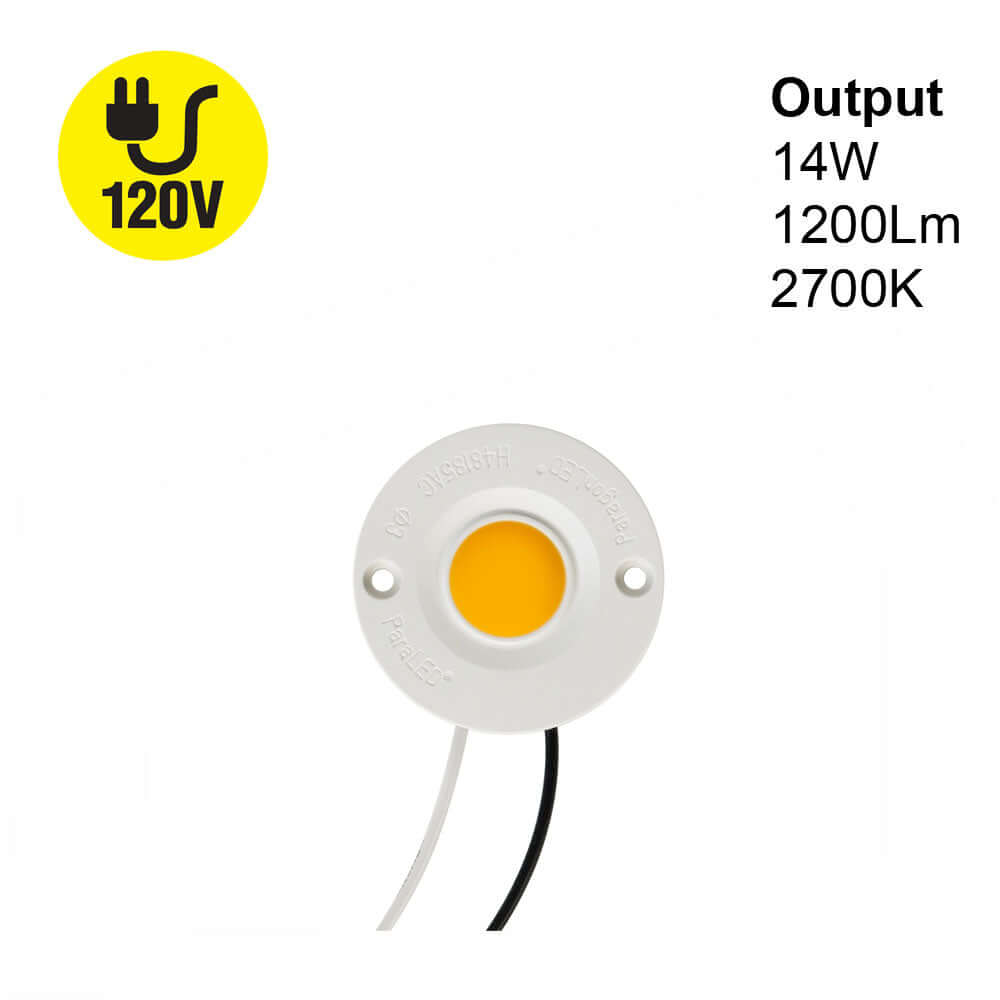

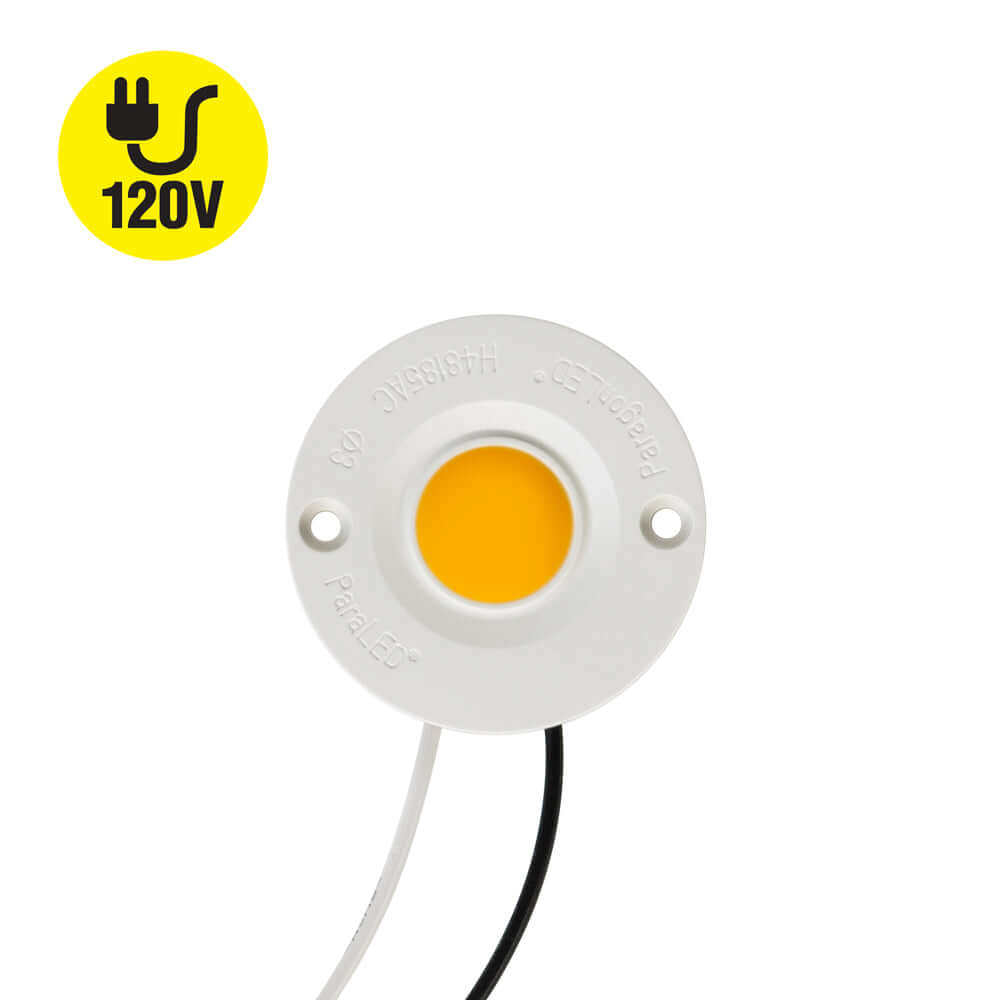

CBAC-042-36185-120-2700 G17 COB Paragon LED Module With H48185AC LED Holder, 120V 14W 2700K(Soft White)

  • $79.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561434298
Title:
We only have 14 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product Paragon LED Module

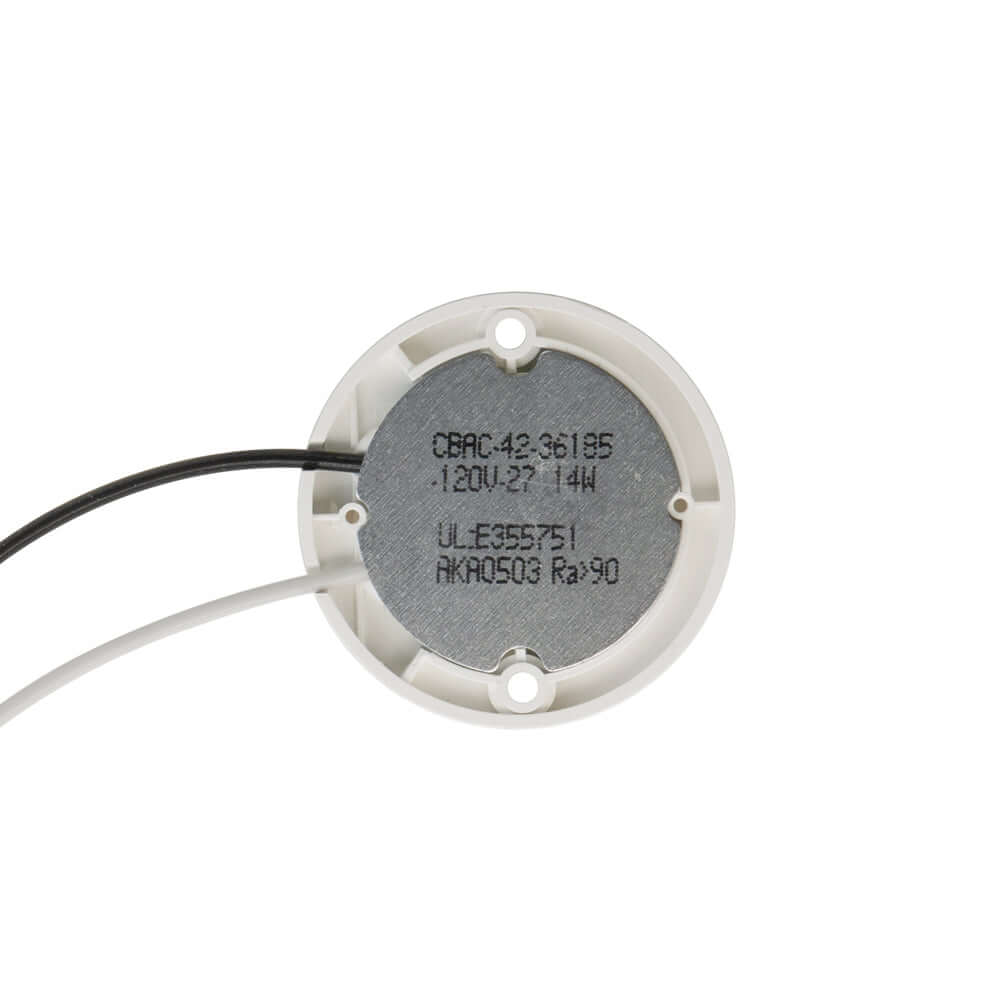

Model No CBAC-042-36185-120-2700
COB Holder Model No H48185AC
LED Type
COB LED
No LED chips 42
Wattage 14W
Voltage 120V AC
Power Factor PF>0.98
Luminous Intensity 1200 lumens
Color Temperature 2700K (Soft White)
Dimmable Yes
Rendering Index CRI>90
IP Rating IP20 (Indoor rated)

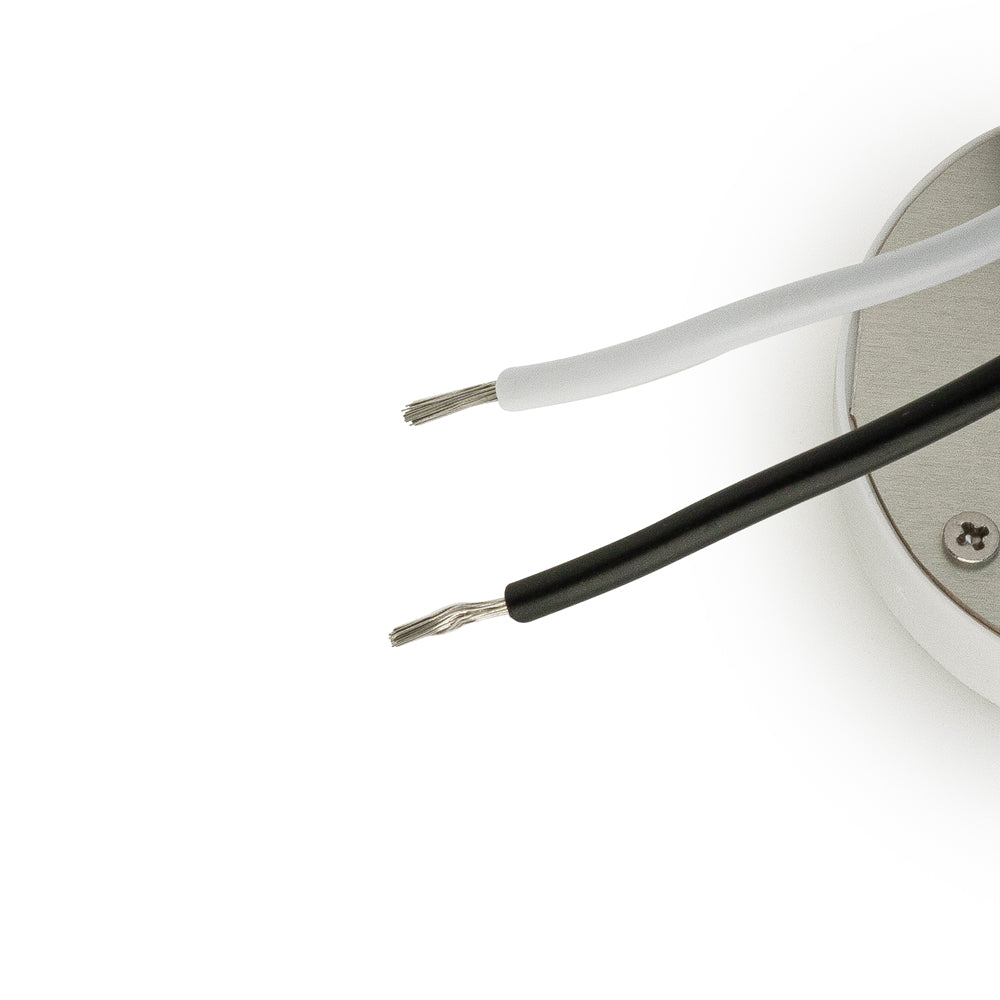

Wire Size 20mm (0.78in)
18 AWG

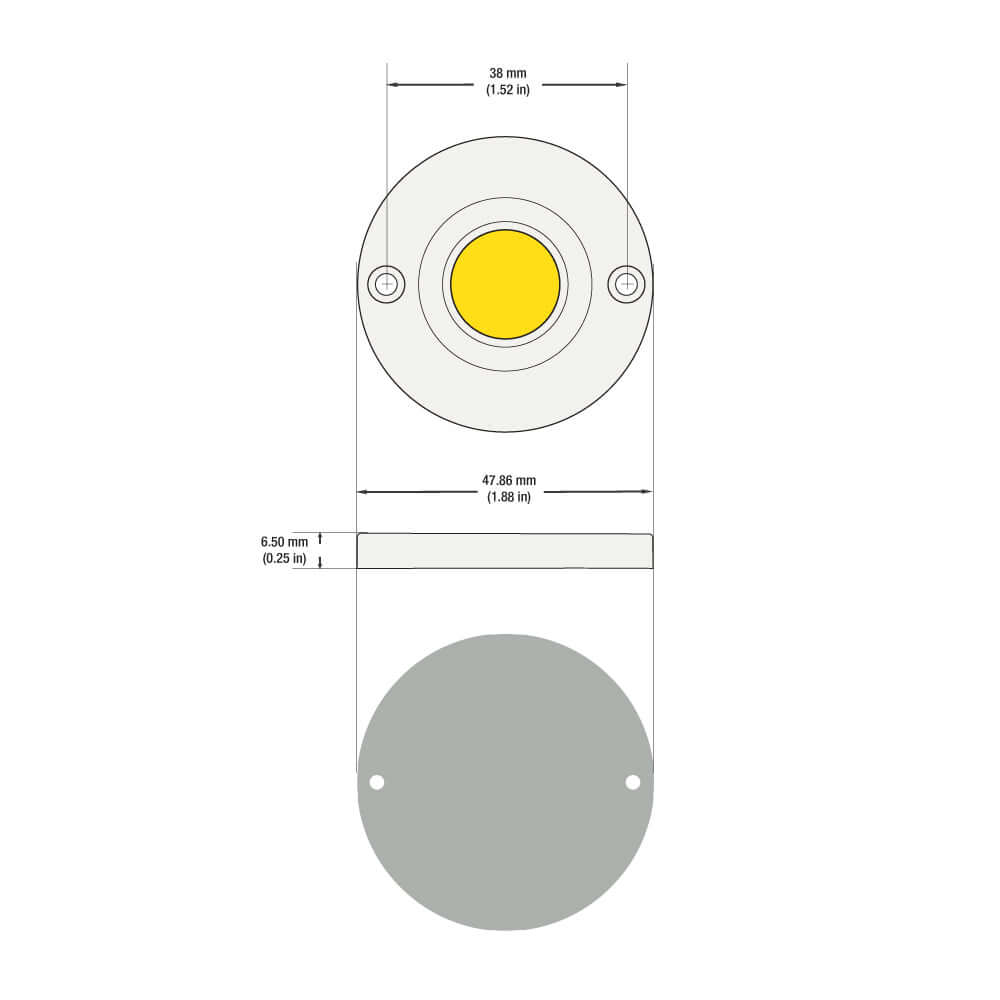

COB Holder Dimensions ∅ 47.8 x 6.5mm (1.8 x 0.25in)
COB Module Outer Diameter ∅ 20mm (0.78in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃
Assembly process Temperature <300℃
Solder joint point <105℃
Dielectric Breakdown Voltage of Thermal Pad >4KV

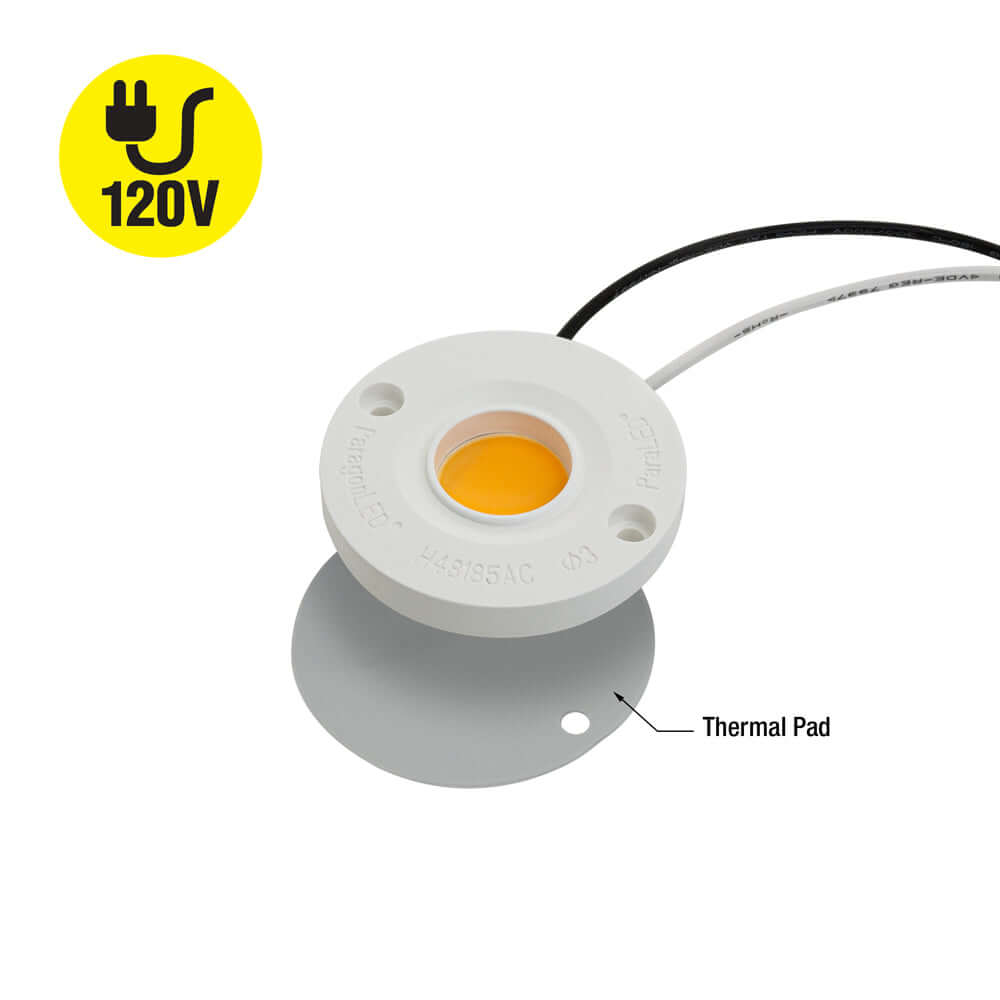

Included Content COB Module, COB LED Holder, Thermal Pad
Certifications

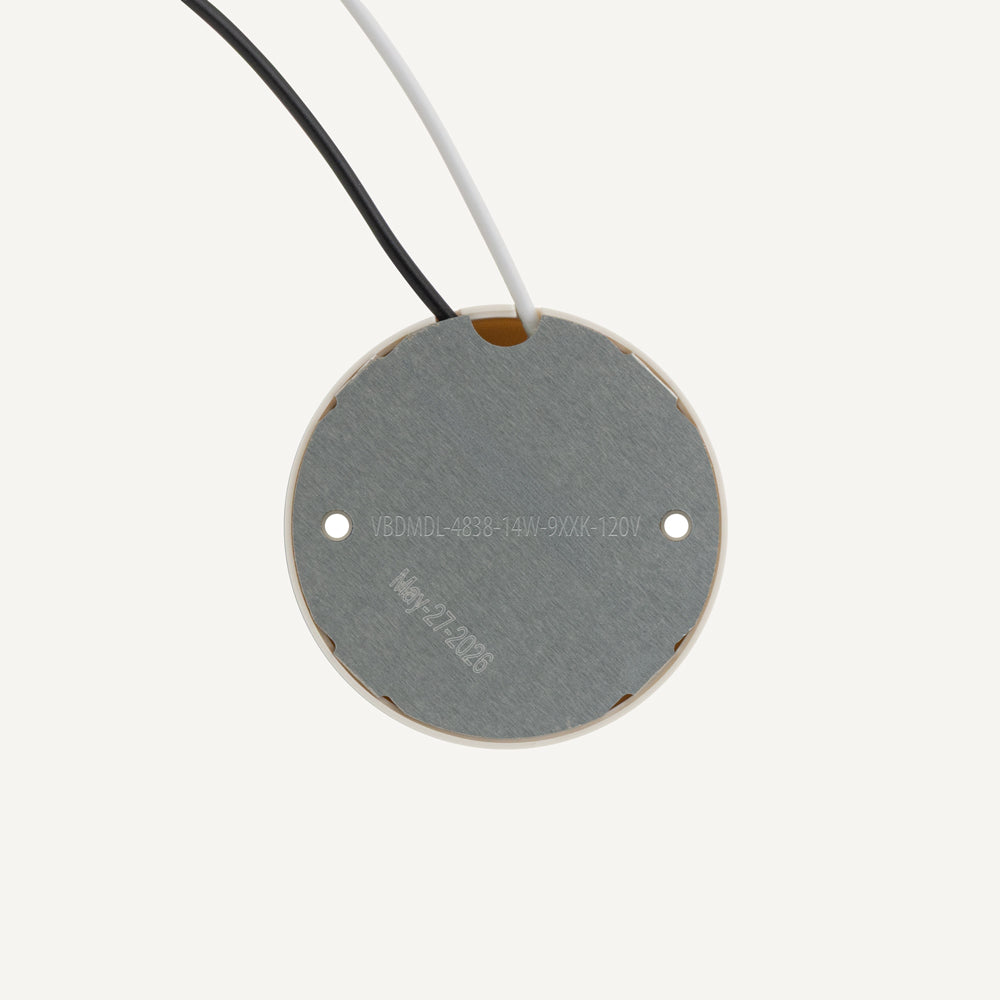

The Paragon LED Module is a COB LED module designed for indoor use with a model number of CBAC-042-36185-120-2700 G17. The module has 42 LED chips and a wattage of 14W, with a voltage of 120V AC and a power factor greater than 0.98. It has a luminous intensity of 1200 lumens and a color temperature of 2700K (Soft White), with a dimmable feature.

The package includes the COB Module, COB LED Holder, and Thermal Pad, and the product is certified by UL. To prevent overheating, an aluminum heat sink is required during installation to increase the life span of the module. The product comes with a polycarbonate diffuser that can easily be attached or detached, which helps in reducing the glare and refracting the light in a wider beam.

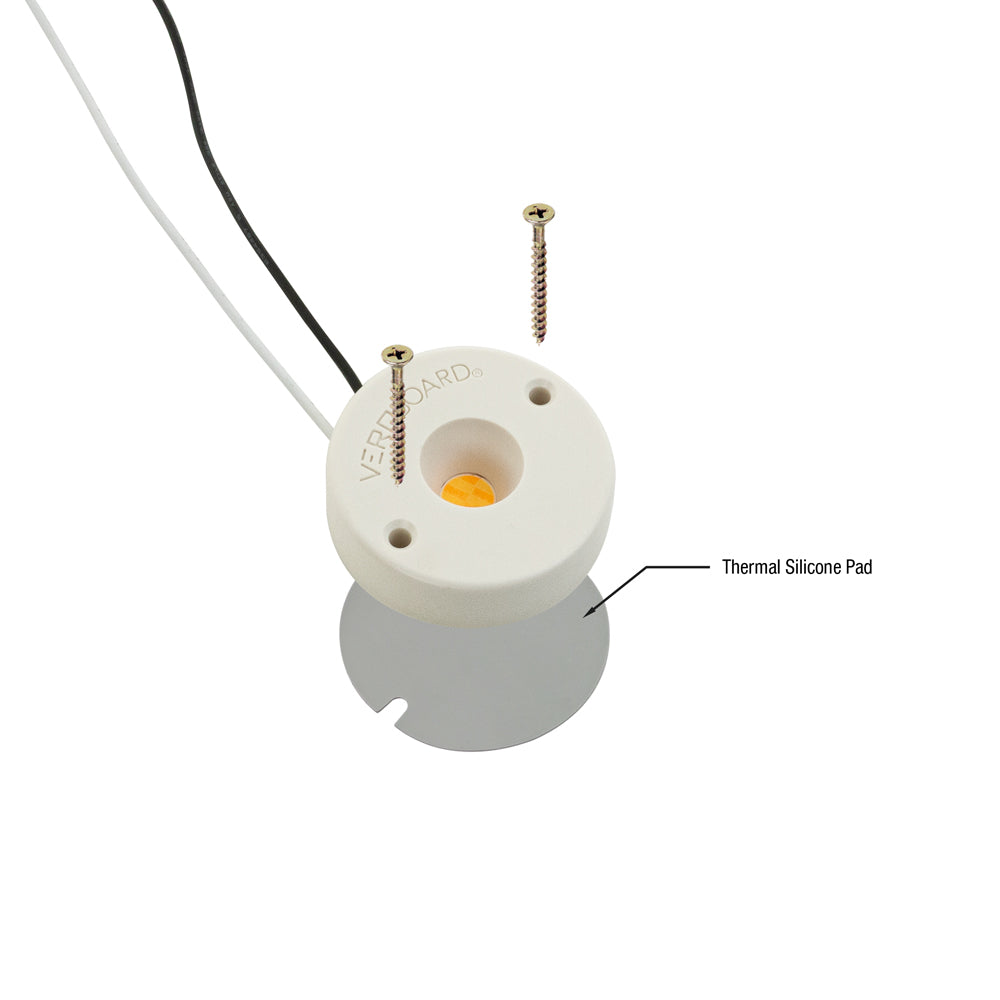

The COB holder allows the module to be mechanically secured, electrically connected, and pressed to a heat sink. A silicone grease thermal pad provides a heat sink and helps in better heat dissipation. This product is suitable for almost every kind of luminaire, but it is important to ground light fixtures while designing lamps.

Features:

  • COB LED module designed for indoor use with 42 LED chips and a wattage of 14W
  • Voltage of 120V AC and power factor greater than 0.98
  • Luminous intensity of 1200 lumens and color temperature of 2700K (Soft White), with dimmable feature
  • High rendering index of greater than 90 (CRI>90) and IP20 rating, suitable for use in damp locations
  • Operating temperature range of -40 to +105℃
  • Dielectric breakdown voltage of thermal pad greater than 4KV
  • Package includes COB Module, COB LED Holder, and Thermal Pad
  • Certified by UL
  • Aluminum heat sink required during installation to prevent overheating and increase lifespan
  • Polycarbonate diffuser included for reducing glare and refracting light in wider beam
  • COB holder allows for mechanical securing, electrical connection, and attachment to heat sink
  • Silicone grease thermal pad provides heat sink and improves heat dissipation
  • Suitable for various luminaires but important to ground light fixtures while designing lamps.
