Product Description
Product | Paragon LED Module |
Model No | CBAC-042-36185-120V-2700K |
COB Holder Model No | H48185 |
LED Type |
COB LED |

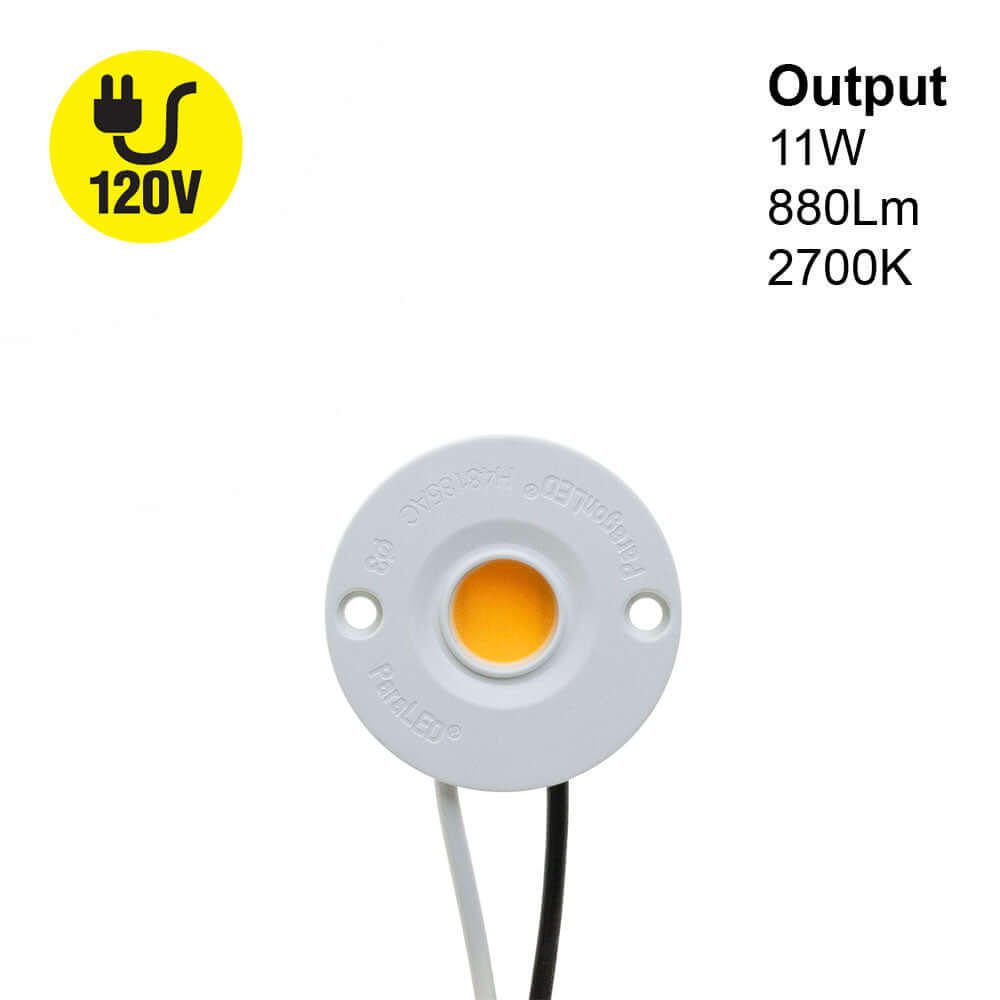

Wattage | 11W |
Voltage | 120V AC |
Power Factor | PF>0.98 |
Color Temperature | 2700K (Soft White) |
Brightness | 880 Lumens |
Dimmable | Yes |
Rendering Index | CRI>90 |
IP Rating | IP20 (Indoor rated) |
COB Holder Dimensions | ∅42.3mm (1.6 in) x H5.88mm (0.23 in) |
Operating Temperature | -40 ~ +105℃ |
Storage Temperature | -40 ~ +105℃ |
Assembly process Temperature | <300℃ |
Solder joint point | <105℃ |
Dielectric Breakdown Voltage of Thermal Pad | >4KV |
Included Content | COB Module, PC lampshade (Diffuser), COB LED Array Holder, Thermal Pad |
Certifications |

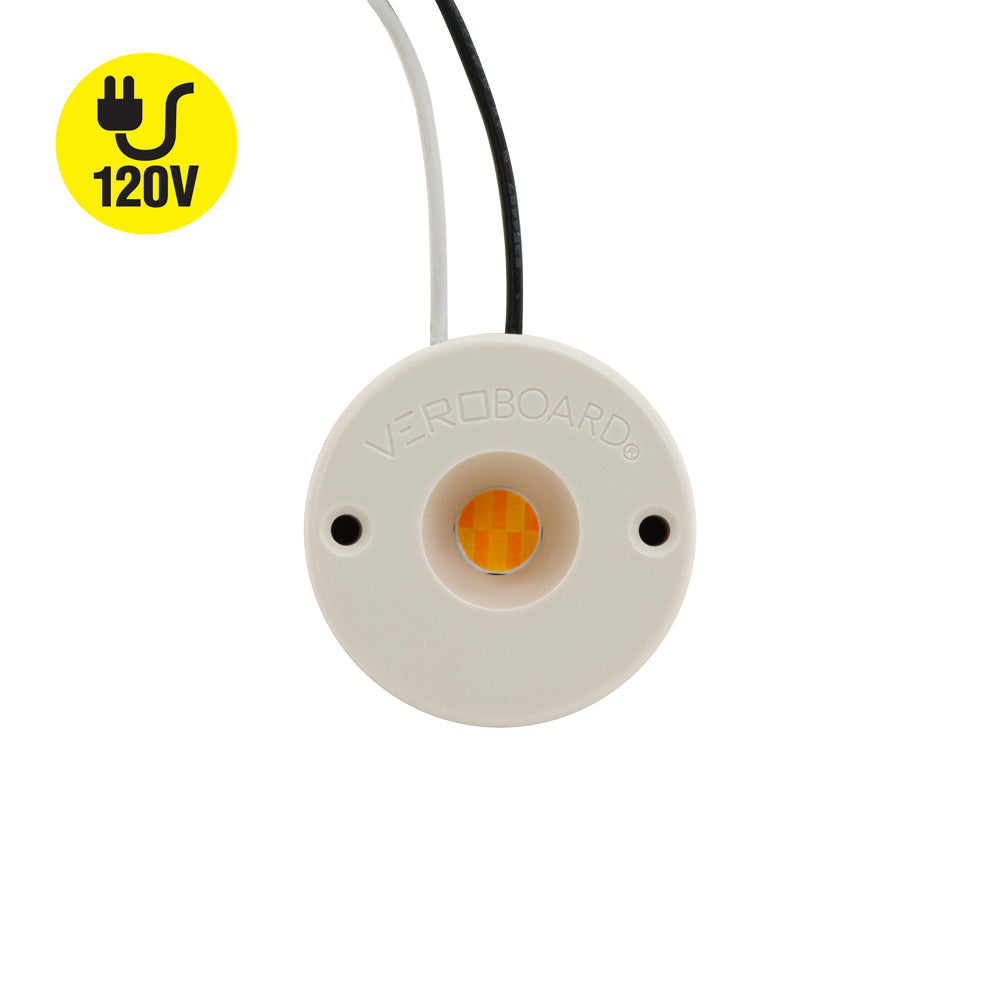

The CBAC-042-36185-120V-2700K Paragon LED Module is a COB LED module designed for indoor use with a power consumption of 11W and a voltage rating of 120V AC. It has a color temperature of 2700K, which produces a soft white light. The module is dimmable and has a high color rendering index of over 90, ensuring that colors are displayed accurately.

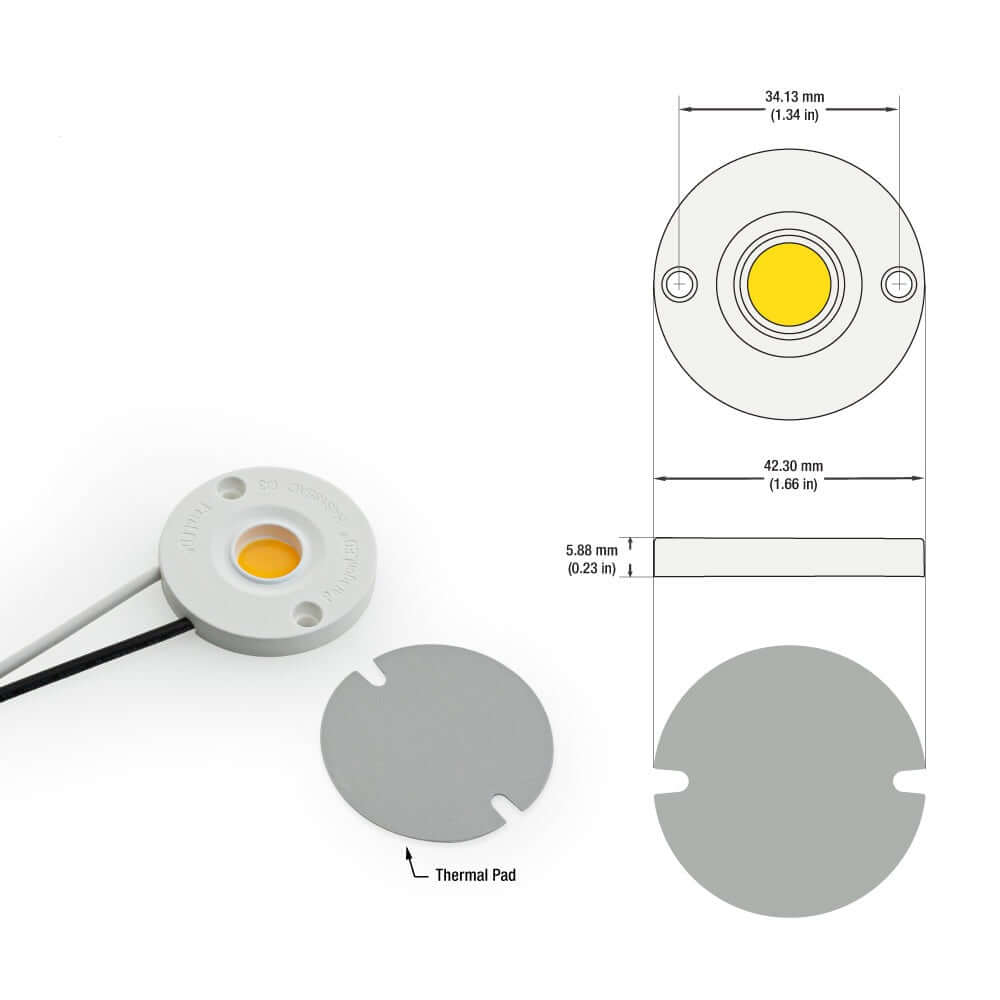

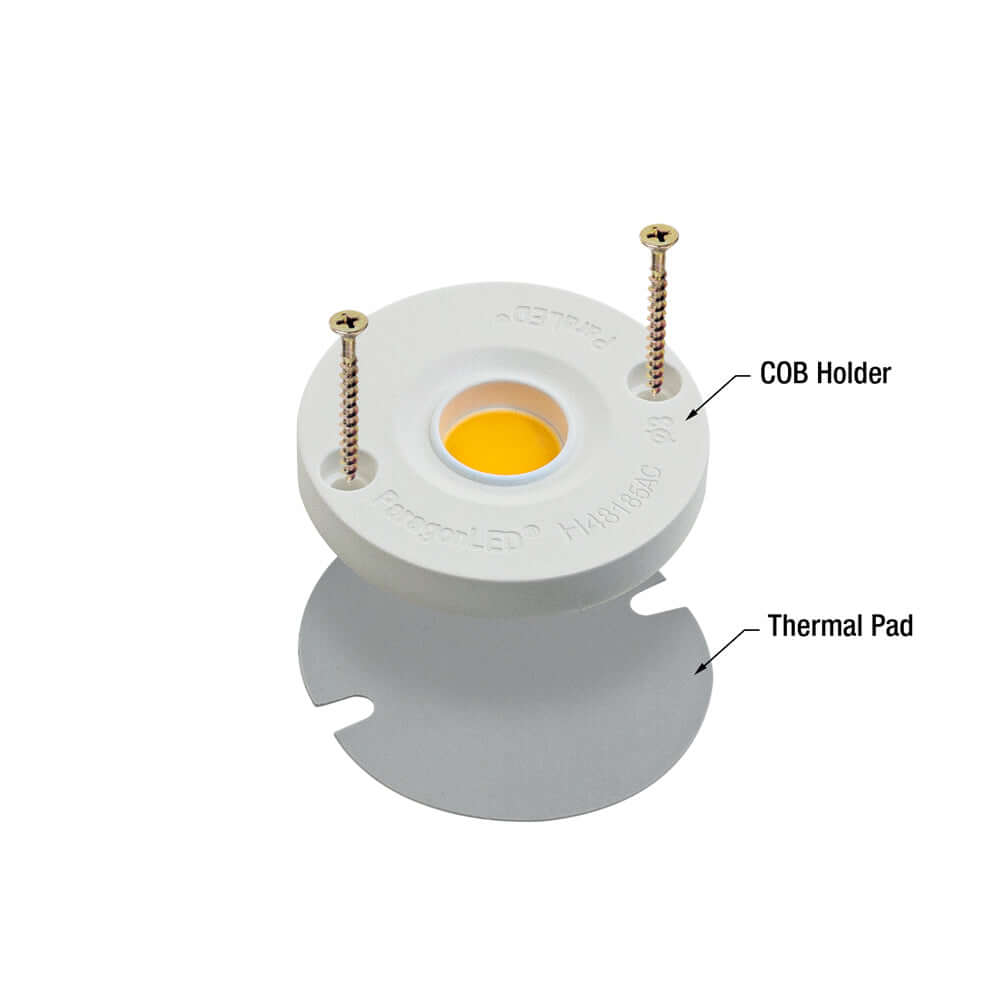

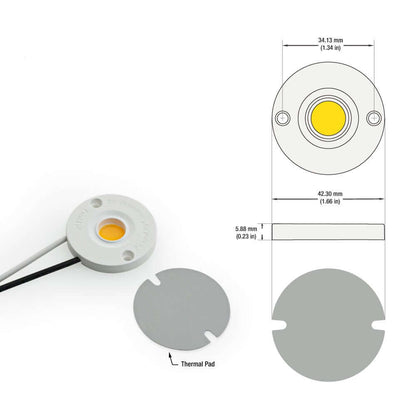

The module comes with a H48185 COB LED holder that allows for easy mechanical and electrical connections, as well as secure attachment to a heat sink. The COB holder has dimensions of ∅42.3mm (1.6 in) x H5.88mm (0.23 in).

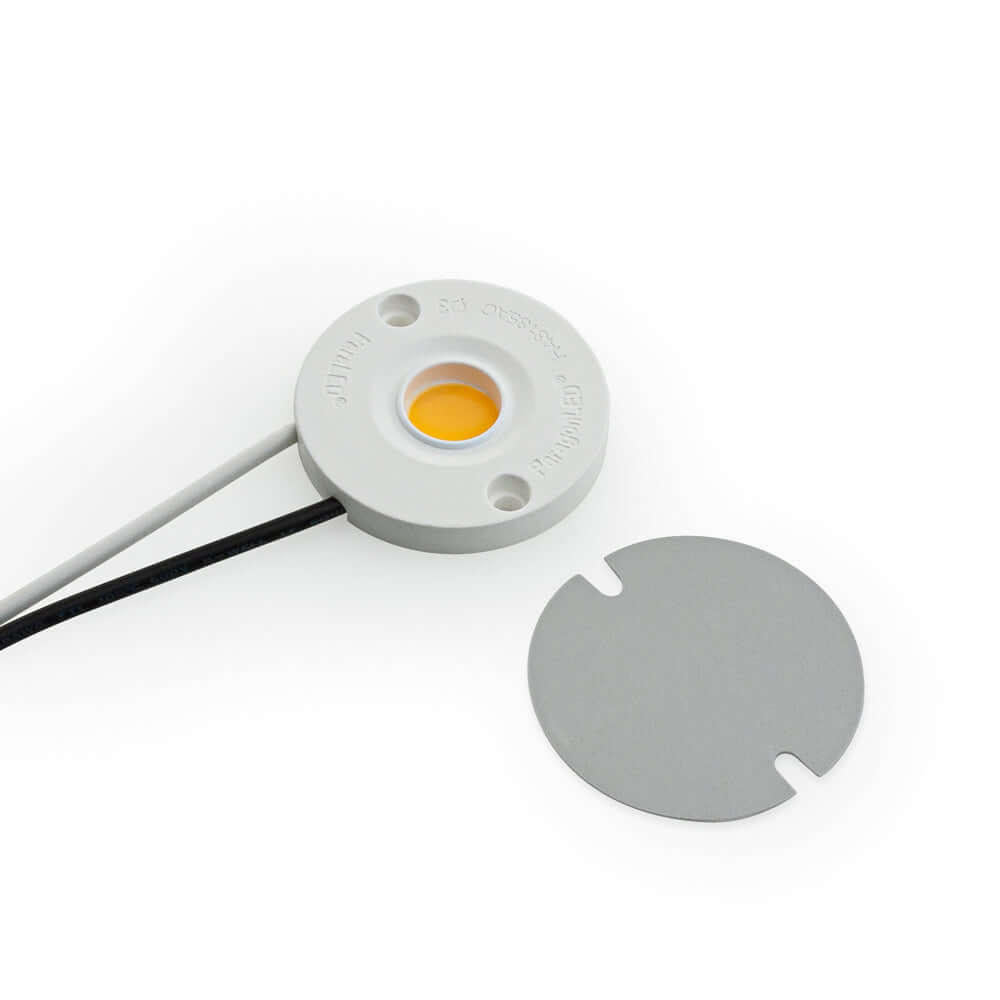

To prevent overheating and ensure the longevity of the module, it is recommended to use an aluminum heat sink when designing lamps with this module. The silicone grease thermal pad that comes with the module provides additional heat dissipation.
The module also includes a polycarbonate diffuser that can be easily attached or detached. The diffuser protects the module and helps to reduce glare and refract the light in a wider beam. This product is certified by UL and is suitable for use in damp locations.
Features:
- COB LED module designed for indoor use with a power consumption of 11W and a voltage rating of 120V AC

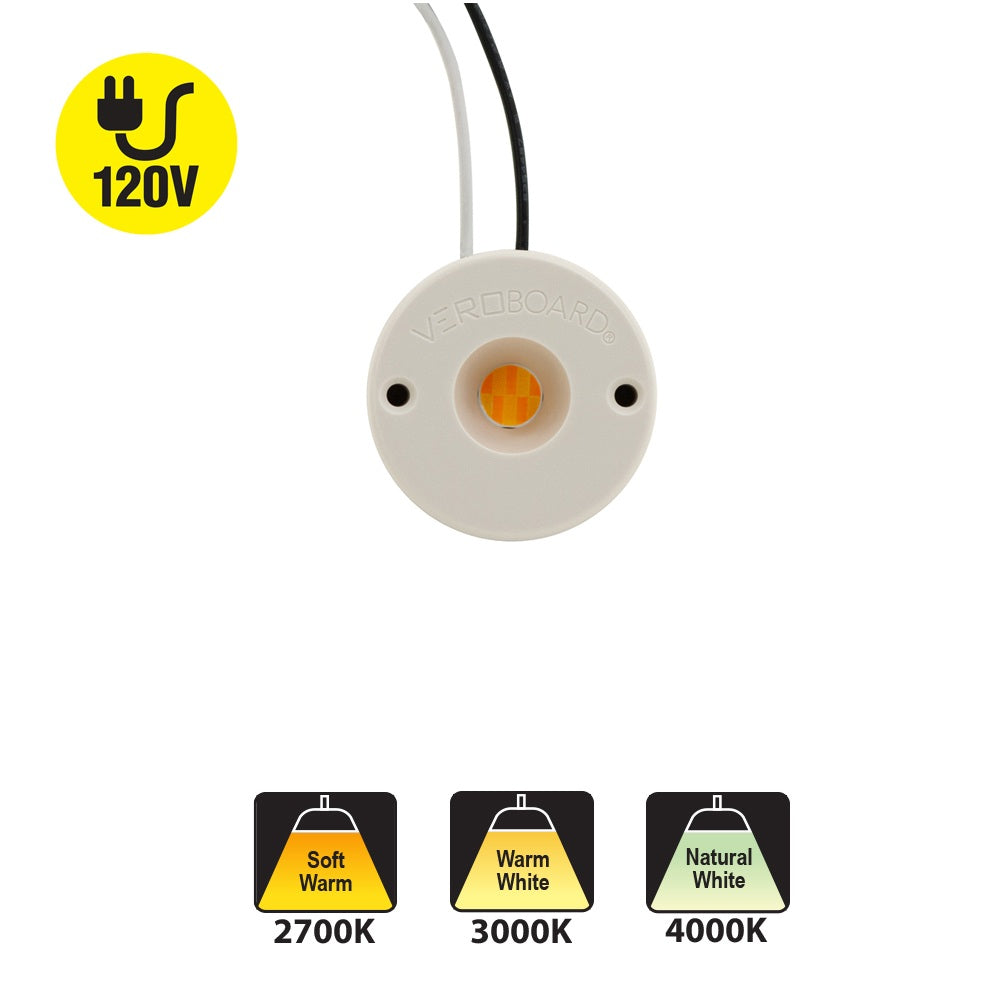

- Color temperature of 2700K, producing a soft white light
- Dimmable module with a high color rendering index of over 90, ensuring accurate color display
- Comes with a H48185 COB LED holder that allows for easy mechanical and electrical connections and secure attachment to a heat sink
- COB holder dimensions: ∅42.3mm (1.6 in) x H5.88mm (0.23 in)
- Recommended to use an aluminum heat sink and silicone grease thermal pad to prevent overheating and ensure longevity of the module
- Includes a polycarbonate diffuser that can be easily attached or detached to protect the module, reduce glare, and refract light in a wider beam
- Certified by UL and suitable for use in damp locations
- Important to ground light fixtures when designing lamps to ensure safe operation
- Operating temperature range: -40 ~ +105℃, storage temperature range: -40 ~ +105℃
- Assembly process temperature should not exceed 300℃ and the solder joint point temperature should not exceed 105℃
- Dielectric breakdown voltage of the thermal pad is greater than 4KV
