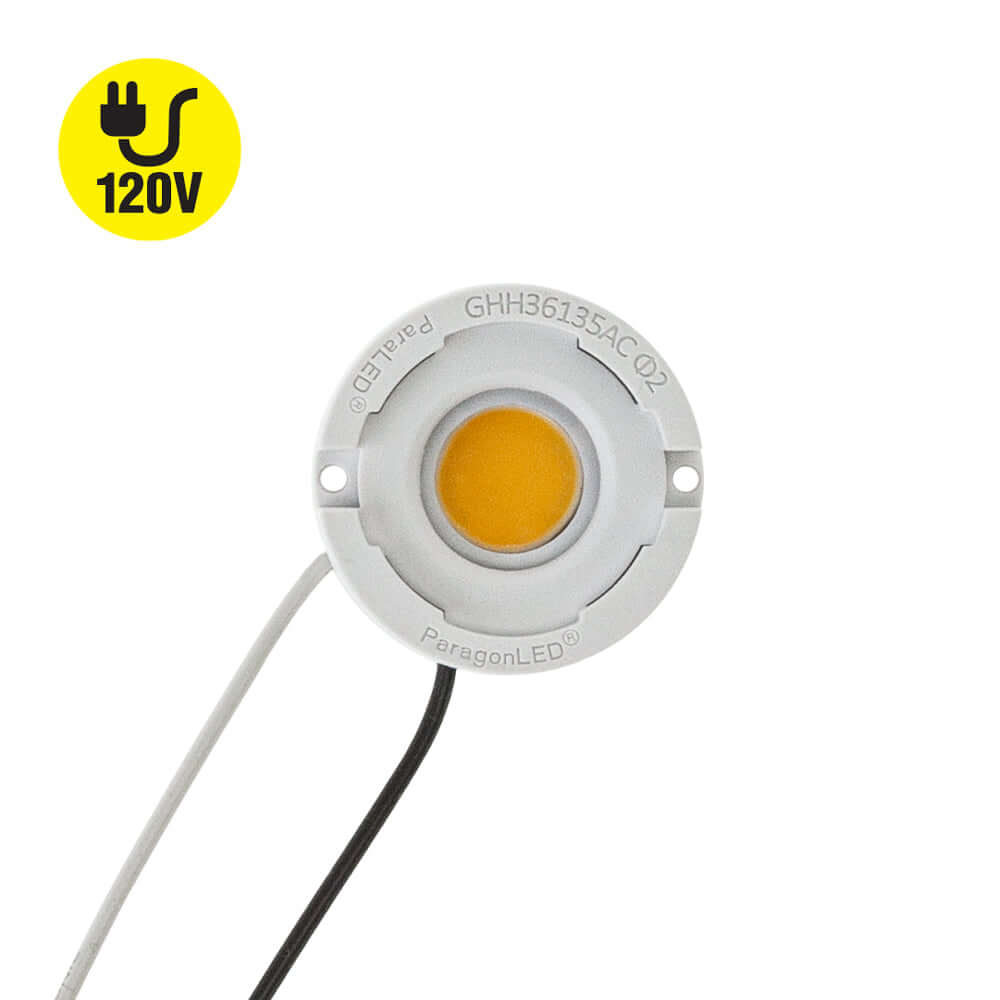

CBHT-042-30135-120V-40-G03 COB Paragon LED Module with GHH36135AC LED Holder, 120V 6W 4000K(Natural White)

CBHT-042-30135-120V-40-G03 COB Paragon LED Module with GHH36135AC LED Holder, 120V 6W 4000K(Natural White)

SKU: SKU:666561428297

Regular price $42.00 USD
Regular price Sale price $42.00 USD
Sale Sold out
Shipping calculated at checkout.

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

 How do we ship our product?

GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.

Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.

How do we calculate the shipping cost?

Our prices are based on US dollars and are as follows:

Free Shipping

For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?

Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?

All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?

We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?

Returns and exchanges are accepted within 30 days of the original purchase date.
Important information below:
  • All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Two week processing time.
  • To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
  • To submit a request for a return or exchange, please email sales@gekpower.com

    Return Duty Charge:

    • The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.

    Undelivered Orders:

    • If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.

    Statutory Holidays in British Columbia, Canada 2024
    January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25





    Product Description

    Product Paragon LED Module

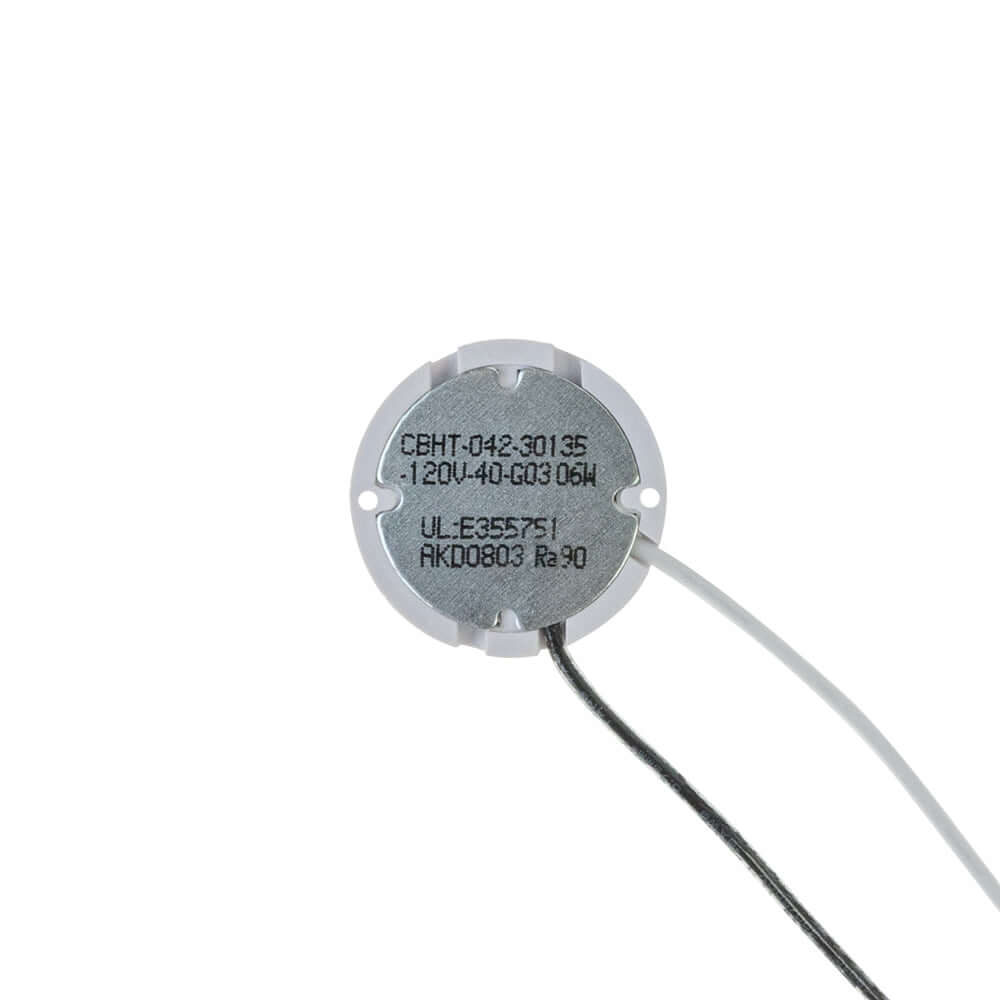

    Model No CBHT-042-30135-120V-40-G03
    COB Holder Model No GHH36135AC
    LED Type
    COB LED
    No LED chips 42

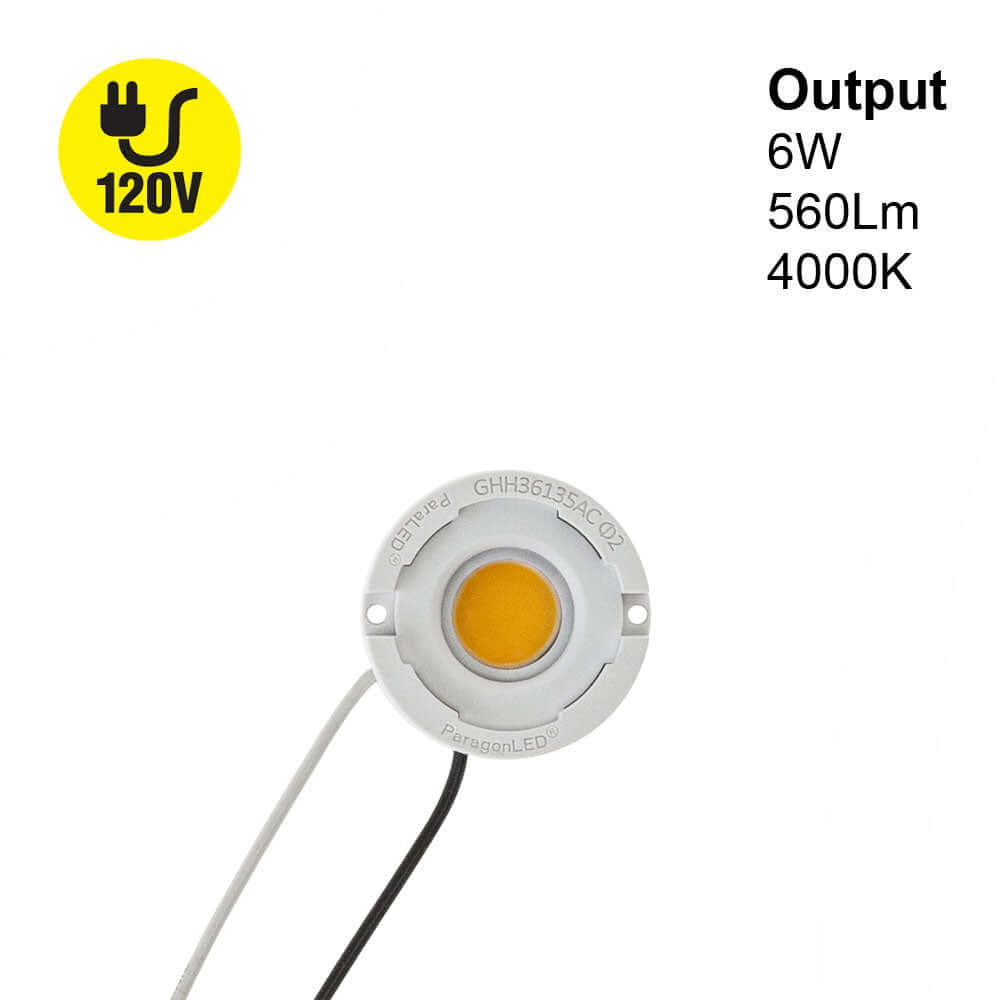

    Wattage 6W
    Voltage 120V AC
    Power Factor PF>0.98
    Luminous Intensity 560 lumens
    Color Temperature 4000K (Natural White)
    Dimmable Yes
    Rendering Index CRI>90
    IP Rating IP20 (Indoor rated)

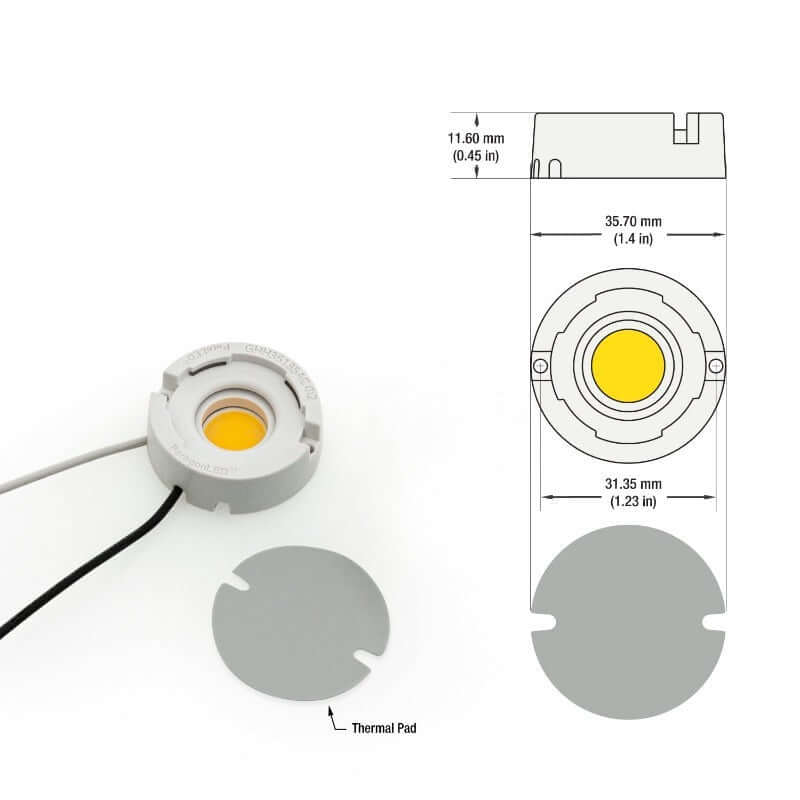

    COB Holder Dimensions ∅35.7mm (1.4 in) x H11.60mm (0.45 in)
    COB Module Outer Diameter ∅27 mm (1.06 in)
    Operating Temperature -40 ~ +105℃
    Storage Temperature -40 ~ +105℃
    Assembly process Temperature <300℃
    Solder joint point <105℃
    Dielectric Breakdown Voltage of Thermal Pad >4KV

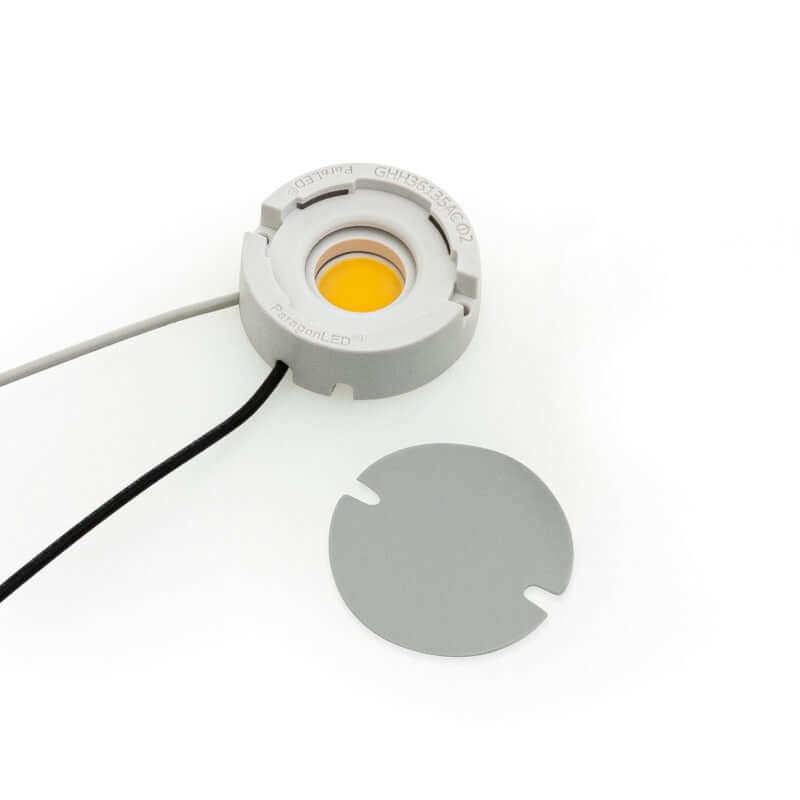

    Included Content COB Module, COB LED Array Holder, Thermal Pad
    Certifications


    The Paragon LED Module is a COB LED module designed for indoor use with a model number of CBHT-042-30135-120V-40-G03. The module has 42 LED chips and a wattage of 6W, with a voltage of 120V AC and a power factor greater than 0.98. It has a luminous intensity of 560 lumens and a color temperature of 4000K (Natural White), with a dimmable feature.

    The module has a high rendering index of greater than 90 (CRI>90) and an IP20 rating, making it suitable for use in damp locations. It can operate in temperatures ranging from -40 to +105℃ and has a dielectric breakdown voltage of the thermal pad of greater than 4KV.

    The package includes the COB Module, COB LED Array Holder, and Thermal Pad, and the product is certified by UL. To prevent overheating, an aluminum heat sink is required during installation to increase the life span of the module. The product comes with a polycarbonate diffuser that can easily be attached or detached, which helps in reducing the glare and refracting the light in a wider beam.

    The COB holder allows the module to be mechanically secured, electrically connected, and pressed to a heat sink. A silicone grease thermal pad provides a heat sink and helps in better heat dissipation. This product is suitable for almost every kind of luminaire, but it is important to ground light fixtures while designing lamps.

    Features:

    • Power factor greater than 0.98
    • Luminous intensity of 560 lumens
    • Color temperature of 4000K (Natural White)
    • Dimmable feature
    • High rendering index of greater than 90 (CRI>90)
    • IP20 rating, suitable for use in damp locations
    • Operating temperature range: -40 to +105℃
    • Dielectric breakdown voltage of thermal pad greater than 4KV
    • Package includes COB Module, COB LED Array Holder, and Thermal Pad
    • Certified by UL
    • Aluminum heat sink required for installation to prevent overheating
    • Polycarbonate diffuser included to reduce glare and refract light in a wider beam
    • COB holder allows for mechanical securing, electrical connection, and pressing to heat sink
    • Silicone grease thermal pad provides heat sink and better heat dissipation
    • Suitable for almost every kind of luminaire
    • Important to ground light fixtures while designing lamps
