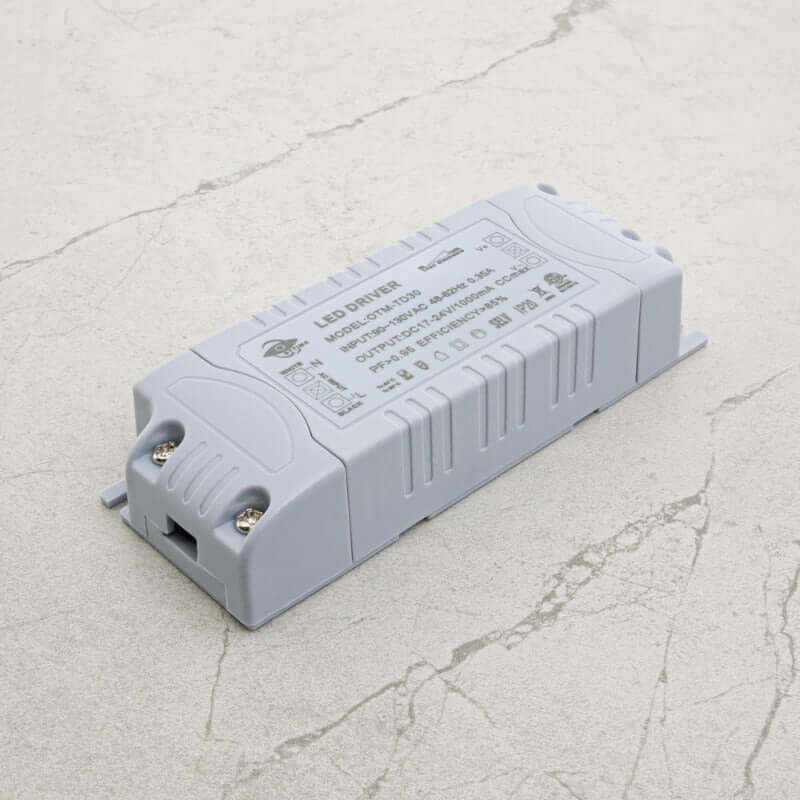

OTTIMA OTM-TD30 Constant Current LED Driver, 1000mA 17-24V 24W

  • $41.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561424961
Title:
We only have 87 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).


Product Description

Product Constant Current LED Drivers
Model OTM-TD30
Input Voltage 90-130V AC
Input Current 0.35A
Input Frequency 48-62Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 1000mA
Output Power  24W
Output Voltage 17-24V DC
Dimmable: Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Indoor use only)
Dimensions 107.18 x 41.18 x 22.83 mm (4.2 x 1.62 x 0.875 in)
Class Certification Class II
Certification




The OTTIMA OTM-TD30 is a Constant Current LED Driver that provides a regulated current of 1000mA to power LED lighting systems. It has an input voltage of 90-130V AC with an input current of 0.35A and input frequency of 48-62Hz. The Power Factor is PF>0.95, and efficiency is greater than 85%. The output power is 24W, and the output voltage is 17-24V DC.

This LED driver is compatible with Triac dimming, making it suitable for various lighting applications that require brightness control. The ambient temperature (Ta) is rated at 40°C, while the case temperature (Tc) is rated at 90°C.

The OTM-TD30 has an IP20 rating, indicating that it is suitable for indoor use only. Its dimensions are 107.18 x 41.18 x 22.83 mm (4.2 x 1.62 x 0.875 in). It is Class II certified, providing double insulation protection against electric shock.

Features:

  • The OTTIMA OTM-TD30 is a Constant Current LED Driver with a regulated current output of 1000mA.
  • It has an input voltage range of 90-130V AC, input current of 0.35A and input frequency of 48-62Hz.
  • The driver has a high Power Factor of PF>0.95 and an efficiency rating of greater than 85%.
  • Its output power is 24W, and the output voltage range is 17-24V DC.
  • The LED driver is compatible with Triac dimming for adjustable lighting intensity.
  • The OTM-TD30 is Class II certified, providing double insulation protection against electric shock.
  • The ambient temperature (Ta) is rated at 40°C, while the case temperature (Tc) is rated at 90°C.

How to Install OTTIMA OTM-TD30 Dimming Constant Current LED Driver?

  1. Ensure that the power is turned off.
  2. Verify the output current of both the light and the driver.
  3. Remove the caps on both sides and loosen the screws on the green terminals.
  4. Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
  5. Connect the positive wire of the light to V+ and the negative wire to V-.
