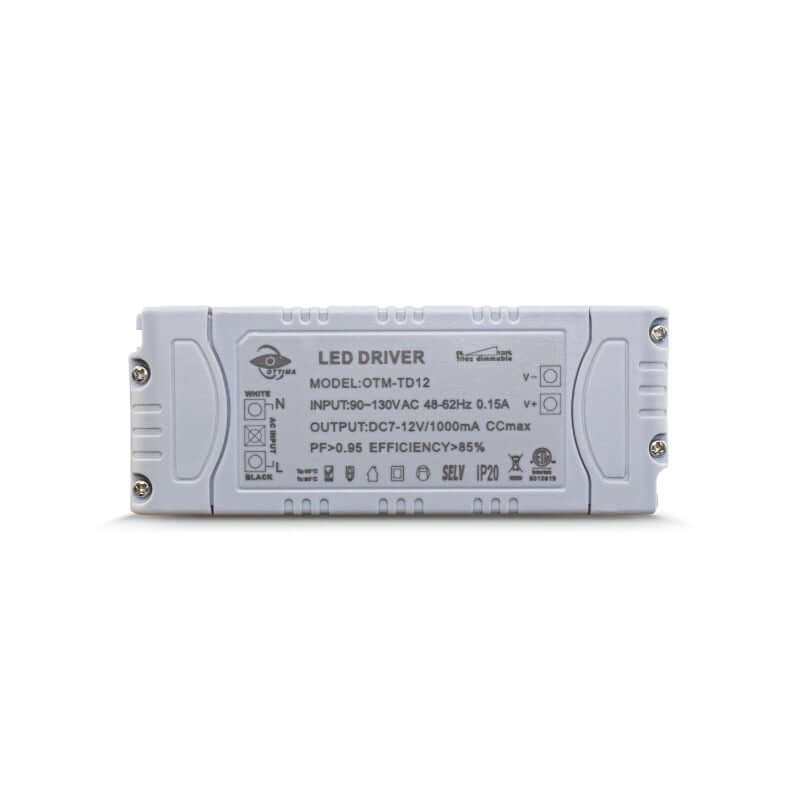

OTTIMA OTM-TD12 Constant Current LED Driver, 1000mA 7-12V 12W

 Product Description

Product	Constant Current LED Driver
Model	OTM-TD12
Input Voltage	90-130V AC
Input Current	0.15A
Input Frequency	48-62Hz
Power Factor	PF>0.95
Efficiency	>85%

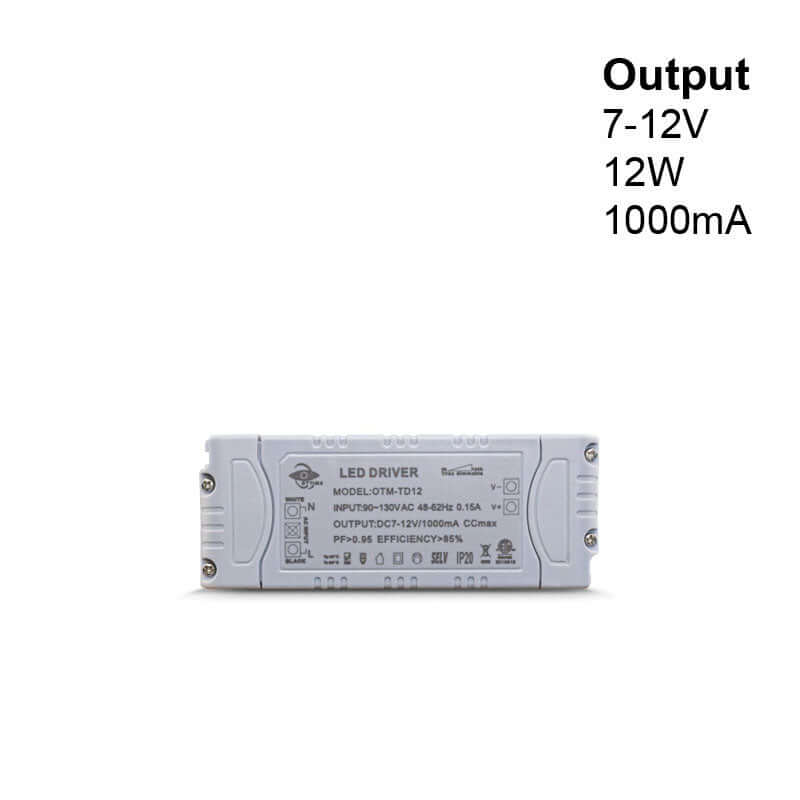

Output Regulated Current	1000mA
Output Power	12W
Output Voltage	7-12V DC
Dimmable	Yes (Triac Dimming)
Ambient Temperature (Ta)	40°C
Case Temperature (Tc)	90°C
IP Rating	IP20 (Indoor use only)

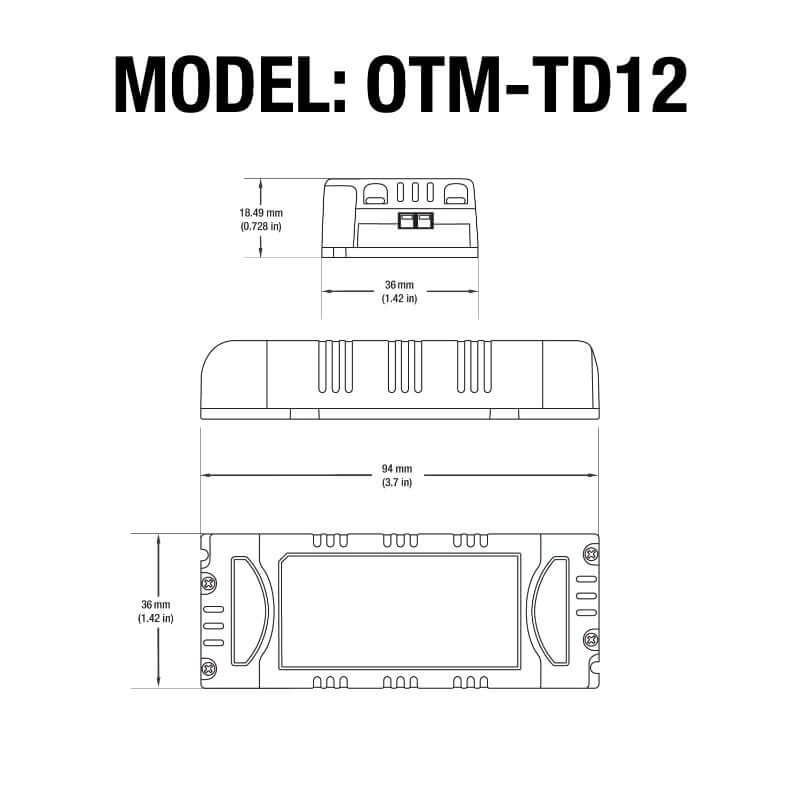

Dimensions	94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)
Class Certification	Class II
Certification

The OTTIMA OTM-TD12 Constant Current LED Driver is an electronic device that supplies a regulated constant current to LED lights. The model number of this driver is OTM-TD12. It has an input voltage range of 90-130V AC with an input current of 0.15A and a frequency range of 48-62Hz. It has a high power factor (PF) of greater than 0.95, which means it is highly efficient in converting the input power to output power. The efficiency of this LED driver is greater than 85%.

The output regulated current of this LED driver is 1000mA, and its output power is 12W. The output voltage range is 7-12V DC. It is dimmable with Triac Dimming, which allows for control of the brightness of the LED lights. The LED driver has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C.

Features:

• The OTTIMA OTM-TD12 Constant Current LED Driver supplies a regulated constant current to LED lights.
• The model number of this driver is OTM-TD12.
• It has an input voltage range of 90-130V AC with an input current of 0.15A and a frequency range of 48-62Hz.
• It has a high power factor (PF) of greater than 0.95 and an efficiency of greater than 85%.
• The output regulated current is 1000mA, and its output power is 12W.
• The output voltage range is 7-12V DC.
• It is dimmable with Triac Dimming for easy control of the LED light levels.
• The LED driver has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C.
• It is rated IP20, suitable for indoor use only.
• It is certified as Class II, which means it has double insulation and does not require a grounding wire.
• Overall, the OTM-TD12 is a reliable and efficient solution for powering LED lights in indoor settings that require a regulated constant current.

How to Install OTTIMA OTM-TD12 Dimming Constant Current LED Driver?

1. Ensure that the power is turned off.
2. Verify the output current of both the light and the driver.
3. Remove the caps on both sides and loosen the screws on the green terminals.
4. Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
5. Connect the positive wire of the light to V+ and the negative wire to V-.
