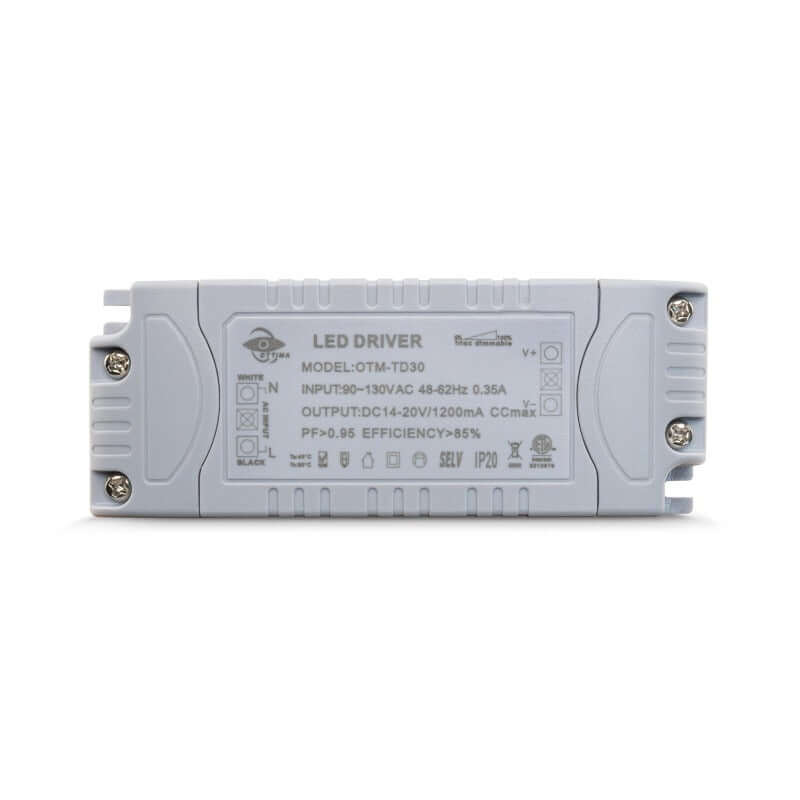

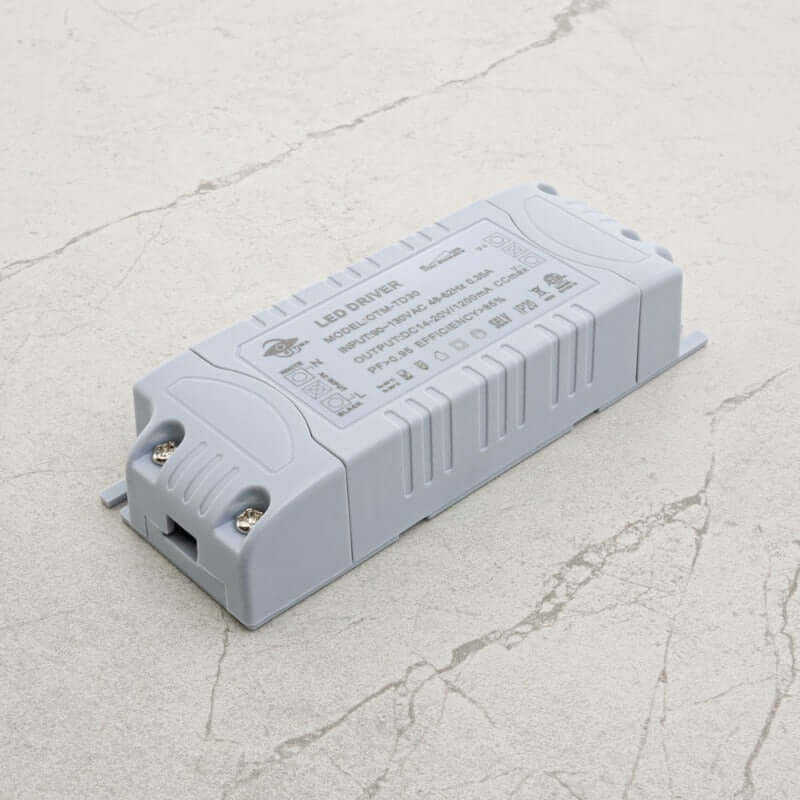

OTTIMA OTM-TD30 Constant Current LED Driver 1200mA 14-20V 24W
Product Description
Product | Constant Current LED Driver |
Model | OTM-TD30 |
Input Voltage | 90-130V AC |
Input Current | 0.35A |
Input Frequency | 48-62Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |
Output Regulated Current | 1200mA |

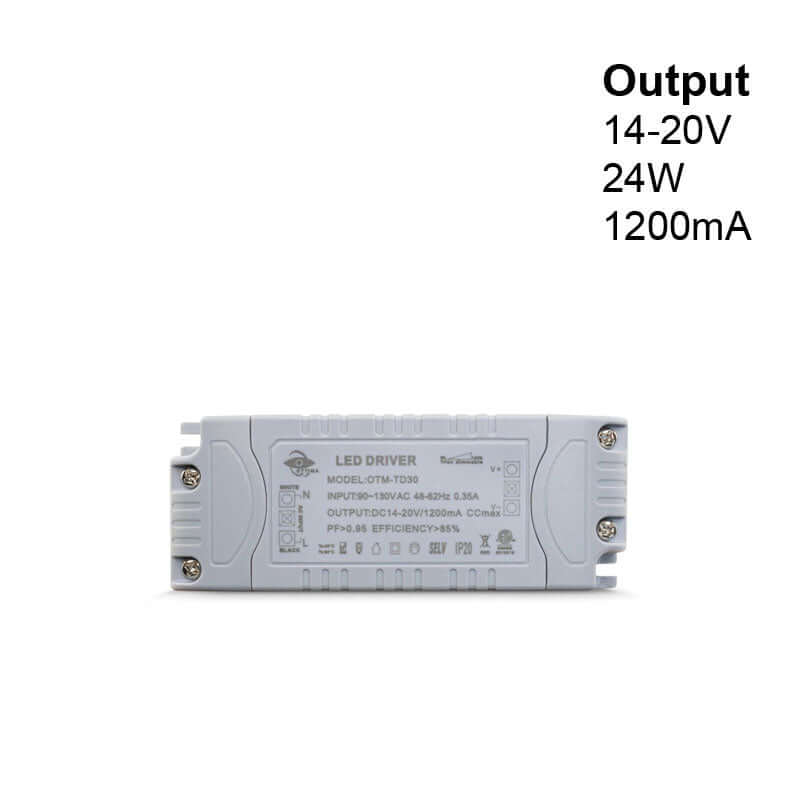

Output Power | 24W |
Output Voltage | 14-20V DC |
Dimmable: | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 90°C |
IP Rating | IP20 (Indoor use only) |

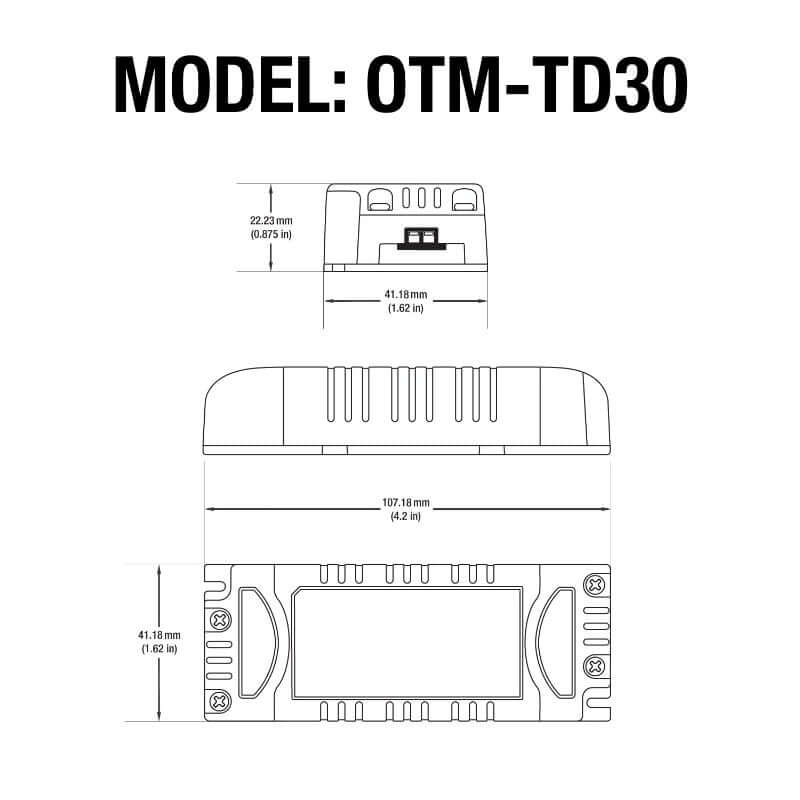

Dimensions | 107.18 x 41.18 x 22.83mm (4.2 x 1.62 x 0.875 in) |
Class Certification | Class II |
Certification |
![]() ![]() |
The OTTIMA OTM-TD30 is a Constant Current LED Driver that delivers a regulated current of 1200mA to power LED lighting systems. It has an input voltage of 90-130V AC with an input current of 0.35A and input frequency of 48-62Hz. The Power Factor is PF>0.95, and efficiency is greater than 85%. The output power is 24W, and the output voltage is 14-20V DC.
This LED driver is compatible with Triac dimming, making it suitable for various lighting applications that require brightness control. The ambient temperature (Ta) is rated at 40°C, while the case temperature (Tc) is rated at 90°C.
The OTM-TD30 has an IP20 rating, indicating that it is suitable for indoor use only. Its dimensions are 107.18 x 41.18 x 22.83 mm (4.2 x 1.62 x 0.875 in). It is Class II certified, providing double insulation protection against electric shock.
Overall, the OTTIMA OTM-TD30 LED driver is a reliable and efficient option for powering LED lighting systems that require a constant current supply. Its compatibility with Triac dimming makes it a versatile choice for various lighting applications.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
Features:
- The OTTIMA OTM-TD30 is a Constant Current LED Driver that provides a regulated current of 1200mA to power LED lighting systems.
- It has an input voltage of 90-130V AC with an input current of 0.35A and input frequency of 48-62Hz.
- The Power Factor is PF>0.95, and efficiency is greater than 85%.
- The output power is 24W, and the output voltage is 14-20V DC.
- This LED driver is compatible with Triac dimming, making it suitable for various lighting applications that require brightness control.
- The ambient temperature (Ta) is rated at 40°C, while the case temperature (Tc) is rated at 90°C.
- The OTM-TD30 has an IP20 rating, indicating that it is suitable for indoor use only.
- Its dimensions are 107.18 x 41.18 x 22.83 mm (4.2 x 1.62 x 0.875 in).
- It is Class II certified, providing double insulation protection against electric shock.
- Overall, the OTTIMA OTM-TD30 LED driver is a reliable and efficient option for powering LED lighting systems that require a constant current supply. Its compatibility with Triac dimming makes it a versatile choice for various lighting applications.
How to Install OTTIMA OTM-TD30 Dimming Constant Current LED Driver?
- Ensure that the power is turned off.
- Verify the output current of both the light and the driver.

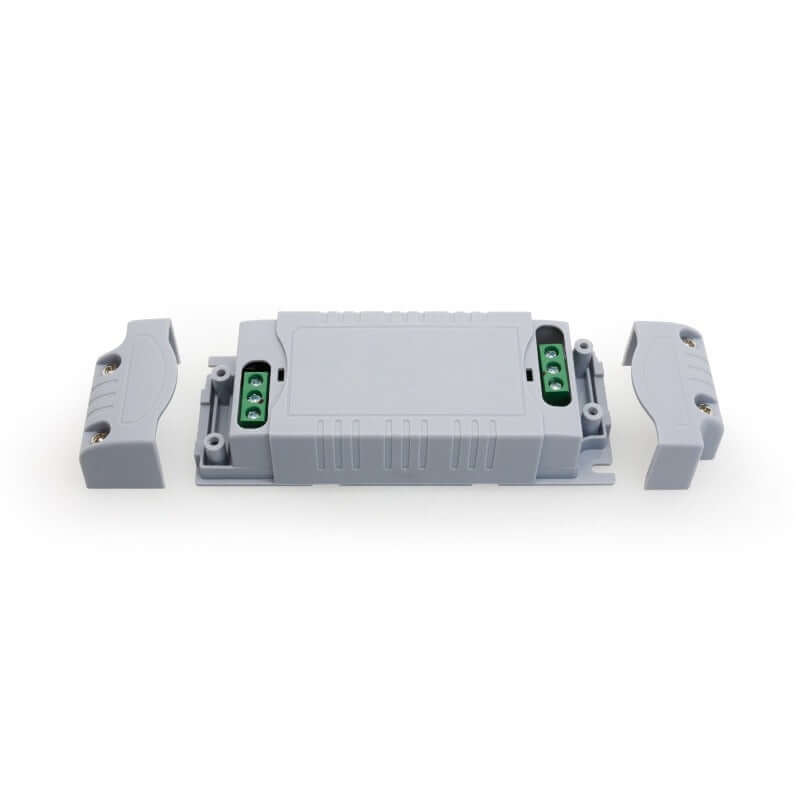

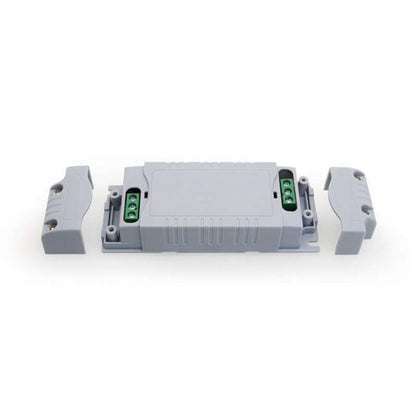

- Remove the caps on both sides and loosen the screws on the green terminals.
- Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
- Connect the positive wire of the light to V+ and the negative wire to V-.
