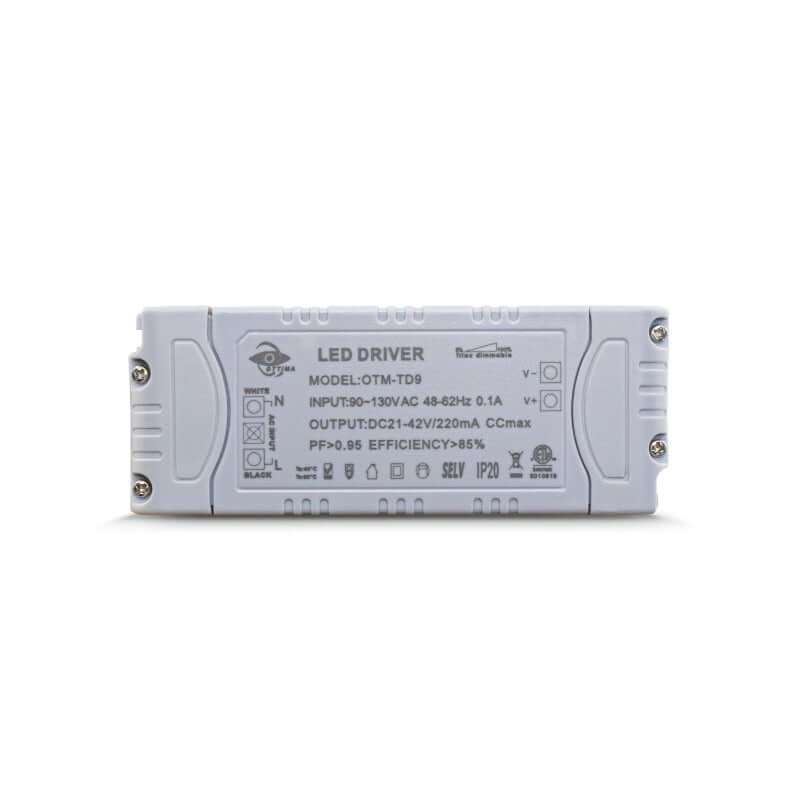

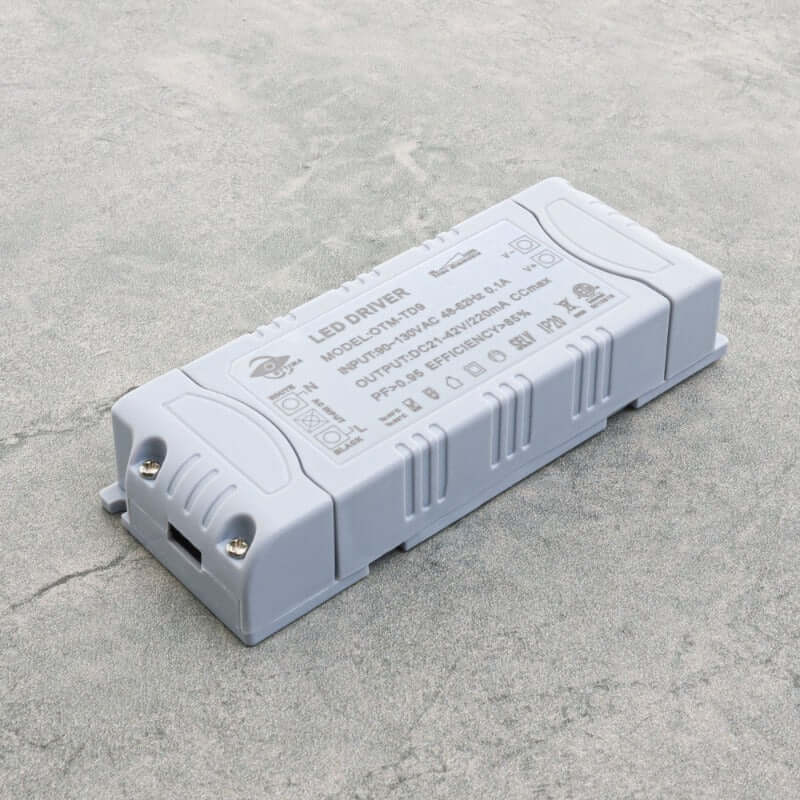

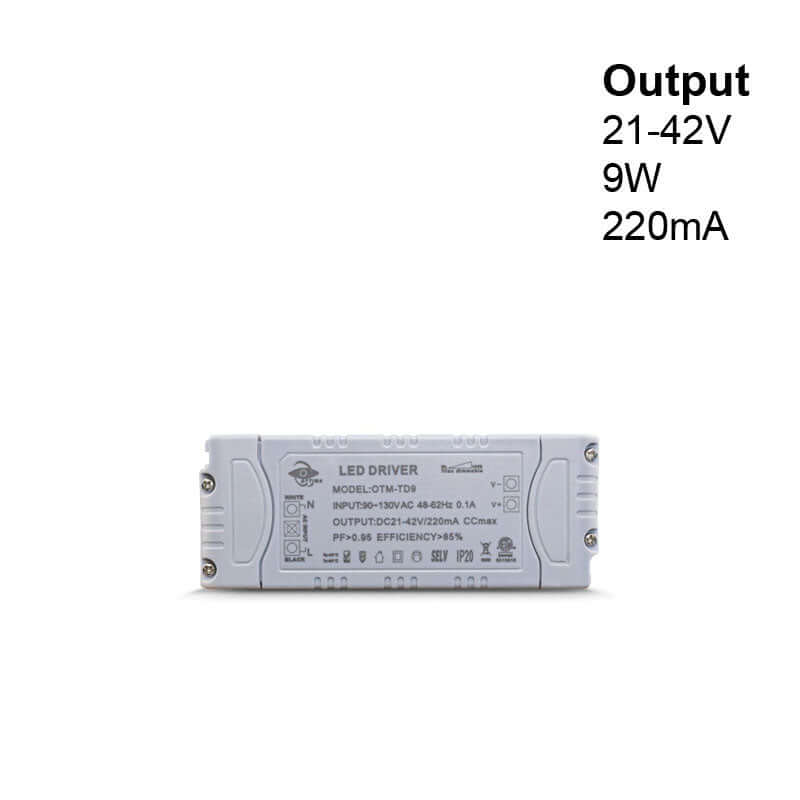

OTTIMA OTM-TD9 Constant Current LED Driver, 220mA 21-42V 9W
|Product||Constant Current LED Driver|
|Input Voltage||90-130V AC|
|Input Current||0.1 A|
|Output Regulated Current||220mA|
|Output max Power||9W|
|Output Max Voltage||21-42V DC|
|Dimmable||Yes (Triac Dimming)|
|Ambient Temperature (Ta)||40°C|
|Case Temperature (Tc)||90°C|
|IP Rating||IP20 (Indoor use only)|

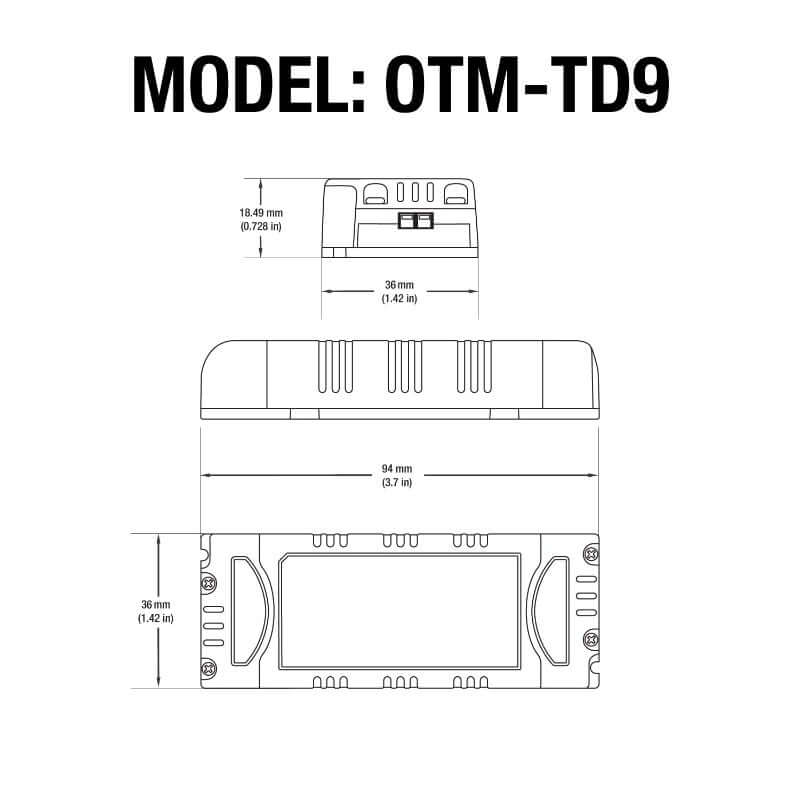

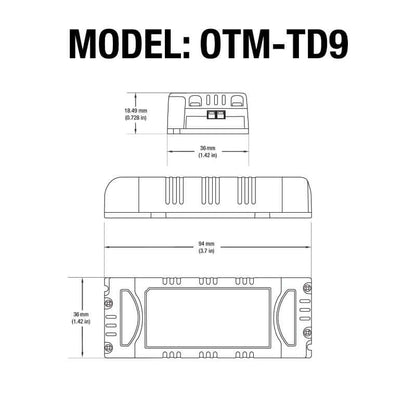

|Dimensions||94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)|
|Class Certification||Class II|
The Ottima OTM-TD9 is a constant current LED driver that provides a regulated current output of 220mA with a maximum output power of 9W. It has an input voltage range of 90-130V AC with an input current of 0.1A and an input frequency of 48-62Hz. The driver has a high power factor of PF>0.95 and an efficiency of >85%, ensuring energy efficiency and stable performance.
The OTM-TD9 is suitable for use with LEDs that require an output voltage range of 21-42V DC. It is also dimmable, allowing for easy control of LED light levels using Triac dimming. The driver has an ambient temperature range of up to 40°C and a case temperature of up to 90°C.
The OTM-TD9 has an IP20 rating, making it suitable for indoor use only. The driver is compact, with dimensions of 94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in), and it is easy to install in a variety of lighting applications.
This LED driver is Class II certified, which means it provides double insulation between the primary and secondary circuits, ensuring a high level of safety. The OTM-TD9 is suitable for use in a wide range of LED lighting applications, including indoor lighting, commercial lighting, and architectural lighting.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
- The Ottima OTM-TD9 is a constant current LED driver
- It provides a regulated current output of 220mA with a maximum output power of 9W
- Input voltage range: 90-130V AC, input current: 0.1A, input frequency: 48-62Hz
- High power factor of PF>0.95 and an efficiency of >85%
- Suitable for use with LEDs that require an output voltage range of 21-42V DC
- Dimmable with Triac dimming
- Ambient temperature range of up to 40°C and a case temperature of up to 90°C
- IP20 rated for indoor use only
- Compact dimensions of 94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in)
- Class II certified for double insulation between primary and secondary circuits, ensuring safety
- Suitable for use in indoor lighting, commercial lighting, and architectural lighting applications.
How to Install OTTIMA OTM-TD9 Dimming Constant Current LED Driver?
- Ensure that the power is turned off.
- Verify the output current of both the light and the driver.
- Remove the caps on both sides and loosen the screws on the green terminals.
- Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
- Connect the positive wire of the light to V+ and the negative wire to V-.
