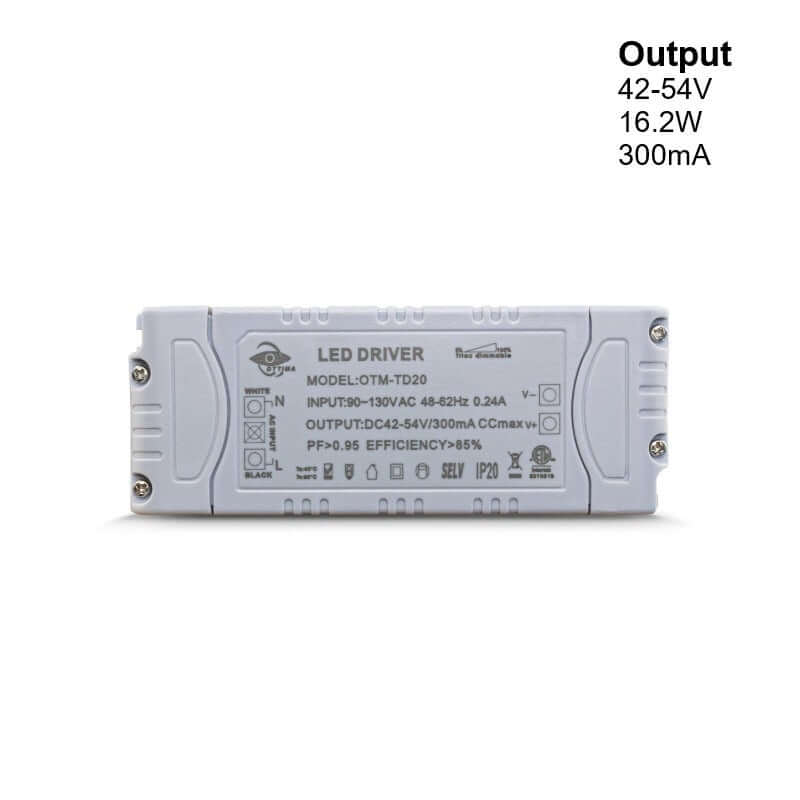

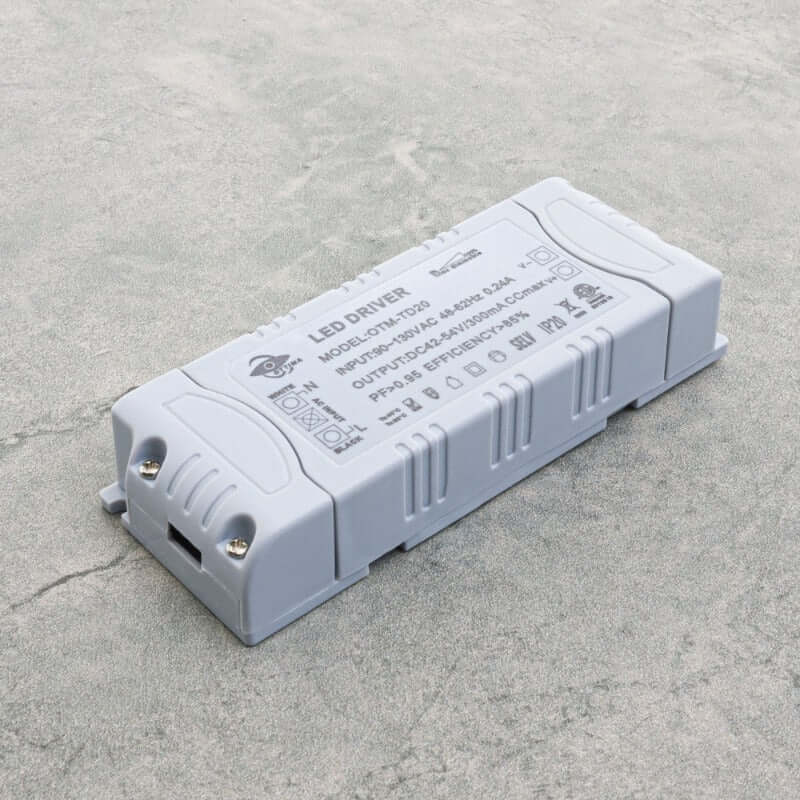

OTTIMA OTM-TD20 Constant Current LED Driver, 300mA 42-54V 18W
|Product||Constant Current LED Driver|
|Input Voltage||90-130V AC|
|Output Regulated Current||300mA|
|Output Voltage||42-54V DC|
|Dimmable||Yes (Triac Dimming)|
|Ambient Temperature (Ta)||40°C|
|Case Temperature (Tc)||90°C|
|IP Rating||IP20 (Indoor use only)|

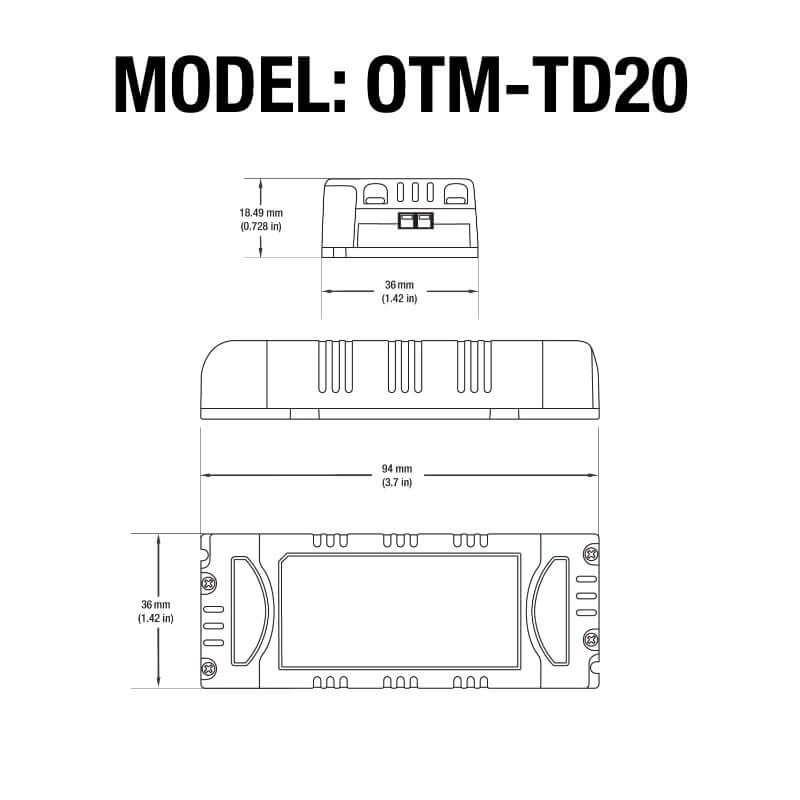

|Dimensions||94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)|
|Class Certification||Class II|
The OTTIMA OTM-TD20 is a Constant Current LED Driver that provides a regulated current of 300mA to power LED lighting systems. It has an input voltage of 90-130V AC with an input current of 0.24A and input frequency of 48-62Hz. The Power Factor is PF>0.95, and efficiency is more than 85%. The output power is 18W, and the output voltage is 42-54V DC.
This LED driver is compatible with Triac dimming, making it suitable for various lighting applications that require brightness control. The ambient temperature (Ta) is rated at 40°C, while the case temperature (Tc) is rated at 90°C.
The OTM-TD20 has an IP20 rating, indicating that it is suitable for indoor use only. Its dimensions are 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in). It is Class II certified, providing double insulation protection against electric shock.
Overall, the OTTIMA OTM-TD20 LED driver is a reliable and efficient option for powering LED lighting systems that require a constant current supply. Its compatibility with Triac dimming makes it a versatile choice for various lighting applications.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
- The OTTIMA OTM-TD20 is a Constant Current LED Driver designed for powering LED lighting systems with a regulated current of 300mA.
- It has an input voltage range of 90-130V AC, input current of 0.24A, and input frequency of 48-62Hz, making it compatible with standard electrical systems.
- The driver has a high power factor (PF>0.95) and efficiency rating (>85%), indicating high efficiency in converting electrical power into LED light output.
- The maximum output power is 18W, and the output voltage range is 42-54V DC.
- It is compatible with Triac dimming, allowing for adjustable brightness control.
- The driver is designed for indoor use only, with an IP20 rating for protection against solid objects greater than 12.5mm in diameter.
- It can operate in ambient temperatures of up to 40°C and has a maximum case temperature of 90°C.
- The OTM-TD20 has dimensions of 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) and is classified as Class II, providing double insulation protection against electric shock.
How to Install OTTIMA OTM-TD20 Dimming Constant Current LED Driver?
- Ensure that the power is turned off.
- Verify the output current of both the light and the driver.
- Remove the caps on both sides and loosen the screws on the green terminals.
- Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
- Connect the positive wire of the light to V+ and the negative wire to V-.
