OTTIMA OTM-TD20 Constant Current LED Driver, 430mA 36-42V 18W
|Constant Current LED Driver
|Output Regulated Current
|Output max Power
|Output Max Voltage
|Yes (Triac Dimming)
|Ambient Temperature (Ta)
|Case Temperature (Tc)
|IP20 (Indoor use only)
|94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)

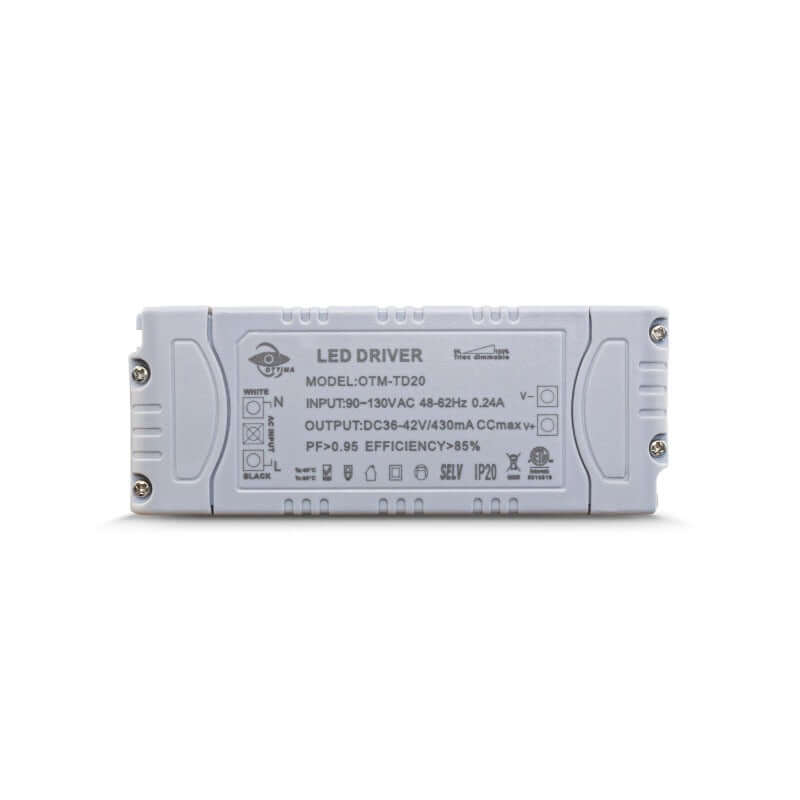

The OTTIMA OTM-TD20 is a constant current LED driver that provides a regulated output current of 430mA and a maximum output power of 18W, making it suitable for powering LED lights within this range. It has an input voltage range of 90-130V AC with an input current of 0.24A and input frequency of 48-62Hz, making it compatible with standard electrical systems.
This LED driver has a high power factor of greater than 0.95, indicating that it is highly efficient in converting electrical power into LED light output. It also has an efficiency rating of over 85%, meaning that it minimizes power loss during the conversion process.
- The OTTIMA OTM-TD20 is a constant current LED driver that provides a regulated output current of 430mA and a maximum output power of 18W.
- It has an input voltage range of 90-130V AC with an input current of 0.24A and input frequency of 48-62Hz, making it compatible with standard electrical systems.
- The power factor of the driver is greater than 0.95, and it has an efficiency rating of over 85%.

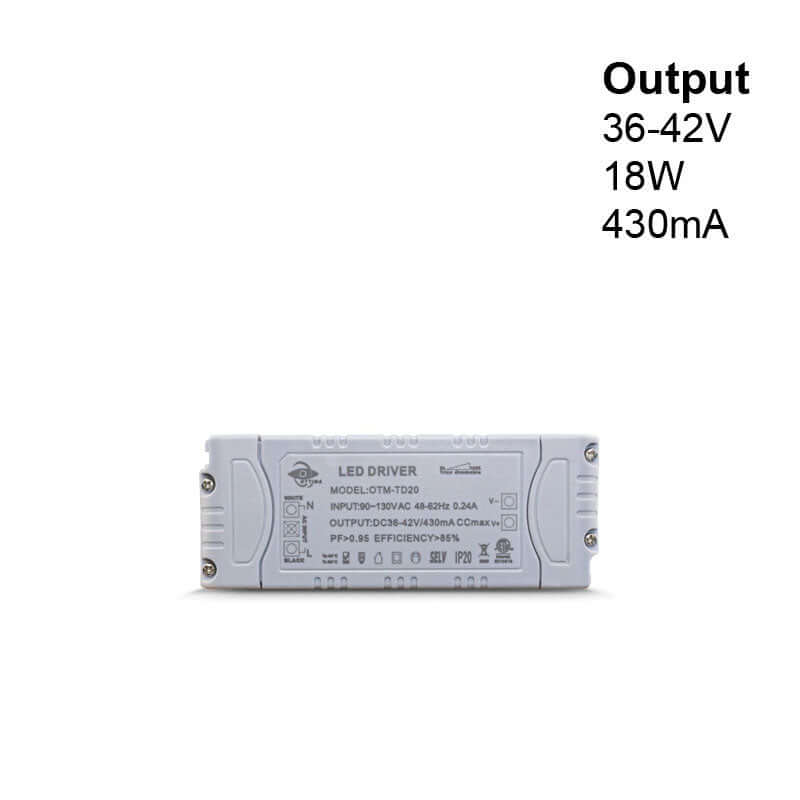

- The output voltage range is between 36-42V DC, allowing it to power a wide range of LED lights within that voltage range.
- The driver is dimmable using Triac Dimming, allowing for adjustable lighting intensity.
- It is designed for indoor use only, with an IP20 rating for protection against solid objects greater than 12.5mm in diameter.
- The driver can operate in ambient temperatures of up to 40°C and has a maximum case temperature of 90°C.

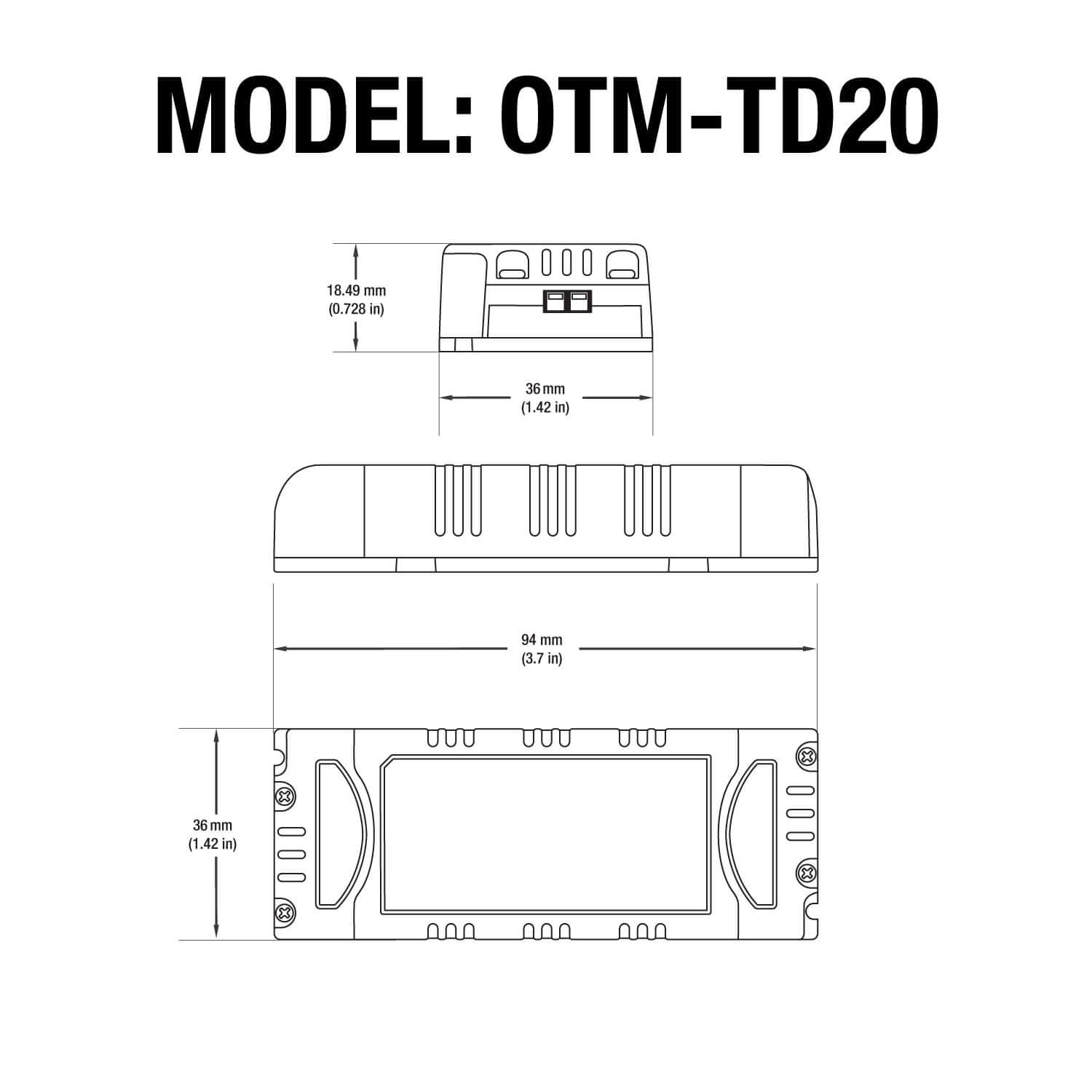

- The dimensions of the driver are 94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in) and it is classified as Class II, indicating that it has double insulation for added safety.
How to Install OTTIMA OTM-TD20 Dimming Constant Current LED Driver?
- Ensure that the power is turned off.
- Verify the output current of both the light and the driver.
- Remove the caps on both sides and loosen the screws on the green terminals.
- Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
- Connect the positive wire of the light to V+ and the negative wire to V-.
