OTTIMA OTM-TD20 Constant Current LED Driver, 470mA 24-36V 16.8W
OTTIMA OTM-TD20 Constant Current LED Driver, 470mA 24-36V 16.8W
SKU: SKU:666561424923
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Product | Constant Current LED Driver |
| Model | OTM-TD20 |
| Input Voltage | 90-130V AC |
| Input Current | 0.24A |
| Input Frequency | 48-62Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 470mA |
| Output Power | 16.8W |
| Output Voltage | 24-36V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Indoor use only) |

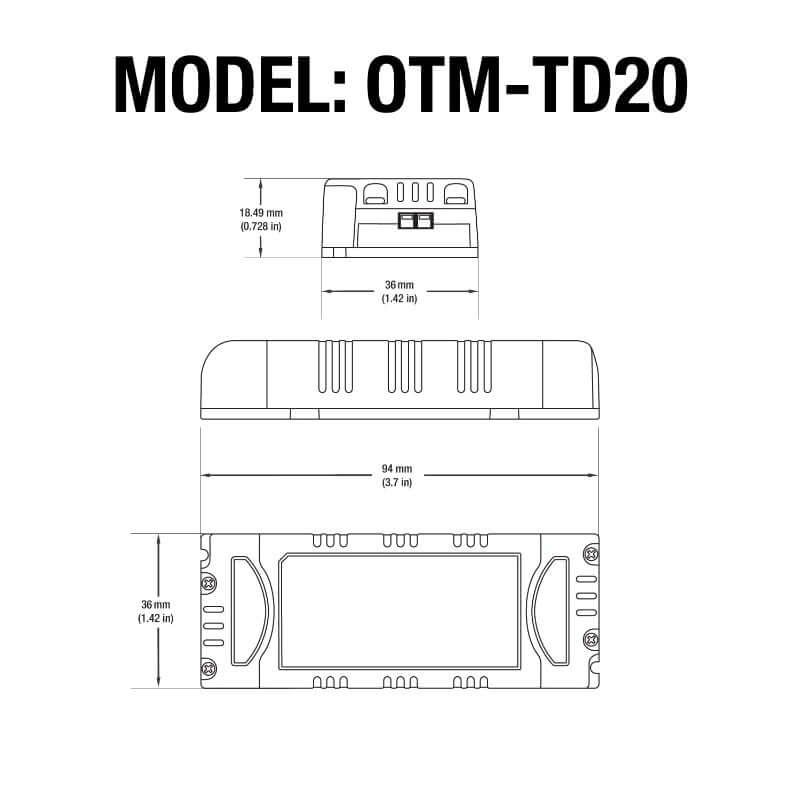

| Dimensions | 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) |
| Class Certification | Class II |
| Certification |

|
The OTTIMA OTM-TD20 is a constant current LED driver designed for indoor use only, with an IP20 rating. It has an input voltage range of 90-130V AC, input current of 0.24A, and input frequency of 48-62Hz. The power factor is greater than 0.95 and efficiency is greater than 85%.
The driver is capable of providing a regulated output current of 470mA and maximum power of 16.8W. The output voltage range is 24-36V DC. It is dimmable with Triac Dimming, which allows the user to adjust the light intensity.
Features:
- The OTTIMA OTM-TD20 is a constant current LED driver designed for indoor use only, with an IP20 rating.
- Input voltage range: 90-130V AC, input current: 0.24A, and input frequency: 48-62Hz.
- Power factor is greater than 0.95 and efficiency is greater than 85%.
- Regulated output current: 470mA and maximum power: 16.8W.
- Output voltage range: 24-36V DC.
- Dimmable with Triac Dimming for adjusting light intensity.
- Maximum ambient temperature (Ta): 40°C and case temperature (Tc): 90°C.
- Classified as Class II, which means it has two layers of insulation protection.
- Compact and efficient LED driver suitable for indoor use.
- Output current and voltage ranges make it suitable for powering LED lights with specific requirements, such as those with a voltage range of 24-36V DC and a maximum current of 470mA.
