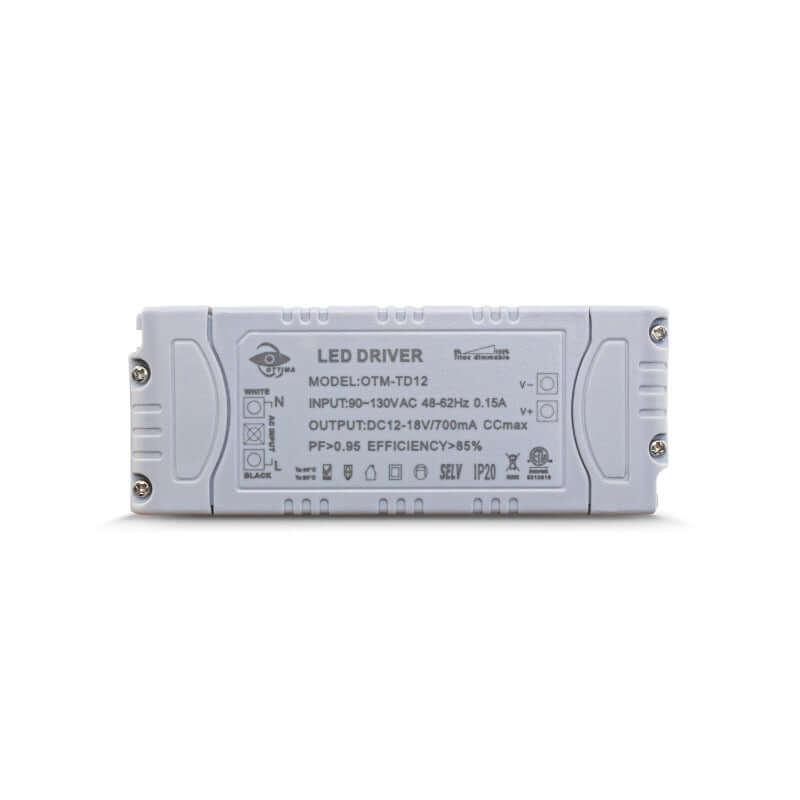

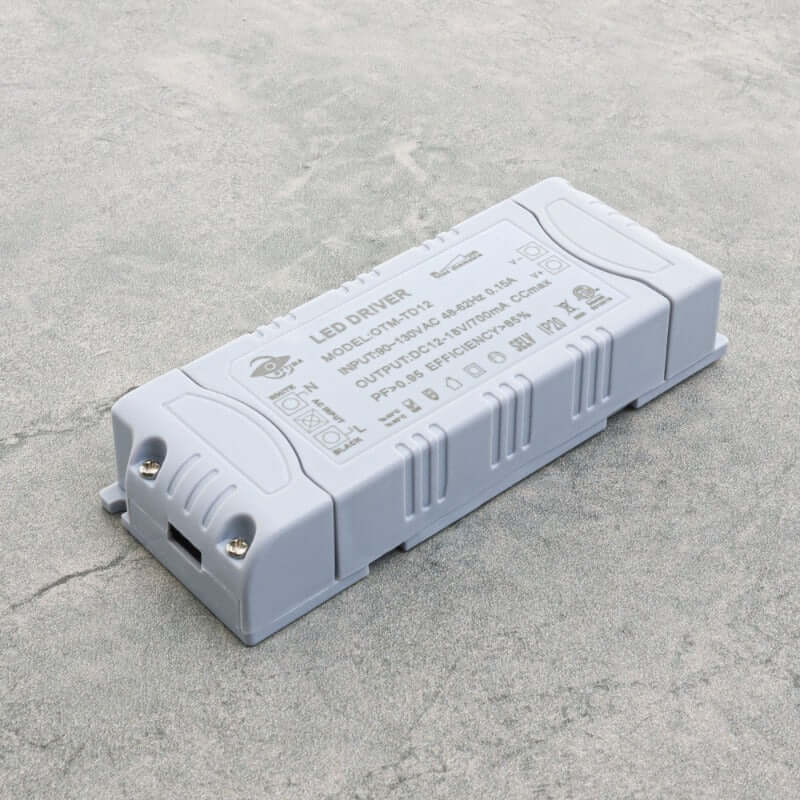

OTTIMA OTM-TD12 Constant Current LED Driver, 700mA 12-18V 12W
Product Description
Product | Constant Current LED Driver |
Model | OTM-TD12 |
Input Voltage | 90-130V AC |
Input Current | 0.15A |
Input Frequency | 48-62Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |

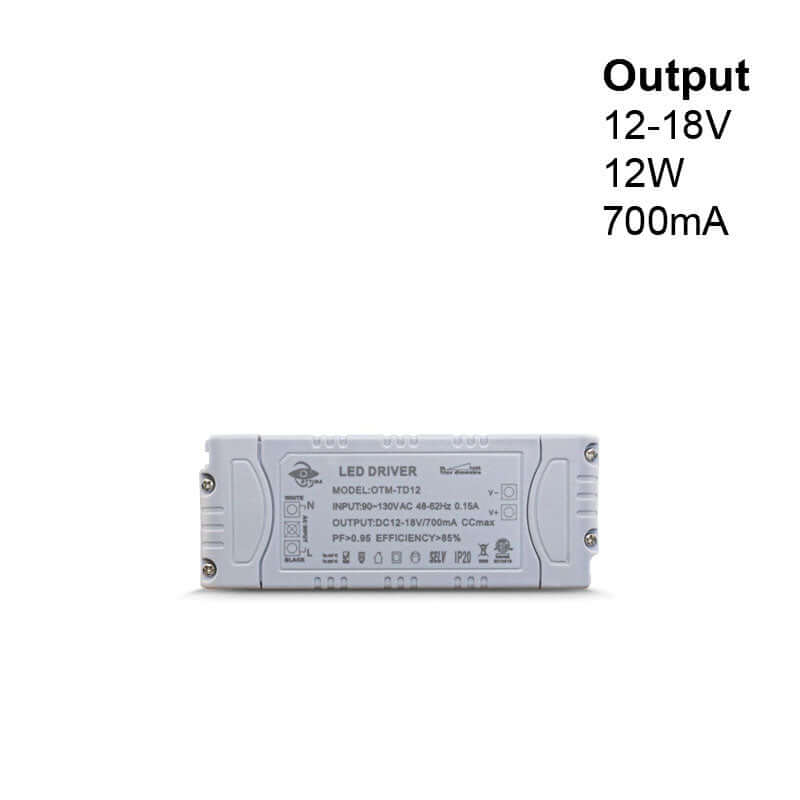

Output Regulated Current | 700mA |
Output Power | 12W |
Output Voltage | 12-18V DC |
Dimmable | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 90°C |
IP Rating | IP20 (Indoor use only) |

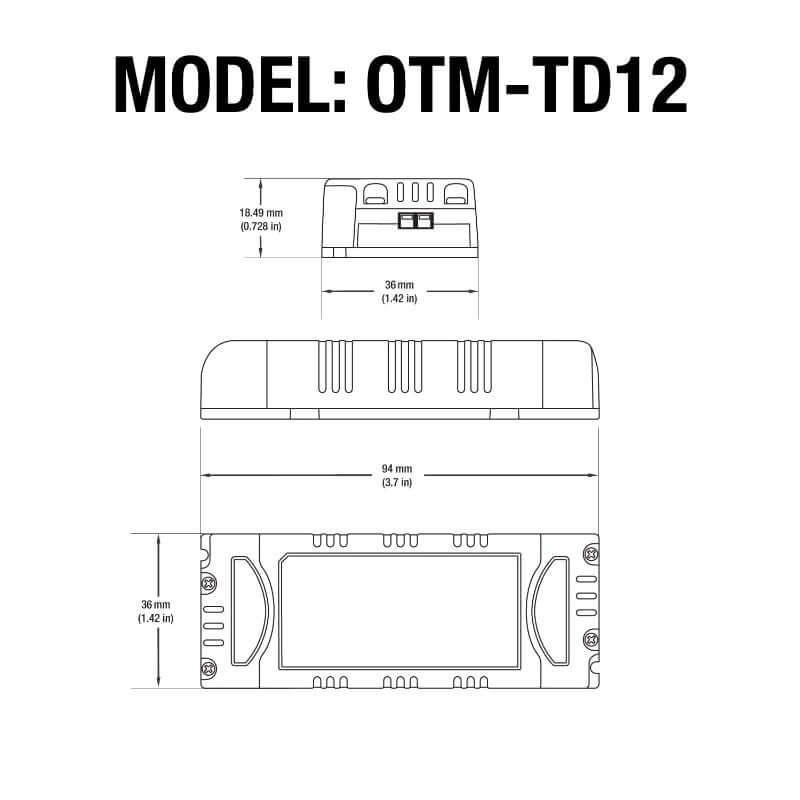

Dimensions | 94 x 36 x18.5 mm (3.7 x 1.42 x 0.72 in) |
Class Certification | Class II |
Certification |
![]() ![]() |
The OTTIMA OTM-TD12 Constant Current LED Driver is an electronic device that supplies a regulated constant current to LED lights. The model number of this driver is OTM-TD12. It has an input voltage range of 90-130V AC with an input current of 0.15A and a frequency range of 48-62Hz. It has a high power factor (PF) of greater than 0.95, which means it is highly efficient in converting the input power to output power. The efficiency of this LED driver is greater than 85%.
The output regulated current of this LED driver is 700mA, and its output power is 12W. The output voltage range is 12-18V DC. It is dimmable with Triac Dimming, which allows for control of the brightness of the LED lights. The LED driver has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C.
The LED driver is rated IP20, which means it is suitable for indoor use only. It has a compact size, with dimensions of 94x36x18.5 mm (3.7 x 1.42 x 0.72 in). The LED driver is certified as Class II, which means it has double insulation and does not require a grounding wire. Overall, this LED driver is a reliable and efficient solution for powering LED lights in indoor settings that require a regulated constant current of 700mA with an output voltage range of 12-18V DC.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
Features:
- The OTTIMA OTM-TD12 Constant Current LED Driver supplies a regulated constant current to LED lights.
- The model number of the LED driver is OTM-TD12.
- The LED driver has an input voltage range of 90-130V AC with an input current of 0.15A and a frequency range of 48-62Hz.
- The LED driver has a high power factor (PF) of greater than 0.95 and an efficiency greater than 85%.
- The LED driver has an output regulated current of 700mA and an output power of 12W with an output voltage range of 12-18V DC.
- The LED driver is dimmable with Triac Dimming, allowing for control of the brightness of the LED lights.
- The LED driver has an ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C.
- The LED driver is rated IP20 and is suitable for indoor use only.
- The LED driver has dimensions of 94x36x18.5 mm (3.7 x 1.42 x 0.72 in) and is certified as Class II.
- The LED driver has double insulation and does not require a grounding wire.
How to Install OTTIMA OTM-TD12 Dimming Constant Current LED Driver?
- Ensure that the power is turned off.
- Verify the output current of both the light and the driver.
- Remove the caps on both sides and loosen the screws on the green terminals.
- Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
- Connect the positive wire of the light to V+ and the negative wire to V-.
