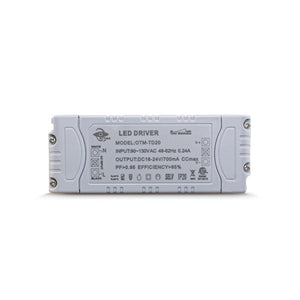

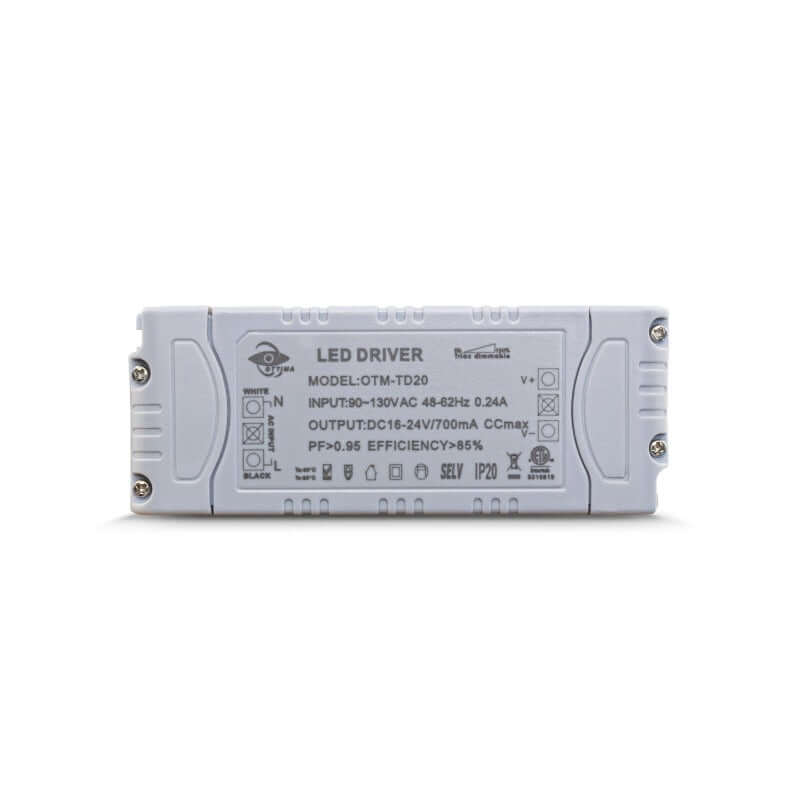

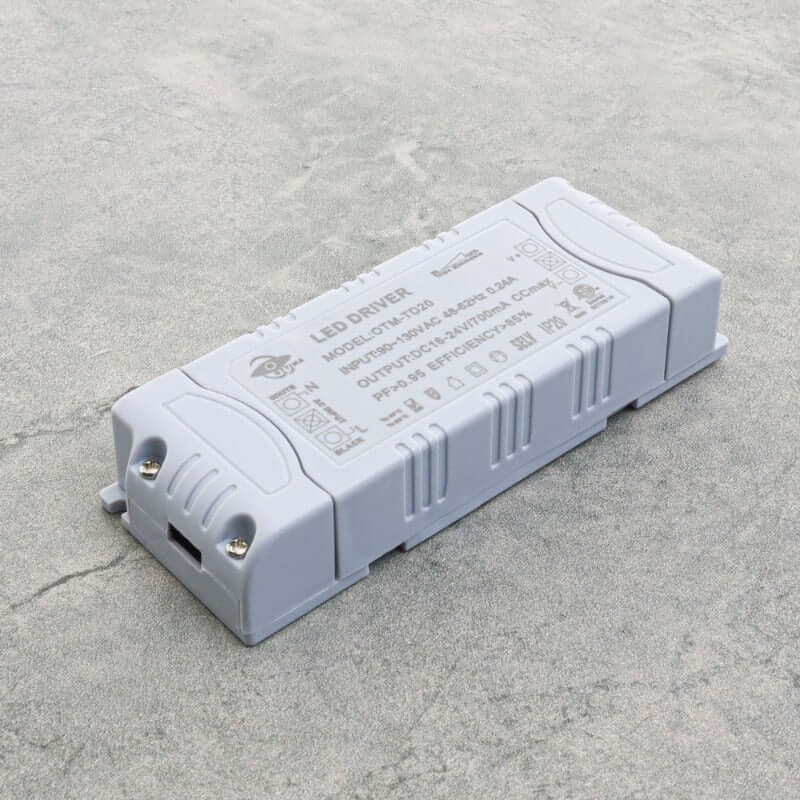

OTTIMA OTM-TD20 Constant Current LED Driver, 700mA 16-24V 16.8W
Product Description
Product | Constant Current LED Driver |
Model | OTM-TD20 |
Input Voltage | 90-130V AC |
Input Current | 0.24A |
Input Frequency | 48-62Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |

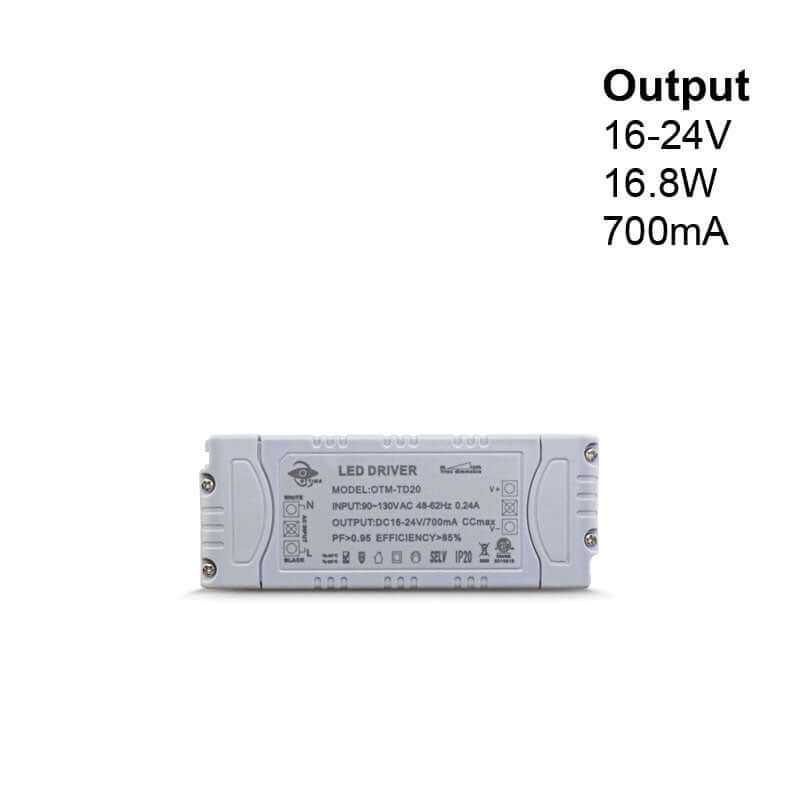

Output Regulated Current | 700mA |
Output Power | 16.8W |
Output Voltage | 16-24V DC |
Dimmable | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 90°C |
IP Rating | IP20 (Indoor use only) |

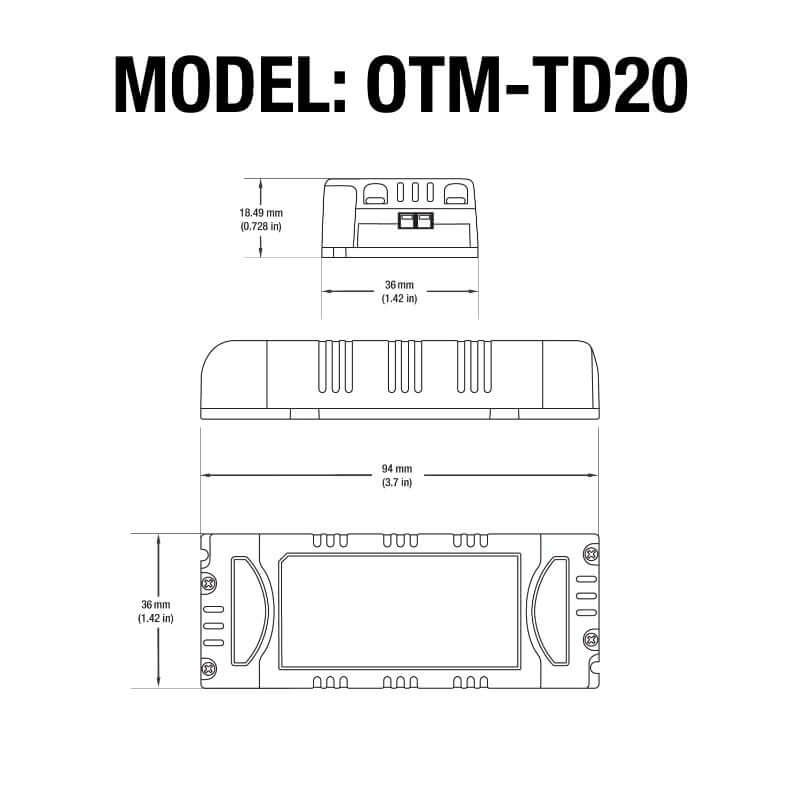

Dimensions | 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) |
Class Certification | Class II |
Certification |
![]() ![]() |
The OTTIMA OTM-TD20 is a constant current LED driver designed for indoor use only, with an IP20 rating. It has an input voltage range of 90-130V AC, input current of 0.24A, and input frequency of 48-62Hz. The power factor is greater than 0.95 and efficiency is greater than 85%.
The driver is capable of providing a regulated output current of 700mA and maximum power of 16.8W. The output voltage range is 16-24V DC. It is dimmable with Triac Dimming, which allows the user to adjust the light intensity.
The driver has a maximum ambient temperature (Ta) of 40°C and a case temperature (Tc) of 90°C. Its dimensions are 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in). It is classified as Class II, which means it has two layers of insulation protection.
Overall, the OTM-TD20 is a compact and efficient LED driver that can provide constant current output to power LED lights, while also offering dimming capabilities. Its Class II certification and IP20 rating make it suitable for indoor use. The output current and voltage ranges make it suitable for powering LED lights with specific requirements.
Note: Never use constant voltage driver instead of constant current driver, even if Voltage and mA are equal.
Features:
- The OTTIMA OTM-TD20 is a constant current LED driver designed for indoor use only, with an IP20 rating.
- Input voltage range: 90-130V AC, input current: 0.24A, and input frequency: 48-62Hz.
- Power factor is greater than 0.95 and efficiency is greater than 85%.
- Regulated output current: 700mA and maximum power: 16.8W.
- Output voltage range: 16-24V DC.
- Dimmable with Triac Dimming for adjusting light intensity.
- Maximum ambient temperature (Ta): 40°C and case temperature (Tc): 90°C.
- Dimensions: 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in).
- Classified as Class II, which means it has two layers of insulation protection.
- Compact and efficient LED driver suitable for indoor use.
- Output current and voltage ranges make it suitable for powering LED lights with specific requirements.
How to Install OTTIMA OTM-TD20 Dimming Constant Current LED Driver?
- Ensure that the power is turned off.
- Verify the output current of both the light and the driver.
- Remove the caps on both sides and loosen the screws on the green terminals.
- Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
- Connect the positive wire of the light to V+ and the negative wire to V-.
