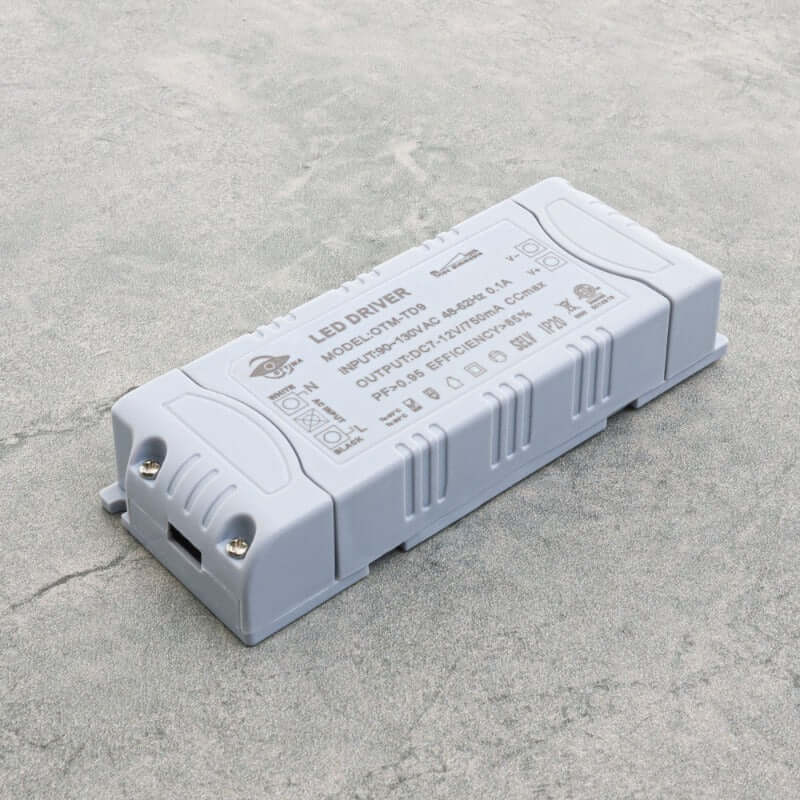

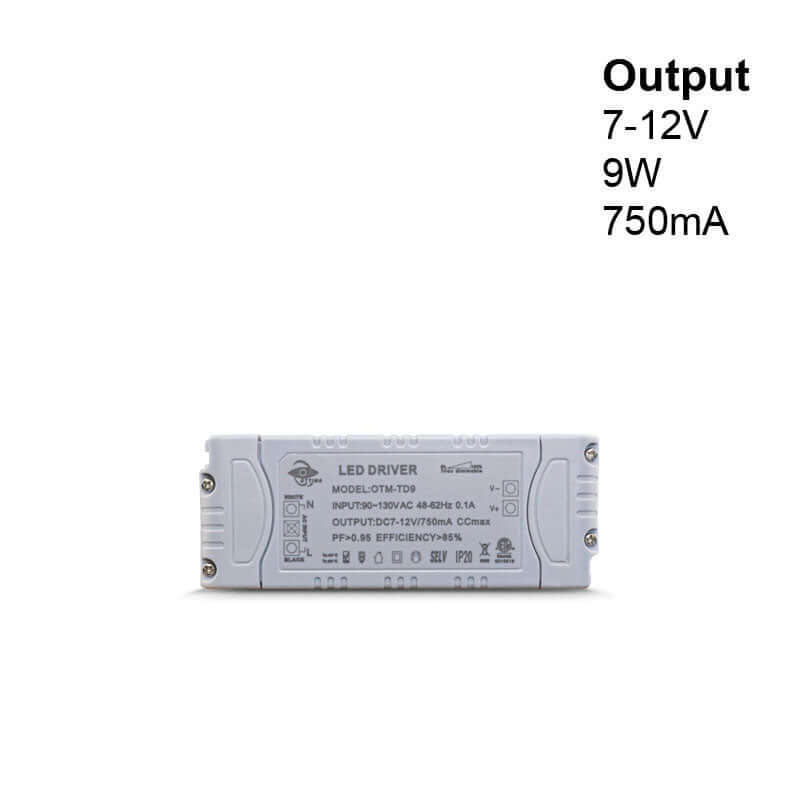

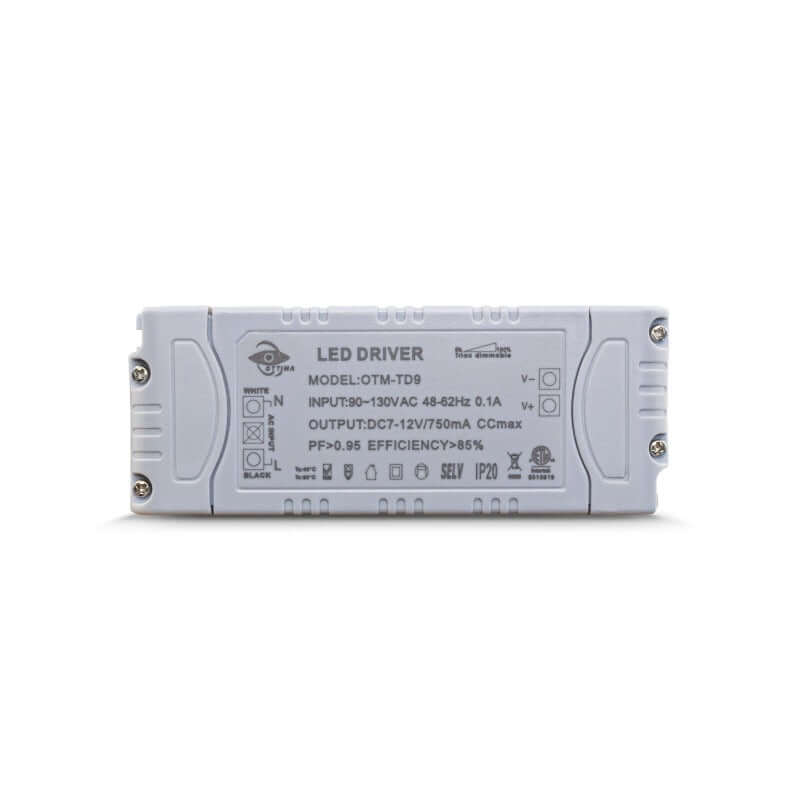

OTTIMA OTM-TD9 Constant Current LED Driver, 750mA 7-12V 9W
|Constant Current LED Driver
|Output Regulated Current
|Yes (Triac Dimming)
|Ambient temperature (Ta)
|Case Temperature (Tc)
|IP20 (Indoor use only)

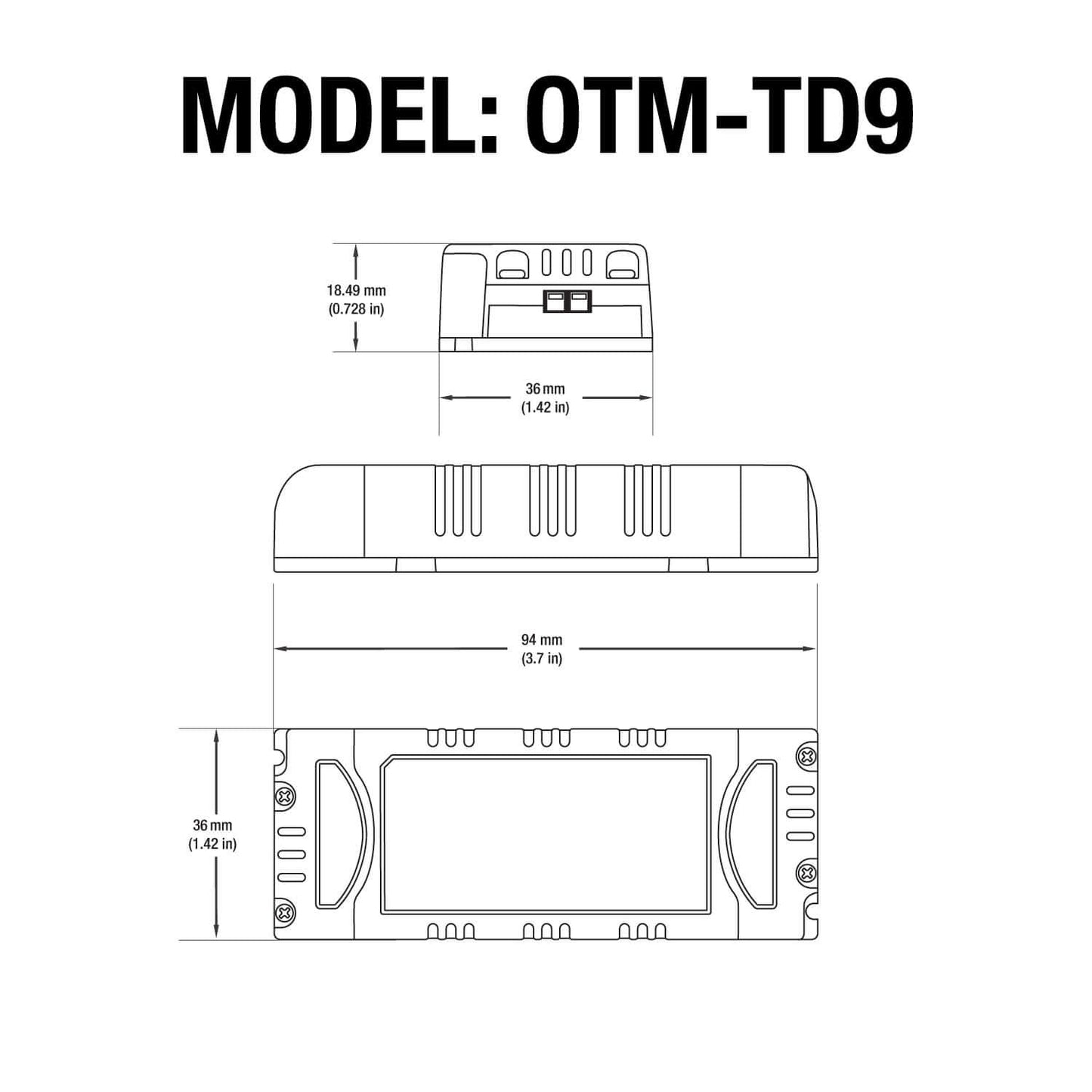

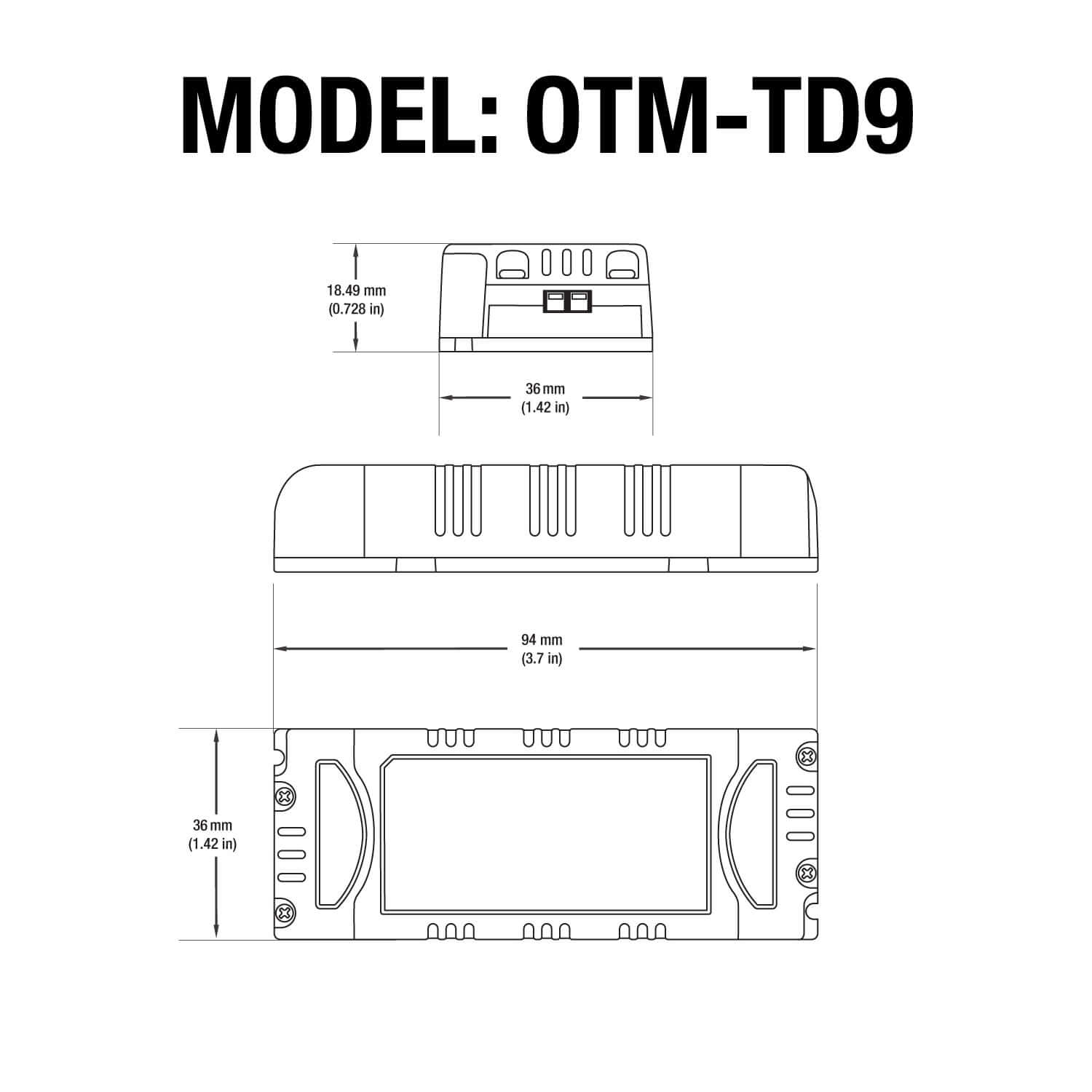

|94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in)
The Ottima OTM-TD9 is a constant current LED driver that provides a regulated current output of 750mA with a maximum output power of 9W. It has an input voltage range of 90-130V AC with an input current of 0.1A and an input frequency of 48-62Hz. The driver has a high power factor of PF>0.95 and an efficiency of >85%, which ensures energy efficiency and stable performance.
The OTM-TD9 is suitable for use with LEDs that require an output voltage range of 7-12V DC. It is also dimmable, allowing for easy control of LED light levels using Triac dimming. The driver has an ambient temperature range of up to 40°C and a case temperature of up to 90°C.
- The Ottima OTM-TD9 is a constant current LED driver for regulated power supply to LED lights.
- Input voltage range: 90-130V AC, input current: 0.1A, input frequency: 48-62Hz.
- Output voltage range: 7-12V DC, regulated current: 750mA, maximum output power: 9W.
- High power factor of PF>0.95 and efficiency of >85%, ensuring energy efficiency and stable performance.
- Dimmable with Triac dimming, allowing for easy control of LED light levels.
- Ambient temperature range up to 40°C and a case temperature of up to 90°C.
- IP20 rating, suitable for indoor use only.
- Class II certified, ensuring a high level of safety with double insulation.
- Suitable for use in indoor lighting, commercial lighting, and architectural lighting applications.
How to Install OTTIMA OTM-TD9 Dimming Constant Current LED Driver?
- Ensure that the power is turned off.
- Verify the output current of both the light and the driver.
- Remove the caps on both sides and loosen the screws on the green terminals.
- Attach the AC wires to the terminals labeled Line (L) and Neutral (N).
- Connect the positive wire of the light to V+ and the negative wire to V-.
