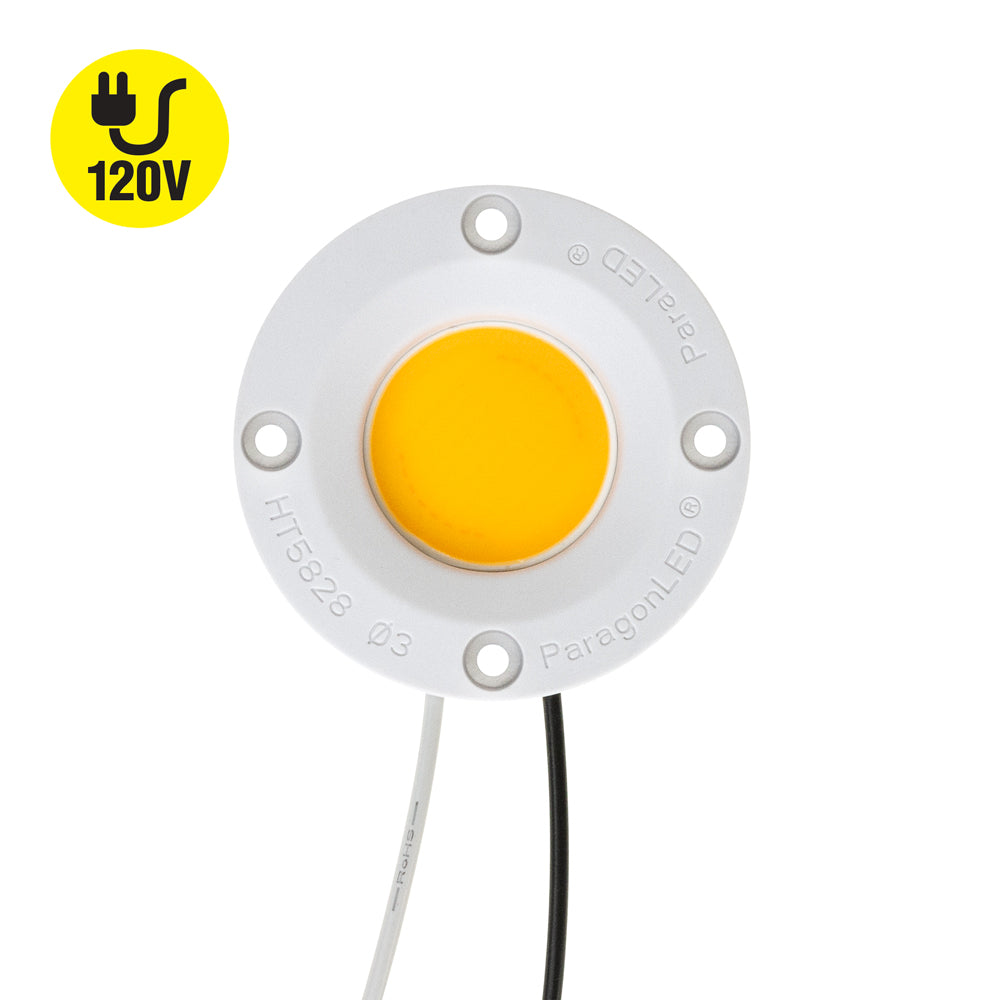

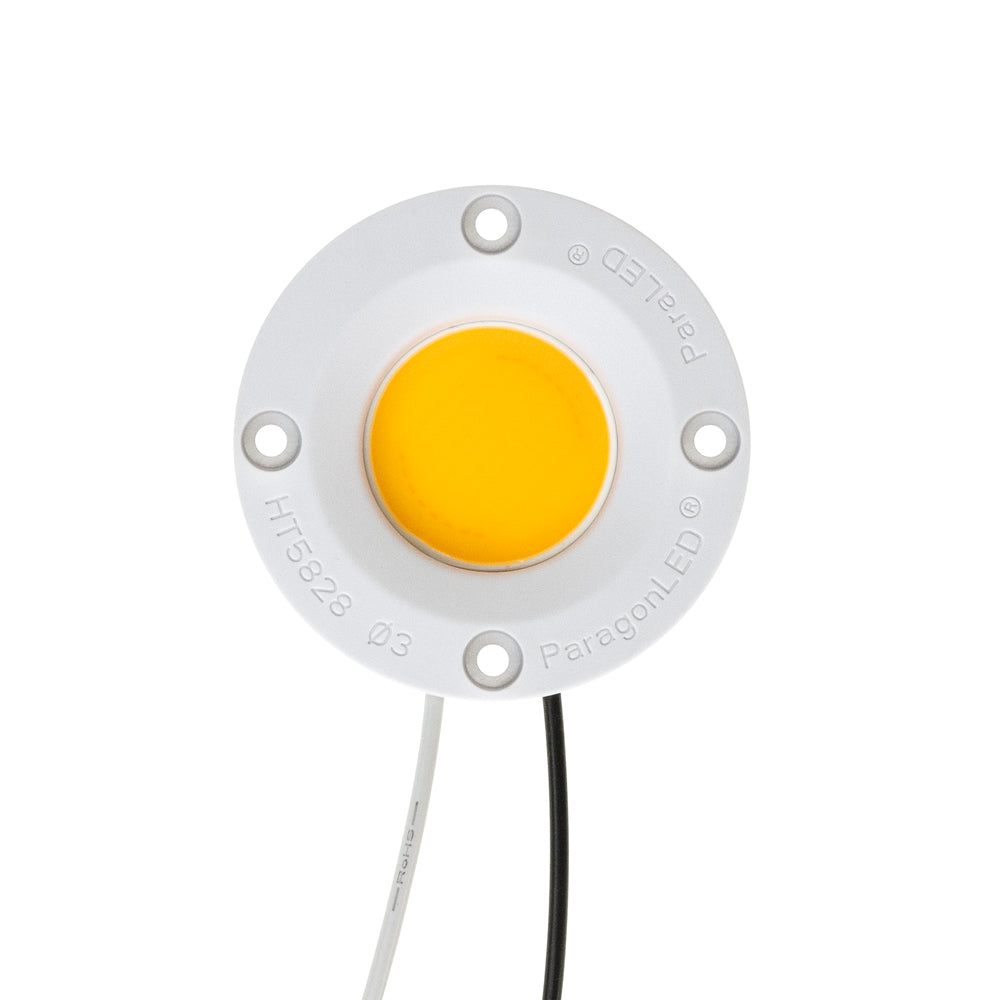

CDAC-080-5028-120-2700K COB Paragon LED Module with HT5828 LED Holder, 120V 10W 2700K(Soft White)
CDAC-080-5028-120-2700K COB Paragon LED Module with HT5828 LED Holder, 120V 10W 2700K(Soft White)
SKU: SKU:666561430542
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Product | Paragon LED Module |

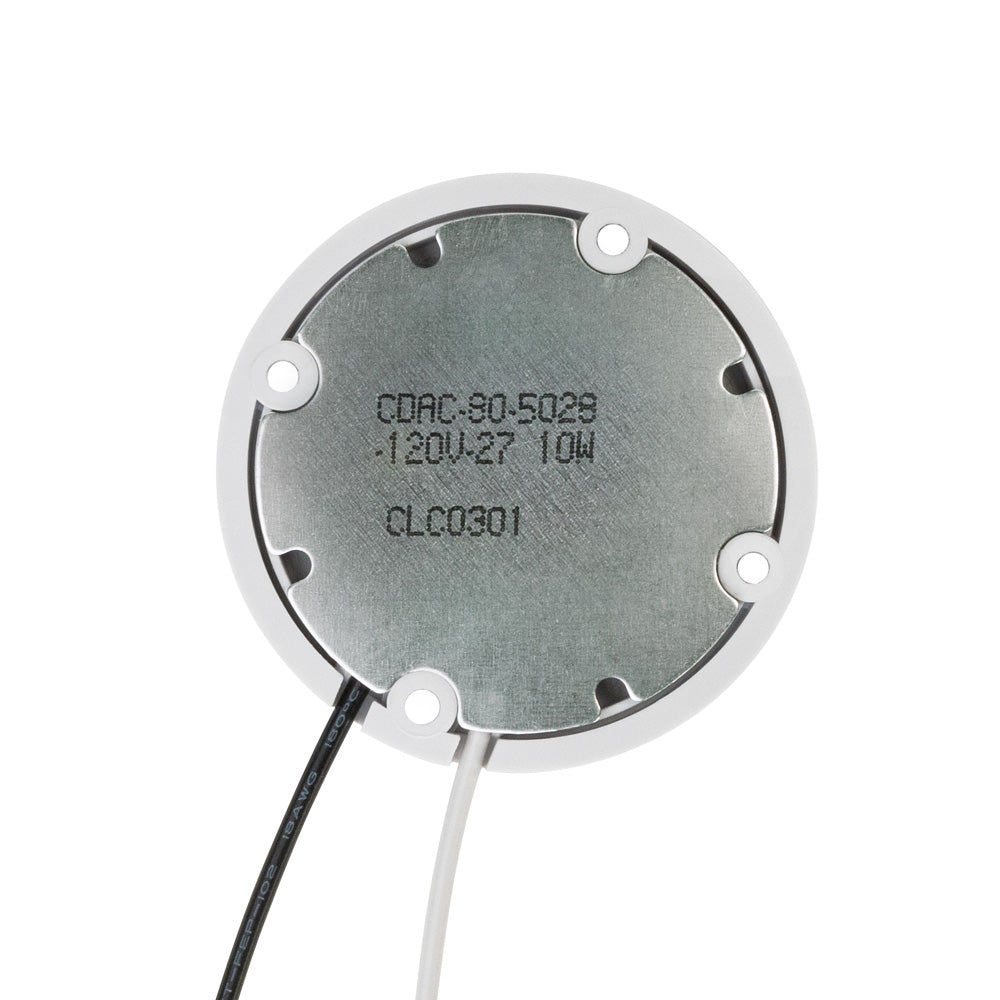

| Model No | CDAC-080-5028-120-2700K |
| COB Holder Model No | HT5828 |
|
LED Type |
COB LED |
| No LED chips | 80 |
| Wattage | 10W |
| Voltage | 120V AC |
| Power Factor | PF>0.85 |
| Luminous Intensity | 1050 Lumens |
| Color Temperature | 2700K (Soft White) |
| Dimmable | Yes |
| Rendering Index | CRI>80 |
| IP Rating | IP20 (Indoor rated) |

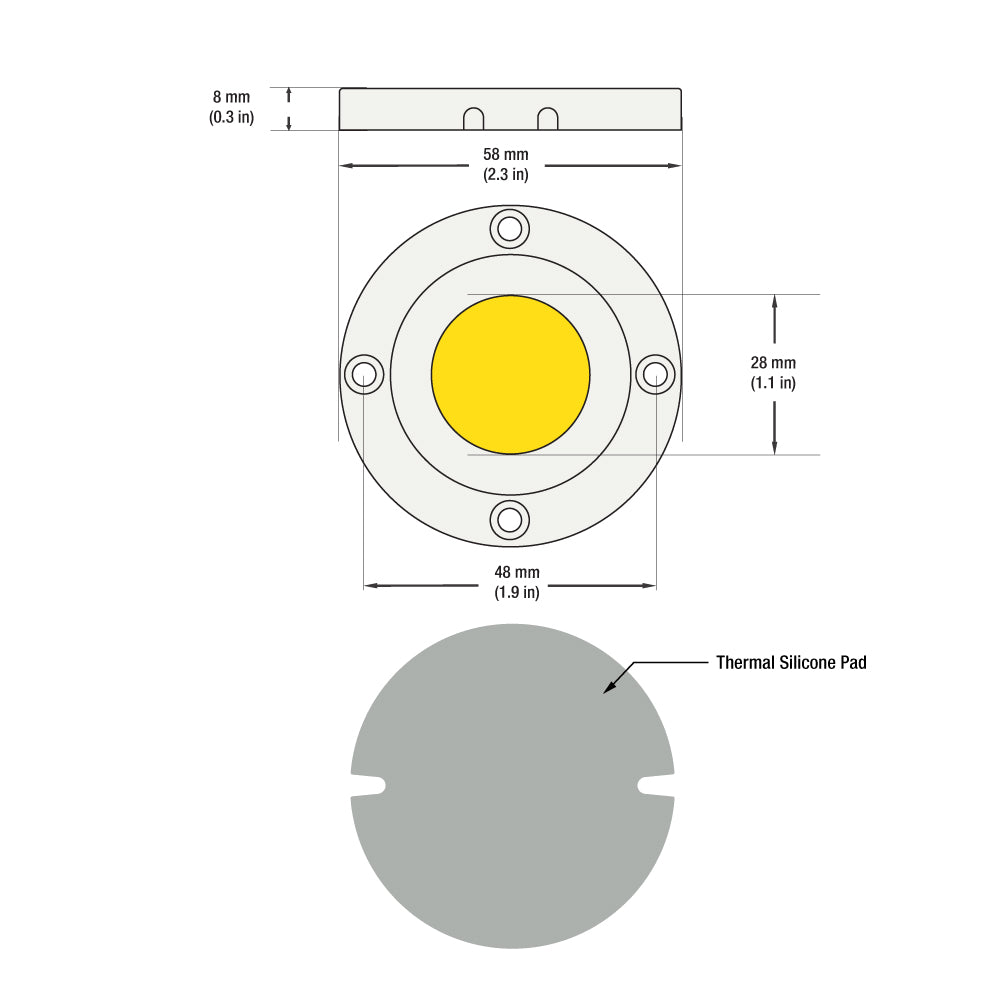

| COB Holder Dimensions | ∅58mm (2.3in) x H8mm (0.3 in) |
| COB Module Outer Diameter | ∅28mm (1.1 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Certifications |  |

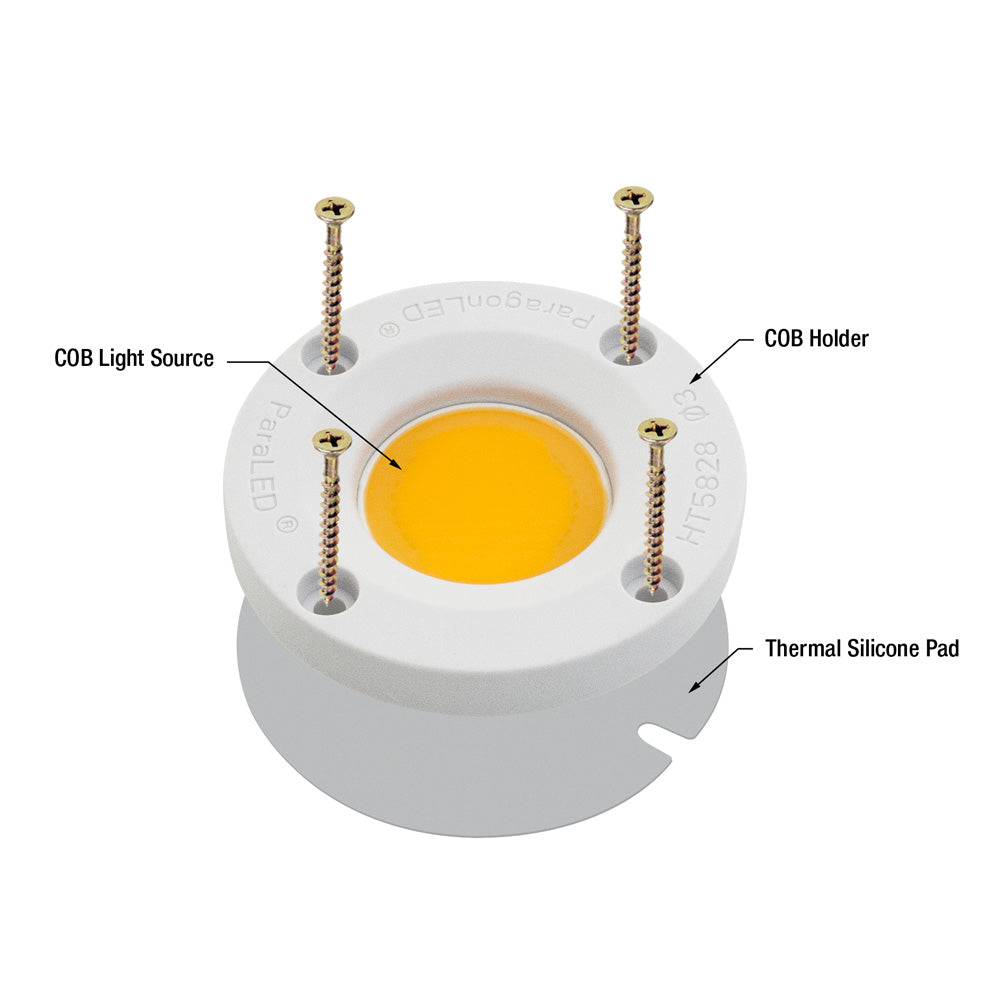

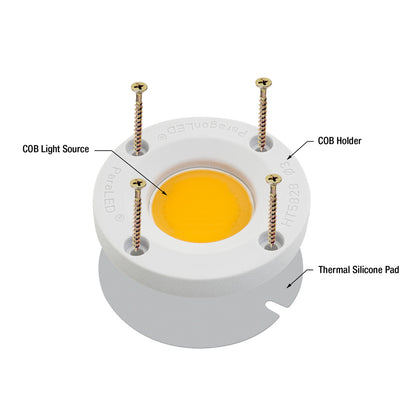

The CDAC-080-5028-120-2700K Paragon LED Module is a high-performance lighting solution that features an 80-chip COB LED with a wattage of 10W and a voltage of 120V AC. It comes with an HT5828 COB holder model that allows the module to be secured and electrically connected to a heat sink.

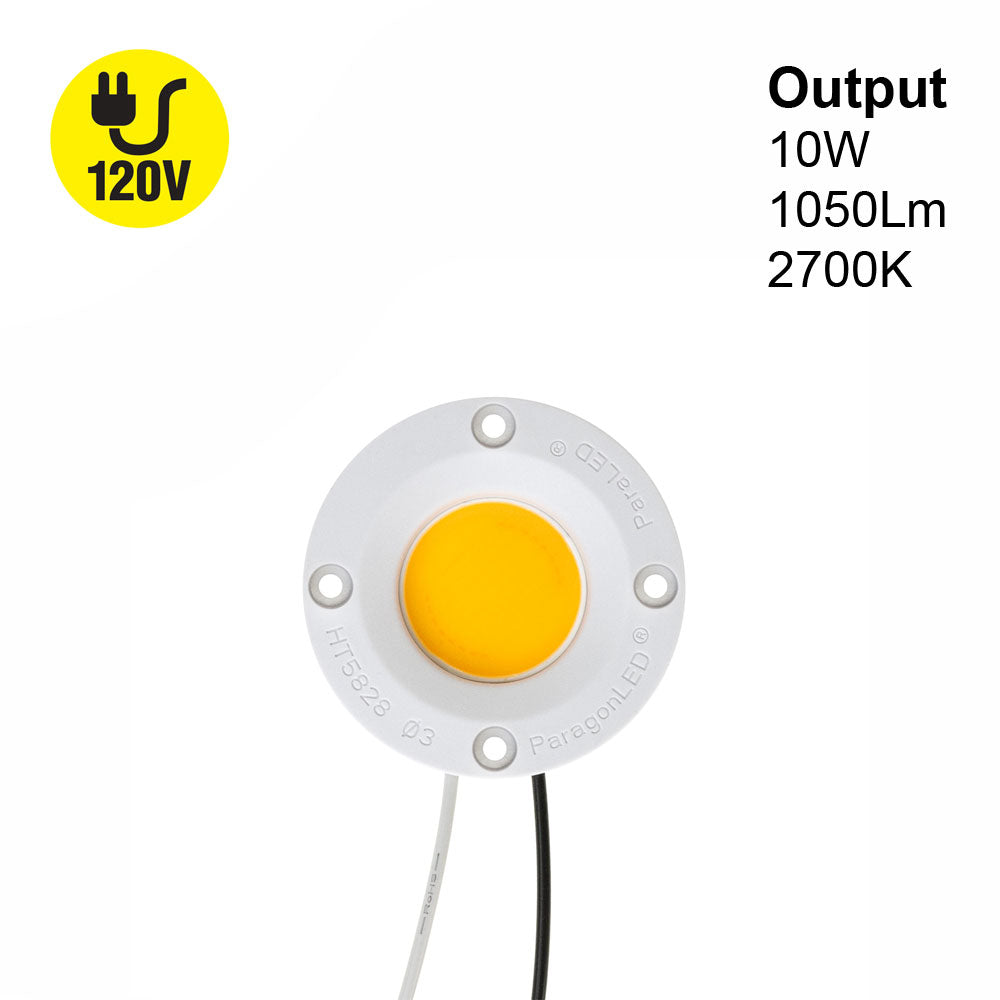

The LED module emits a soft white light with a color temperature of 2700K and a luminous intensity of 1050 lumens. It has a high color rendering index (CRI) of over 80, ensuring accurate color representation. The product is also dimmable, making it suitable for use in various lighting applications.
The CDAC-080-05028-120-2700K LED Module is energy-efficient, low power-consuming, and has a high-quality beam output compared to older LED technologies. However, to prevent overheating and serious luminous decay, an aluminum heat sink is required. The silicone grease thermal pad included in the package also aids in better heat dissipation, increasing the product's lifespan.
Features:
- The CDAC-080-5028-120-2700K Paragon LED Module features an 80-chip COB LED with a wattage of 10W and a voltage of 120V AC
- It comes with an HT5828 COB holder model that allows the module to be secured and electrically connected to a heat sink
- The LED module emits a soft white light with a color temperature of 2700K and a luminous intensity of 1050 lumens
- It has a high color rendering index (CRI) of over 80, ensuring accurate color representation
- The product is dimmable, making it suitable for use in various lighting applications
- It has an IP20 rating, which means it is rated for indoor use only, and operates within a temperature range of -40 to +105℃
- The product comes with a polycarbonate diffuser that can be easily attached or detached, reducing glare and refracting light in a wider beam
- The CDAC-080-05028-120-2700K LED Module is energy-efficient, low power-consuming, and has a high-quality beam output compared to older LED technologies

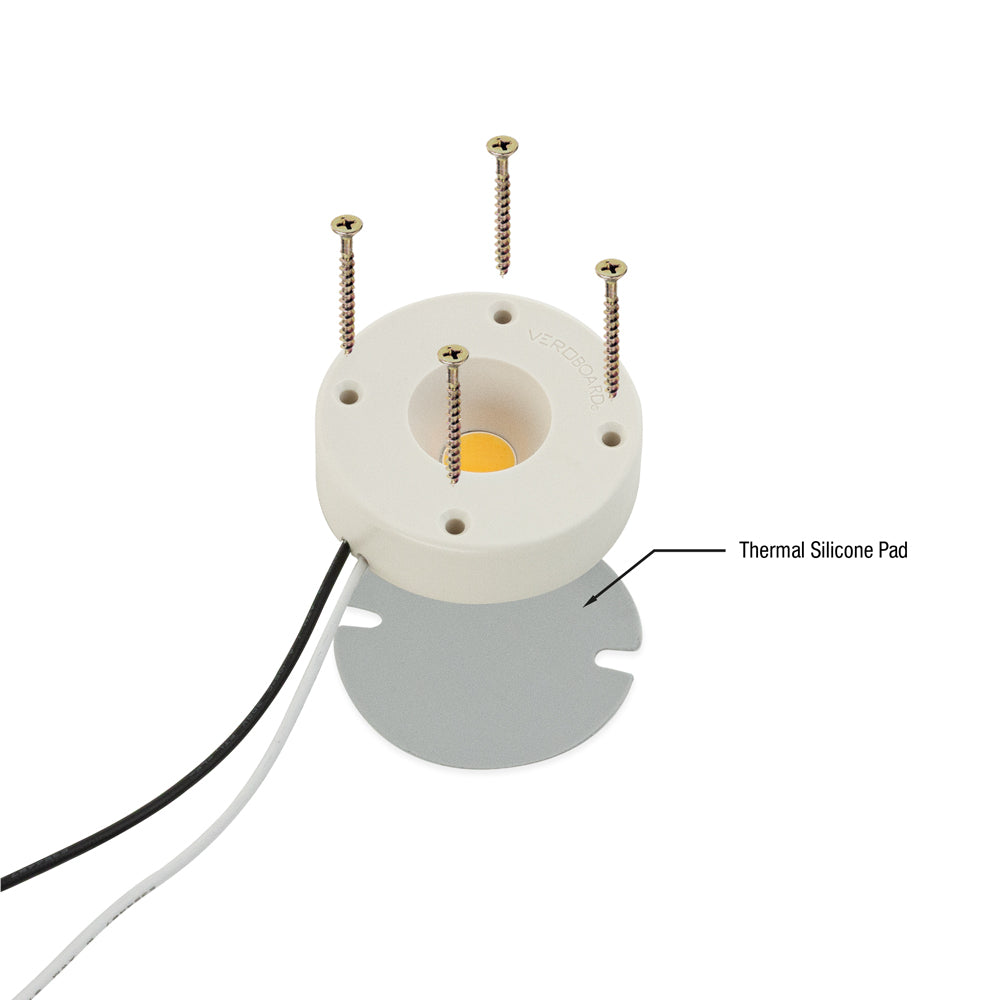

- It requires an aluminum heat sink and silicone grease thermal pad (included) for better heat dissipation, increasing the product's lifespan
- The product is certified by UL and suitable for use in damp locations
- When designing lamps, it is important to ground light fixtures to ensure safety
- COB LEDs are generally used in almost every type of luminaire due to their high performance and efficiency.
