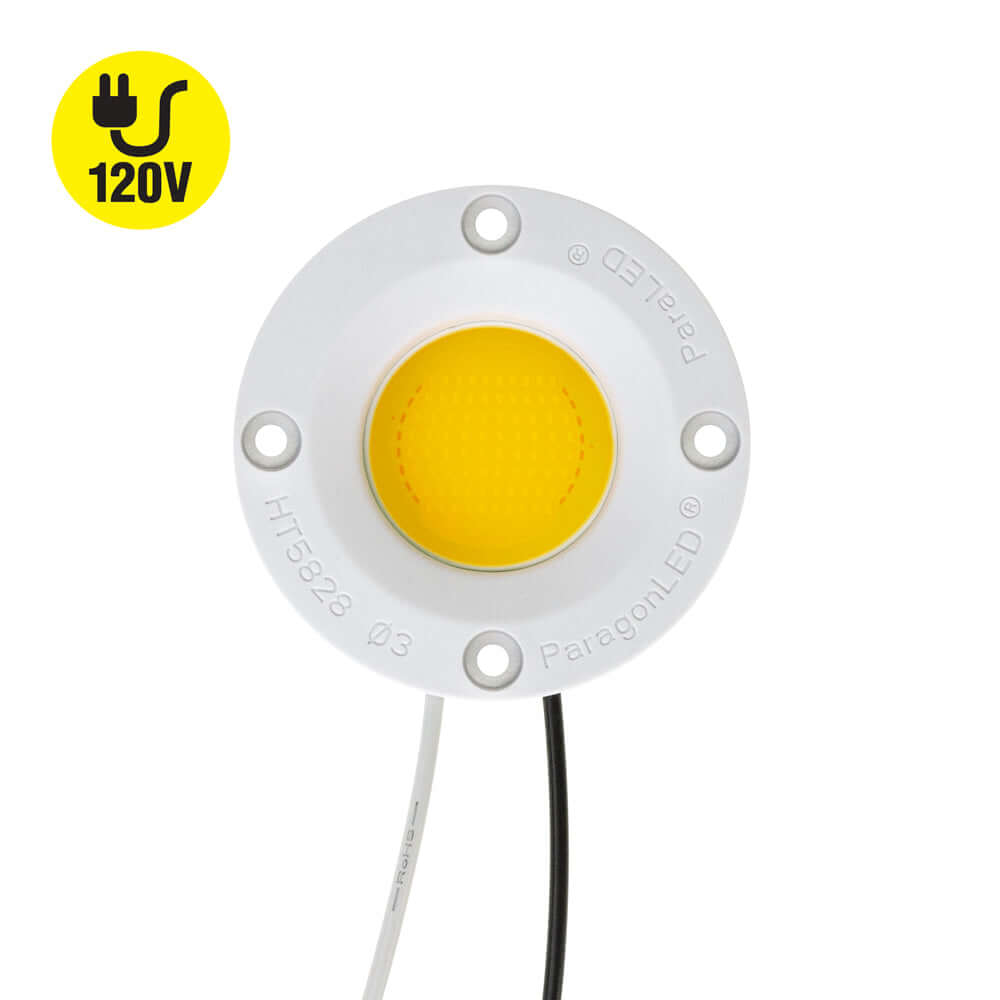

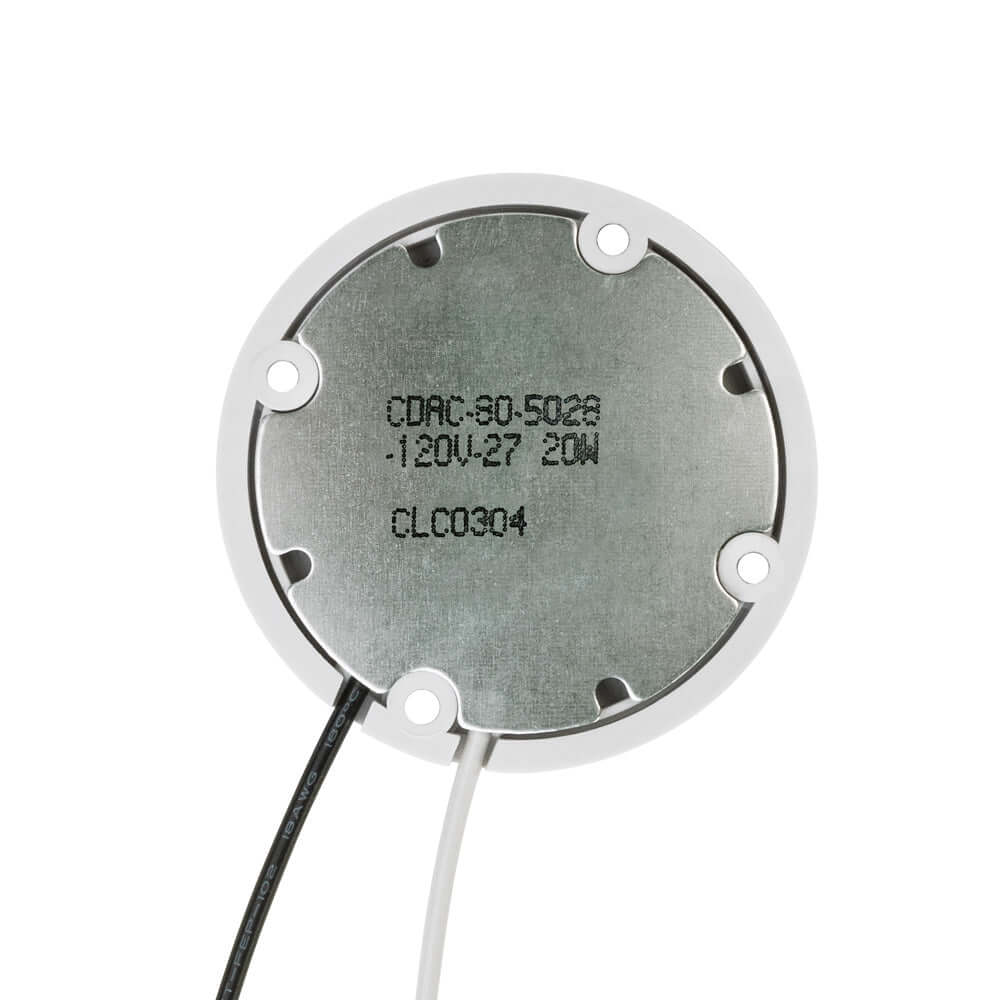

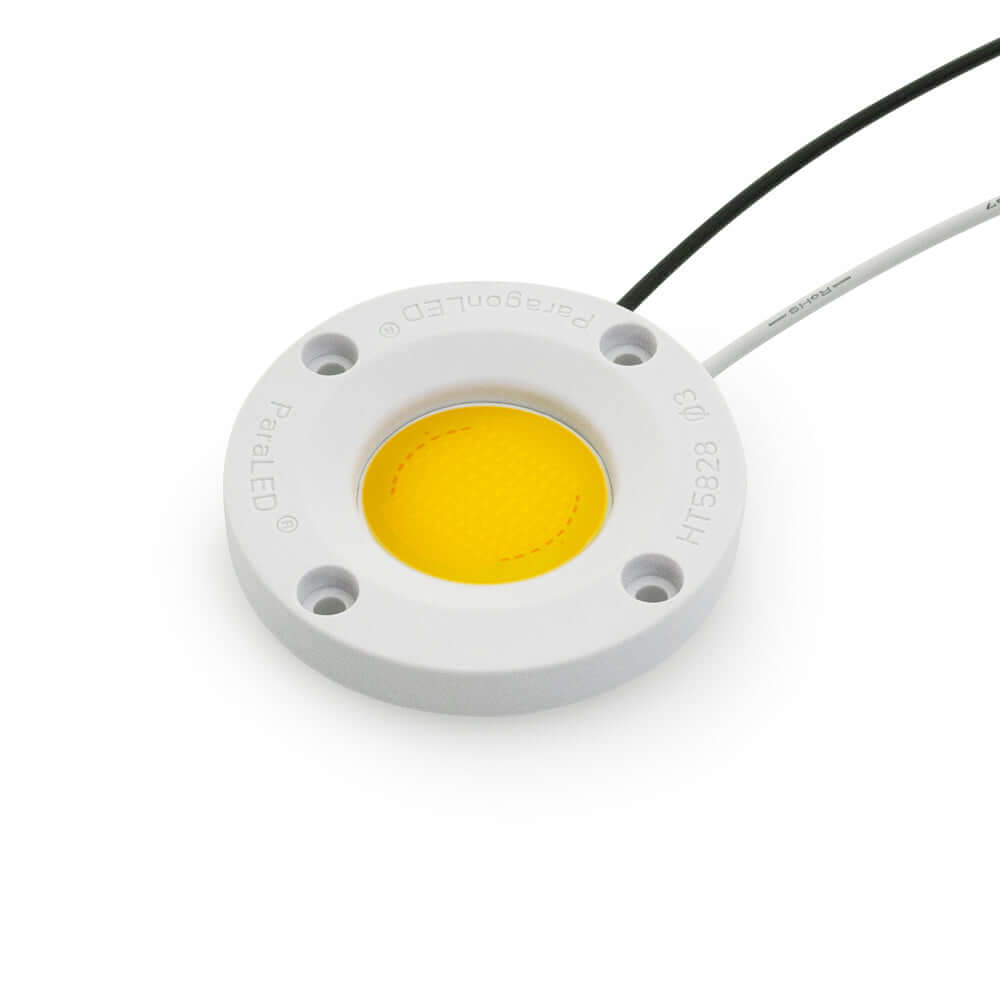

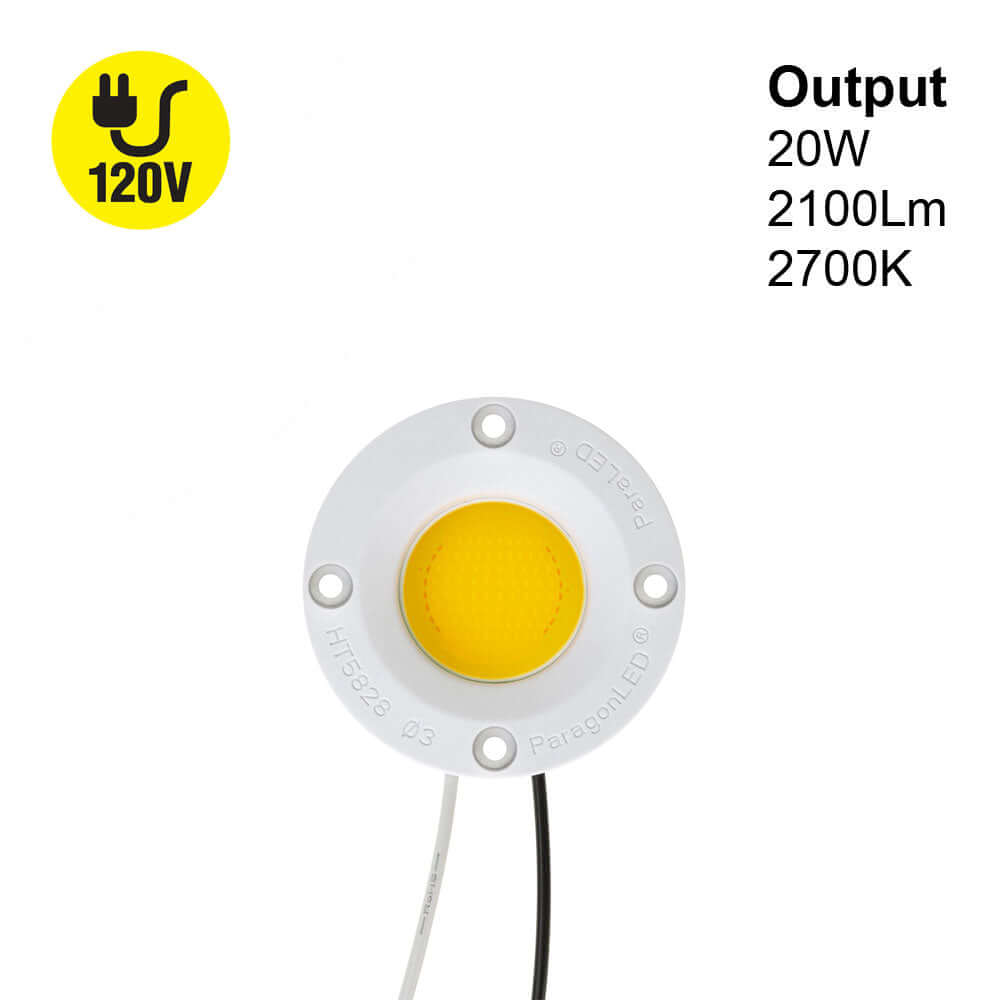

CDAC-080-05028-120-2700K COB Paragon LED Module with HT5828 LED Holder, 120V 20W 2700K
Product Description
Product | Paragon LED Module |
Model No | CDAC-080-05028-120-2700K |
COB Holder Model No | HT5828 |
LED Type |
COB LED |
No LED chips | 80 |
Wattage | 20W |
Voltage | 120V AC |
Power Factor | PF>0.85 |
Luminous Intensity | 2100 lumens |
Color Temperature | 2700K (Soft White) |
Dimmable | Yes |
Rendering Index | CRI>80 |
IP Rating | IP20 (Indoor rated) |

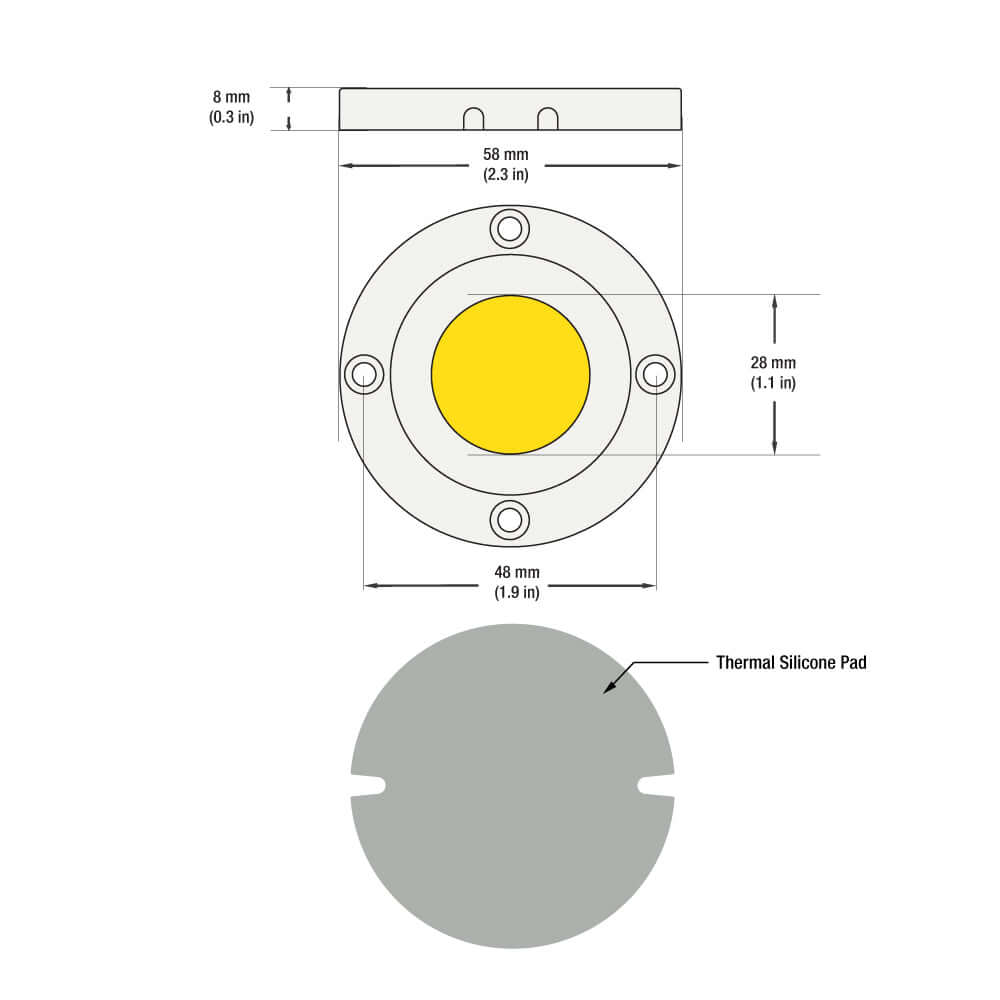

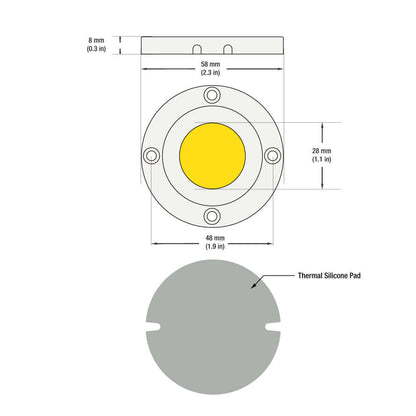

COB Holder Dimensions | ∅50mm (1.9in) x H8mm (0.3 in) |
COB Module Outer Diameter | ∅28mm (1.1 in) |
Operating Temperature | -40 ~ +105℃ |
Storage Temperature | -40 ~ +105℃ |
Included Content | COB Module, COB LED Array Holder, Thermal Pad |
Certifications | ![]() |
The CDAC-080-05028-120-2700K is a Paragon LED module that features a COB LED with 80 LED chips and a wattage of 20W. It operates at 120V AC and has a power factor of PF>0.85. The module has a luminous intensity of 2100 lumens and a color temperature of 2700K (soft white). It is dimmable and has a rendering index of CRI>80.

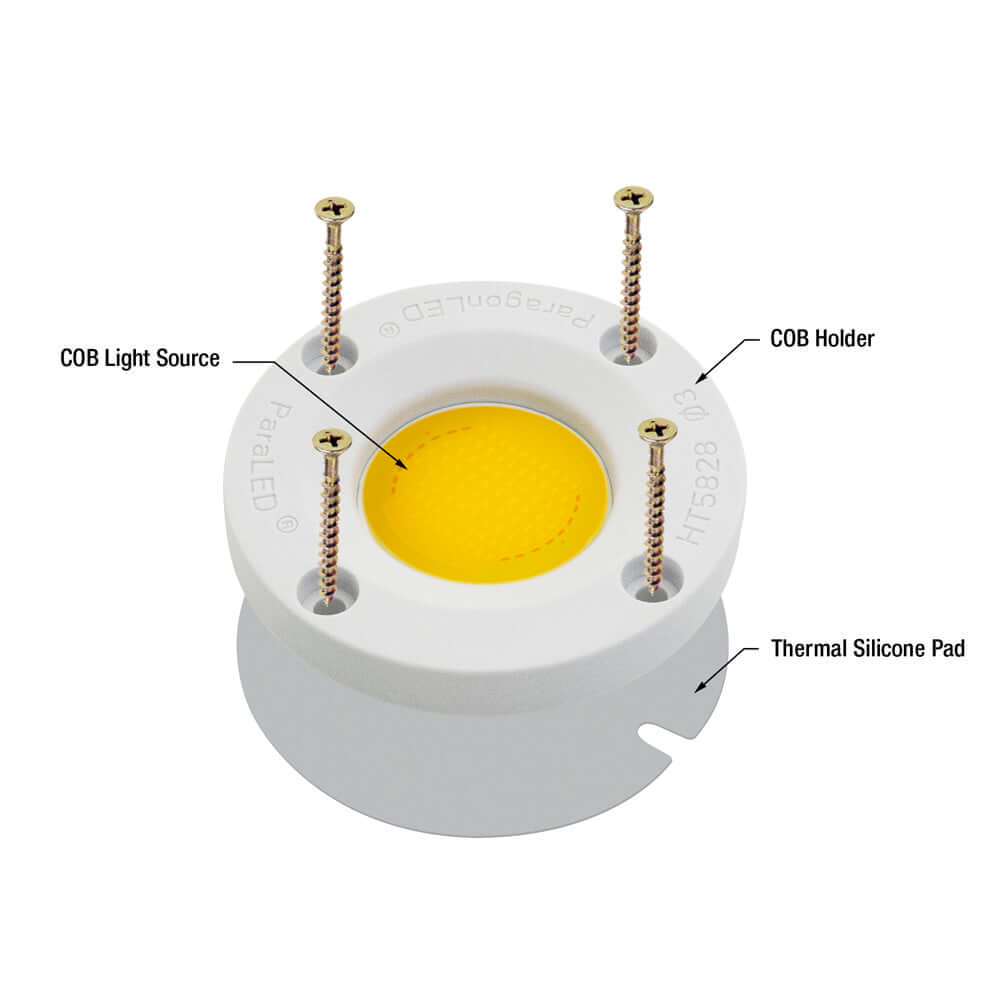

The module comes with a HT5828 COB holder, which allows the module to be mechanically secured, electrically connected, and pressed to a heat sink. The COB holder dimensions are ∅50mm (1.9in) x H7.8mm (0.3 in), and the COB module outer diameter is ∅28mm (1.1 in).
The CDAC-080-05028-120-2700K LED module is suitable for damp locations, but it needs an aluminum heat sink to prevent overheating or may cause serious luminous decay. This product comes with a polycarbonate diffuser that can easily be attached or detached. The diffuser not only protects the module but also helps in reducing the glare and refracting the light in a wider beam.
COB LEDs are brighter, consume less power, and have higher quality beam output compared to older LED technologies. Therefore, this module is generally used in almost every kind of luminaire. It is important to ground light fixtures while designing lamps to ensure safety.

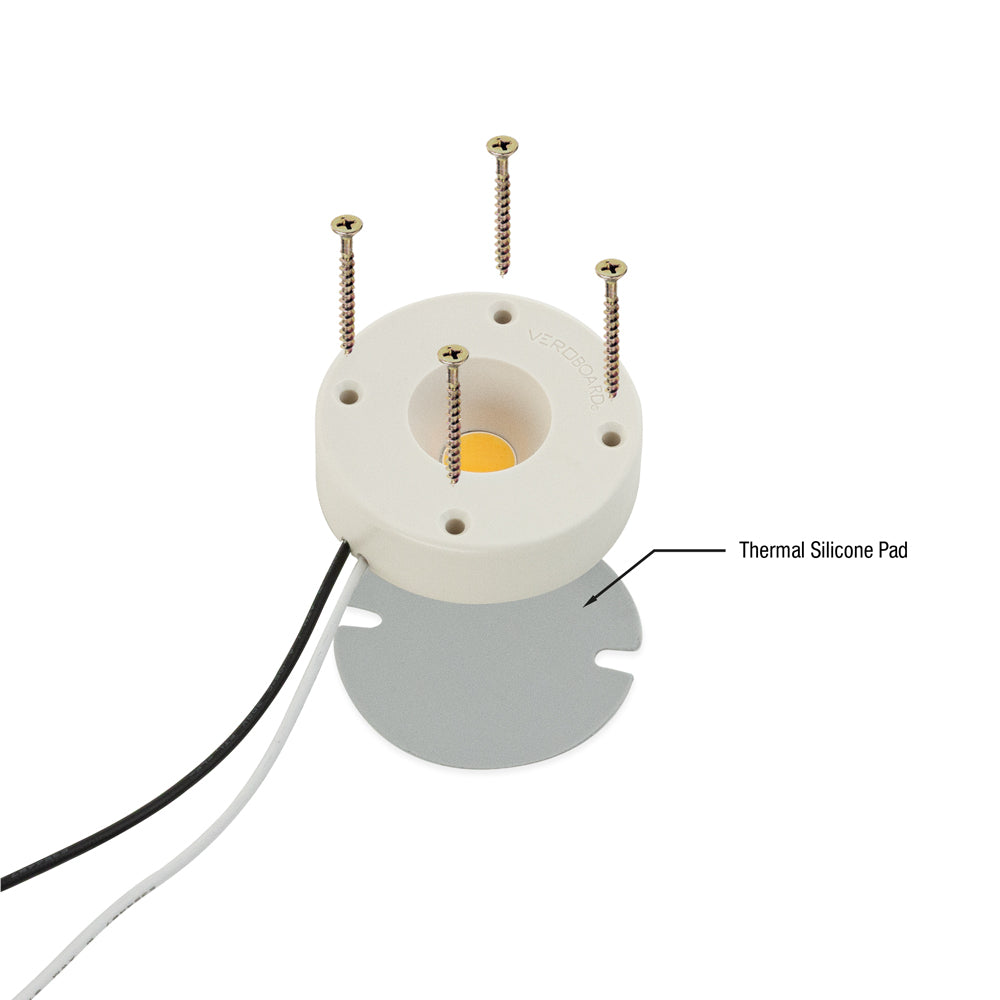

The CDAC-080-05028-120-2700K LED module includes a silicone grease thermal pad, which provides a heat sink and helps in better heat dissipation, thereby increasing the life span of the module. It is UL certified.
Features:
- The CDAC-080-05028-120-2700K is a Paragon LED module
- It has a COB LED with 80 LED chips and a wattage of 20W
- It operates at 120V AC and has a power factor of PF>0.85
- The module has a luminous intensity of 2100 lumens and a color temperature of 2700K (soft white)
- It is dimmable and has a rendering index of CRI>80
- The module comes with a HT5828 COB holder, allowing it to be mechanically secured, electrically connected, and pressed to a heat sink
- The COB holder dimensions are ∅50mm (1.9in) x H7.8mm (0.3 in), and the COB module outer diameter is ∅28mm (1.1 in)
- The CDAC-080-05028-120-2700K LED module is suitable for damp locations, but it needs an aluminum heat sink to prevent overheating and serious luminous decay
- The module comes with a polycarbonate diffuser that can be easily attached or detached, reducing glare and refracting light in a wider beam
- COB LEDs are brighter, consume less power, and have higher quality beam output compared to older LED technologies
- The module includes a silicone grease thermal pad, providing a heat sink and improving heat dissipation to increase the life span of the module
- It is UL certified for high-quality standards and safety
- Grounding of light fixtures is important while designing lamps to ensure safety
