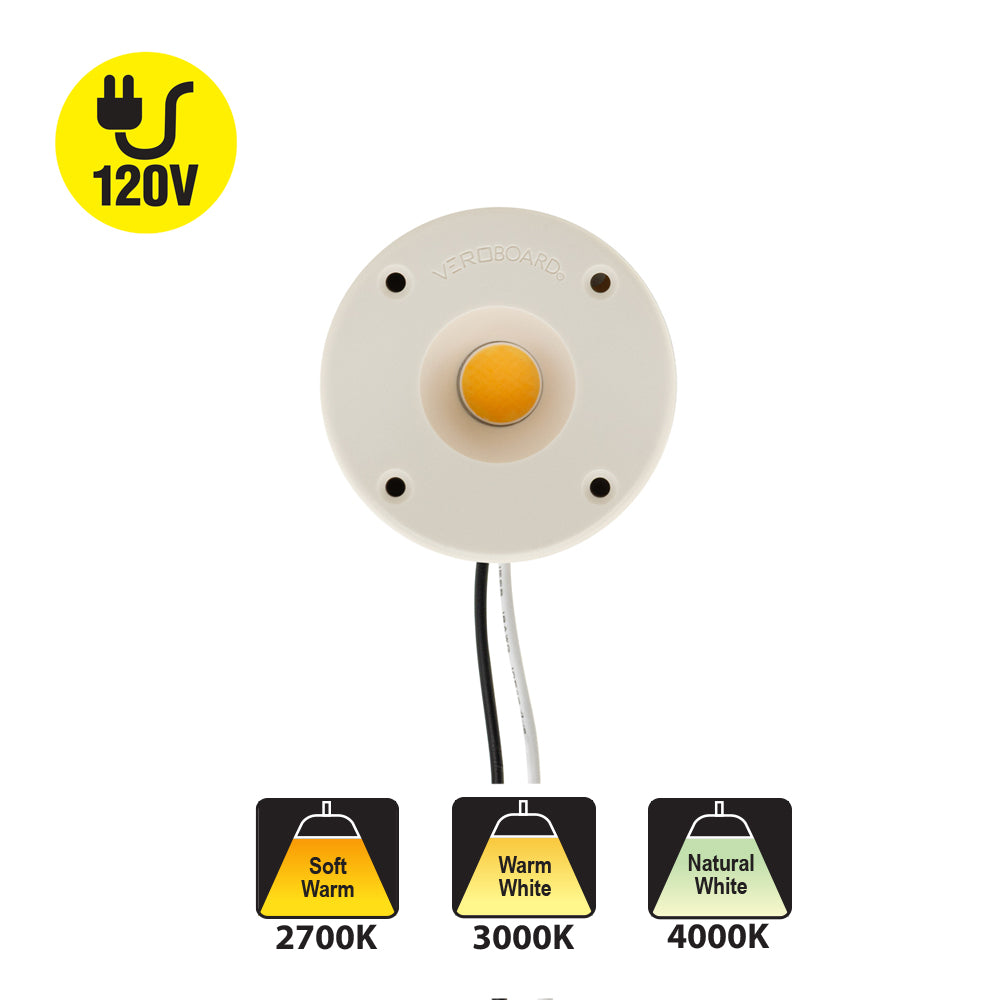

CDAC-080-5028-120-2700K COB Paragon LED Module with HT5828 LED Holder, 120V 30W 2700K(Soft White)
CDAC-080-5028-120-2700K COB Paragon LED Module with HT5828 LED Holder, 120V 30W 2700K(Soft White)
SKU: SKU:666561430603
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our product?
GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.
Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.
How do we calculate the shipping cost?
Our prices are based on US dollars and are as follows:
Free Shipping
For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
- All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Two week processing time.
- To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
- To submit a request for a return or exchange, please email sales@gekpower.com
Return Duty Charge:
- The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25
Product Description
| Product | Paragon LED Module |
| Model No | CDAC-080-5028-120-2700K |
| COB Holder Model No | HT5828 |
|
LED Type |
COB LED |
| No LED chips | 80 |
| Wattage | 30W |
| Voltage | 120V AC |
| Power Factor | PF>0.85 |
| Luminous Intensity | 3150 Lumens |
| Color Temperature | 2700K (Soft White) |
| Dimmable | Yes |
| Rendering Index | CRI>80 |
| IP Rating | IP20 (Indoor rated) |

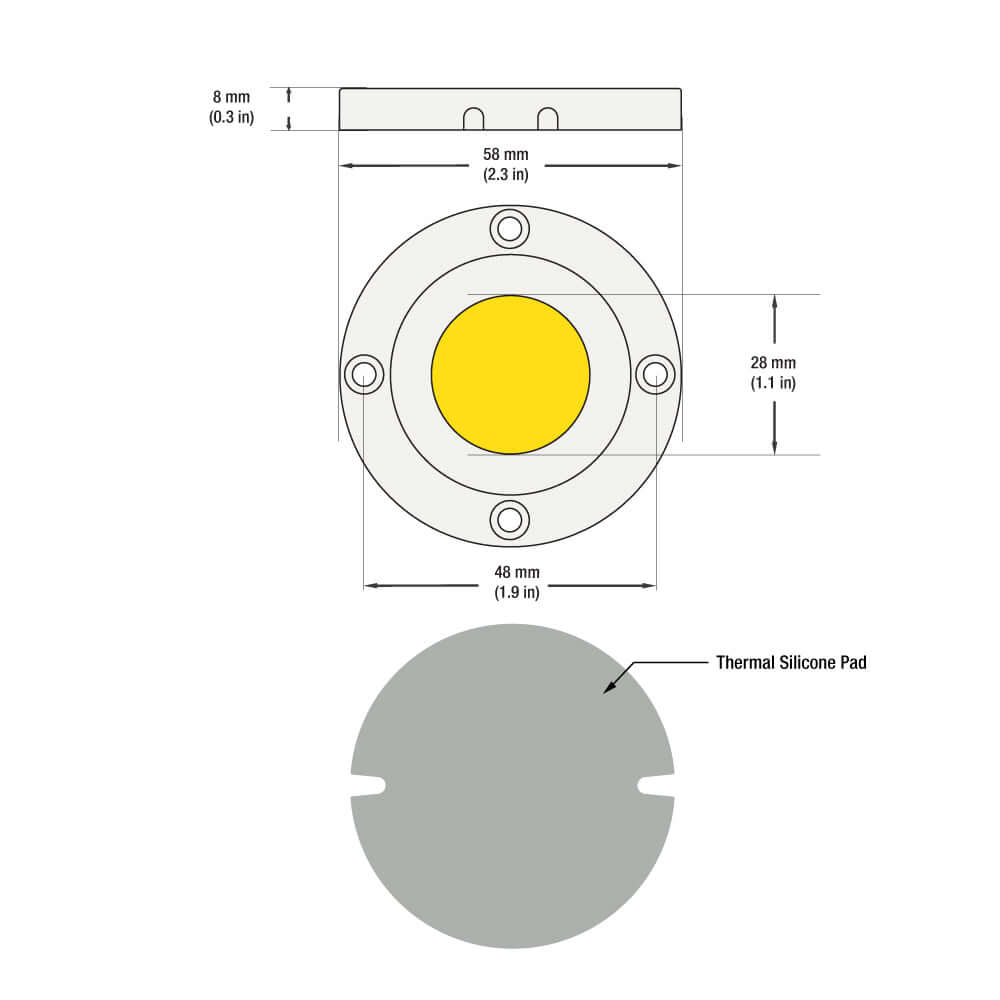

| COB Holder Dimensions | ∅58mm (2.3in) x H8mm (0.3 in) |
| COB Module Outer Diameter | ∅28mm (1.1 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Certifications |  |
The CDAC-080-5028-120-2700K COB Paragon LED Module with HT5828 LED Holder is a high-quality LED module suitable for indoor use. The module contains 80 COB LED chips and has a wattage of 30W with a voltage rating of 120V AC. The module has a power factor greater than 0.85 and has a luminous intensity of 3150 lumens. It has a color temperature of 2700K (Soft White) and a rendering index greater than 80. The module is dimmable, allowing you to adjust the brightness according to your needs.

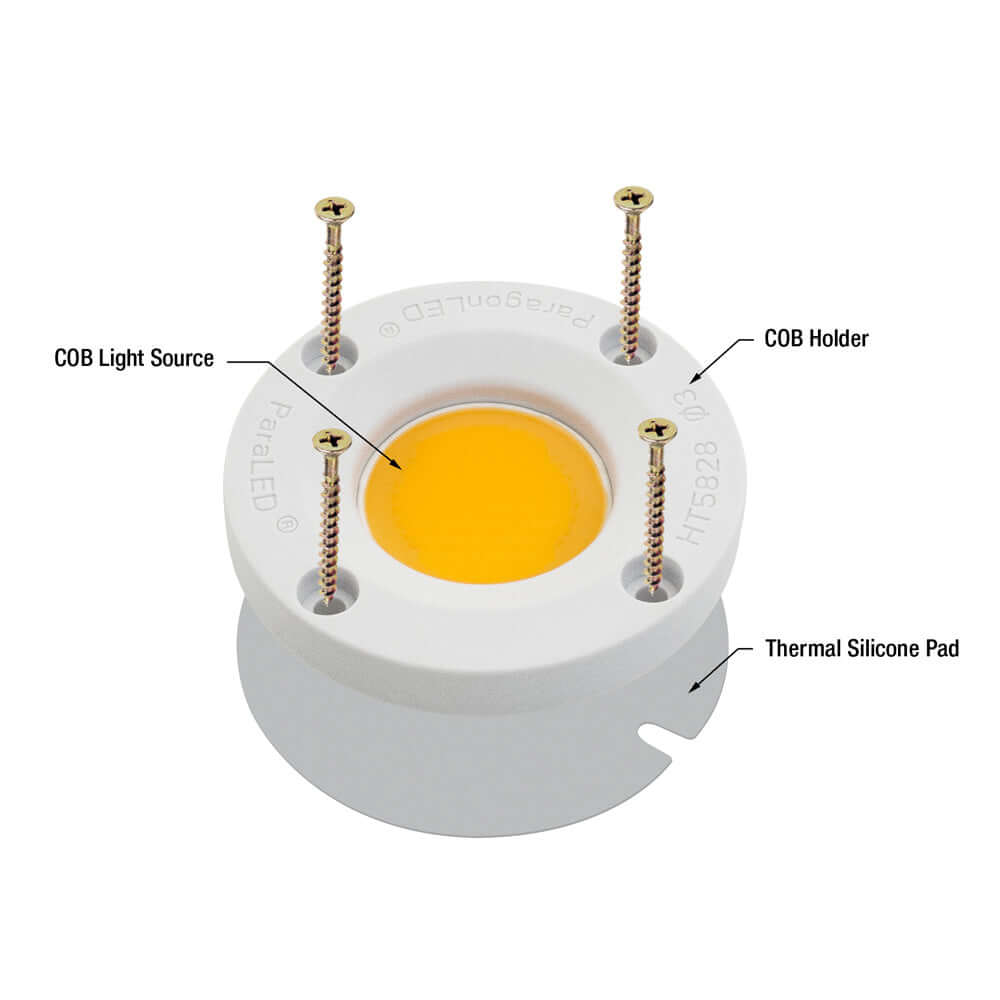

The module comes with a COB LED Holder model HT5828, and a thermal pad to help in better heat dissipation, thereby increasing the lifespan of the module. It also includes a polycarbonate diffuser that can be easily attached or detached. The diffuser helps to protect the module and reduce glare while refracting the light to produce a wider beam.
The module has an IP20 rating, which means it is suitable for indoor use only. It is recommended to use an aluminum heat sink to prevent overheating, which can cause serious luminous decay. The COB holder allows the module to be mechanically secured, electrically connected, and pressed to a heat sink. The module has an operating temperature range of -40 ~ +105℃ and a storage temperature range of -40 ~ +105℃.
Features:
- High-quality LED module suitable for indoor use
- Contains 80 COB LED chips with a wattage of 30W and voltage rating of 120V AC
- Power factor greater than 0.85 and luminous intensity of 3150 lumens
- Color temperature of 2700K (Soft White) and rendering index greater than 80
- Dimmable, allowing for adjustable brightness

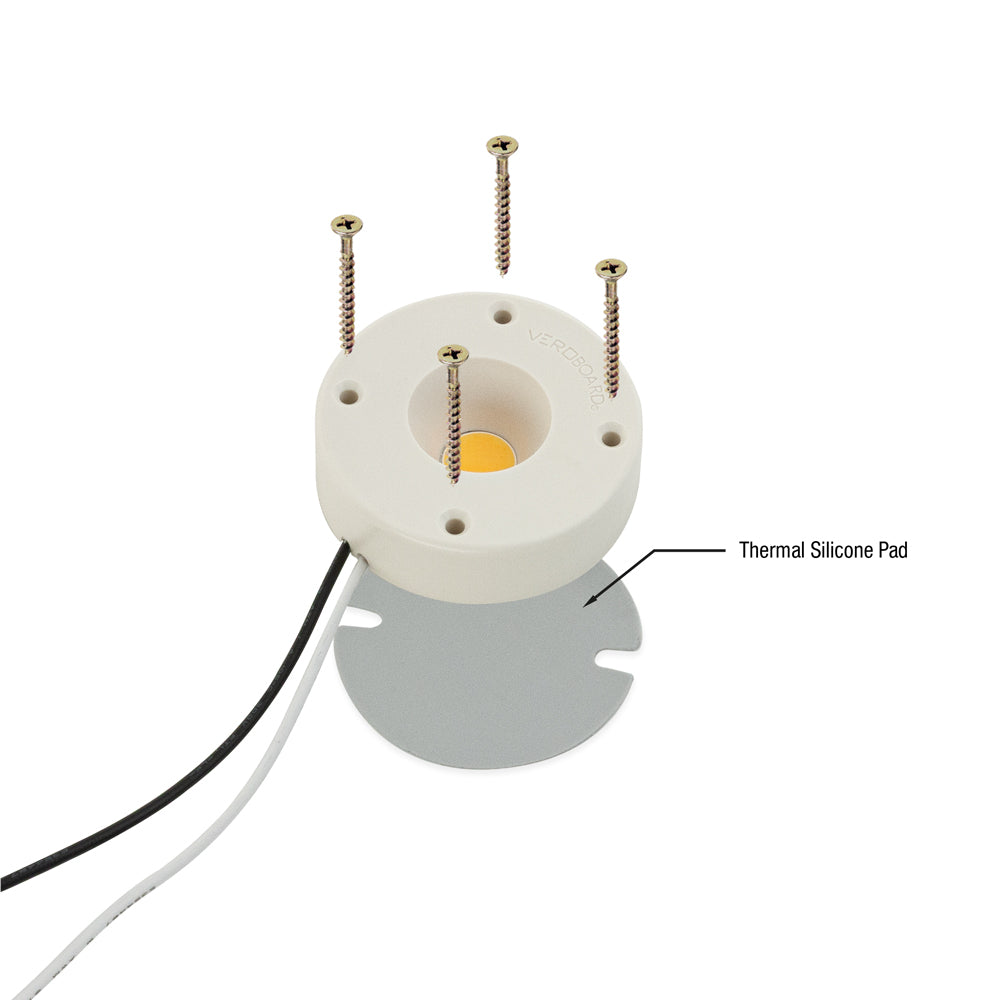

- Comes with COB LED Holder model HT5828 and thermal pad for better heat dissipation
- Includes polycarbonate diffuser to protect the module and reduce glare
- IP20 rating, suitable for indoor use only
- Operating temperature range of -40 ~ +105℃ and storage temperature range of -40 ~ +105℃
- Certified by UL, ensuring high-quality standards
- Requires aluminum heat sink to prevent overheating and serious luminous decay
- COB holder allows for mechanical securing, electrical connection, and pressing to a heat sink
- Low power consumption and high energy efficiency, making it a cost-effective lighting solution
- COB LEDs are brighter, consume less power, and have higher quality beam output compared to older LED technologies
- Grounding light fixtures is important while designing lamps
