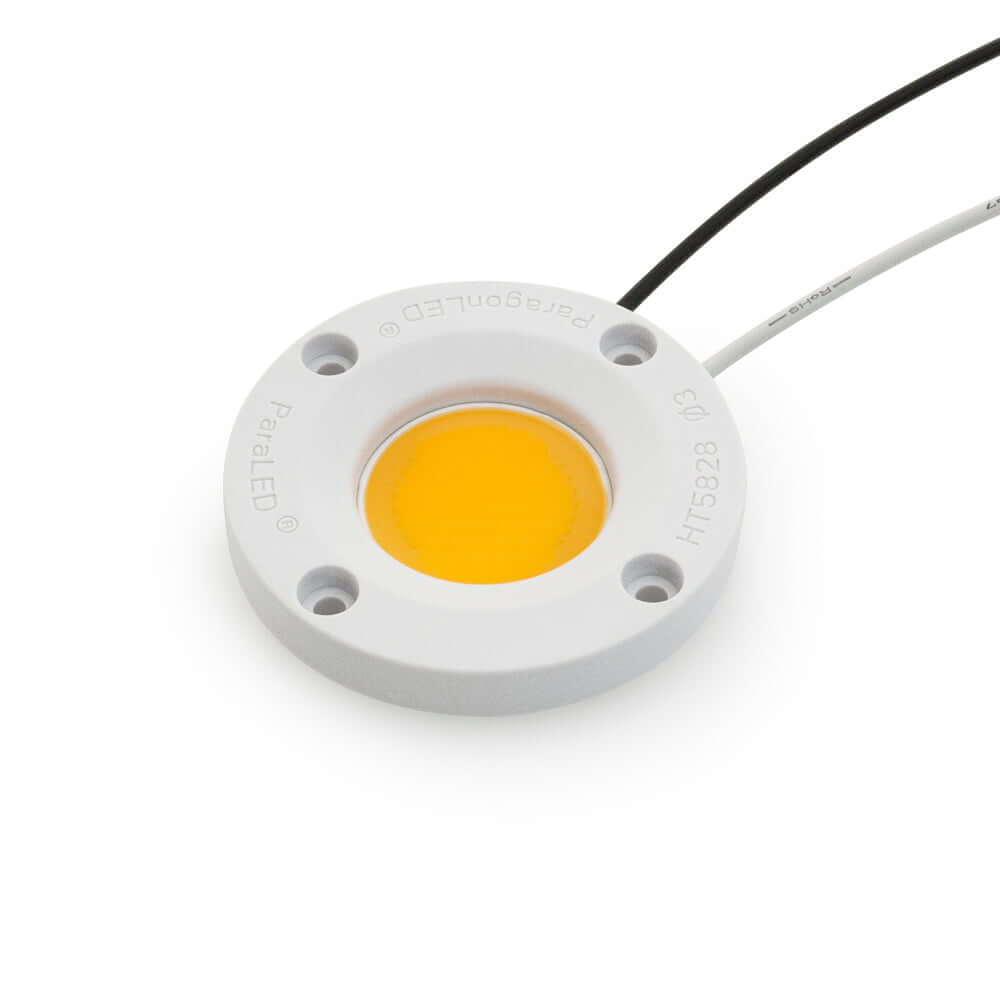

CDAC-080-05028-120-3000K COB Paragon LED Module with HT5828 LED Holder, 120V 20W 3000K(Warm White)

  • $95.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561430580
Title:
We only have 5 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).




Product Description

Product Paragon LED Module
Model No CDAC-080-05028-120-3000K
COB Holder Model No HT5828
LED Type
COB LED
No LED chips 80
Wattage 20W
Voltage 120V AC
Power Factor PF>0.85
Luminous Intensity 2100 lumens
Color Temperature 3000K (Warm White)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)

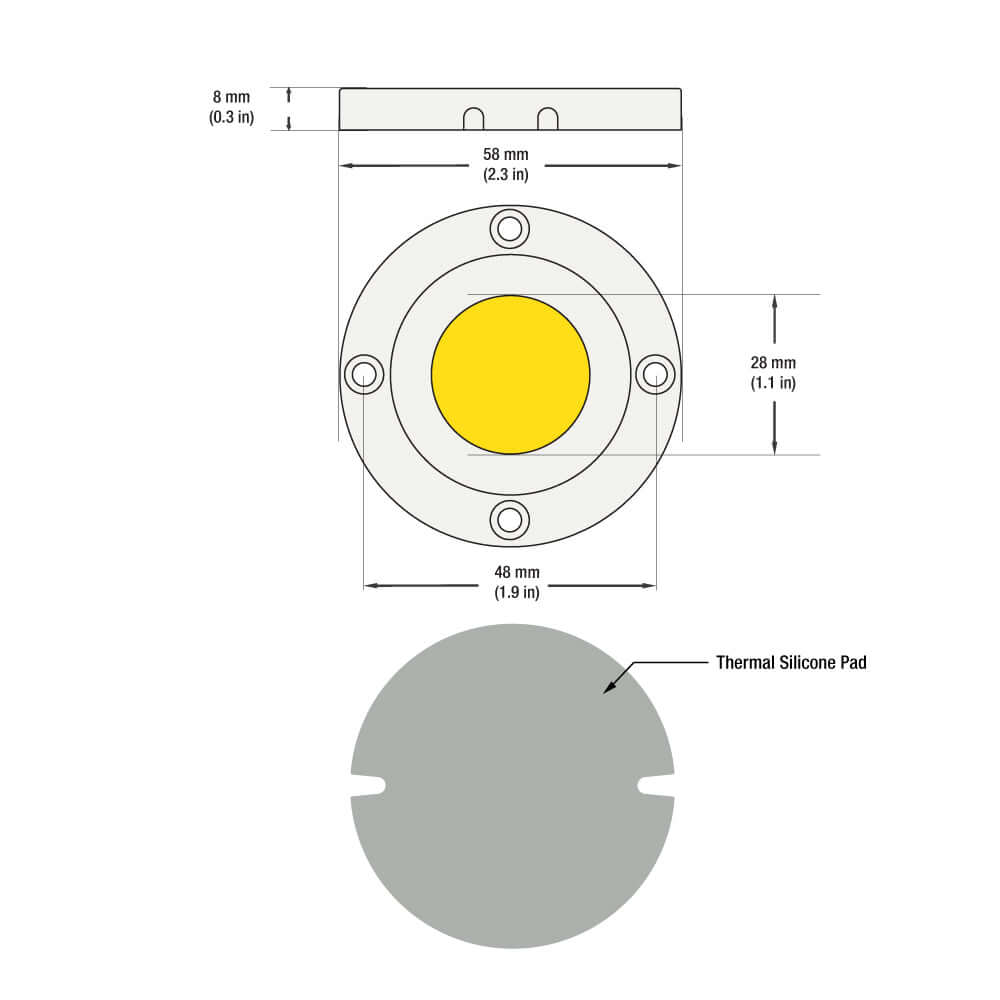

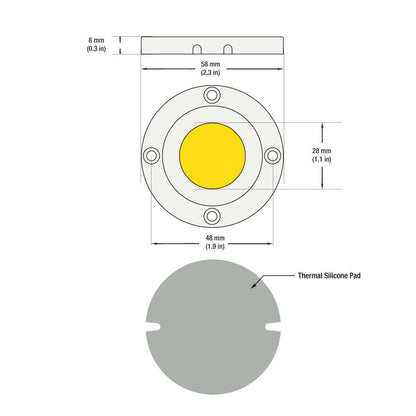

COB Holder Dimensions ∅50mm (1.9in) x H8mm (0.3 in)
COB Module Outer Diameter ∅28mm (1.1 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃

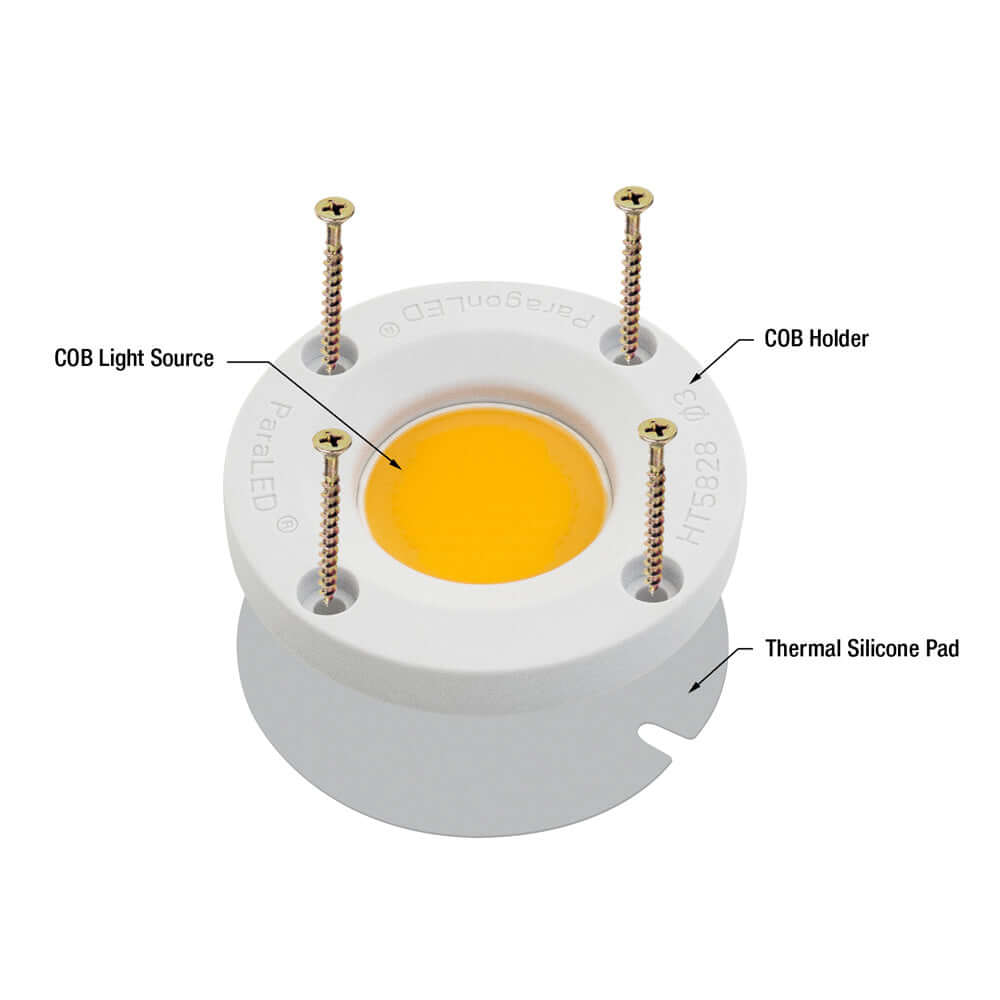

Included Content COB Module, COB LED Holder, Thermal Pad
Certifications


The Paragon LED Module with model number CDAC-080-05028-120-3000K is a COB (Chip-On-Board) LED module that comes with an HT5828 LED holder. It has 80 LED chips and a wattage of 20W, with a voltage rating of 120V AC and a power factor of PF>0.85. The module produces a luminous intensity of 2100 lumens and has a color temperature of 3000K, which emits a warm white light. The module is dimmable and has a color rendering index of CRI>80.

The COB module is suitable for indoor use only, with an IP rating of IP20. It can operate in a wide temperature range of -40 ~ +105℃, and it is recommended to ground the light fixtures when designing lamps. The module comes with a polycarbonate diffuser that can be attached or detached easily. The diffuser helps to protect the module and also reduces glare while refracting light in a wider beam.

Features:

  • The Paragon LED Module with model number CDAC-080-05028-120-3000K is a COB LED module that comes with an HT5828 LED holder
  • The module has 80 LED chips and a wattage of 20W, with a voltage rating of 120V AC and a power factor of PF>0.85
  • It produces a luminous intensity of 2100 lumens and has a color temperature of 3000K, which emits a warm white light
  • The module is dimmable and has a color rendering index of CRI>80
  • The COB module is suitable for indoor use only, with an IP rating of IP20
  • It can operate in a wide temperature range of -40 ~ +105℃, and it is recommended to ground the light fixtures when designing lamps
  • The module comes with a polycarbonate diffuser that can be attached or detached easily to reduce glare while refracting light in a wider beam
  • The COB holder dimensions are ∅50mm (1.9in) x H7.8mm (0.3 in), and the COB module outer diameter is ∅28mm (1.1 in)

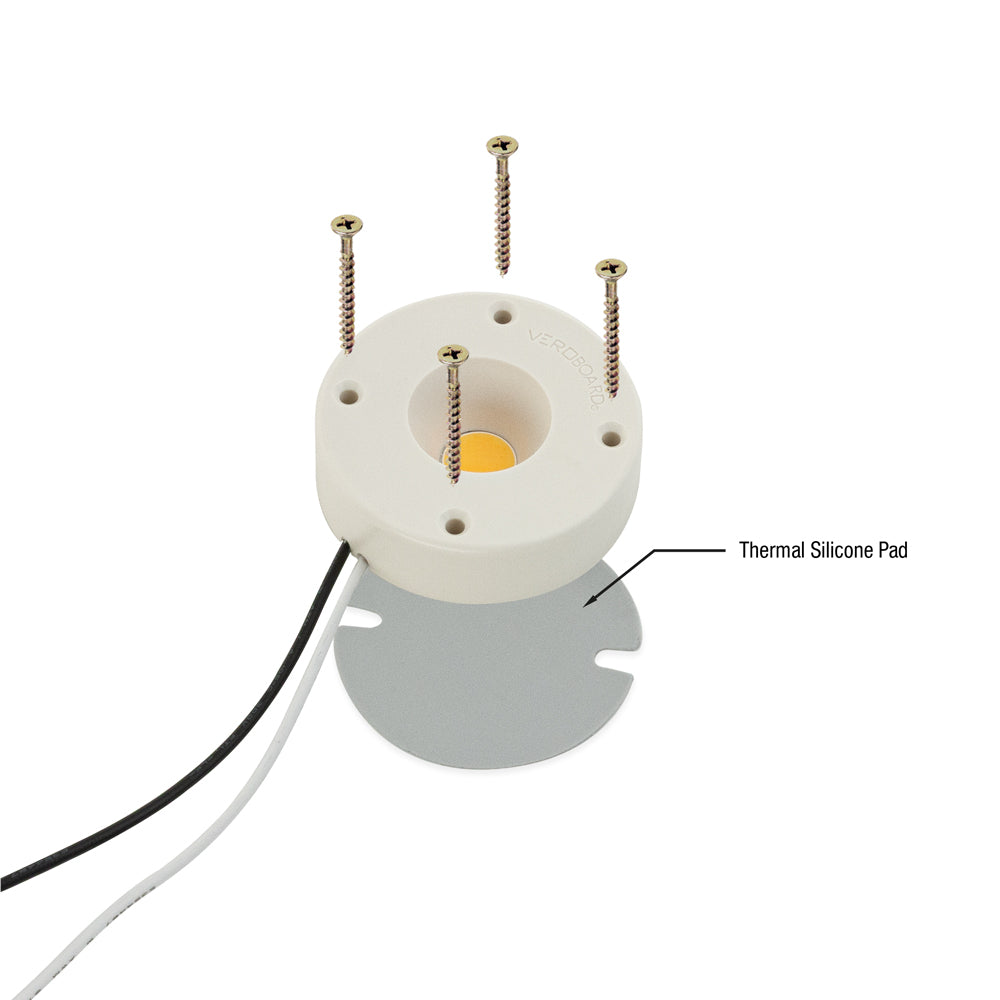

  • The module requires an aluminum heat sink to prevent overheating, and a silicone grease thermal pad is provided to dissipate heat efficiently
  • The product is UL certified and consumes low power, making it highly energy-efficient
  • COB LEDs used in this module are brighter, consume less power, and produce a higher quality beam output compared to older LED technologies
  • COB LEDs are generally used in almost every kind of luminaire.
