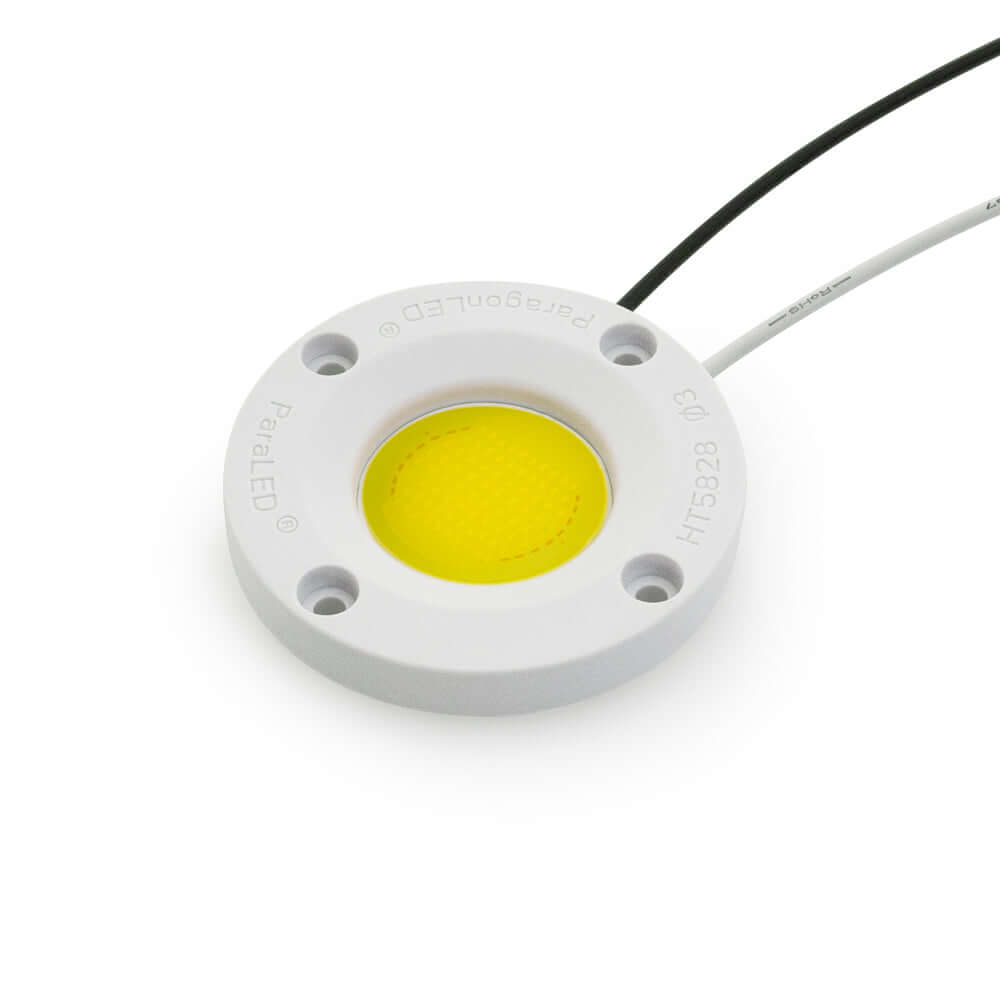

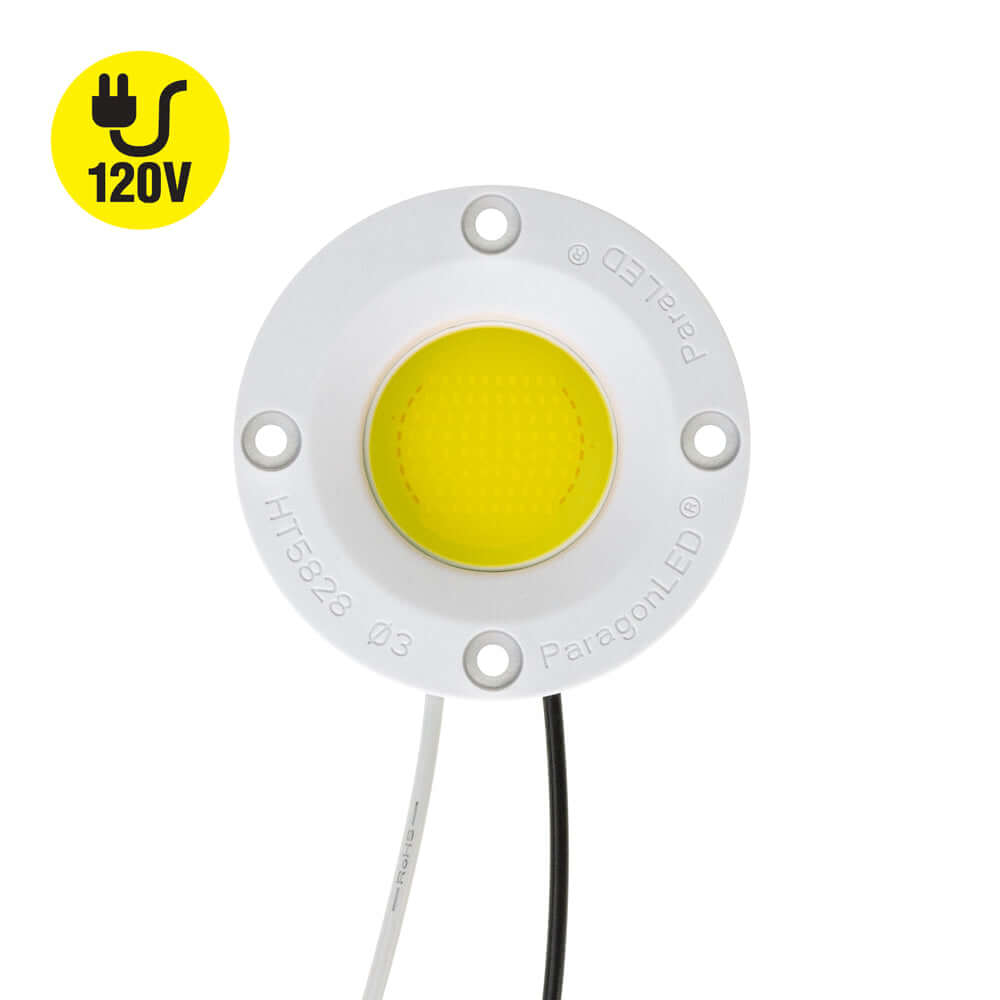

CDAC-080-05028-120-5000K COB Paragon LED Module with HT5828 LED Holder, 120V 10W 5000K
Product Description
Product | Paragon LED Module |
Model No | CDAC-080-05028-120-5000K |
COB Holder Model No | HT5828 |
LED Type |
COB LED |
No LED chips | 80 |
Wattage | 10W |
Voltage | 120V AC |
Power Factor | PF>0.85 |

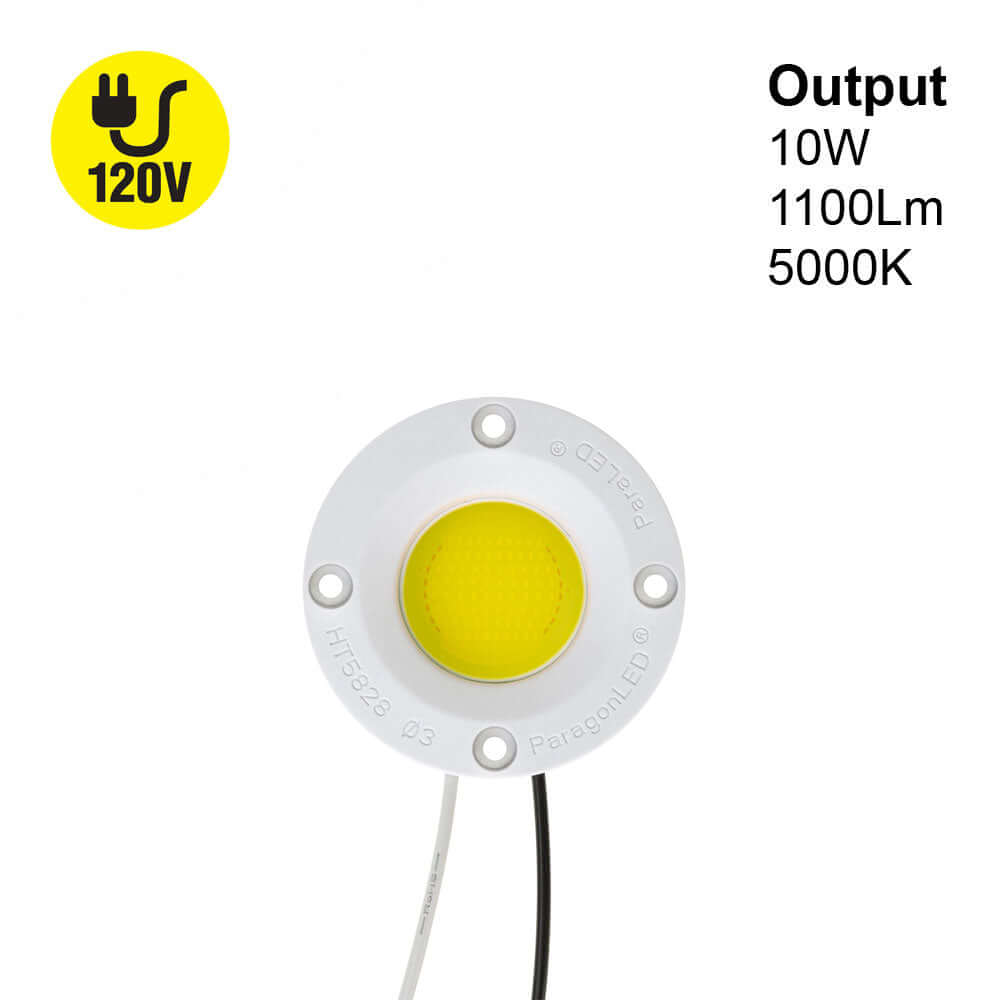

Luminous Intensity | 1100 lumens |
Color Temperature | 5000K (Daylight) |
Dimmable | Yes |
Rendering Index | CRI>80 |
IP Rating | IP20 (Indoor rated) |

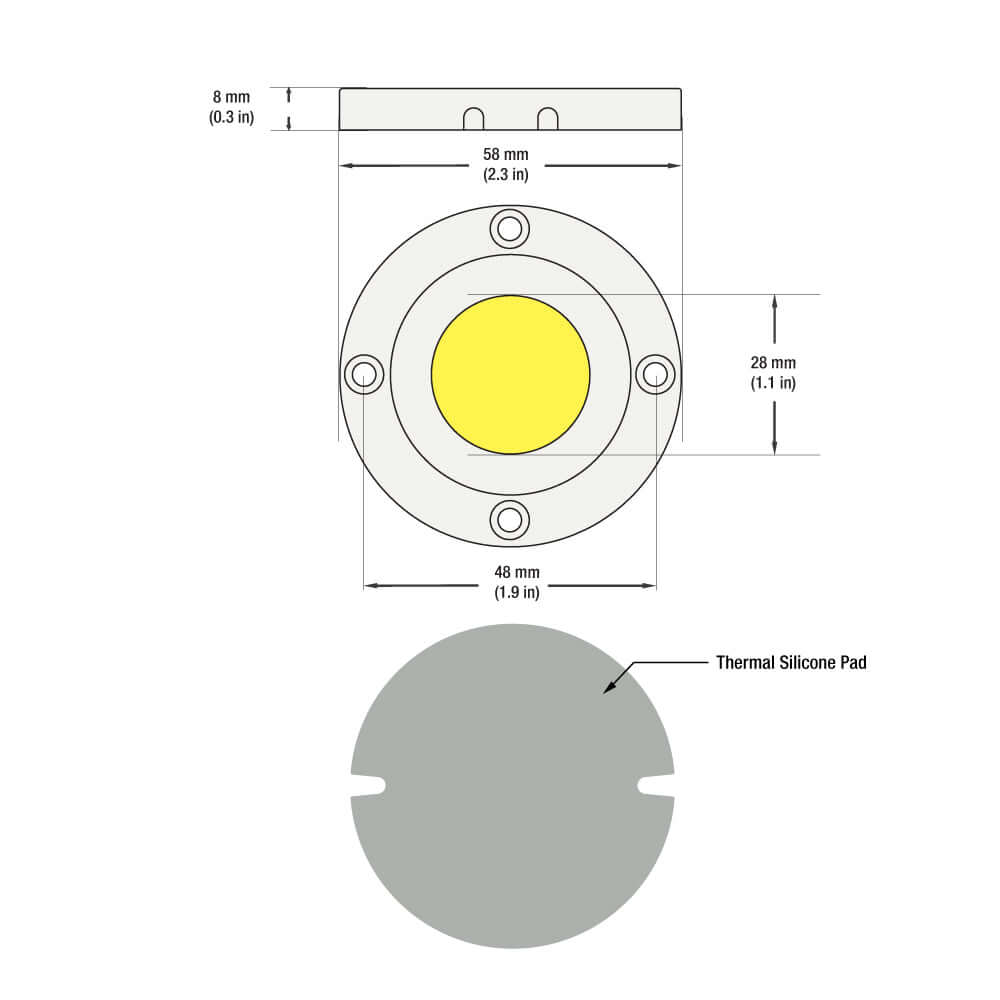

COB Holder Dimensions | ∅50mm (1.9in) x H8mm (0.3 in) |
COB Module Outer Diameter | ∅28mm (1.1 in) |
Operating Temperature | -40 ~ +105℃ |
Storage Temperature | -40 ~ +105℃ |
Included Content | COB Module, COB LED Array Holder, Thermal Pad |
Certifications | ![]() |
The CDAC-080-05028-120-5000K COB Paragon LED Module is a high-quality lighting solution that features a COB LED with 80 LED chips. It has a wattage of 10W and runs on 120V AC, providing low power consumption and high energy efficiency. The module has a power factor of PF>0.85 and a luminous intensity of 1100 lumens. It has a color temperature of 5000K (Daylight) and a rendering index of CRI>80, ensuring excellent color accuracy and brightness.

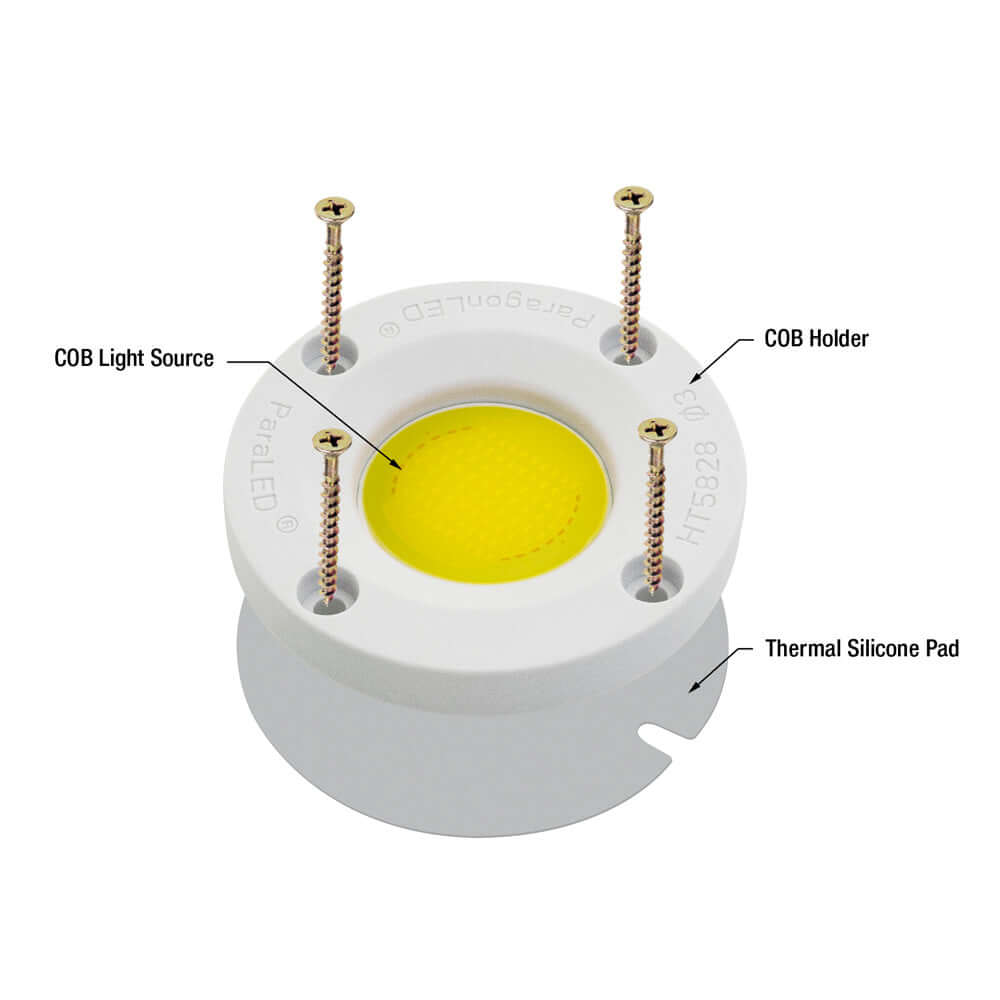

The module comes with a COB holder model no. HT5828, which allows the module to be mechanically secured, electrically connected, and pressed to a heat sink. The holder dimensions are ∅50mm (1.9in) x H7.8mm (0.3 in). The COB module outer diameter is ∅28mm (1.1 in). The module also includes a thermal pad made of silicone grease, which provides a heat sink and helps in better heat dissipation, increasing the life span of the module.
The module is suitable for use in damp locations and has an IP rating of IP20 (Indoor rated). It is important to note that it needs an aluminum heat sink to prevent overheating or serious luminous decay. The module is dimmable and comes with a polycarbonate diffuser that can easily be attached or detached. The diffuser protects the module and reduces glare while refracting light in a wider beam.
Overall, this COB Paragon LED Module is a versatile and efficient lighting solution suitable for almost every kind of luminaire, providing high-quality, bright, and accurate light output while consuming minimal power.
Features:
- The CDAC-080-05028-120-5000K COB Paragon LED Module features a COB LED with 80 LED chips and a wattage of 10W
- It runs on 120V AC and has a power factor of PF>0.85, providing low power consumption and high energy efficiency
- The module has a luminous intensity of 1100 lumens and a color temperature of 5000K (Daylight), with a rendering index of CRI>80 ensuring excellent color accuracy and brightness
- It comes with a COB holder model no. HT5828, which allows for easy mechanical and electrical connections to a heat sink
- The holder dimensions are ∅50mm (1.9in) x H7.8mm (0.3 in), and the COB module outer diameter is ∅28mm (1.1 in)
- The module includes a thermal pad made of silicone grease, which provides a heat sink and helps in better heat dissipation, increasing the lifespan of the module
- It is suitable for use in damp locations with an IP rating of IP20 (Indoor rated) and needs an aluminum heat sink to prevent overheating or serious luminous decay
- The module is dimmable and comes with a polycarbonate diffuser that can easily be attached or detached, reducing glare while refracting light in a wider beam
- This COB Paragon LED Module is versatile and efficient, suitable for almost every kind of luminaire, providing high-quality, bright, and accurate light output while consuming minimal power.
