CDAC-080-05028-120-5000K COB Paragon LED Module with HT5828 LED Holder, 120V 20W 5000K(Daylight)

  • $95.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561430597
Title:
We only have 0 left! Get it now before it's completely gone.
Will be in stock after

Free shipping on orders over $99 USD (Check availability during checkout).




Product Description

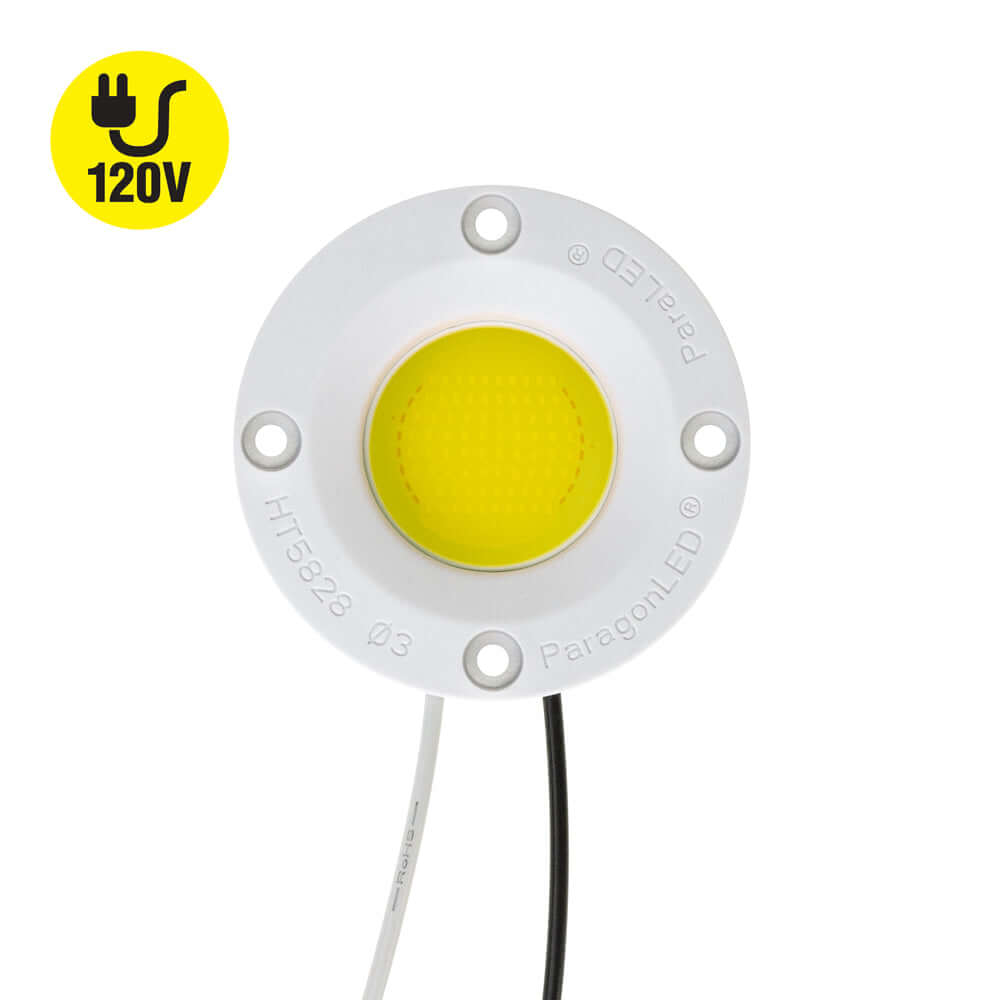

Product Paragon LED Module

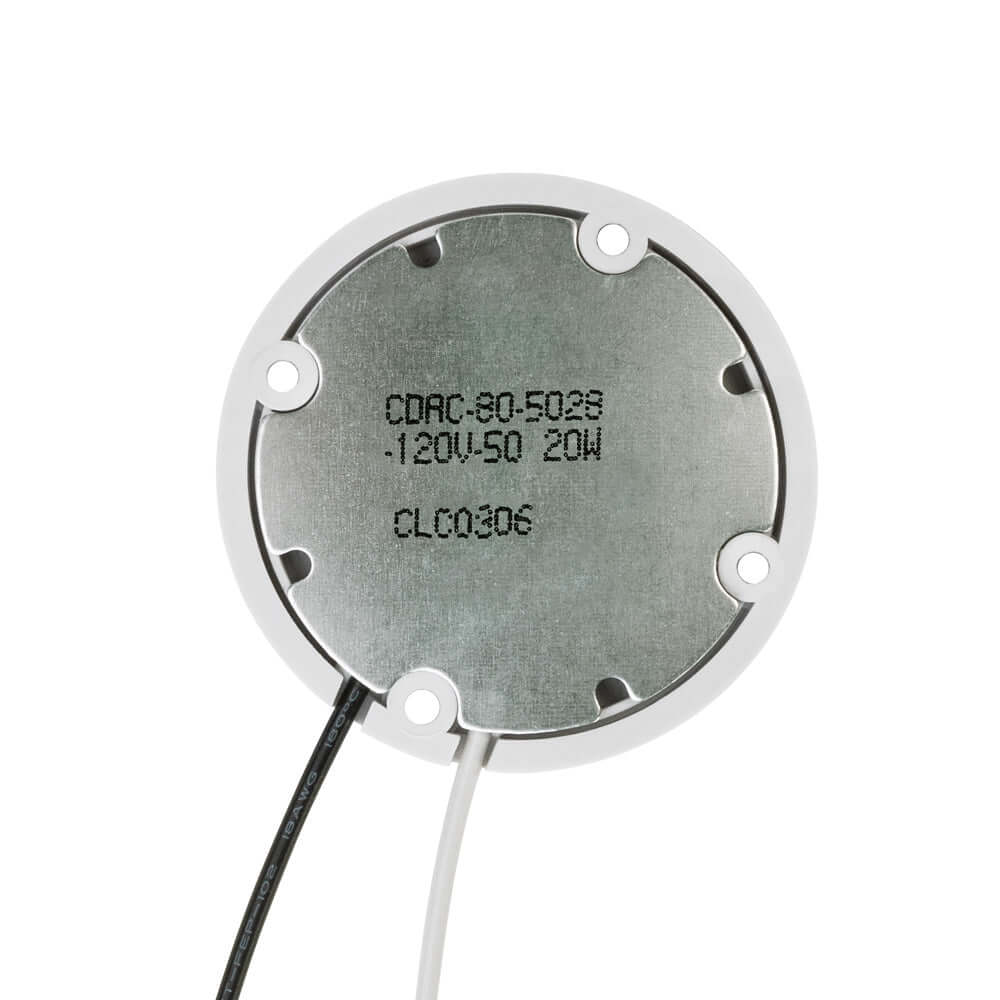

Model No CDAC-080-05028-120-5000K

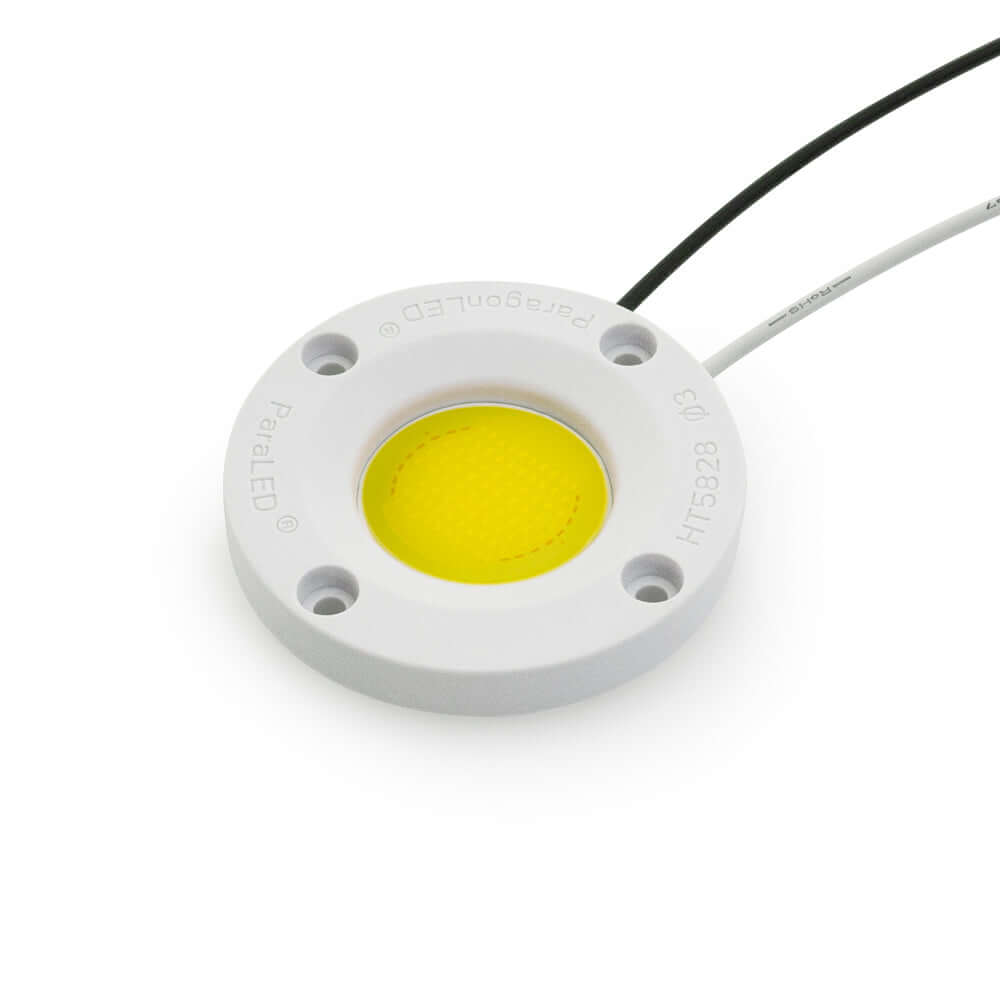

COB Holder Model No HT5828
LED Type
COB LED
No LED chips 80
Wattage 20W
Voltage 120V AC
Power Factor PF>0.85

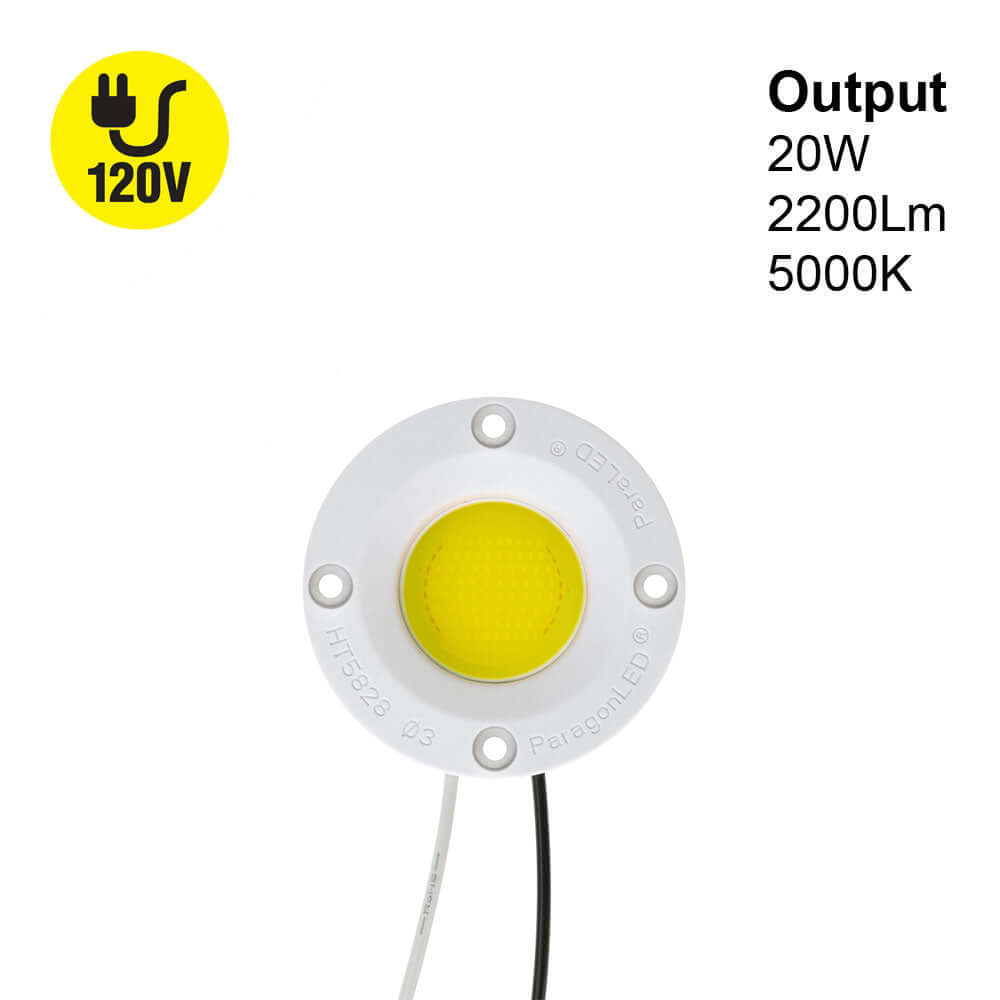

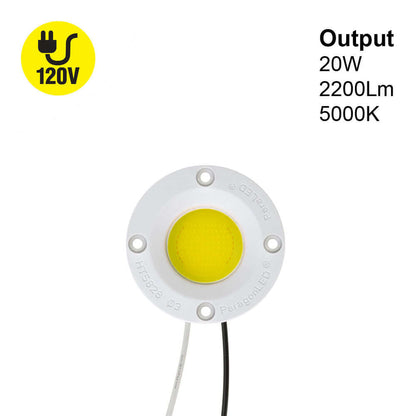

Luminous Intensity 2200 lumens
Color Temperature 5000K (Daylight)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)

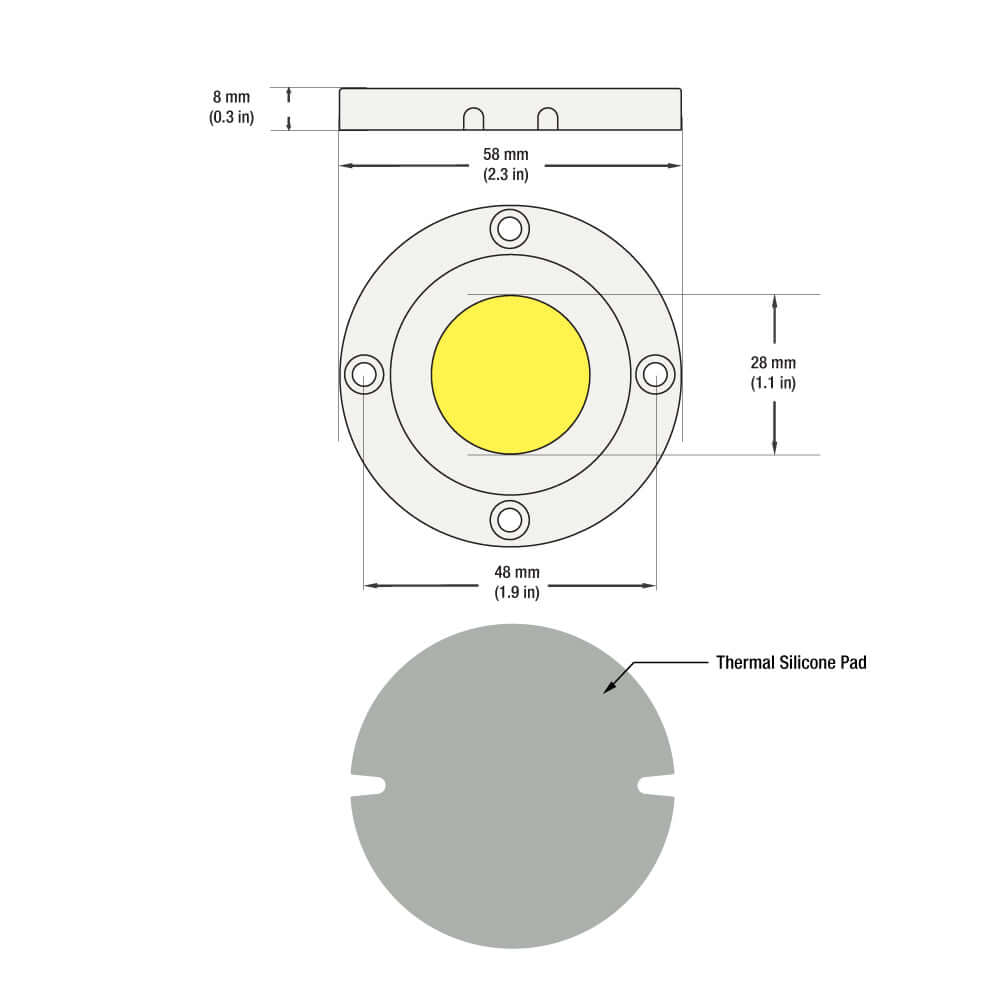

COB Holder Dimensions ∅50mm (1.9in) x H8mm (0.3 in)
COB Module Outer Diameter ∅28mm (1.1 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃

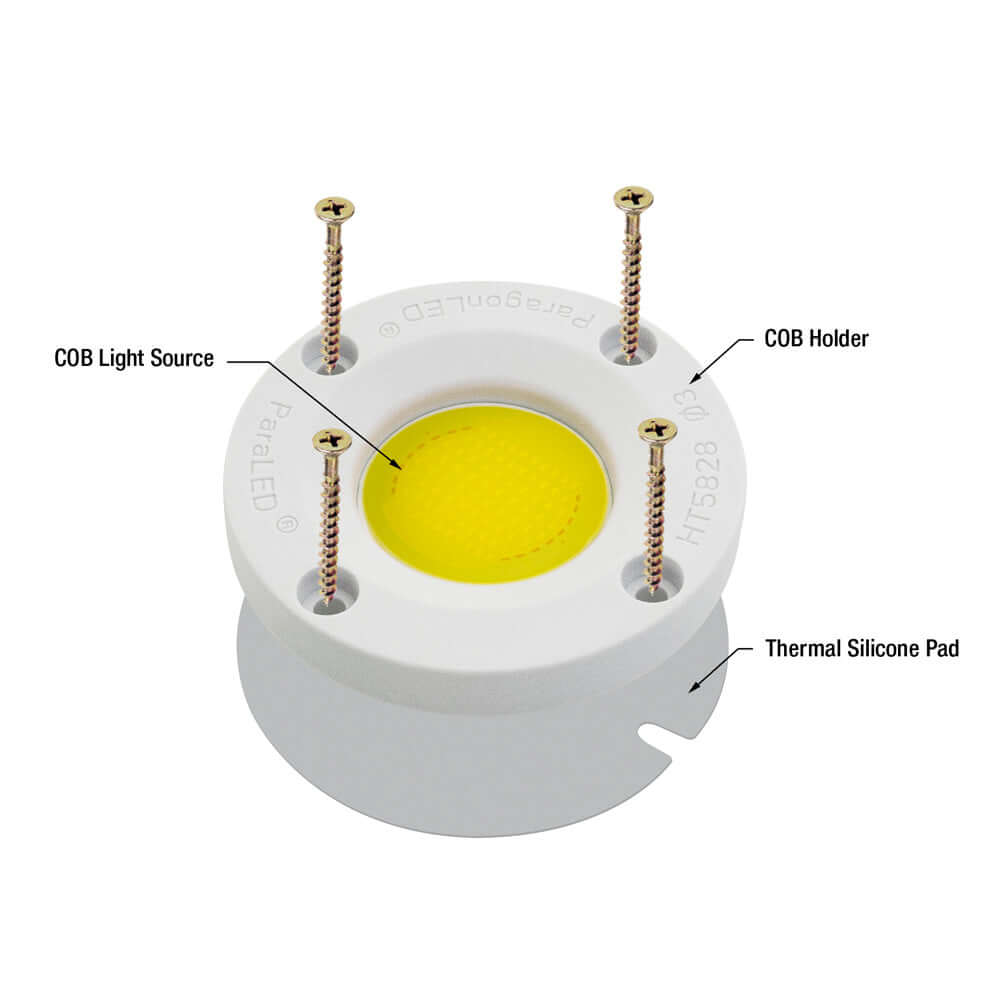

Included Content COB Module, COB LED Holder, Thermal Pad
Certifications


The Paragon LED Module with model number CDAC-080-05028-120-5000K is a COB (Chip-On-Board) LED module that comes with an HT5828 LED holder. It has 80 LED chips and a wattage of 20W, with a voltage rating of 120V AC and a power factor of PF>0.85. The module produces a luminous intensity of 2200 lumens and has a color temperature of 5000K, which emits a daylight-like white light. The module is dimmable and has a color rendering index of CRI>80.

The COB module is suitable for indoor use only, with an IP rating of IP20. It can operate in a wide temperature range of -40 ~ +105℃, and it is recommended to ground the light fixtures when designing lamps. The module comes with a polycarbonate diffuser that can be attached or detached easily. The diffuser helps to protect the module and also reduces glare while refracting light in a wider beam.

This product is UL certified and consumes low power, making it highly energy-efficient. The COB LEDs used in this module are brighter, consume less power, and produce a higher quality beam output compared to older LED technologies. COB LEDs are generally used in almost every kind of luminaire.

Features:

  • COB LED module with model number CDAC-080-05028-120-5000K
  • Contains 80 LED chips and has a wattage of 20W
  • Voltage rating of 120V AC and a power factor of PF>0.85
  • Produces a luminous intensity of 2200 lumens and has a color temperature of 5000K (Daylight)
  • Dimmable and has a color rendering index of CRI>80
  • Suitable for indoor use only with an IP rating of IP20
  • Can operate in a wide temperature range of -40 ~ +105℃
  • Comes with a polycarbonate diffuser that can be easily attached or detached
  • COB holder dimensions are ∅50mm (1.9in) x H7.8mm (0.3 in) and the COB module outer diameter is ∅28mm (1.1 in)
  • Requires an aluminum heat sink to prevent overheating and increase lifespan
  • UL certified and consumes low power, making it energy-efficient
  • COB LEDs used are brighter, consume less power, and produce a higher quality beam output compared to older LED technologies
