Product Description
| Product | Paragon LED Module |
| Model No | CDAC-136-5028-347-2700K |
| COB Holder Model No | HT5828 |
|
LED Type |
COB LED |
| No LED chips | 136 |
| Wattage | 10W |
| Voltage | 347V AC |
| Power Factor | PF>0.85 |
| Luminous Intensity | 1150 Lumens |
| Color Temperature | 2700K (Soft White) |
| Dimmable | Yes |
| Rendering Index | CRI>80 |
| IP Rating | IP20 (Indoor rated) |

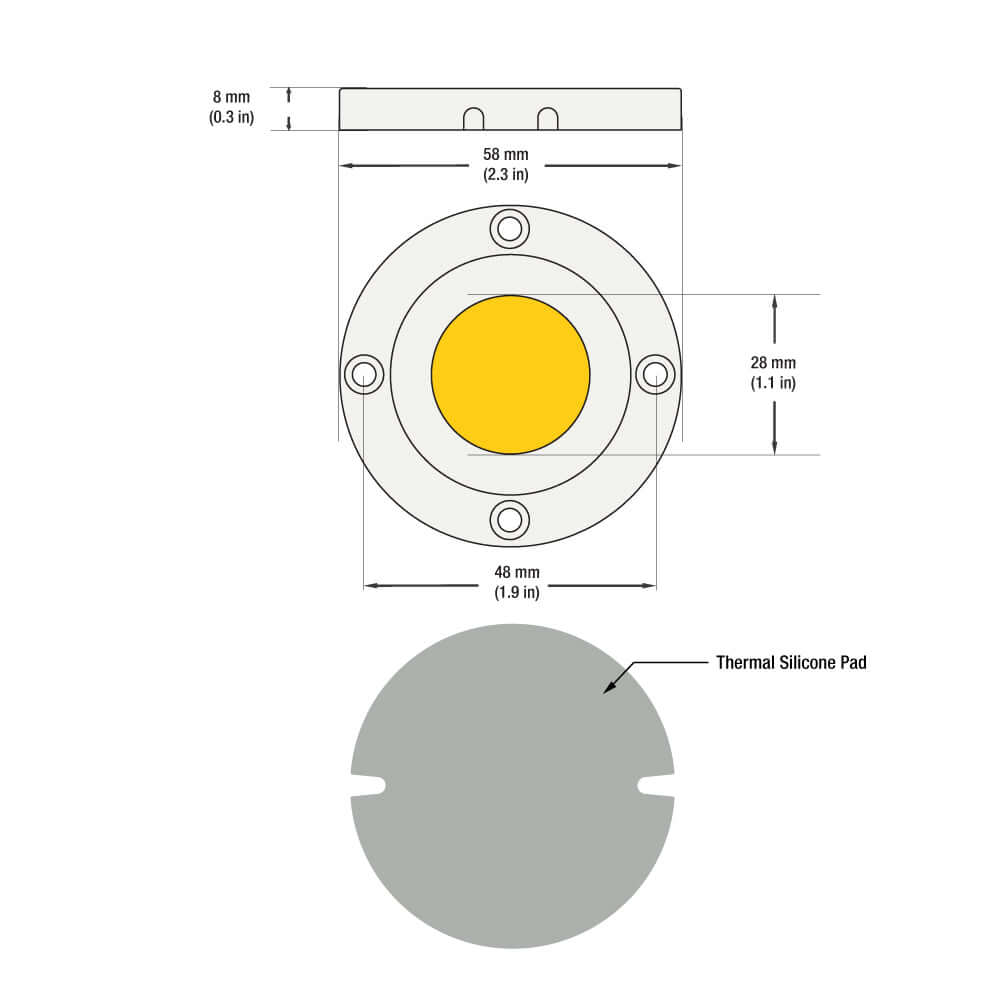

| COB Holder Dimensions | ∅58mm (2.3in) x H8mm (0.3 in) |
| COB Module Outer Diameter | ∅28mm (1.1 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |

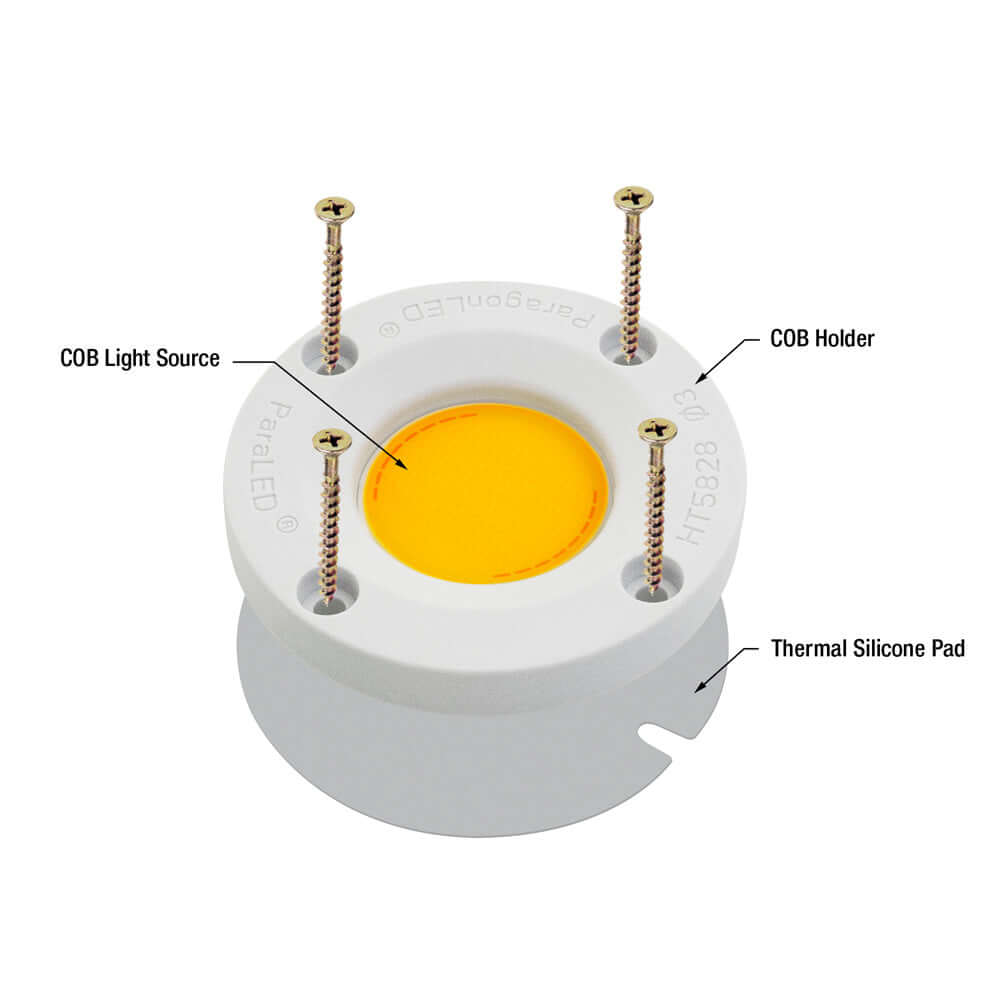

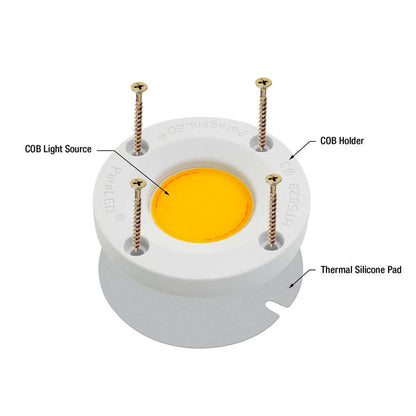

| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Certifications |  |

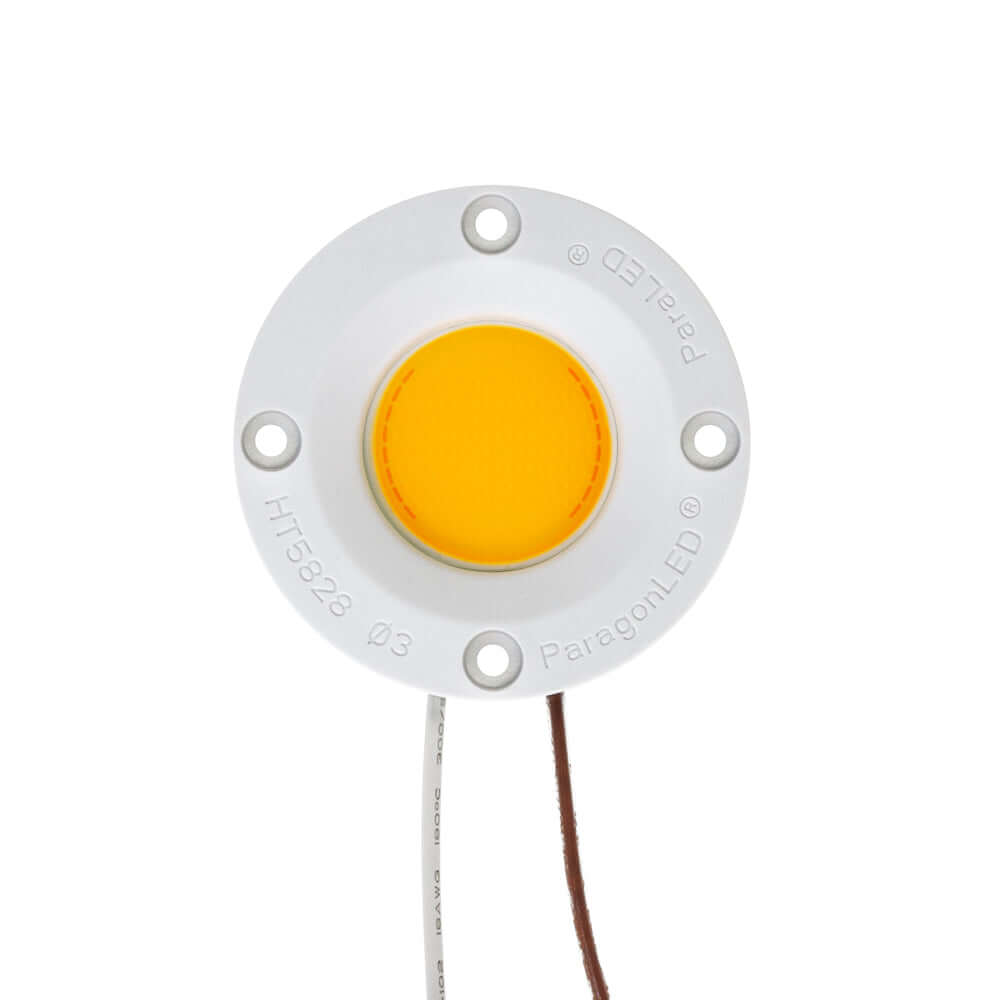

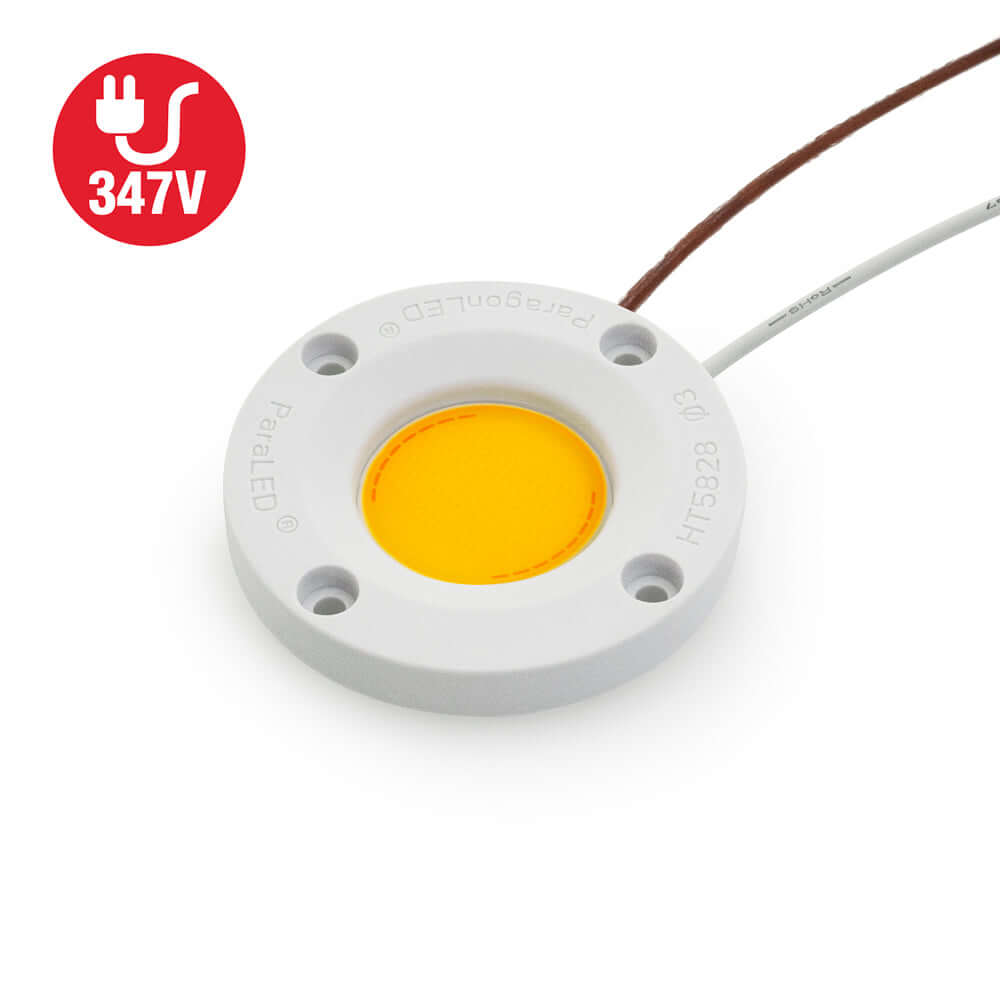

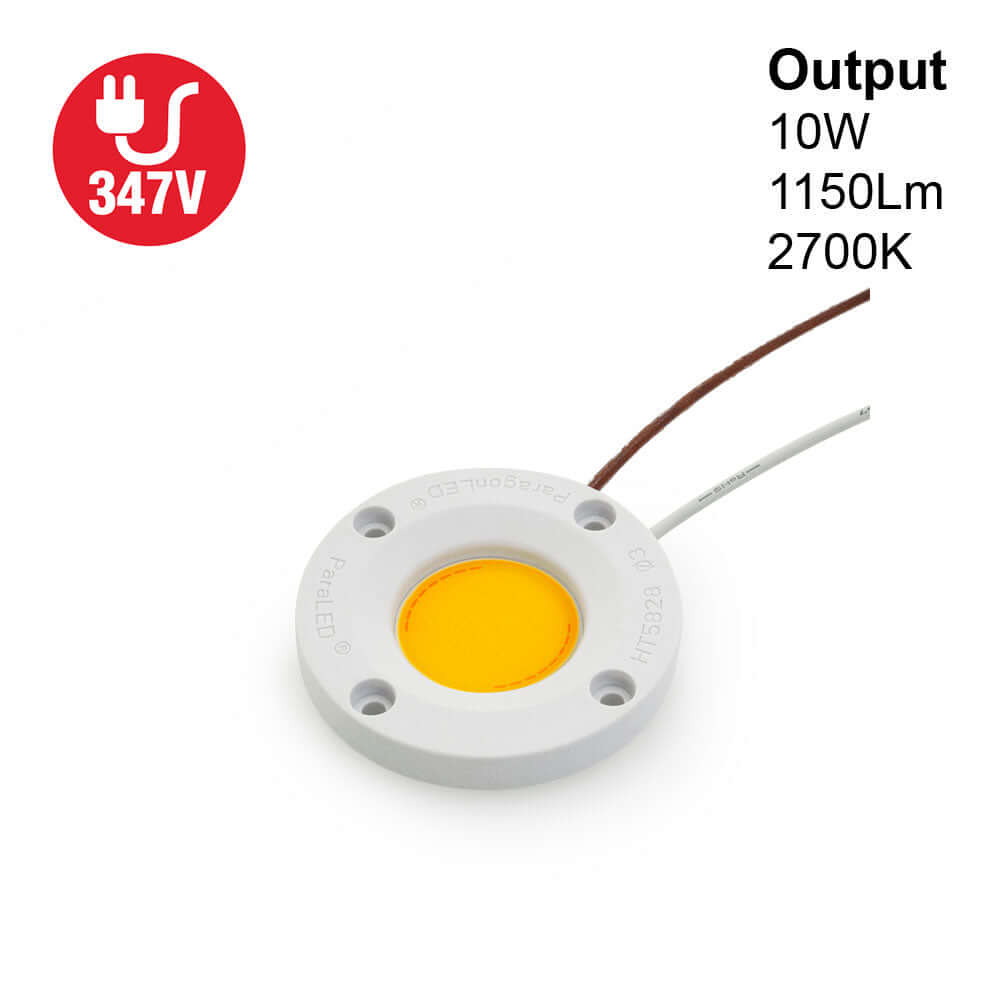

The CDAC-136-5028-347-2700K Paragon LED Module is a high-quality lighting solution that offers low power consumption and high energy efficiency. It is powered by a 10W COB LED that contains 136 LED chips and operates at a voltage of 347V AC. The LED module has a power factor greater than 0.85 and a luminous intensity of 1150 lumens, making it suitable for indoor lighting applications.
The color temperature of this LED module is 2700K, providing a warm and comfortable soft white light. It has a high color rendering index of greater than 80, which means that it accurately displays colors and details. The LED module is dimmable, allowing users to adjust the brightness to their preference.
The LED module is rated IP20, making it suitable for indoor and damp locations. However, it requires an aluminum heat sink to prevent overheating, which can cause serious luminous decay. The product also comes with a polycarbonate diffuser that helps reduce glare and refract light in a wider beam.
Features:
- High-quality LED module for indoor lighting applications
- Low power consumption and high energy efficiency
- Powered by a 10W COB LED with 136 LED chips
- Operates at a voltage of 347V AC
- Power factor greater than 0.85
- Luminous intensity of 1150 lumens
- Color temperature of 2700K for warm and comfortable soft white light
- High color rendering index greater than 80 for accurate color display
- Dimmable for brightness adjustment
- HT5828 LED holder with a diameter of 58mm and height of 8mm
- Outer diameter of the module is 28mm
- Thermal pad for heat dissipation and increased lifespan
- Rated IP20 for indoor and damp locations
- Requires an aluminum heat sink to prevent overheating and luminous decay
- Polycarbonate diffuser reduces glare and refracts light in a wider beam
- Certifications from UL for added safety and reliability
