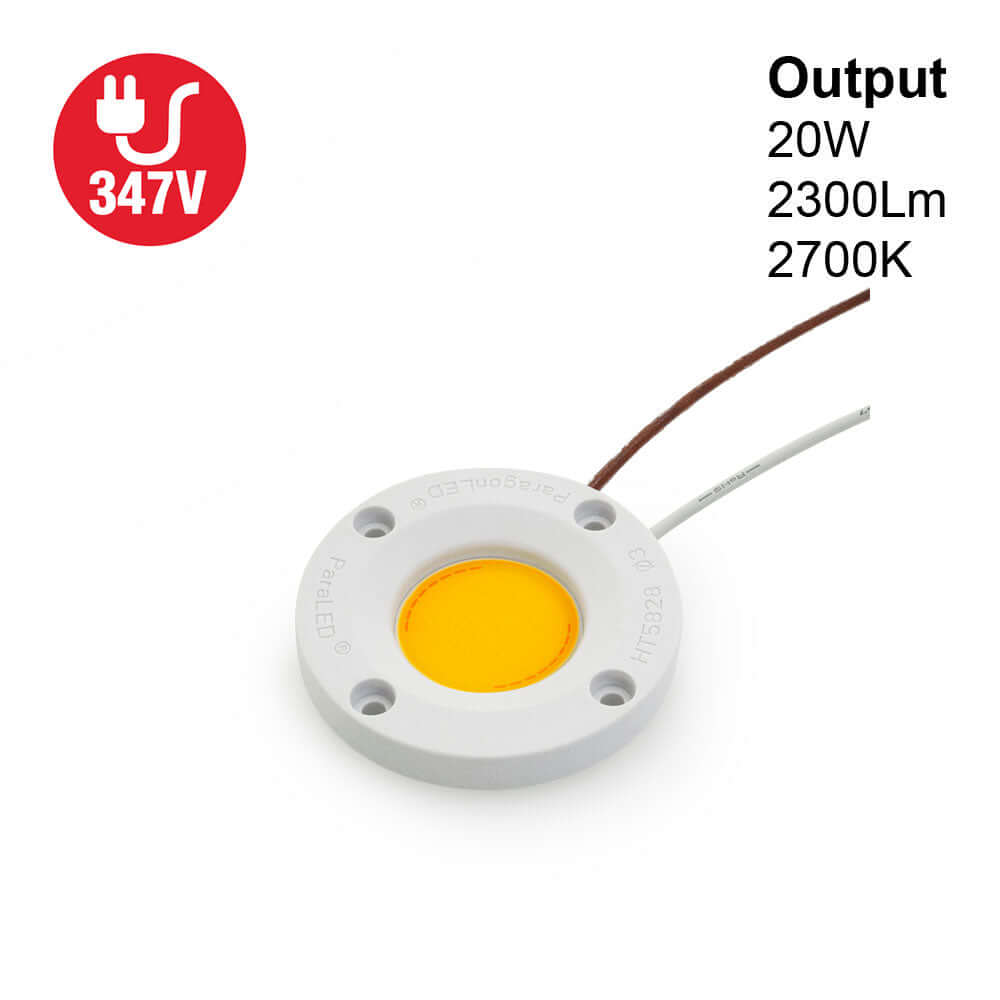

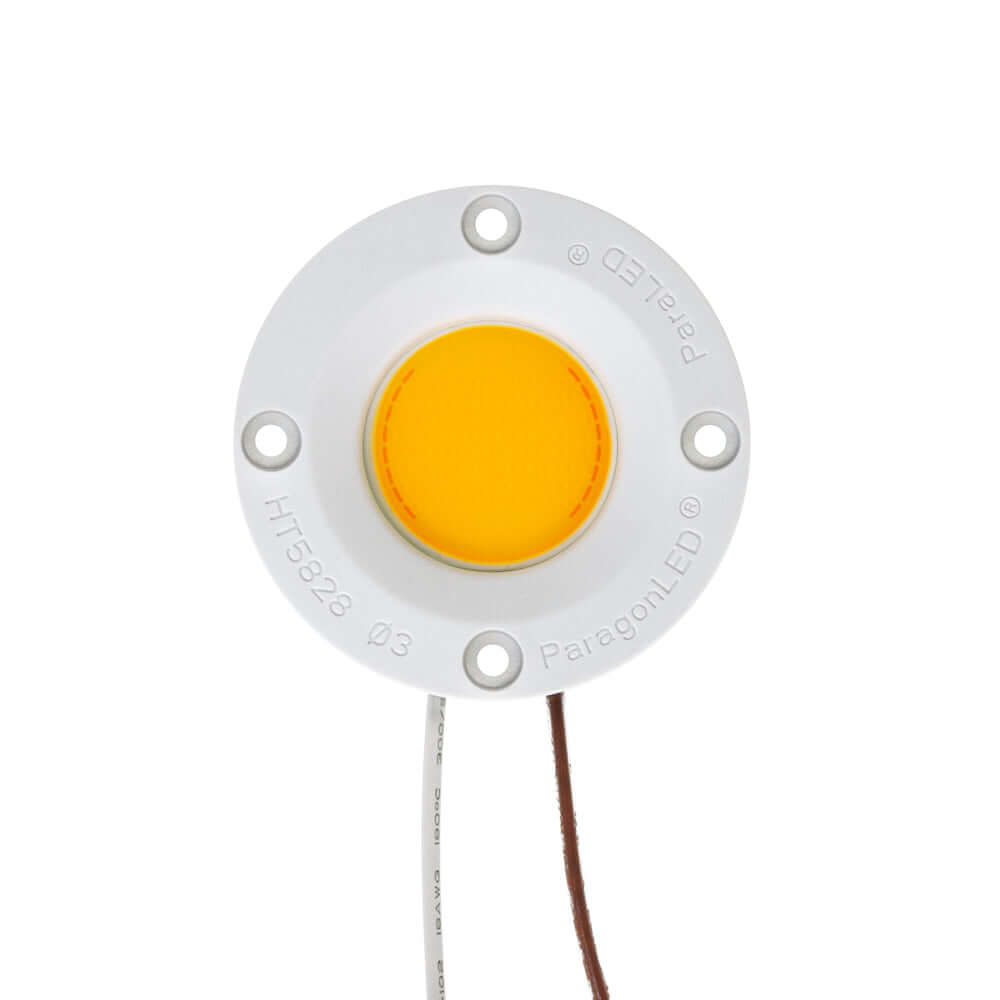

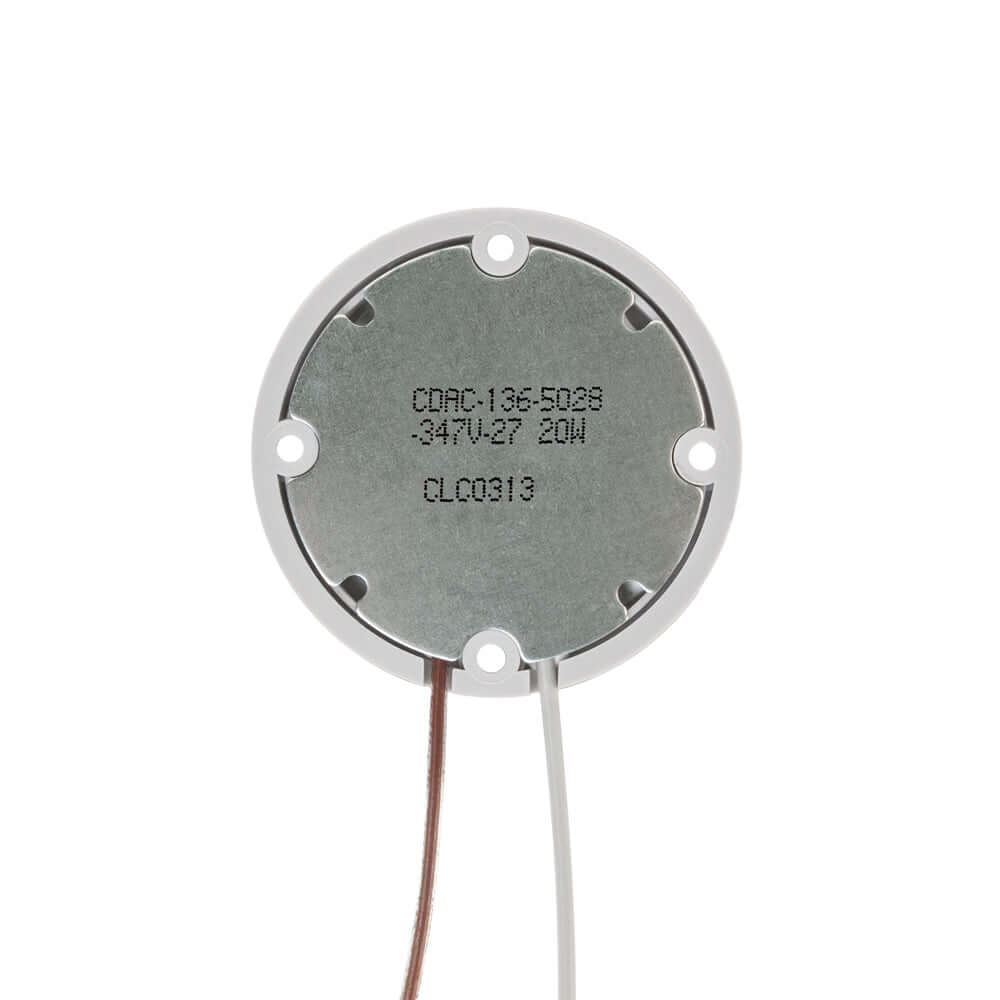

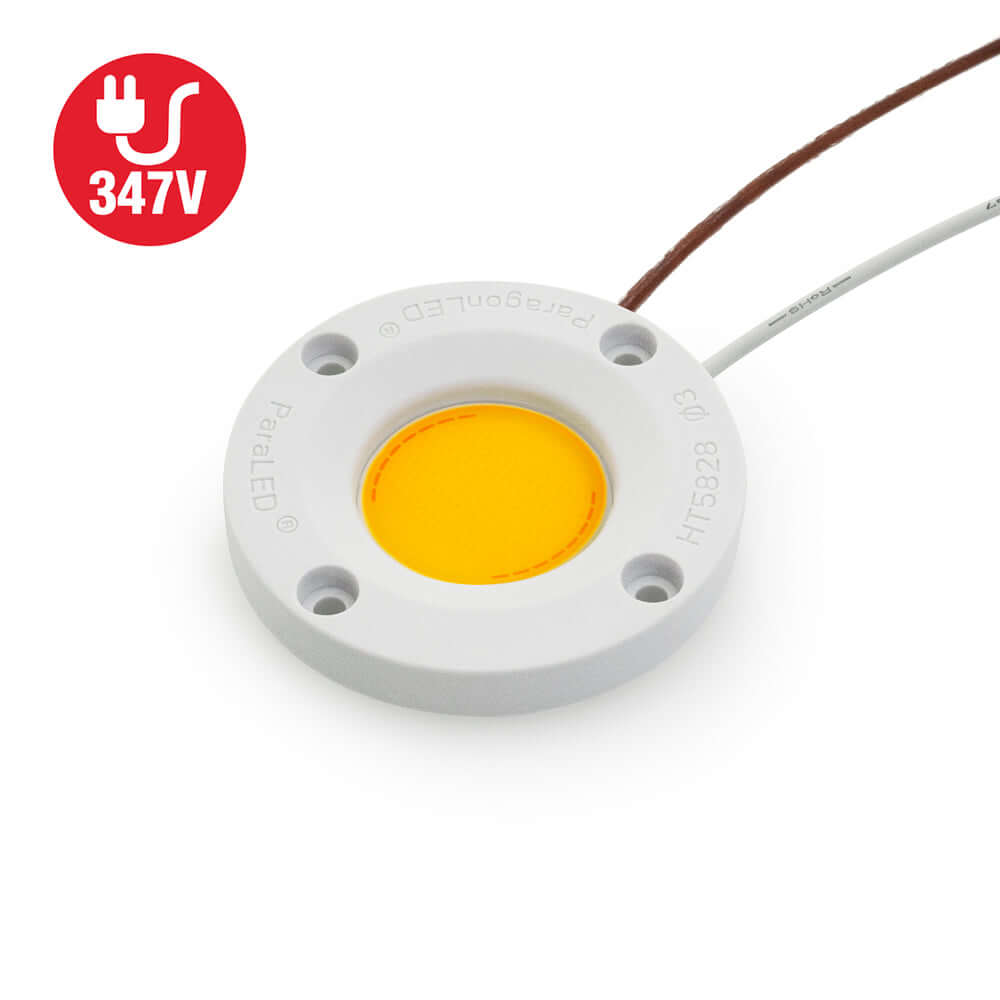

CDAC-136-5028-347-2700K COB Paragon LED Module with HT5828 LED Holder, 347V 20W 2700K(Soft White)

CDAC-136-5028-347-2700K COB Paragon LED Module with HT5828 LED Holder, 347V 20W 2700K(Soft White)

SKU: SKU:666561430665

Regular price $134.00 USD
Regular price Sale price $134.00 USD
Sale Sold out
Shipping calculated at checkout.

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

 How do we ship our product?

GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.

Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.

How do we calculate the shipping cost?

Our prices are based on US dollars and are as follows:

Free Shipping

For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?

Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?

All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?

We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?

Returns and exchanges are accepted within 30 days of the original purchase date.
Important information below:
  • All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Two week processing time.
  • To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
  • To submit a request for a return or exchange, please email sales@gekpower.com

    Return Duty Charge:

    • The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.

    Undelivered Orders:

    • If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.

    Statutory Holidays in British Columbia, Canada 2024
    January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25



    Product Description

    Product Paragon LED Module
    Model No CDAC-136-5028-347-2700K
    COB Holder Model No HT5828
    LED Type
    COB LED
    No LED chips 136
    Wattage 20W
    Voltage 347V AC
    Power Factor PF>0.85
    Luminous Intensity 2300 Lumens
    Color Temperature 2700K (Soft White)
    Dimmable Yes
    Rendering Index CRI>80
    IP Rating IP20 (Indoor rated)

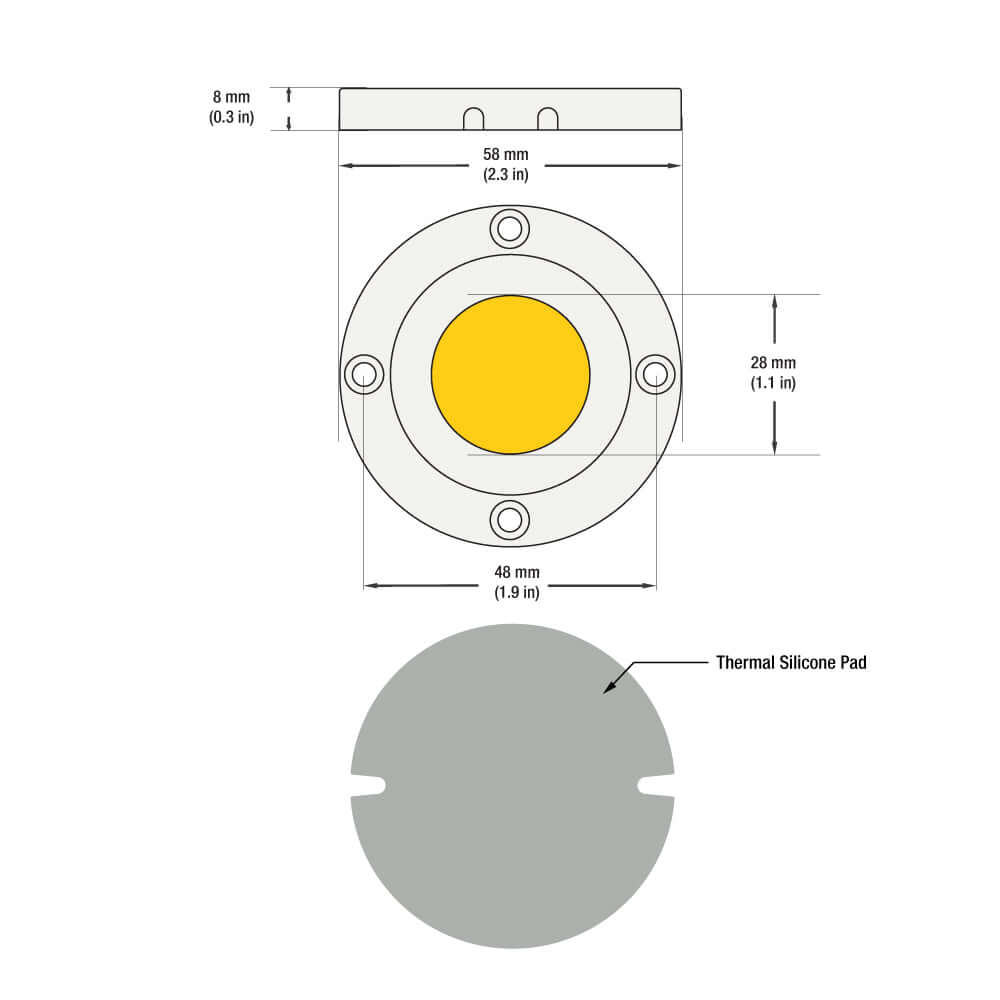

    COB Holder Dimensions ∅58mm (2.3in) x H8mm (0.3 in)
    COB Module Outer Diameter ∅28mm (1.1 in)
    Operating Temperature -40 ~ +105℃
    Storage Temperature -40 ~ +105℃
    Included Content COB Module, COB LED Holder, Thermal Pad
    Certifications


    The CDAC-136-05028-347-2700K Paragon LED Module is a high-quality lighting solution that offers low power consumption and high energy efficiency. It is powered by a 20W COB LED that contains 136 LED chips and operates at a voltage of 347V AC. The LED module has a power factor greater than 0.85 and a luminous intensity of 2300 lumens, making it suitable for indoor lighting applications.

    The color temperature of this LED module is 2700K, providing a warm and comfortable soft white light. It has a high color rendering index of greater than 80, which means that it accurately displays colors and details. The LED module is dimmable, allowing users to adjust the brightness to their preference.

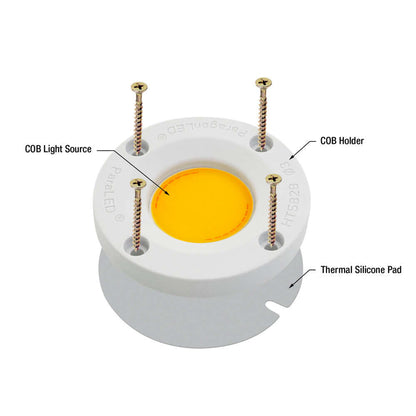

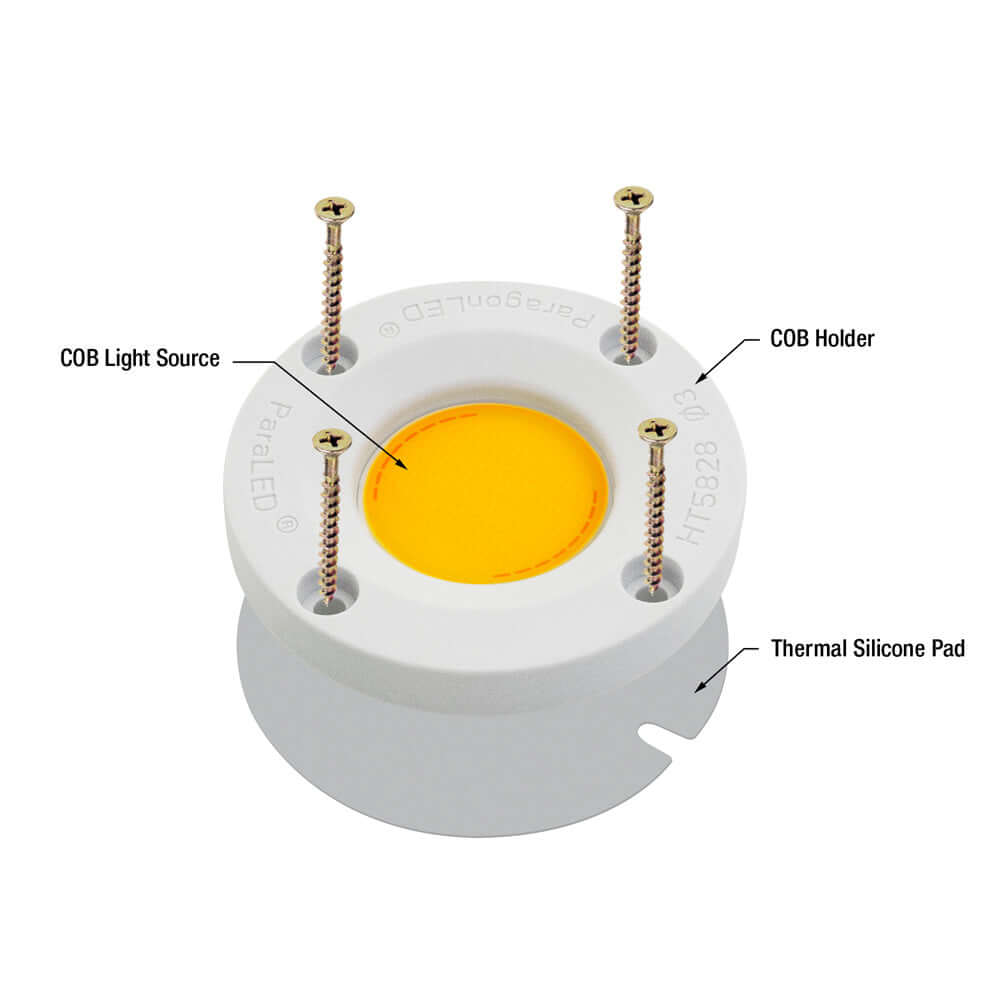

    The module comes with an HT5828 LED holder, which mechanically secures and electrically connects the module to a heat sink. The holder has a diameter of 50mm and a height of 7.8mm, while the module's outer diameter is 28mm. The LED module comes with a thermal pad that helps dissipate heat and increase the module's lifespan.

    Features:

    • 20W COB LED with 136 LED chips
    • Voltage of 347V AC and power factor greater than 0.85
    • Luminous intensity of 2300 lumens
    • Color temperature of 2700K (warm soft white light)
    • High color rendering index greater than 80
    • Dimmable
    • HT5828 LED holder with diameter of 58mm and height of 8mm
    • COB module outer diameter of 29mm
    • Thermal pad included for heat dissipation and longer lifespan
    • Rated IP20 for indoor and damp locations
    • Requires aluminum heat sink for heat dissipation
    • Polycarbonate diffuser included for reduced glare and wider beam
    • Suitable for a wide range of indoor lighting applications
    • Certified by UL for added safety and reliability
