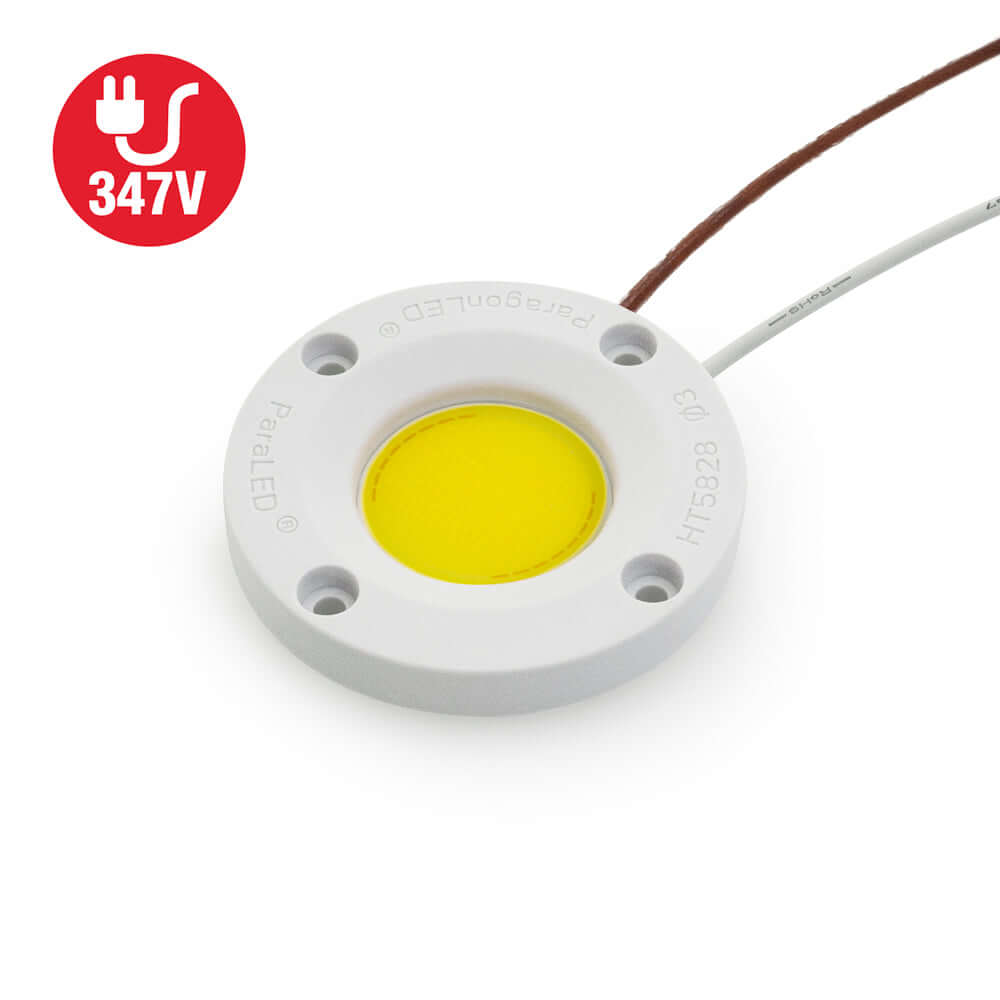

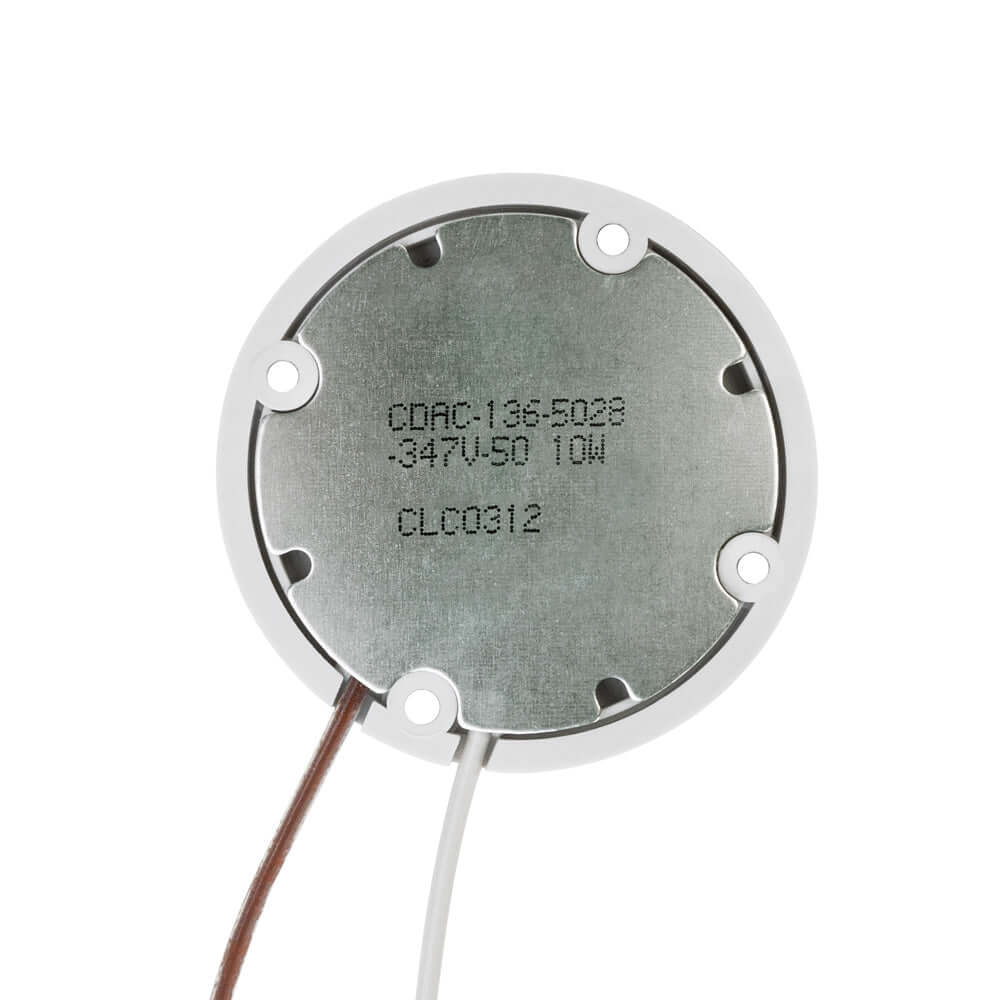

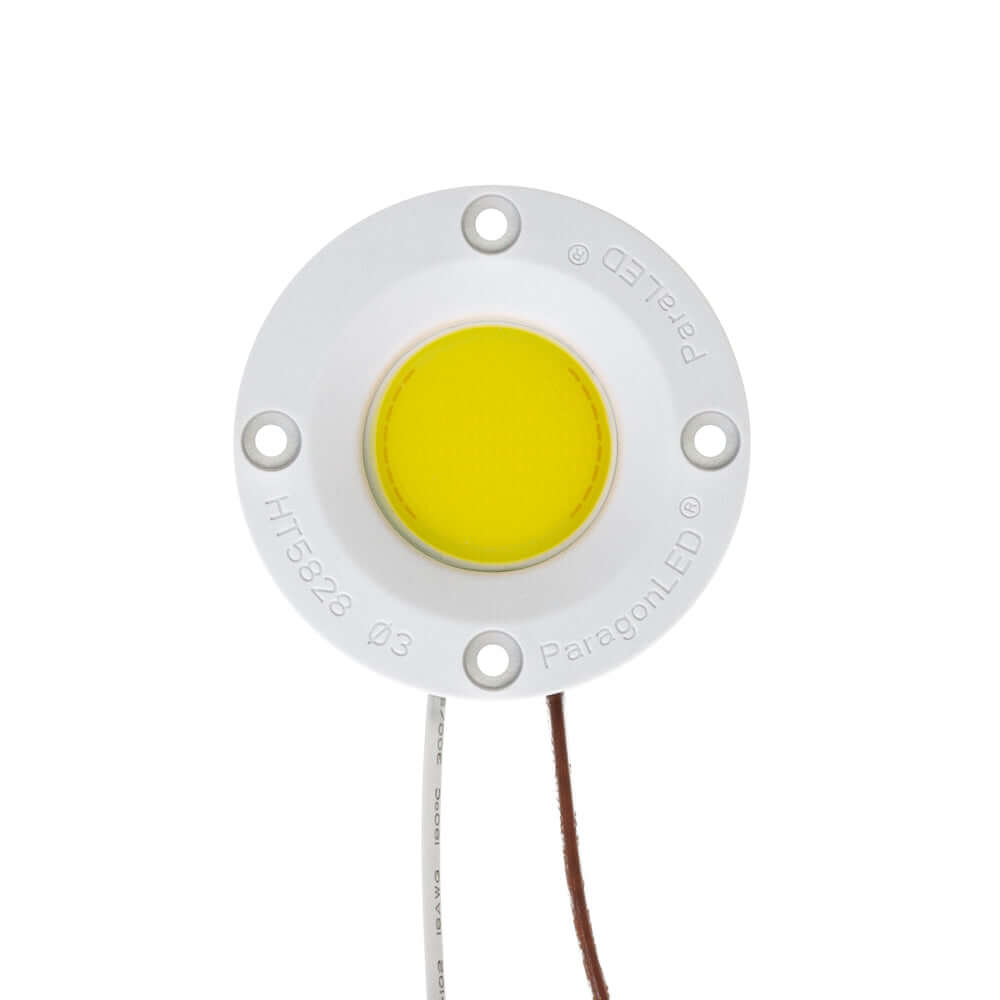

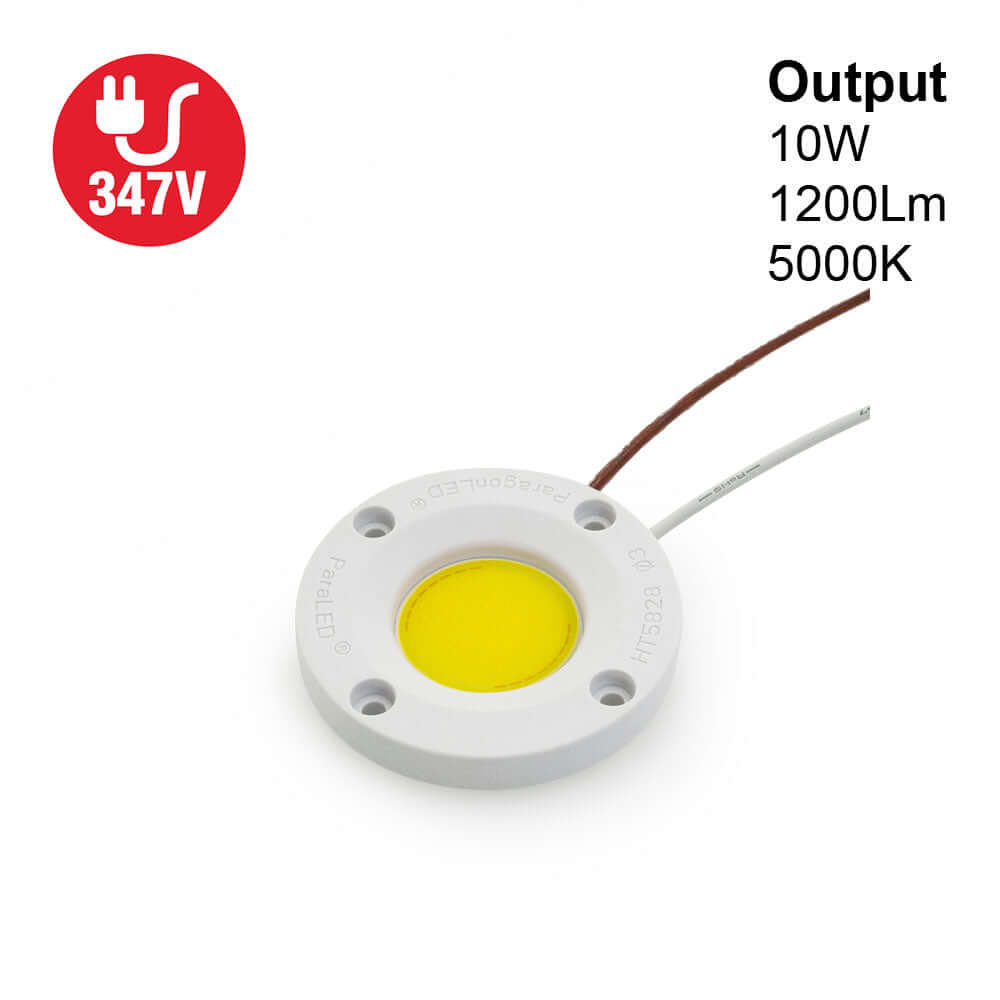

CDAC-136-5028-347-5000K COB Paragon LED Module with HT5828 LED Holder, 347V 10W 5000K(Daylight)

CDAC-136-5028-347-5000K COB Paragon LED Module with HT5828 LED Holder, 347V 10W 5000K(Daylight)

SKU: SKU:666561430658

Regular price $125.00 USD
Regular price Sale price $125.00 USD
Sale Sold out
Shipping calculated at checkout.

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

 How do we ship our product?

GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.

Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.

How do we calculate the shipping cost?

Our prices are based on US dollars and are as follows:

Free Shipping

For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?

Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?

All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?

We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?

Returns and exchanges are accepted within 30 days of the original purchase date.
Important information below:
  • All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Two week processing time.
  • To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
  • To submit a request for a return or exchange, please email sales@gekpower.com

    Return Duty Charge:

    • The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.

    Undelivered Orders:

    • If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.

    Statutory Holidays in British Columbia, Canada 2024
    January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25



    Product Description

    Product Paragon LED Module
    Model No CDAC-136-5028-347-5000K
    COB Holder Model No HT5828
    LED Type
    COB LED
    No LED chips 136
    Wattage 10W
    Voltage 347V AC
    Power Factor PF>0.85
    Luminous Intensity 1200 Lumens
    Color Temperature 5000K (Daylight)
    Dimmable Yes
    Rendering Index CRI>80
    IP Rating IP20 (Indoor rated)

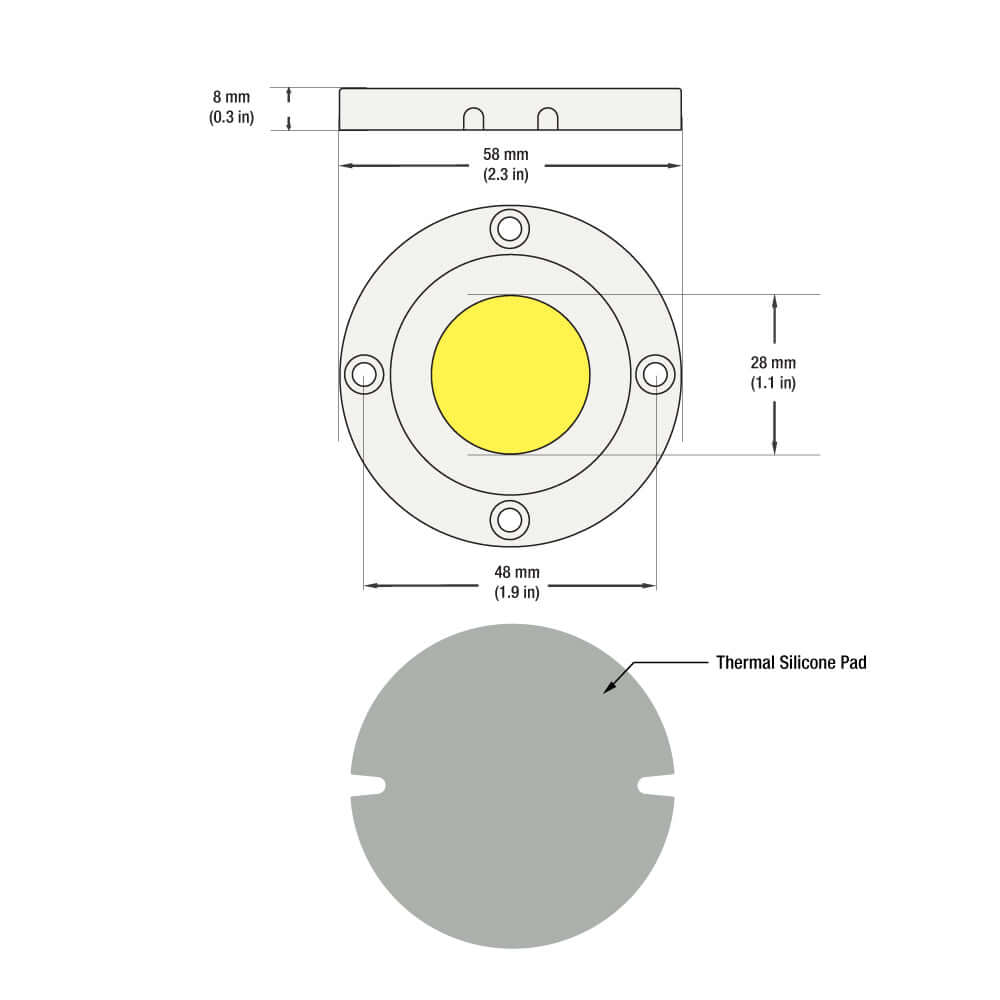

    COB Holder Dimensions ∅58mm (2.3in) x H8mm (0.3 in)
    COB Module Outer Diameter ∅28mm (1.1 in)
    Operating Temperature -40 ~ +105℃
    Storage Temperature -40 ~ +105℃

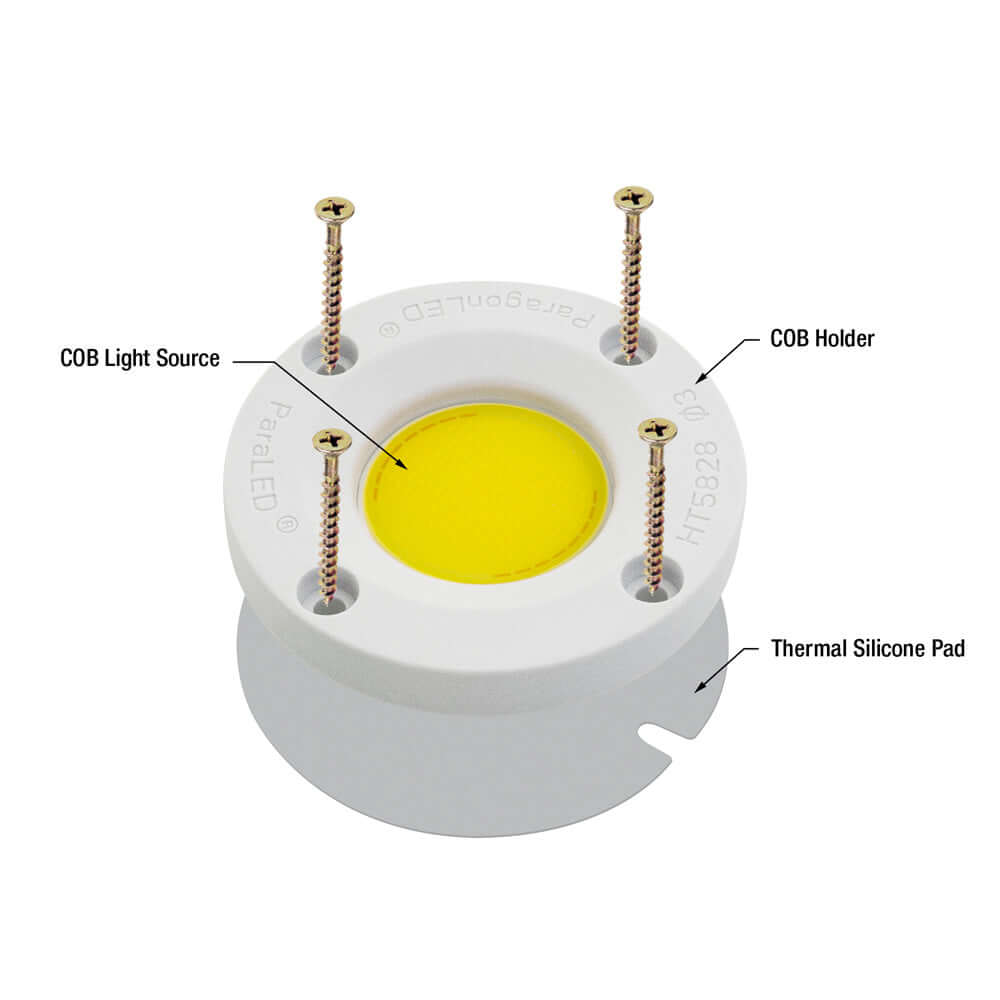

    Included Content COB Module, COB LED Holder, Thermal Pad
    Certifications


    The CDAC-136-5028-347-5000K Paragon LED Module is a high-performance lighting solution designed for indoor use. It features a COB LED with 136 LED chips, a wattage of 10W, and a voltage of 347V AC. The module has a power factor greater than 0.85 and a luminous intensity of 1200 lumens, providing bright and efficient lighting.

    The color temperature of the module is 5000K, which is considered daylight and provides a cool and crisp white light. The module is also dimmable, allowing for adjustable lighting levels to suit different needs.

    The module has a high rendering index of over 80, ensuring that colors appear true and vibrant under its light. It is also rated IP20 for indoor use and can be used in damp locations. However, it requires an aluminum heat sink to prevent overheating and ensure the longevity of the module.

    The package includes the COB module, COB LED array holder, and a thermal pad made of silicone grease. The module also comes with a polycarbonate diffuser that can be attached or detached easily. The diffuser helps in reducing glare and widening the beam angle of the light.

    Features:

    • High-performance indoor lighting solution
    • COB LED with 136 LED chips
    • 10W wattage and 347V AC voltage
    • Power factor greater than 0.85
    • Luminous intensity of 1200 lumens
    • Color temperature of 5000K (daylight)
    • Dimmable for adjustable lighting levels
    • High rendering index of over 80 for vibrant colors
    • Rated IP20 for indoor use and can be used in damp locations
    • Requires an aluminum heat sink to prevent overheating and ensure longevity
    • COB holder model HT5828 for mechanical and electrical connection
    • Package includes COB module, holder, and thermal pad
    • Polycarbonate diffuser helps reduce glare and widen beam angle
    • Suitable for use in various luminaire types
    • Certified by UL for quality and safety standards
