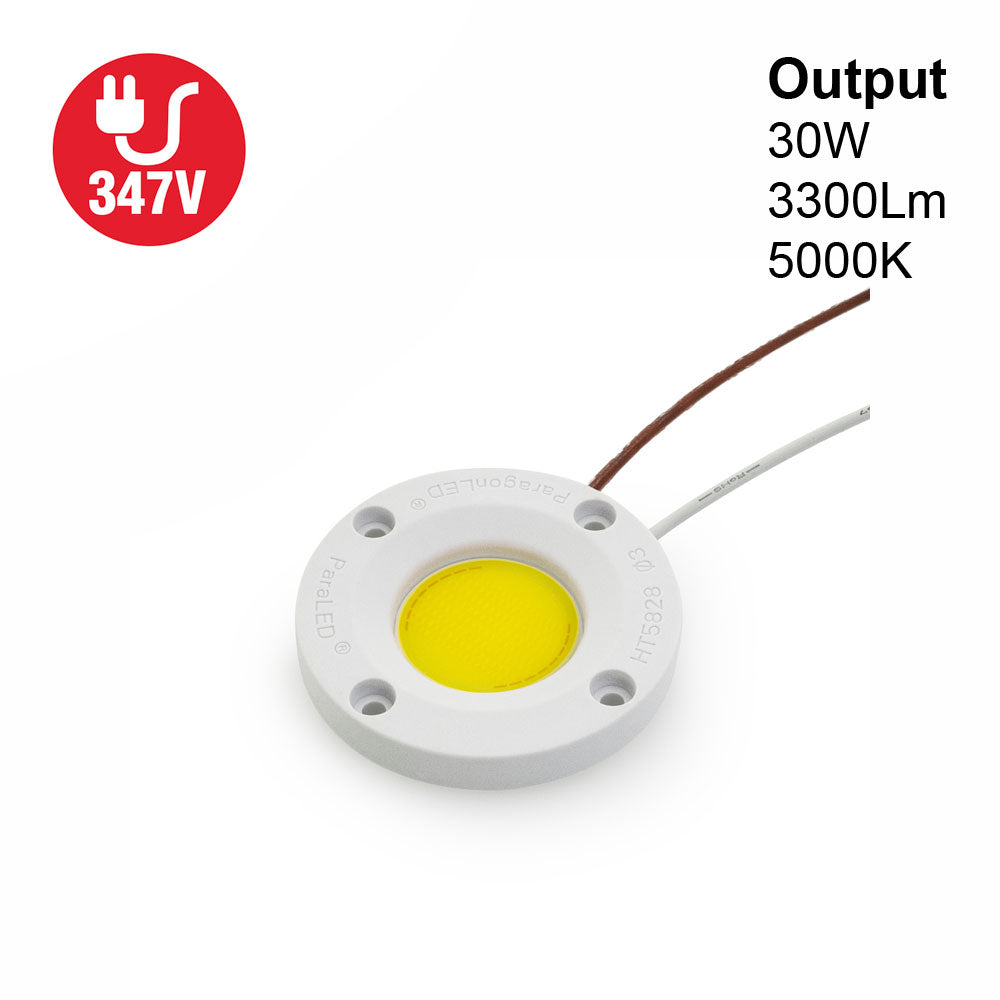

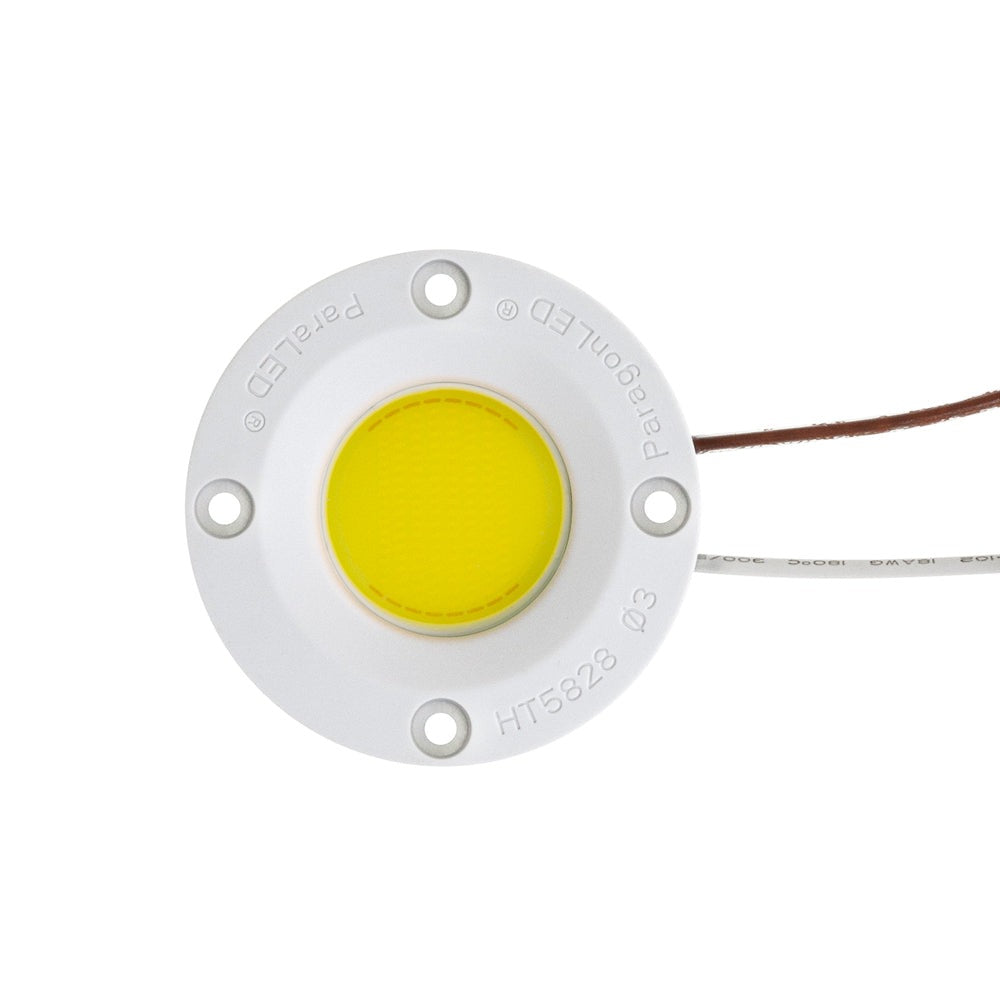

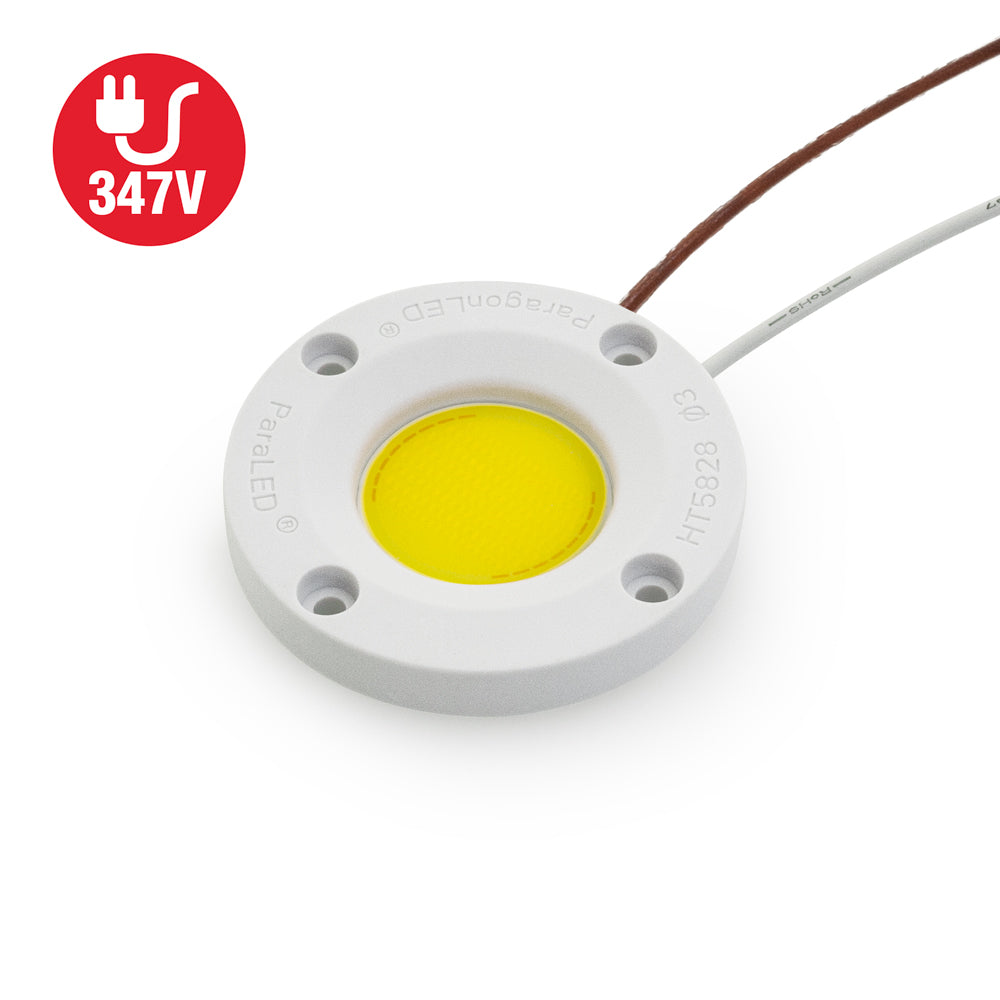

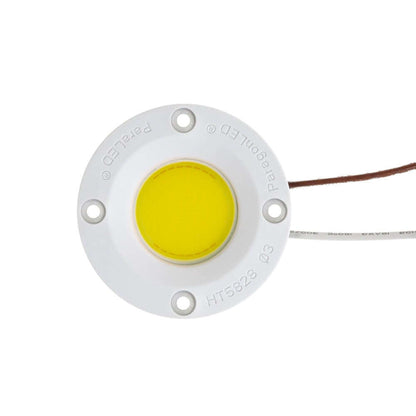

CDAC-136-5028-347-5000K COB Paragon LED Module with HT5828 LED Holder, 347V 30W 5000K(Daylight)

  • $145.00 USD
    Unit price per
Shipping calculated at checkout.
SKU: 666561430719
Title:
We only have 10 left! Get it now before it's completely gone.

Free shipping on orders over $99 USD (Check availability during checkout).




Product Description

Product Paragon LED Module
Model No CDAC-136-5028-347-5000K
COB Holder Model No HT5828
LED Type
COB LED
No LED chips 136
Wattage 30W
Voltage 347V AC
Power Factor PF>0.85
Luminous Intensity 3300 Lumens
Color Temperature 5000K (Daylight)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)

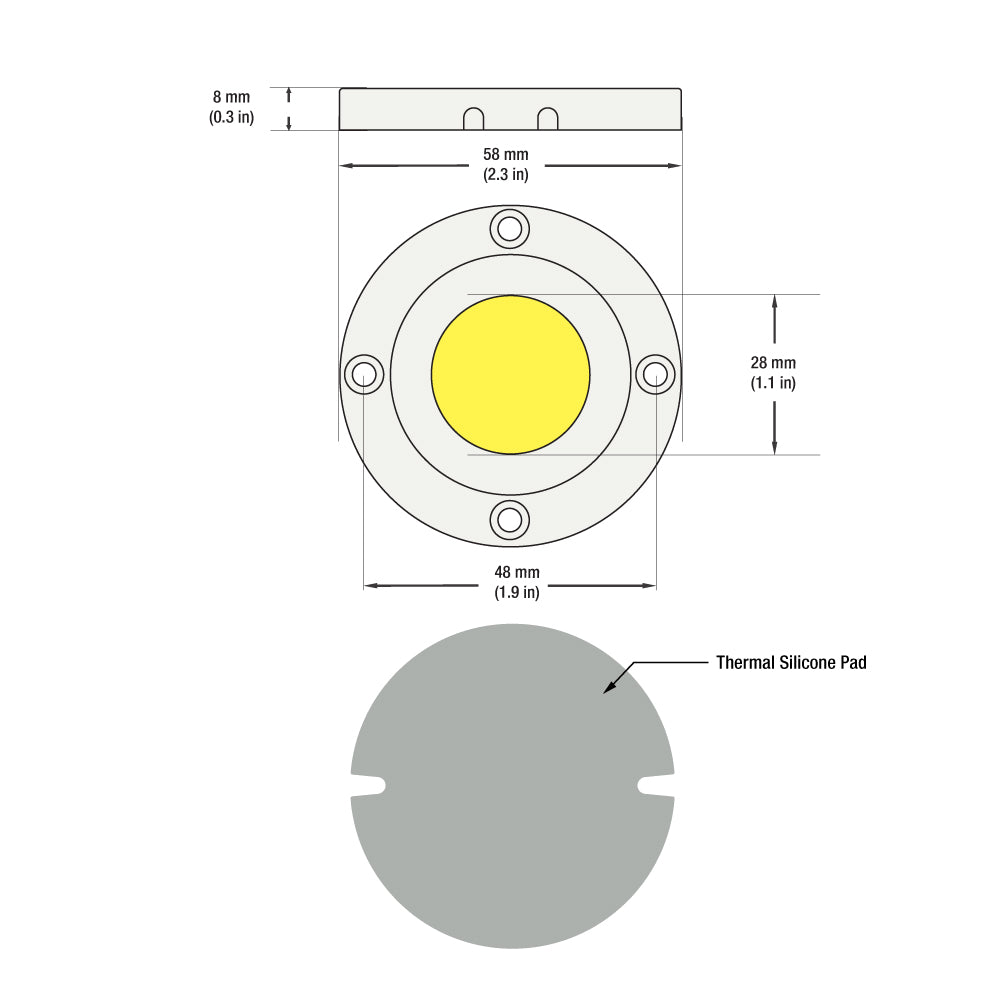

COB Holder Dimensions ∅58mm (2.7in) x H8mm (0.3 in)
COB Module Outer Diameter ∅29mm (1.1 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃

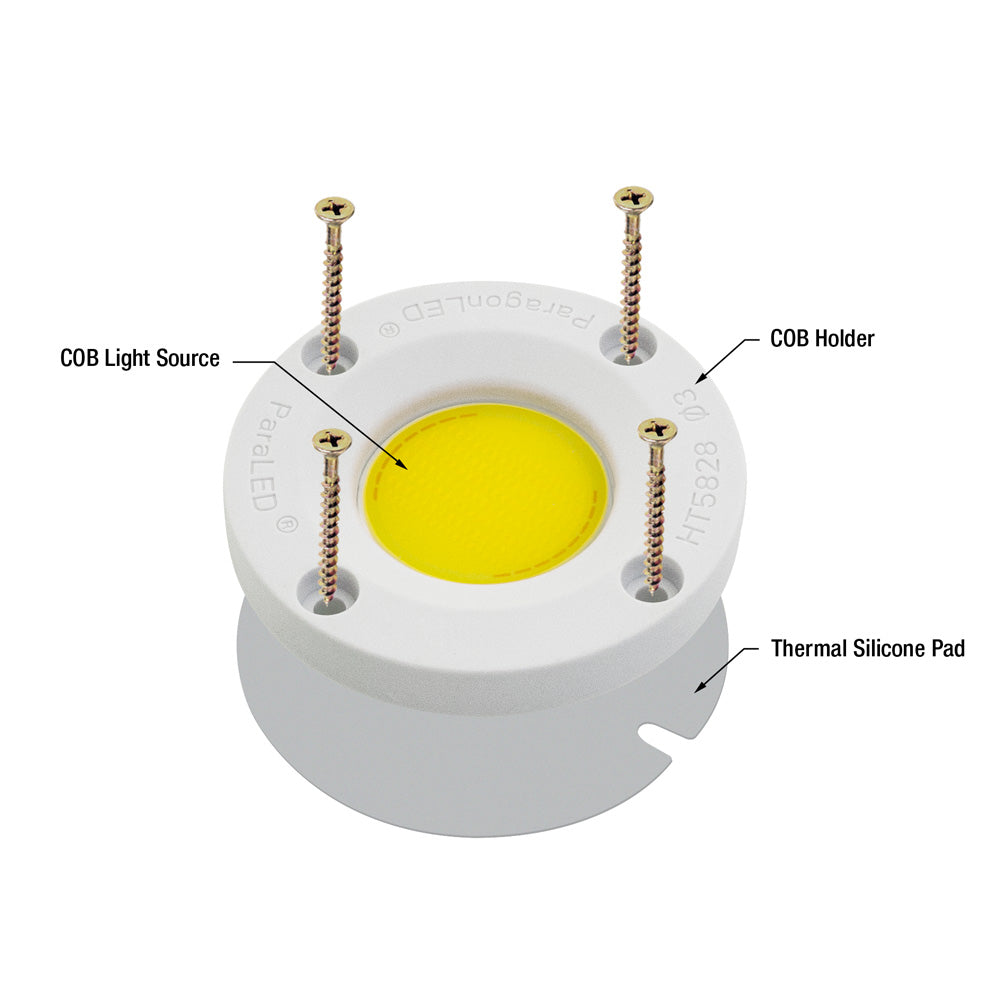

Included Content COB Module, COB LED Holder, Thermal Pad
Certifications


The CDAC-136-5028-347-5000K Paragon LED Module is a high-performance COB LED lighting solution designed for indoor use in a variety of settings, including homes, offices, and retail environments. The module includes 136 LED chips, each with a wattage of 30W, and operates at a voltage of 347V AC, providing a total luminous intensity of 3300 lumens.

The LED chips are mounted on a COB holder model HT5828, which allows the module to be securely fastened and electrically connected to a heat sink. This ensures that the LED chips remain cool during operation, preventing luminous decay and extending the lifespan of the module. The COB holder has dimensions of ∅58mm (2.7in) x H8mm (0.3 in), while the module's outer diameter is ∅29mm (1.1 in).

The module is rated IP20, meaning it is suitable for indoor use in damp locations. To prevent overheating, the module requires an aluminum heat sink to be included in the luminaire design. Additionally, the module comes with a polycarbonate diffuser that can be easily attached or detached, helping to reduce glare and refract light in a wider beam.

The CDAC-136-5028-347-5000K Paragon LED Module is certified by UL, indicating that it meets high safety and performance standards. This COB LED lighting solution is ideal for a wide range of applications due to its low power consumption, high energy efficiency, and high-quality beam output compared to older LED technologies.

Features:

  • The CDAC-136-5028-347-5000K Paragon LED Module is a high-quality COB LED lighting solution suitable for indoor use in a variety of settings such as homes, offices, and retail environments.
  • The module has 136 LED chips, each with a wattage of 30W, and operates at a voltage of 347V AC, providing a total luminous intensity of 3300 lumens.
  • It features a COB holder model HT5828, which allows the module to be securely fastened and electrically connected to a heat sink, preventing overheating and ensuring a longer lifespan for the module.
  • The module is dimmable and has a color temperature of 5000K, which is considered to be in the daylight range, and has a high color rendering index (CRI) of over 80, ensuring that colors appear true to life.
  • It has an IP20 rating, making it suitable for indoor use in damp locations, and is certified by UL for high safety and performance standards.
  • To reduce glare and refract light in a wider beam, the module comes with a polycarbonate diffuser that can be easily attached or detached.
  • With its low power consumption, high energy efficiency, and high-quality beam output, the CDAC-136-05028-347-5000K Paragon LED Module is an ideal choice for a wide range of indoor lighting applications.
