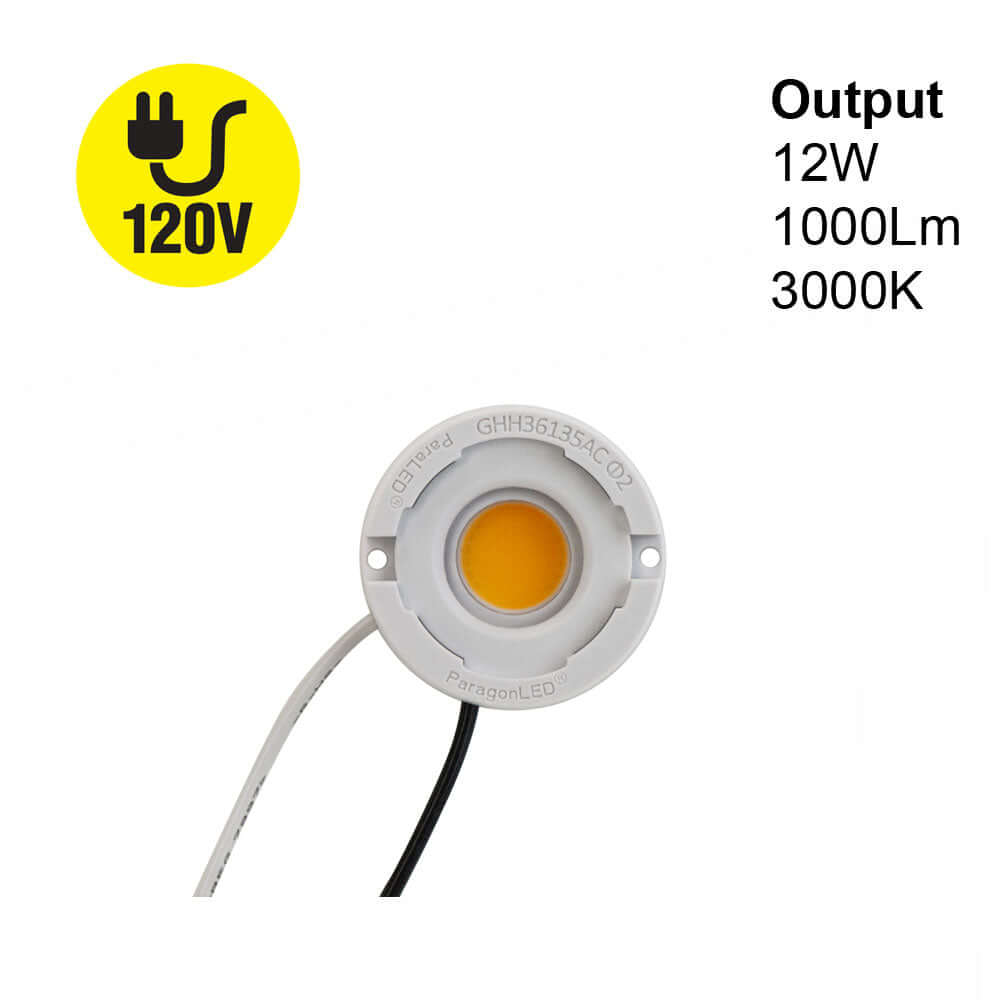

CDHT-042-30135-120V-3000K G11 COB Paragon LED Module with GHH36135AC LED Holder, 120V 12W 3000K(Warm White)

CDHT-042-30135-120V-3000K G11 COB Paragon LED Module with GHH36135AC LED Holder, 120V 12W 3000K(Warm White)

SKU: SKU:666561434250

Regular price $79.00 USD
Regular price Sale price $79.00 USD
Sale Sold out
Shipping calculated at checkout.

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

 How do we ship our product?

GekPower will ship via the most reliable and time-efficient courier available depending on the location of the delivery.

Customers may provide GekPower with their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at the time of checkout.

How do we calculate the shipping cost?

Our prices are based on US dollars and are as follows:

Free Shipping

For orders totalling $99 USD or above.
Free shipping is Not available for specific products; please check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?

Product shipping costs are charged based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?

All orders are shipped through different couriers based on the priority you selected at checkout. All orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Any orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?

We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?

Returns and exchanges are accepted within 30 days of the original purchase date.
Important information below:
  • All returned products must be in new, resellable condition and in original packaging to be accepted as a valid return or exchange.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Two week processing time.
  • To Return any product, make sure to use USPS for the United States, Other shipping companies are NOT acceptable.
  • To submit a request for a return or exchange, please email sales@gekpower.com

    Return Duty Charge:

    • The customer is responsible for any duty charges incurred on a returned product by the carrier, if applicable.

    Undelivered Orders:

    • If an order is undelivered due to refusal, no mailbox, or customs issues, return shipping costs will be deducted from your refund.

    Statutory Holidays in British Columbia, Canada 2024
    January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25



    Product Description

    Product Paragon LED Module
    Model No CDHT-042-30135-120V-3000K
    COB Holder Model No GHH36135AC
    LED Type
    COB LED
    No LED chips 42
    Wattage 12W
    Voltage 120V AC
    Power Factor PF>0.98
    Luminous Intensity 1000 lumens
    Color Temperature 3000K (Warm White)
    Dimmable Yes
    Rendering Index CRI>90
    IP Rating IP20 (Indoor rated)
    Wire Size 20mm (0.78in)
    18 AWG
    COB Holder Dimensions ∅ 35.7 x 11.85mm (1.4 x 0.46in)
    COB Module Outer Diameter ∅ 16.5mm (0.65in)
    Operating Temperature -40 ~ +105℃
    Storage Temperature -40 ~ +105℃
    Assembly process Temperature <300℃
    Solder joint point <105℃
    Dielectric Breakdown Voltage of Thermal Pad >4KV
    Included Content COB Module, COB LED Holder, Thermal Pad
    Certifications


    The Paragon LED Module is a COB LED module designed for indoor use with a model number of CDHT-042-30135-120V-3000K G11. The module has 42 LED chips and a wattage of 12W, with a voltage of 120V AC and a power factor greater than 0.98. It has a luminous intensity of 1000 lumens and a color temperature of 3000K (Warm White), with a dimmable feature.

    The package includes the COB Module, COB LED Holder, and Thermal Pad, and the product is certified by UL. To prevent overheating, an aluminum heat sink is required during installation to increase the life span of the module. The product comes with a polycarbonate diffuser that can easily be attached or detached, which helps in reducing the glare and refracting the light in a wider beam.

    The COB holder allows the module to be mechanically secured, electrically connected, and pressed to a heat sink. A silicone grease thermal pad provides a heat sink and helps in better heat dissipation. This product is suitable for almost every kind of luminaire, but it is important to ground light fixtures while designing lamps.

    Features:

    • COB LED module designed for indoor use with 42 LED chips and a wattage of 12W
    • Voltage of 120V AC and power factor greater than 0.98
    • Luminous intensity of 1000 lumens and color temperature of 3000K (Warm White), with dimmable feature
    • High rendering index of greater than 90 (CRI>90) and IP20 rating, suitable for use in damp locations
    • Operating temperature range of -40 to +105℃
    • Dielectric breakdown voltage of thermal pad greater than 4KV
    • Package includes COB Module, COB LED Holder, and Thermal Pad
    • Certified by UL
    • Aluminum heat sink required during installation to prevent overheating and increase lifespan
    • Polycarbonate diffuser included for reducing glare and refracting light in wider beam
    • COB holder allows for mechanical securing, electrical connection, and attachment to heat sink
    • Silicone grease thermal pad provides heat sink and improves heat dissipation
    • Suitable for various luminaires but important to ground light fixtures while designing lamps.
